BR1010/4
FOUR SIDED SERIES
|
|
|
|
|
|
|
For
door openings up to 20' wide x 12' high |
|
|
|
|
|
|
INFLATABLE
RAIL SEAL
|
|
|
|
|
|
|
|
|
|
|
STANDARD
FEATURES: |
|
|
|
|
Construction: |
|
|
|
|
3/4" painted exterior
plywood backboard, 18 oz. vinyl coated
nylon fabric, galvanized mounting channel. |
|
|
|
|
Backboard
Dimension: |
|
|
|
|
10'-0"
W x 10'-0" H INSIDE (above dock)
12'-0" W x 11'-0" H OUTSIDE (above dock) |
|
|
|
|
Projection: |
|
|
|
|
From
24" to 82", determined by the dimension from the building
to the rail track. |
|
|
|
|
Inflation: |
|
|
|
|
1/3
hp, 110/230V, 1 ph. blower with die cast aluminum housing.
Inflation time is approximately 60 seconds. |
|
|
|
|
Color: |
|
|
|
|
Black |
|
|
|
|
|
Bondor's
Model BR1010 |
|
|
|
|
|

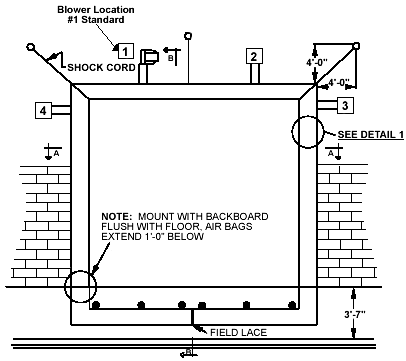

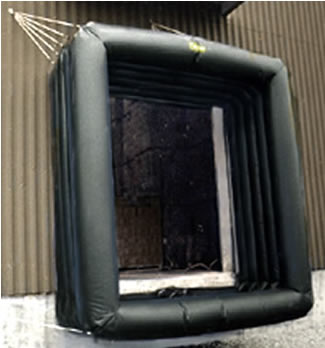

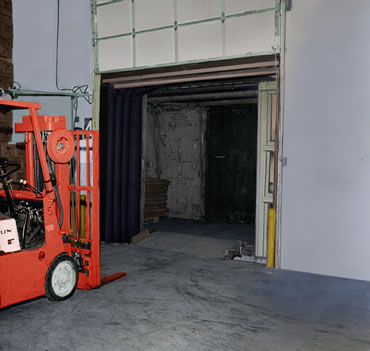

Bondor
Inflatable Rail Seals' "all rectangular" design eliminates cropping
of corners providing full access to door opening
width. Two basic models offer maximum flexibility in sealing
a variety of railside dock conditions. A 3-sided inflatable may
be used where a loading dock protrudes from the building face. Bondor 4-sided,
inflatable rail seals provide the finest
railcar to building seal. Pressure against the railcar on all 4 sides assures
a constant gasketing effect minimizing heat or refrigeration loss. Material
is 18 ounce vinyl coated nylon. Shock cords are provided to help eliminate
sag of deflated seal.
Each rail seal includes a standard blower with a heavy duty 1/3 h.p., 115
volt, single phase blower with a die case aluminum
housing. Electric control switch by others. A galvanized weathershield is
provided for protection if blower is to be externally
mounted. |
|
|
|
|
TO
ORDER A SERIES BR1010/4 RAIL SEAL: |
|
|
|
|
|
|
1. |
Measure

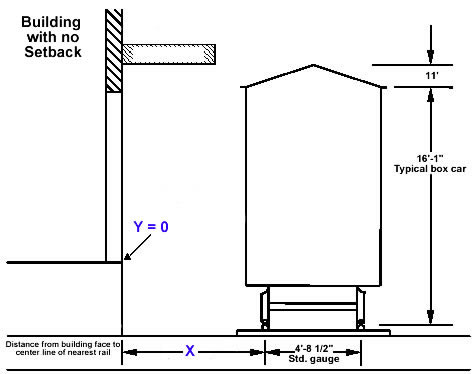

the distance from the building face to the centerline of the nearest rail.
(Dimension X in the sketch below).

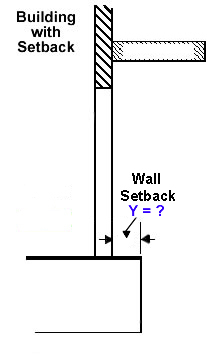

Also measure the building wall setback from the edge of the rail dock (Dimension Y in the sketch below). |
|
|
|
|
|
|
2. |
Determine the required rail
seal projection by adding dimension X plus
dimension Y minus 24".
Example: X + Y - 24 = rail seal projection.
Dimension X
= 72" to centerline of track.
Dimension + Y = 0" no setback of building wall.
Minus
- 24"
Required Projection 48" Dimension Z |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3. |
Verify
the rail seal design preferred; either a 3-sided series BR1010/3 or 4-sided
series BR1010/4
Rail Car Seal Selection guidelines:
* 3-sided seal provides shelter from weather and safety to employees.
3-sided seals are usually selected where there
is a building setback "Y" or where
conservation of heated or refrigerated air is not an issue of paramount
importance.
* 4-sided seals provide shelter from weather and safety to employees
as well as closing the air gap beneath rail board.
The fourth (bottom) segment will reduce heated or refrigerated air loss.
A 4-sided seal also provides additional
security and insect control.
* Note: If a three sided rail seal is required
exit this page (go back two pages) to the Rail Seal section photos and
click on the 3-sided rail seal photo or link. |
4. |
Enter
the 4-sided (Price Table A) below to select the appropriate rail seal model
number and price using the correct
rail seal projection "Z" and the
corresponding door width X door height.
Example: A 4-sided rail seal from Table A with a 48" projection
"Z", a door width of 10', and a door
height of 12'
would be a Model number BR1010/4/P48/10W x 12H at a price of $2,146.00 |
5. |
We
invite you to let our engineers review your rail seal application. Complete
the rail seal dimension sheet on our
contact page and we will confirm your rail seal selection. |
|
|
|
|
|
|
|
|
|
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click a Model No. of the item you wish to
purchase. |
|
|
|
|
|
|
|
|
TABLE
A: BR1010/4 FOUR SIDED SERIES PRICING |
Rail Seal Projection
up to and Including
(Inches) Z |
Table A Door
Opening Width up to
and Including (Feet) |
Door Opening
Height up to and
Including (Feet) |
BR1010/4 Four Sided Rail Seal -
add actual Door Width x Door
Height to Base Model # below |
Price |
26 |
10 |
10 |
|
$2,195 |
26 |
10 |
11 |
|
$2,400 |
26 |
10 |
12 |
|
$2,606 |
26 |
11 |
10 |
|
$2,400 |
26 |
11 |
11 |
|
$2,606 |
26 |
11 |
12 |
|
$2,813 |
26 |
12 |
10 |
|
$2,606 |
26 |
12 |
11 |
|
$2,813 |
26 |
12 |
12 |
|
$3,018 |
26 |
20 |
10 |
|
$4,254 |
26 |
20 |
11 |
|
$4,459 |
26 |
20 |
12 |
|
$4,666 |
Rail Seal Projection
up to and Including
(Inches) Z |
Table A Door
Opening Width up to
and Including (Feet) |
Door Opening
Height up to and
Including (Feet) |
BR1010/4 Four Sided Rail Seal -
add actual Door Width x Door
Height to Base Model # below |
Price |
28 |
10 |
10 |
|
$2,224 |
28 |
10 |
11 |
|
$2,429 |
28 |
10 |
12 |
|
$2,635 |
28 |
11 |
10 |
|
$2,429 |
28 |
11 |
11 |
|
$2,635 |
28 |
11 |
12 |
|
$2,842 |
28 |
12 |
10 |
|
$2,635 |
28 |
12 |
11 |
|
$2,842 |
28 |
12 |
12 |
|
$3,047 |
28 |
20 |
10 |
|
$4,283 |
28 |
20 |
11 |
|
$4,488 |
28 |
20 |
12 |
|
$4,694 |
Rail Seal Projection
up to and Including
(Inches) Z |
Table A Door
Opening Width up to
and Including (Feet) |
Door Opening
Height up to and
Including (Feet) |
BR1010/4 Four Sided Rail Seal -
add actual Door Width x Door
Height to Base Model # below |
Price |
30 |
10 |
10 |
|
$2,252 |
30 |
10 |
11 |
|
$2,458 |
30 |
10 |
12 |
|
$2,664 |
30 |
11 |
10 |
|
$2,458 |
30 |
11 |
11 |
|
$2,664 |
30 |
11 |
12 |
|
$2,870 |
30 |
12 |
10 |
|
$2,664 |
30 |
12 |
11 |
|
$2,870 |
30 |
12 |
12 |
|
$3,076 |
30 |
20 |
10 |
|
$4,312 |
30 |
20 |
11 |
|
$4,517 |
30 |
20 |
12 |
|
$4,723 |
Rail Seal Projection
up to and Including
(Inches) Z |
Table A Door
Opening Width up to
and Including (Feet) |
Door Opening
Height up to and
Including (Feet) |
BR1010/4 Four Sided Rail Seal -
add actual Door Width x Door
Height to Base Model # below |
Price |
32 |
10 |
10 |
|
$2,281 |
32 |
10 |
11 |
|
$2,486 |
32 |
10 |
12 |
|
$2,693 |
32 |
11 |
10 |
|
$2,486 |
32 |
11 |
11 |
|
$2,693 |
32 |
11 |
12 |
|
$2,899 |
32 |
12 |
10 |
|
$2,693 |
32 |
12 |
11 |
|
$2,899 |
32 |
12 |
12 |
|
$3,104 |
32 |
20 |
10 |
|
$4,340 |
32 |
20 |
11 |
|
$4,546 |
32 |
20 |
12 |
|
$4,752 |
Rail Seal Projection
up to and Including
(Inches) Z |
Table A Door
Opening Width up to
and Including (Feet) |
Door Opening
Height up to and
Including (Feet) |
BR1010/4 Four Sided Rail Seal -
add actual Door Width x Door
Height to Base Model # below |
Price |
34 |
10 |
10 |
|
$2,310 |
34 |
10 |
11 |
|
$2,515 |
34 |
10 |
12 |
|
$2,722 |
34 |
11 |
10 |
|
$2,515 |
34 |
11 |
11 |
|
$2,722 |
34 |
11 |
12 |
|
$2,928 |
34 |
12 |
10 |
|
$2,722 |
34 |
12 |
11 |
|
$2,928 |
34 |
12 |
12 |
|
$3,133 |
34 |
20 |
10 |
|
$4,369 |
34 |
20 |
11 |
|
$4,574 |
34 |
20 |
12 |
|
$4,781 |
Rail Seal Projection
up to and Including
(Inches) Z |
Table A Door
Opening Width up to
and Including (Feet) |
Door Opening
Height up to and
Including (Feet) |
BR1010/4 Four Sided Rail Seal -
add actual Door Width x Door
Height to Base Model # below |
Price |
36 |
10 |
10 |
|
$2,506 |
36 |
10 |
11 |
|
$2,712 |
36 |
10 |
12 |
|
$2,917 |
36 |
11 |
10 |
|
$2,712 |
36 |
11 |
11 |
|
$2,917 |
36 |
11 |
12 |
|
$3,124 |
36 |
12 |
10 |
|
$2,917 |
36 |
12 |
11 |
|
$3,124 |
36 |
12 |
12 |
|
$3,329 |
36 |
20 |
10 |
|
$4,565 |
36 |
20 |
11 |
|
$4,771 |
36 |
20 |
12 |
|
$4,976 |
Rail Seal Projection
up to and Including
(Inches) Z |
Table A Door
Opening Width up to
and Including (Feet) |
Door Opening
Height up to and
Including (Feet) |
BR1010/4 Four Sided Rail Seal -
add actual Door Width x Door
Height to Base Model # below |
Price |
38 |
10 |
10 |
|
$2,534 |
38 |
10 |
11 |
|
$2,741 |
38 |
10 |
12 |
|
$2,946 |
38 |
11 |
10 |
|
$2,741 |
38 |
11 |
11 |
|
$2,946 |
38 |
11 |
12 |
|
$3,152 |
38 |
12 |
10 |
|
$2,946 |
38 |
12 |
11 |
|
$3,152 |
38 |
12 |
12 |
|
$3,358 |
38 |
20 |
10 |
|
$4,594 |
38 |
20 |
11 |
|
$4,800 |
38 |
20 |
12 |
|
$5,005 |
|
|
|
|
|
|
