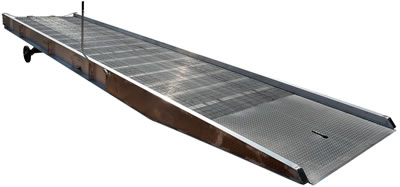

ALUMINUM
MOBILE YARD RAMPS
|
|
|
|
|
 |
|
YARD RAMPS with ALUMINUM
or STEEL GRATING |
|
|
|
STANDARD
FEATURES |
|
|
|
• Ramp Lengths:
30 ft. straight ramp or 36 ft. (30 ft.
ramp with 6 ft. level off) |
|
• Capacities:
16,000 / 20,000 / 25,000 &
30,000 lbs. |
|
• Overall
Width: 72", 84" & 93" available with the
usable widths of 66", 78" & 87" |
|
•
Constructed of Aluminum Structure with Aluminum
Grating or Aluminum Structure with Steel Grating |
|
|
|
 |
|
|
|
|
• Service
Height Range: 37" to 63" (Pneumatic
Wheels Option 40" to 66") |
|
|
• 4"
curb height is standard. |
|
|
|
|
|
SAFETY
FEATURES |
|
|
• 18"
x 5" Mold-on-Rubber Tires |
|
|
• Safety
Anchor Chains |
|
|
•
Hand Pump Hydraulic Lift |
|
|
|
| OPTIONS |
|
|
|
|
•
Rubber Shock Absorbers |
|
|
|
| •
Aluminum or Steel Grating |
|
|
|
|
•
Flow Control Valve |
| •
Pneumatic Tires (Changes Service Range to 40" to 66") |
|
|
|
|
•
Tow Bar |
|
|
|
| •
Special Sizes Available |
|
|
|
| •
Optional: 6" curb height. |
|
|
|
|
 |
|
|
|
|
|
 |
|
|
 |
|
|
MOLD-ON
RUBBER
TIRES STANDARD |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
 |
|
|
Tow Bar Pocket
Model AYR-TB-P |
|
|
Shown with
optional Tow Bar Hitch -
model AYR-TB-H |
|
|
|
|
|
STEEL
GRATING |
|
|
|
|
|
|
|
|
|
|
 |
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase. |
|
|
|
|
PRICES
- MOBILE YARD RAMP |
|
| Model No. |
Capacity
(lbs) |
Overall
Width |
Usable
Width |
Length |
Net Weight
(lbs) |
Price |
ALUMINUM
YARD RAMPS - ALUM. GRATING |
| AY-167230 |
16,000 |
72" |
66" |
30' |
2783 |
$20,836 |
| AY-168430 |
16,000 |
84" |
78" |
30' |
3150 |
$22,701 |
| AY-169330 |
16,000 |
93" |
87" |
30' |
3465 |
$25,455 |
| AY-167236-L |
16,000 |
72" |
66" |
36' |
3360 |
$25,017 |
| AY-168436-L |
16,000 |
84" |
78" |
36' |
3728 |
$27,417 |
| AY-169336-L |
16,000 |
93" |
87" |
36' |
3990 |
$36,322 |
| AY-207230 |
20,000 |
72" |
66" |
30' |
2888 |
$22,446 |
| AY-208430 |
20,000 |
84" |
78" |
30' |
3255 |
$25,460 |
| AY-209330 |
20,000 |
93" |
87" |
30' |
3570 |
$30,641 |
| AY-207236-L |
20,000 |
72" |
66" |
36' |
3465 |
$26,189 |
| AY-208436-L |
20,000 |
84" |
78" |
36' |
3833 |
$29,764 |
| AY-209336-L |
20,000 |
93" |
87" |
36' |
4095 |
$36,750 |
| AY-257230 |
25,000 |
72" |
66" |
30' |
2940 |
$23,822 |
| AY-258430 |
25,000 |
84" |
78" |
30' |
3308 |
$26,379 |
| AY-259330 |
25,000 |
93" |
87" |
30' |
3675 |
$32,604 |
| AY-257236-L |
25,000 |
72" |
66" |
36' |
3578 |
$26,961 |
| AY-258436-L |
25,000 |
84" |
78" |
36' |
3885 |
$30,485 |
| AY-259336-L |
25,000 |
93" |
87" |
36' |
4200 |
$39,117 |
| AY-307230 |
30,000 |
72" |
66" |
30' |
3092 |
$25,976 |
| AY-308430 |
30,000 |
84" |
78" |
30' |
3360 |
$29,886 |
| AY-307236-L |
30,000 |
72" |
66" |
36' |
3570 |
$30,577 |
| AY-308436-L |
30,000 |
84" |
78" |
36' |
3938 |
$34,945 |
ALUMINUM YARD RAMPS - STEEL GRATING |
| SY-167230 |
16,000 |
72" |
66" |
30' |
3518 |
$20,157 |
| SY-168430 |
16,000 |
84" |
78" |
30' |
4043 |
$21,469 |
| SY-169330 |
16,000 |
93" |
87" |
30' |
4515 |
$24,340 |
| SY-167236-L |
16,000 |
72" |
66" |
36' |
4305 |
$22,972 |
| SY-168436-L |
16,000 |
84" |
78" |
36' |
4830 |
$25,264 |
| SY-169336-L |
16,000 |
93" |
87" |
36' |
5303 |
$34,040 |
| SY-207230 |
20,000 |
72" |
66" |
30' |
3623 |
$21,835 |
| SY-208430 |
20,000 |
84" |
78" |
30' |
4148 |
$23,750 |
| SY-209330 |
20,000 |
93" |
87" |
30' |
4620 |
$28,581 |
| SY-207236-L |
20,000 |
72" |
66" |
36' |
4410 |
$24,707 |
| SY-208436-L |
20,000 |
84" |
78" |
36' |
4935 |
$26,997 |
| SY-209336-L |
20,000 |
93" |
87" |
36' |
5408 |
$34,289 |
| SY-257230 |
25,000 |
72" |
66" |
30' |
3675 |
$23,239 |
| SY-258430 |
25,000 |
84" |
78" |
30' |
4200 |
$24,969 |
| SY-259330 |
25,000 |
93" |
87" |
30' |
4725 |
$32,435 |
| SY-257236-L |
25,000 |
72" |
66" |
36' |
4463 |
$25,682 |
| SY-258436-L |
25,000 |
84" |
78" |
36' |
4988 |
$27,927 |
| SY-259336-L |
25,000 |
93" |
87" |
36' |
5513 |
$36,847 |
| SY-307230 |
30,000 |
72" |
66" |
30' |
3728 |
$25,306 |
| SY-308430 |
30,000 |
84" |
78" |
30' |
4253 |
$28,005 |
| SY-307236-L |
30,000 |
72" |
66" |
36' |
4515 |
$27,564 |
| SY-308436-L |
30,000 |
84" |
78" |
36' |
5040 |
$33,630 |
|
|
|
|
|
Order
Online, by Phone, or by E-mail |
|
|
|
~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase. |
|
|
|
ALUMINUM
YARD RAMP OPTIONS |
| Model No. |
Description |
Net Wt.
(lbs.) |
Price
ea. |
|
12V
DC Hydraulic Lift (includes on-board charger) |
50
lbs |
$1,499.80 |
|
Tow
Bar Hitch |
145
lbs |
$386.20 |
|
Tow
Bar Pocket (replacement) |
35
lbs |
$257.40 |
|
12"
High Guard Rail Option for 30' Ramps |
456
lbs |
$5,456.10 |
|
12"
High Guard Rail Option for 36' Ramps |
550
lbs |
$6,254.90 |
|
Non-Removable
42" h Aluminum Handrail w/21" Midrail
(welded) (sold per foot) |
3/ft. |
$74.80 |
|
Removable
42" h Aluminum Handrail w/21" Midrail (sold per foot) |
18/ft. |
$42.30 |
|
Yard
Ramp Option-Curb Height Addition |
- |
$274.90 |
|
6"
Curb Height |
- |
$273.60 |
|
Yellow
Curb Paint |
- |
$334.80 |
|
Yellow
Safety Curbs |
- |
$334.80 |
|
Pneumatic
Tire Option (service range 40" to 66") |
- |
$687.50 |
|
Holes
in Lip to Lag Ramp to Top of Dock |
- |
$303.70 |
|
|
