32 DEGREE PREFAB
STAIRWAYS
(7/11 RISE/RUN)

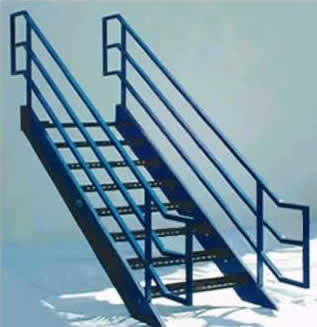

36" High Combination Guard & Handrail
Prefab Stairway
COMFORTABLE INCLINE
Current OSHA Acceptable Usage: For heights up to 48"
for all industrial/commercial uses or for non-routine, non-regular
travel between levels up to 144" for industrial/commercial main-
tenance access and industrial/commercial storage access. This is
an industrial stair not acceptable for public access. Per OSHA
Reguation 1910.25 (b) (7) below these stairs should not be used
for regular and routine travel between levels except for the con-
ditions listed above.
NOW! 5 COLOR CHOICES!
SAME PRICE!
Please Note:The buyer is responsible to verify the suitability
of this stair design for his or her particular use or application.
Quality engineered to your specific height requirements.
Designed for safety and convenience
Extra heavy duty bar grating or diamond plate stair treads
   won’t sag or dish (supplied as standard).
Factory welded handrails of 1 1/2" x 11 Ga. square tubing.
10" structural channel stringers.
Fire proof construction.
Standard finish gray polyester powder coated (Chart I),
    galvanized (Chart II), or galvanized and powder coated
    (Chart III).
Standard 36" or 48" wide treads, 40" overall stair width. Other
   widths available upon request.

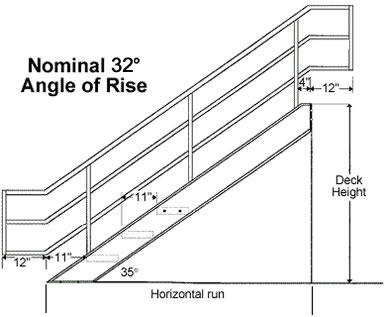

Norminal 32 degree angle (7/11-rise/run)
Tread depths are 11" deep for diamond plate and bar grating
    treads.
The basic design of the stairway shown here is a more comfortable (7/11-rise/run) 32 degree angle as opposed to
the more conventional 45 degree stair. Because of its more gradual rate of rise, this stair does require more
horizontal floor space.
boca stairs
steel stairs
Shipped as 2 side frames
and 1 bundle of treads for
bolted assembly

CUSTOM SIZES - SAME DAY QUOTES
Custom sizes and configurations are readily available. We provide same day price quotes if you require a special
stair angle, specific tread rise/run, or a maximum horizontal stair run to satisfy available floor space constraints.
galvanized boca stairway galvanized stairs

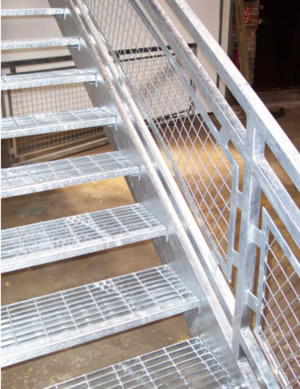

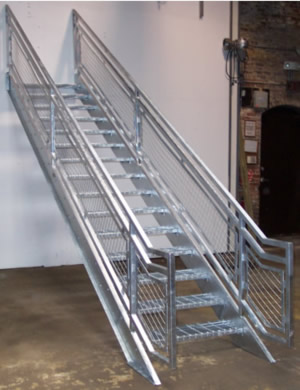

Special all galvanized stair with wire mesh fill panels
NEW! Optional Finishes!
Our standard finish is a quick dry polyester powder coat Gray (RAL 7005).
Also available in Black (RAL 9005), Blue (RAL 5010), White (RAL 9016) and
Safety Yellow (RAL 1023). In addition we are pleased to offer our products with a
hot-dipped galvanized finish or in a Two Part System which is our powder coat over a
hot-dipped galvanized undercoat.
Color Disclaimer: Please note that the appearance of the color blocks shown above may vary depending on the device used
to view this web page.

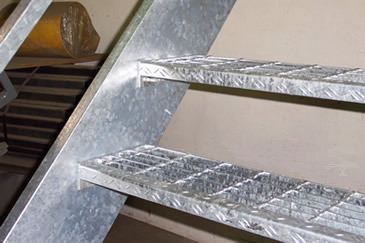

Order all galvanized frame and tread finish for
maximum durability and corrosion resistance.
stairways
*Important Note when ordering: Specify actual floor to floor
height when ordering, stairways are custom designed to meet
your height requirements. *Other sizes available upon
request.
CHART I
PRICING FOR STAIRS WITH STANDARD POWDER COATED FRAME
Back to Top
Steel Stair Treads
closed riser diamond plate stair treads
steel stair treads
diamond plate open riser treads
Bar grating stair treads are safe, self-
cleaning, skid-resistant and economical.
Powder Coated to match frame color selection
Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click a Price of the item you wish to purchase.
FRAME FINISH-GRAY, BLACK, BLUE, WHITE OR SAFETY YELLOW
TREAD SELECTION
MODEL
NO.		 PRICING
HEIGHT
RANGE
(Floor to Floor)		 HORIZONTAL
RUN
TREAD
WIDTH
 OVERALL
WIDTH

(A)
BLK BAR
GRATING 10
15/16" TREAD
OPEN RISER

 (B)
GAL. BAR
GRATING 10
15/16" TREAD
OPEN RISER		 (C)
DIA. PLATE
11" TREAD
OPEN
RISER		 (D)
DIA PLATE
12" TREAD
CLOSED
RISER
B3638-P 3'-0"-3'-5" 5'-10"-6'0" 36 39
B4838-P  3'-0"-3'-5"  5'-10"-6'0" 48 51

B3644-P 3'-6"-3'-11" 5'-10"-6'-10" 36 39
B4844-P 3'-6"-3'-11"   5'-10"-6'-10" 48 51

B3650-P 4'-0"-4'-5" 6'-9"-7'-9" 36 39
B4850-P 4'-0"-4'-5"   6'-9"-7'-9" 48 51

B3656-P 4'-6"-4'-11" 7'-9"-8'-8" 36 39
B4856-P  4'-6"-4'-11" 7'-9"-8'-8"  48 51

B3662-P 5'-0"-5'-5" 8'-8"-9'-7" 36 39
B4862-P  5'-0"-5'-5" 8'-8"-9'-7"  48 51

B3668-P 5'-6"-5'-11" 9'-7"-10'-6" 36 39
B4868-P  5'-6"-5'-11"  9'-7"-10'-6" 48 51

B3674-P 6'-0"-6'-5" 10'-5"-10'-6" 36 39
B4874-P 6'-0"-6'-5"   10'-5"-10'-6" 48 51

B3680-P 6'-6"-6'-11" 11'-4"-11'-5" 36 39
B4880-P  6'-6"-6'-11" 11'-4"-11'-5"  48 51

B3686-P 7'-0"-7'-5" 11'-4"-12'-3" 36 39
B4886-P 7'-0"-7'-5"   11'-4"-12'-3" 48 51

B3690-P 7'-6"-7'-11" 12'-3"-13'-2" 36 39
B4890-P 7'-6"-7'-11"  12'-3"-13'-2"  48 51

B3698-P 8'-0"-8'-5" 13'-2"-14'-2" 36 39
B4898-P 8'-0"-8'-5"   13'-2"-14'-2" 48 51

B36104-P 8'-6"-8'-11" 14'-1"-15'-1" 36 39
B48104-P  8'-6"-8'-11" 14'-1"-15'-1"  48 51

B36110-P 9'-0"-9'-5" 15'-0"-15'-11" 36 39
B48110-P 9'-0"-9'-5"   15'-0"-15'-11" 48 51

B36116-P 9'-6"-9'-11" 15'-10"-15'-11" 36 39
B48116-P  9'-6"-9'-11" 15'-10"-15'-11"  48 51

B36122-P 10'-0"-10'-5" 16'-9"-16'-10" 36 39
B48122-P  10'-0"-10'-5"  16'-9"-16'-10" 48 51

B36128-P 10'-6"-10'-11" 16'-9"-17'-8" 36 39
B48128-P 10'-6"-10'-11"  16'-9"-17'-8"  48 51

B36134-P 11'-0"-11'-5" 17'-8"-18'-7" 36 39
B48134-P  11'-0"-11'-5" 17'-8"-18'-7"  48 51

B36140-P 11'-6"-12'-0" 18'-7"-19'-7" 36 39
B48140-P 11'-6"-12'-0"  18'-7"-19'-7"  48 51
CHART II
PRICING FOR STAIRS WITH GALVANIZED FRAME
Back to Top
closed riser diamond plate stair treads
Steel Stair Treads
steel stair treads
diamond plate open riser treads
Bar grating stair treads are safe, self-
cleaning, skid-resistant and economical.
Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click a Price of the item you wish to purchase.
FRAME FINISH-GALVANIZED
TREAD SELECTION
MODEL
NO.		 PRICING
HEIGHT
RANGE
(Floor to Floor)		 HORIZONTAL
RUN
TREAD
WIDTH
 OVERALL
WIDTH		 (B)
GAL. BAR
GRATING
10 15/16" TREAD
OPEN RISER		 (C)
GAL. DIA.
PLATE
11" TREAD
OPEN RISER		 (D)
GAL. DIA.
PLATE
12" TREAD
CLOSED RISER
B3638-G 3'-0"-3'-5" 5'-10"-6'0" 36 39
B4838-G  3'-0"-3'-5" 5'-10"-6'0"  48 51

B3644-G 3'-6"-3'-11" 5'-10"-6'-10" 36 39
B4844-G  3'-6"-3'-11" 5'-10"-6'-10"  48 51

B3650-G 4'-0"-4'-5" 6'-9"-7'-9" 36 39
B4850-G 4'-0"-4'-5"  6'-9"-7'-9"  48 51

B3656-G 4'-6"-4'-11" 7'-9"-8'-8" 36 39
B4856-G 4'-6"-4'-11"  7'-9"-8'-8"  48 51

B3662-G 5'-0"-5'-5" 8'-8"-9'-7" 36 39
B4862-G  5'-0"-5'-5" 8'-8"-9'-7"  48 51

B3668-G 5'-6"-5'-11" 9'-7"-10'-6" 36 39
B4868-G 5'-6"-5'-11"  9'-7"-10'-6"  48 51

B3674-G 6'-0"-6'-5" 10'-5"-10'-6" 36 39
B4874-G 6'-0"-6'-5"  10'-5"-10'-6"  48 51

B3680-G 6'-6"-6'-11" 11'-4"-11'-5" 36 39
B4880-G 6'-6"-6'-11"  11'-4"-11'-5"  48 51

B3686-G 7'-0"-7'-5" 11'-4"-12'-3" 36 39
B4886-G 7'-0"-7'-5"  11'-4"-12'-3"  48 51

B3690-G 7'-6"-7'-11" 12'-3"-13'-2" 36 39
B4890-G 7'-6"-7'-11"  12'-3"-13'-2"  48 51

B3698-G 8'-0"-8'-5" 13'-2"-14'-2" 36 39
B4898-G 8'-0"-8'-5"  13'-2"-14'-2"  48 51

B36104-G 8'-6"-8'-11" 14'-1"-15'-1" 36 39
B48104-G 8'-6"-8'-11"  14'-1"-15'-1  48 51

B36110-G 9'-0"-9'-5" 15'-0"-15'-11" 36 39
B48110-G 9'-0"-9'-5"  15'-0"-15'-11"  48 51

B36116-G 9'-6"-9'-11" 15'-10"-15'-11" 36 39
B48116-G 9'-6"-9'-11"   15'-10"-15'-11" 48 51

B36122-G 10'-0"-10'-5" 16'-9"-16'-10" 36 39
B48122-G 10'-0"-10'-5"  16'-9"-16'-10"  48 51

B36128-G 10'-6"-10'-11" 16'-9"-17'-8" 36 39
B48128-G  10'-6"-10'-11" 16'-9"-17'-8"  48 51

B36134-G 11'-0"-11'-5" 17'-8"-18'-7" 36 39
B48134-G 11'-0"-11'-5"  17'-8"-18'-7"  48 51

B36140-G 11'-6"-12'-0" 18'-7"-19'-7" 36 39
B48140-G  11'-6"-12'-0" 18'-7"-19'-7"  48 51
CHART III
PRICING FOR STAIRS WITH POWDER COATED FRAME
closed riser diamond plate stair treads
Steel Stair Treads
steel stair treads
diamond plate open riser treads
Bar grating stair treads are safe, self-
cleaning, skid-resistant and economical.
Powder Coated to match frame color selection
Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click a Price of the item you wish to purchase.
FRAME FINISH-GALVANIZED & POWDER COATED
TREAD SELECTION
MODEL
NO..		 PRICING
HEIGHT
RANGE
(Floor to Floor)		 HORIZONTAL
RUN
TREAD
WIDTH
 OVERALL
WIDTH		 (A)
GALV/PWDR COAT
BAR GRATING
10 15/16" TREAD
OPEN RISER		 (C)
GALV/PWDR COAT
DIA. PLATE
11" TREAD
OPEN RISER		 (D)
GALV/PWDR COAT
DIA. PLATE
12" TREAD
CLOSED RISER
B3638-GP 3'-0"-3'-5" 5'-10"-6'0" 36 39
B4838-GP  3'-0"-3'-5"  5'-10"-6'0" 48 51

B3644-GP 3'-6"-3'-11" 5'-10"-6'-10" 36 39
B4844-GP  3'-6"-3'-11"  5'-10"-6'-10" 48 51

B3650-GP 4'-0"-4'-5" 6'-9"-7'-9" 36 39
B4850-GP 4'-0"-4'-5"  6'-9"-7'-9"  48 51

B3656-GP 4'-6"-4'-11" 7'-9"-8'-8" 36 39
B4856-GP 4'-6"-4'-11"  7'-9"-8'-8"  48 51

B3662-GP 5'-0"-5'-5" 8'-8"-9'-7" 36 39
B4862-GP  5'-0"-5'-5" 8'-8"-9'-7"  48 51

B3668-GP 5'-6"-5'-11" 9'-7"-10'-6" 36 39
B4868-GP  5'-6"-5'-11" 9'-7"-10'-6"  48 51

B3674-GP 6'-0"-6'-5" 10'-5"-10'-6" 36 39
B4874-GP 6'-0"-6'-5"   10'-5"-10'-6" 48 51

B3680-GP 6'-6"-6'-11" 11'-4"-11'-5" 36 39
B4880-GP 6'-6"-6'-11"  11'-4"-11'-5"  48 51

B3686-GP 7'-0"-7'-5" 11'-4"-12'-3" 36 39
B4886-GP 7'-0"-7'-5"  11'-4"-12'-3"  48 51

B3690-GP 7'-6"-7'-11" 12'-3"-13'-2" 36 39
B4890-GP 7'-6"-7'-11"  12'-3"-13'-2"  48 51

B3698-GP 8'-0"-8'-5" 13'-2"-14'-2" 36 39
B4898-GP  8'-0"-8'-5" 13'-2"-14'-2"  48 51

B36104-GP 8'-6"-8'-11" 14'-1"-15'-1" 36 39
B48104-GP 8'-6"-8'-11"   14'-1"-15'-1" 48 51

B36110-GP 9'-0"-9'-5" 15'-0"-15'-11" 36 39
B48110-GP  9'-0"-9'-5" 15'-0"-15'-11"  48 51

B36116-GP 9'-6"-9'-11" 15'-10"-15'-11" 36 39
B48116-GP 9'-6"-9'-11"  15'-10"-15'-11"  48 51

B36122-GP 10'-0"-10'-5" 16'-9"-16'-10" 36 39
B48122-GP 10'-0"-10'-5"  16'-9"-16'-10"  48 51

B36128-GP 10'-6"-10'-11" 16'-9"-17'-8" 36 39
B48128-GP 10'-6"-10'-11"   16'-9"-17'-8" 48 51

B36134-GP 11'-0"-11'-5" 17'-8"-18'-7" 36 39
B48134-GP 11'-0"-11'-5"  17'-8"-18'-7"  48 51

B36140-GP 11'-6"-12'-0" 18'-7"-19'-7" 36 39
B48140-GP 11'-6"-12'-0"  18'-7"-19'-7"  48 51

FACTORY LOAD TEST
In addition to theoretical
design analysis
FS Industries has
performed actual load
tests with a 25%
overload to insure
design conformance to
OSHA standard 1910.25
which is printed below
test photos.

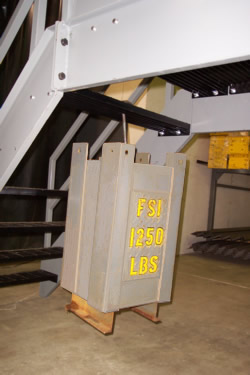

1250 lbs. concentrated load applied
to the center span of stair tread on a
3" long x 1 1/2" flat bar bearing surface.

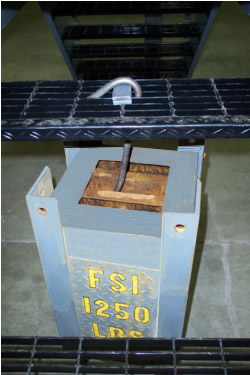

Underside view of 1250 lbs.
concentrated load suspended
from center of stair tread.

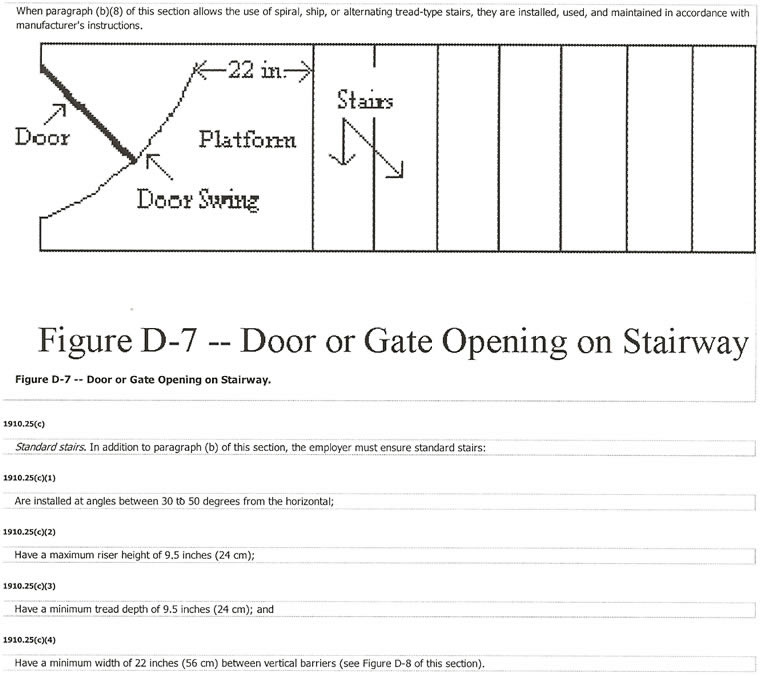

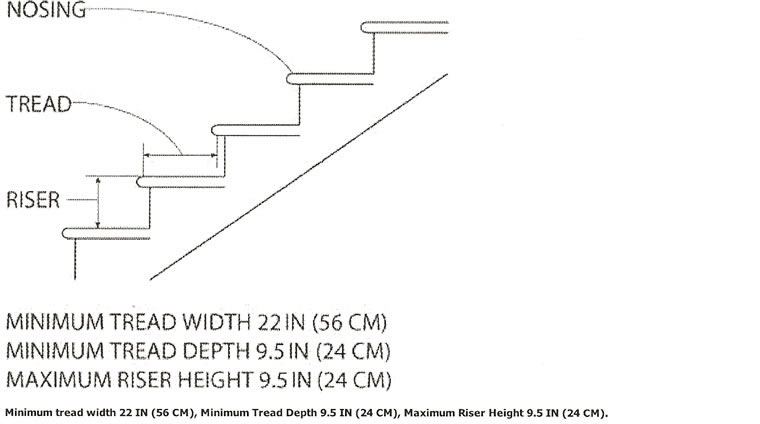

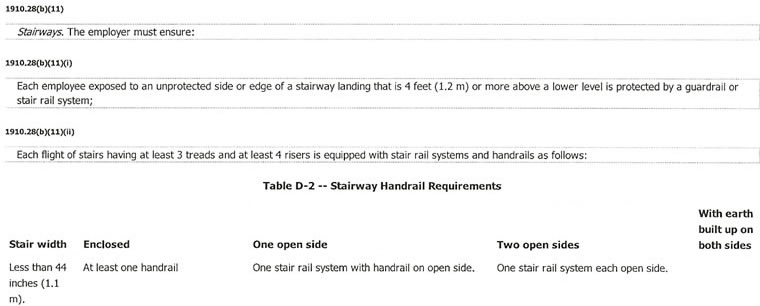

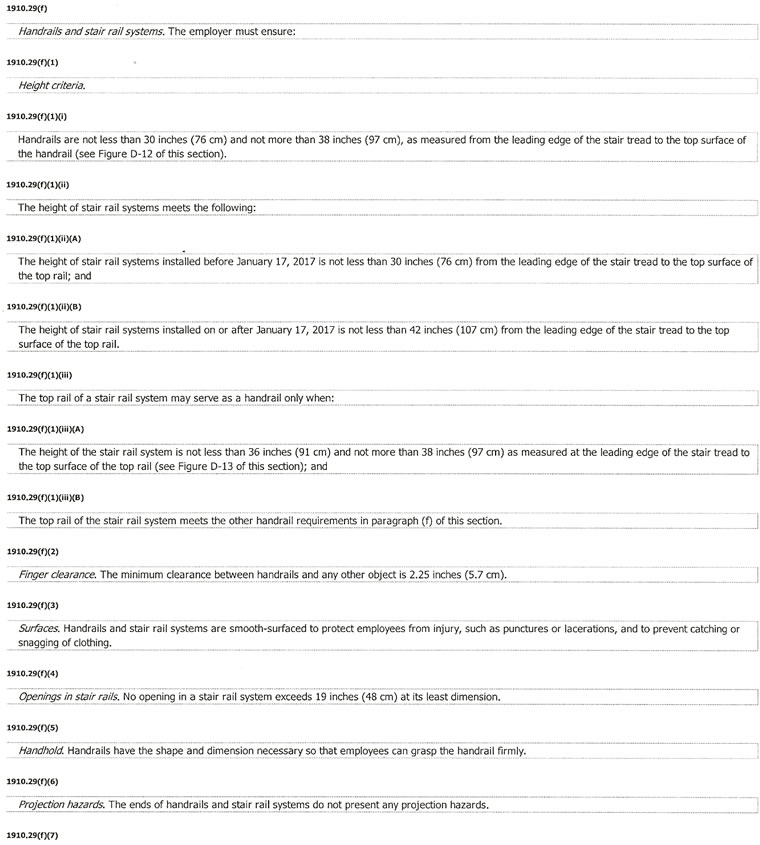

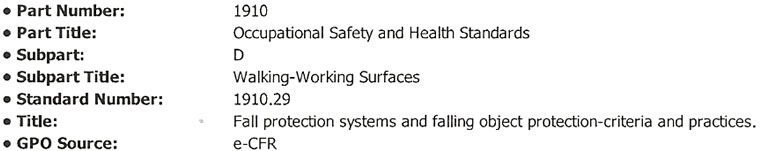

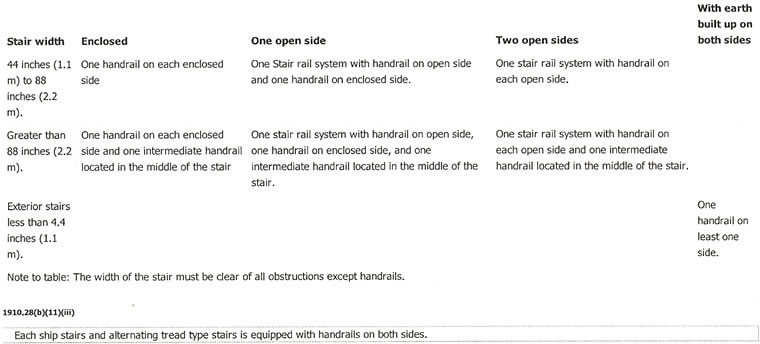

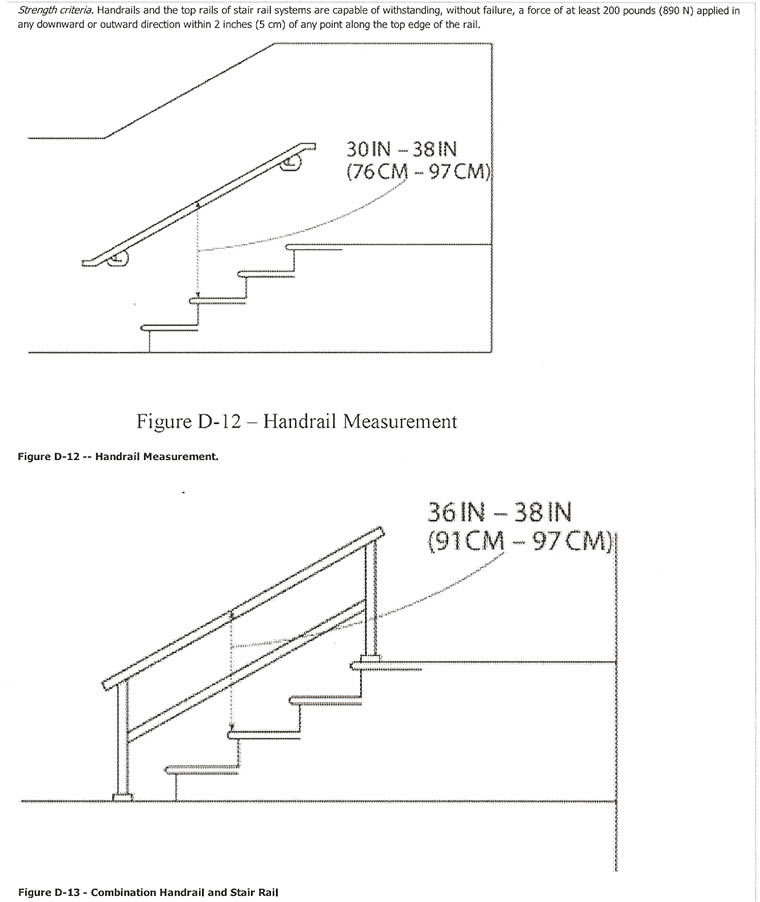

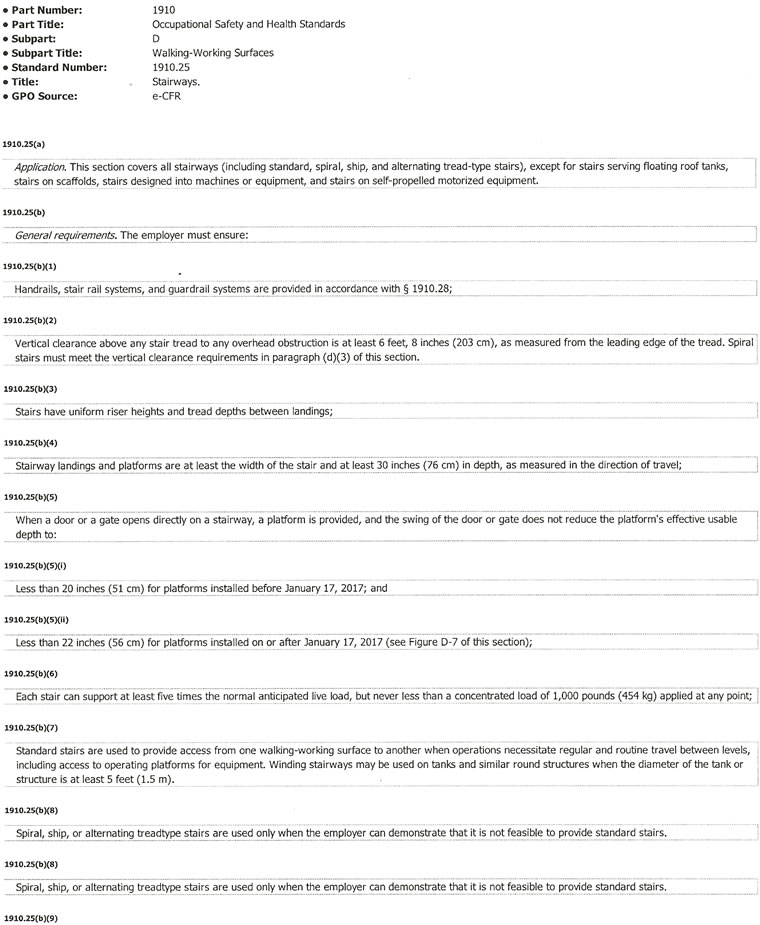

OSHA STANDARD 1910.25 STAIRWAYS
Walking-Working Surfaces and Personal Fall Protection Systems Final Rule
Frequently Asked Questions
The intent of OSHA’s Walking-Working Surfaces standard, 29 CFR Part 1910, Subpart D & I, is to increase the
protection of general industry employees and employers from hazards associated with walking-working surfaces. The
rule making will significantly reduce the number of worker deaths and injuries that occur each year resulting from
workplace slip, trip, and fall hazards. The final rule was published on November 18, 2016, and became effective on
January 17, 2017. Some requirements in the final rule have compliance dates after the effective date and will be
discussed in further detail below. This final rule and the associated preamble, providing more detailed explanation of
the rule, is available on the Federal Register website at 81 FR 82494, Walking-Working Surfaces; Personal Protective
Equipment; Final Rule, November 18, 2016.
OSHA requirements are set by statute, standards, and regulations. The Agency’s interpretations explain these require-
ments and how they apply to particular circumstances, but they do not create additional employer obligations. Note
that our enforcement guidance may be affected by legislative or rule making changes to OSHA requirements. Also,
from time to time we update our guidance in response to new information. To keep apprised of such developments,
you can consult OSHA’s website at http://www.osha.gov.
This webpage provides guidance, in a question and answer format, regarding OSHA’s Final Rule, Walking-Working
Surfaces and Personal Protective Equipment, 29 CFR Part 1910, Subpart D and I. These Frequently Asked Questions
(FAQs) are divided into five sections: general questions, rope descent system (RDS) questions, outdoor advertising
questions, residential roof questions, and agricultural operation questions.
Standard Stairs
Does the exception to the 9.5-inch riser height and 9.5-inch tread depth requirements for stairs installed before
January 17, 2017 (§19210.25(c)(5)), also apply to stairs designed and fabricated, but not yet installed, by that date?
Stairs with design drawings issued for construction or that were in fabrication before January 17, 2017, but not
installed, will be in compliance if they met the previous requirements for standard stairs.
Under the previous standard, stairs with a handrail that doubles as a stair rail could have a rail height of 30 to 34
inches. If an employer's stairs were installed prior to January 17, 2017, must the rails have a minimum height of
36 inches if the stair rail doubles as a handrail?
The final rule does not affect stair rail systems and handrails installed before January 17, 2017 that were in com-
pliance with the requirements in the old standard.
Does the requirement that standard stairs have a slope between 30 to 50 degrees apply to stairs installed after January
7, 2017. Therefore, the maximum angle for standard stairs is 45 degrees.
Yes. The final rule limits the maximum rise height and minimum tread depth to 9.5 inches for standard stairs installed
after January 17, 2017. Therefore, the maximum angle for standard stairs is 45 degrees.
Are stairs installed after January 17, 2017, that have an angle of 50 degrees considered to be ships stairs?
The final rule defines ship stairs as “a stairway that is equipped with treads, stair rails, and open risers, and has a slope
of 50 to 70 degrees.” Ship stairs must also comply with §1910.25(b) and (e), such as a minimum tread depth of 4
inches, a minimum tread width of 18 inches, and a vertical clearance above any stair tread to any overhead
obstruction of at least 6 feet 8 inches.
What if the doorway described in §1910.25(b)(5)(ii) and shown in figure D-7 is perpendicular to the direction of
travel and opens onto the landing? Does the same dimension apply to this condition?
Yes. As figure D-7 illustrates, Section 1910.25(b)(5) requires that a platform be provided when a door or a gate opens
directly onto a stairway. For platforms installed after January 17, 2017, the final rule also requires that employers
ensure the swing of the door or gate does not reduce the "effective usable depth" of the platform to less than 22 inches (§1910.25(b)(5)(ii)). The preamble to the final rule describes “effective usable depth” as the portion of the platform
beyond the swing of the door where a worker can stand when opening the door (82 FR 82557). The provision applies
equally to stairway doors that are perpendicular to the direction of travel.
Are fixed stairs attached to the exterior of tanks required to comply with the requirements of §1910.25(b) or would
those stairs fall under the exemptions in §1910.25(a)?
The exception from the stair requirements in §1910.25(a) only applies to stairs serving floating roof tanks, stairs on
scaffolds, stairs on self-propelled motorized equipment, or stairs designed into machines or equipment. For stairs on
the exterior of other tanks, employers would have to ensure they comply with the requirements in §1910.25(b) and (c).
Would winding stairs attached to tanks be required to meet the requirements in §1910.25(d) for spiral stairs?
No. Section 1910.21(b) defines spiral stairs as a "series of treads attached to a vertical pole in a winding fashion,
usually within a cylindrical space" (emphasis added). Winding stairs attached to tanks do not have vertical poles;
therefore, they are not spiral stairs and must meet the requirements of §1910.25(b) and (c).
Based on the height requirements for stair rails and handrails and the requirements in Table D-2, are both stair rails
and handrails required on stairs that have two open sides and are less than 44-in. wide?
Yes. Section 1910.28(b)(11)(ii) Table D-2 contains a printing error, which OSHA will correct in a published notice.
For each flight of stairs with two open sides and a width of less than 44 inches, column 4 of Table D-2 should state
"One stair rail system with hand rail on each open side" is required. (See 81 FR 82611-12).
Prefab Stairways, Commercial Stair, Galvanized Stairs, Industrial Stair, Metal Stair, Open Tread Stair, Out Door Metal
Stair, Outdoor Metal Stairs, Prefab Metal Stairs, Prefabricated Stair, Steel Pan Stairs, Steel Stairways, and Steel Stairs from
your complete source for material handling equipment.
[HOME] [ORDER] [SEARCH] [QUOTE] [INFO] [ABOUT US] [STEEL PRODUCTS] [E-MAIL]
