'Clear-Aisle'
Mezzanine Safety Gate |
Space-Saving,
Dual-Gate Design • Available in Manual or Power Operation |
|
The
Protect-O-Gate 'Clear-Aisle' Safety Gate is a revolutionary design, taking
up only 10 inches of aisle space
when open to the mezzanine floor. This industrial gate fits into tight
spaces while maintaining maximum safety.
The Protect-O-Gate 'Clear Aisle' Mezzanine Safety Gate is known for its
heavy duty construction and ease of
operation. It is easy to install and is superb for maintaining employee
safety. |
|
|
|
|
|
|
|
 |
|
Features |
|
|
|
|
|
|
|
•
Provides access to the work area from 3 sides
• Requires only 10 inches of floor space when
the corral gate is raised
• Shipped partially assembled for easy installation
• Counterbalanced for easy operation
• Single and Double-Pallet models
• Custom sizing available - contact us
• Available finishes: painted safety yellow, corrosion
resistant finish or stainless steel |
|
|
|
|
|
|
|
Powered
Operation |
|
|
|
|
|
|
|
•
Powered operation is available for both single
and double-pallet models
• Available remote control
• Simple installation |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

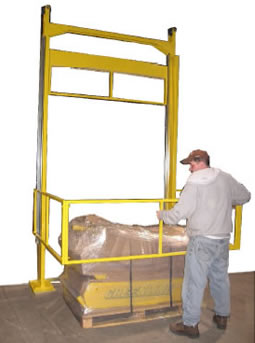

'Clear-Aisle'
Mezzanine Safety Gate In Use |
|
|
|
|
|
|
|
|
|
|
|
 |
|
 |
|
When
the corral is lowered, the ledge gate slides up, blocking
the worker from the staging
area.

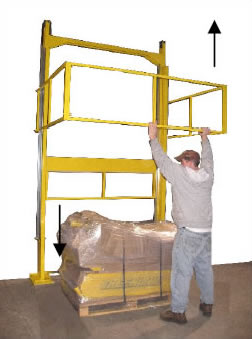

Raising the corral lowers the
ledge gate closed. The worker
has access to the staging area
and fall potential is eliminated. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Dimensions |
|
|
|
|
|
|
|
|
|
|
|
Single-Pallet
Model (PG-04-CA)
• Interior (Clearance): 62"W x 66"D
x 80"H
• Exterior: 74"W x 68"D x 120"H |
|
Double-Pallet
Model (PG-08-CA)
• Interior
(Clearance): 111"W x 66"D x 80"H
• Exterior:
123.25"W x 68"D x 120"H |
|
|
|
|
|

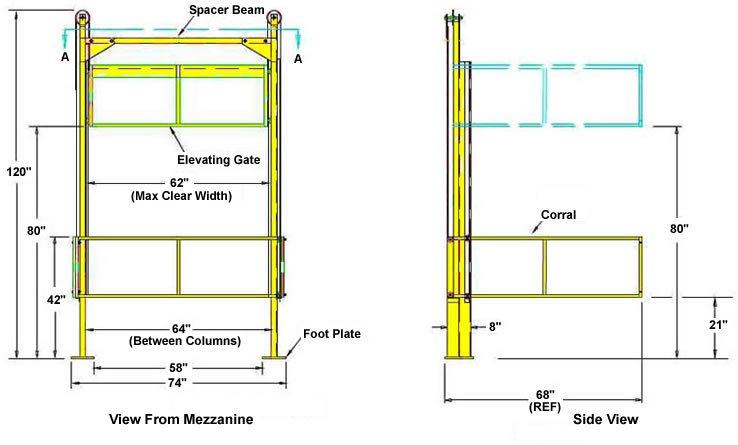

Single-Pallet
Model (PG-04-CA) Drawing |
|
|
 |
|
|
|
|
|
|
|

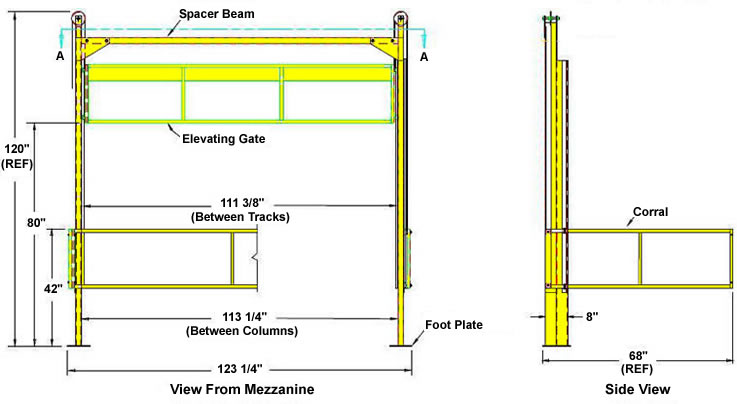

Double-Pallet
Model (PG-08-CA) Drawing |
|
|
 |
|
|
|
|
 |
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase. |
|
|
'Clear-Aisle'
Mezzanine Safety Gate Prices |
Model
No. |
Description |
Price |
|
74"W
x 68"D x 120"H |
$6,348 |
|
120"W
x 68"D x 120"H |
$6,960 |
|
Optional
Rotating Toe Plate (Provides 60" of Interior Height Clearance) |
$1,349 |
|
| *Option
only available for model PG-04-CA |
|
