CONCRETE CONE BOLLARD
TF6070 |
|
|
|
|
|
|
BOLLARDS Made of all shapes and sizes offer dependable solutions for security, traffic
flow and numerous
other applications – while enhancing the aesthetic appeal of any project.
Whether spherical, cylindrical or
mimicking the contour of natural stone, our bollards are constructed of
steel rebar encased in concrete to
provide superior strength and protection. Choose from Standard Weatherstone
and Acid Wash finishes. |
|
|
|
|
|
|
|
|
Modern
conical shape for your landscape design. |
|
|
|
|
|
|
|
MATERIAL:
Concrete |
|
|
|
|
|
|
|
|
|
SHAPE:
Circle |
|
|
|
|
|
|
|
|
|
REINFORCEMENT:
Yes |
|
|
|
|
|
|
|
|
|
ADDITIONAL
FEATURES:

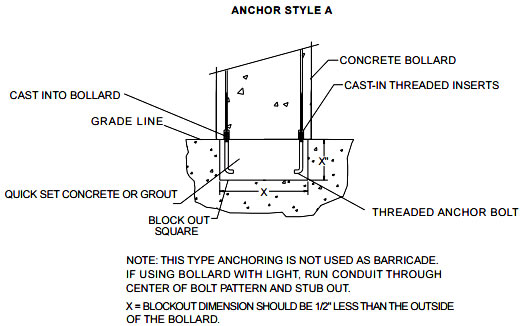

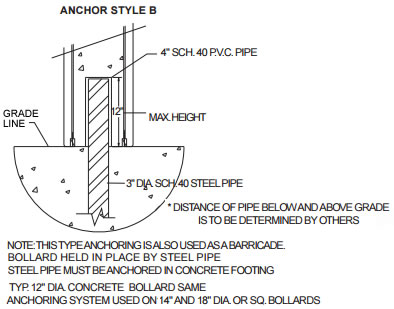

Mounting Options: A or B |
|
|
|
|
|
|
|
|
|
 |
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase. |
|
|
|
PRICING
FOR STANDARD FINISH BOLLARDS |
Model
No. |
Size |
Weight |
Price |
|
20"
x 12" x 29" |
470
lbs |
$386.20 |
|
|
Available Colors |
|
|
|
 |

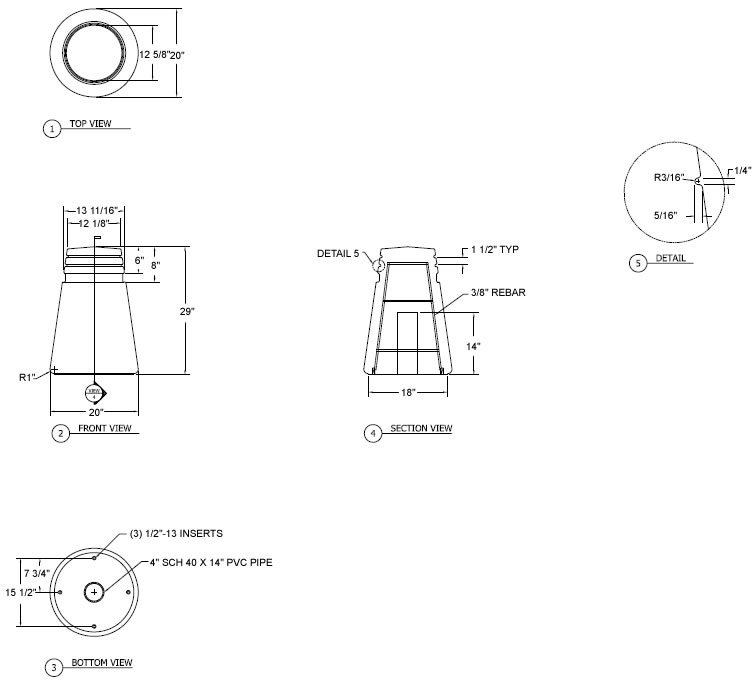

TF6070
DRAWING |
|
 |
|
Bollard
installation |
|
|
|
 |
|
|
 |
|
SPECIFICATIONS |
|
1.1
SUMMARY
A. Section includes: Furnish Precast Concrete indicated
on drawings or specified herein.
1.2 REFERENCES
A. American Society for Testing & Material
1. ASTM C33 2.
ASTM C150 3. ASTM C31 |
|
1.5
SUBMITTALS
A. Submit product data, shop drawings and samples.
1. Product Data: Manufacturer's
specifications and technical data edited specifically for proposed
system,
including
the following specific information:
a.
Detailed specification of construction fabrication.
b.
Manufacturer's installation instructions
c.
Maintenance literature
d.
Product warranty
2. Shop Drawings: Indicate
pertinent dimensions, general construction, component connections
anchoring methods,
hardware and installation procedures.
3. Samples as requested
by Architect. |
|
1.6
QUALITY ASSURANCE
A. Qualifications of Manufacturer: Manufacturer to
be prequalified by specifier prior to bidding. Failure to comply
will result in disqualification
of bid. Manufacturer to have at least five years experience in the manufacturer
of
precast concrete bollards
field proven for at least five years. |
|
1.10
WARRANTY
Manufacturer shall submit a written warranty for precast
products for the period of two years upon acceptance of
products. |
2.2
MATERIALS
A. Portland Cement: ASTM C150 specifications for
Portland Cement.
B. Aggregates: All aggregates to meet ASTM C33 specifications,
to be cleaned of foreign matter and properly
graded to size.
C. Coloring: Pigments used shall be inorganic, resistant
to alkalinity and used as per manufacturers
recommendations. |
|
