DURA-SOFT BUMPERS™

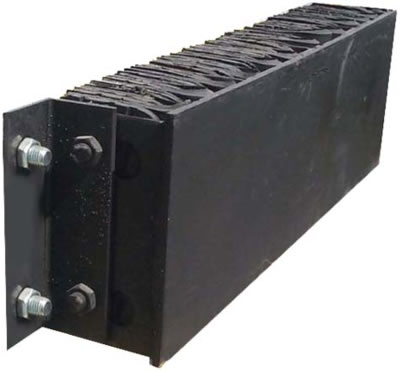

dura soft bumpers Providing outstanding protection for heavy duty
loading docks, the patented loop design of pads
and 3/8" thick steel-face plate provide the
greatest impact absorption available on the
market. Excellent for use in any material-
handling system area where heavy-duty pro-
tection is required.
Provides maximum loading dock, building and

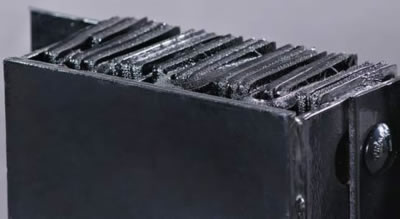

cargo protection with a unique "loop" design of
bumper pads made from recycled tires.

Uses/Applications:
• Provides maximum protection with a unique
   "loop" design of bumper pads - the greatest
   impact absorption available on the market.
   Loop-design laminated bumper is a Durable
   industry innovation.
• This patented design has been thoroughly
   tested to prove that it provides maximum
   protection while maintaining the high-quality,
   heavy-duty dock and truck protection
   expected of a durable bumper.
• Steel-Face plate makes the Dura-Soft Bumper
   ideal for use in docking areas where excessive
   friction from up-and-down movement occurs.
• Can be used in any material-handling system
   where heavy-duty protection is required.
Features
• Unparalleled ability to deflect and absorb shock with loop
  design laminated bumper beneath a floating steel-face.
• Available in a wide variety of models, and can be mounted
   in various heights, from flush mount to 12" above dock,
  depending on highest impact area.
dura soft bumpers
Benefits

• Maximum dock and truck protection available.
• Eliminates wear from up-and-down friction
   movement of trailer loading and unloading.
• Impervious to weather damage.
• Maintenance free.
• 5 year warranty.
• Cost effective.

Material/Thickness
• Rubber pads 4" thick with loop pad and 3/8"
   steel-face for overall thickness at 5-1/2".
Specifications
• Resilient rubber material of bumpers shall be cut
  to uniform size pads 4" thick with overall pro-
  jection of 5-1/2". Longer, looped pads inserted
   between standard spacer pads to allow
   approximately 1/2" flex of looped pads upon
   impact. Pads punched to receive 3/4" supporting
   rods.
• Bumper to have 3/8" steel-face plate equal to the
   rubber surface dimensions. Plate to be welded to
   slotted steel support plates which extend back to
   the 3/4" supporting rods. Brackets to be punched
   with elongated slots to allow steel-face to "float"
   on impact.
• Finish to be black only.
dura soft bumpers
Installation
• Structural mounting angles permit welded
   installations or provide bolting through steel.
• No assembly required.

Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click the Model No. of the item you wish to purchase.

PRICES

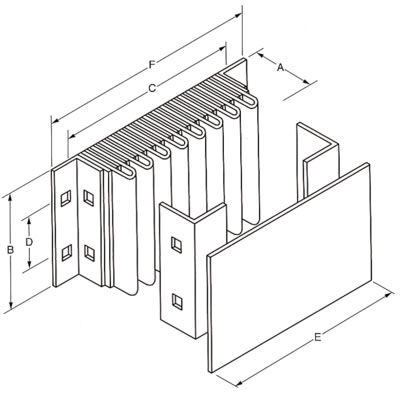

Model
No.
*Size
( A x B x C)
D
Vertical Bolt Hole Centers
E
Rubber Length
F
Overall Length
Wt.
Lbs.
Prices
B5510-14-DS 5-1/2" x 10" x 14" 6" 10" 16" 48 $124.20
B5510-18-DS 5-1/2" x 10" x 18" 6" 14" 20" 58 $158.80
B5510-24-DS 5-1/2" x 10" x 24" 6" 20" 26" 73 $232.50
B5510-36-DS 5-1/2" x 10" x 36" 6" 32" 38" 72 $363.00
B5512-14-DS 5-1/2" x 12" x 14" 4" 10" 16" 35 $153.20
B5512-18-DS 5-1/2" x 12" x 18" 4" 14" 20" 44 $216.60
B5512-24-DS 5-1/2" x 12" x 24" 4" 20" 26" 58 $258.70
B5512-36-DS 5-1/2" x 12" x 36" 4" 32" 38" 84 $419.90
B5520-11-DS 5-1/2" x 20" x 11" 6" 7" 13" 73 $191.80
B5524-11-DS 5-1/2" x 24" x 11" 4" 7" 13" 56 $223.00
B5536-11-DS 5-1/2" x 36" x 11" 4" 7" 13" 85 $306.60
* Projection x Height x Bolt Hole Centers (Length)
