EZ
GUARD® PERIMETER FENCE |
PROTECT
MACHINERY AND PERSONNEL IN SECONDS ! |
|
|
|
 |
|

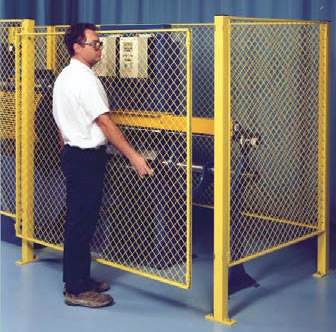

EZ GUARD® is constructed from the same high quality
materials as our EZ WIRE® partition. It is designed for
machine guarding and as a safety barrier over mezzanines.
Use EZ GUARD® to enclose one machine, a work cell,
or an entire line. |
|
|
|
EZ GUARD® is framed with channel inserts and has no sharp
edges. Standard and Special configurations are available.
Doors can be set up to interlock with your equipment. Consult
our sales department for expert assistance in designing your
EZ GUARD® solution to OSHA compliance. |
|
|
|
FEATURES: |
|
•
EZ GUARD® uses the patented hook-fastener design
• Allows easy-on and easy-off panels for maintenance and access
• Machine screws are used for more permanent applications
• Standard color is safety yellow
• Ideal for enclosing robotic and other automated machinery
• 10-gauge wire, 1 1/2” diamond mesh pattern |
|
|
|
|
|
|
|
|
|
|
PROTECT
MACHINERY AND PERSONNEL IN SECONDS |
 |
|

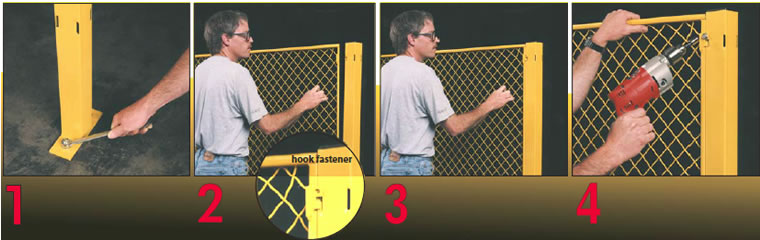

The
overall post height
is 6’. Lag bolts and
plastic end caps are
included. Posts are
universal and can be
used in any position
(corners or line posts.) |
|
Panels
are attached to the
outside surface using the
patented hook fastener
with no exposed wires. |
|
Panels are positioned
on
the posts with a 12”
sweep space. |
|
EZ
GUARD® Panels
are secured using
self-tapping screws
and maybe installed
with power tools.
Installation of panel
completed in 38
seconds. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase. |
|
|
|
|
|
|
|
PRICING
FOR EZ GUARD® |
| Model # |
Description - W x H |
Lbs. |
Price ea. |
| G01000-05000 |
PANEL,
1 X 5 W/INSERT |
10.78 |
$62.47 |
| G02000-05000 |
PANEL,
2 X 5 W/INSERT |
15.40 |
$67.74 |
| G03000-05000 |
PANEL,
3 X 5 W/INSERT |
20.02 |
$95.57 |
| G04000-05000 |
PANEL,
4 X 5 W/INSERT |
24.64 |
$121.24 |
| G05000-05000 |
PANEL,
5 X 5 W/INSERT |
29.26 |
$144.69 |
| G06000-05000 |
PANEL,
6 X 5 W/INSERT |
37.27 |
$168.84 |
| G07000-05000 |
PANEL,
7 X 5 W/INSERT |
41.89 |
$187.87 |
| G08000-05000 |
PANEL,
8 X 5 W/INSERT |
46.51 |
$204.70 |
| G09000-05000 |
PANEL,
9 X 5 W/INSERT |
51.13 |
$219.33 |
| DOOR |
| G2203000-05000 |
DOOR,
3 X 5 HINGE GUARD |
34.17 |
$232.44 |
| G2204000-05000 |
DOOR,
4 X 5, HINGE GUARD |
39.54 |
$246.86 |
| POSTS |
| G5506 |
POST,
6' UNIVERSAL |
13.96 |
$89.14 |
| G5506D |
DOOR
POST, 6' UNIVERSAL, 8X8 FOOT PLATE |
18.92 |
$111.88 |
|
|
EZ Guard Perimeter Fence,
Machine Guard, Security Cages, Security Wire Partition, Welded Wire Partitions,
Wire Mesh Cages, Wire Mesh Partition, Wire Partition, Wire Partitions,
Wire Security Cage, Wire Security Partitions, Woven Wire Partition, Woven
Wire Partitions, and Woven Wire Enclosure from your source for material
handling equipment. |
|
