GOOSENECK
INDUSTRIAL LIGHT
|
“DL2GN”
Sag Resistant Gooseneck |
|
|
|
 |
|
Innovative.
Modern. Streamlined. |
|
|
|
Unmatched
Performance |
|
|
|

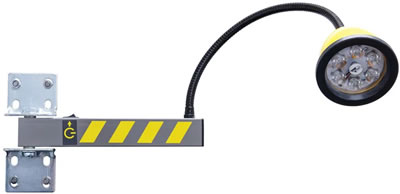

Part of the innovative DL2
Series, the DL2GN
Gooseneck is designed to resist sag while providing
unrivaled flexibility and light quality compared to
traditional models. |
|
|
|
|
|
The
DL2GN Gooseneck features “set and forget” positioning, allowing
operators to set the model to their
optimal position and leave it without obstructing forklifts or the door.
Our innovative design resists sag over
time by transferring movement to a base hinge, significantly reducing friction
caused by repetitive movement
and repositioning, and reducing the size and weight of the neck. The model
also includes a US-made high-
impact polycarbonate head with optimized internal LED, further reducing
weight compared to PAR38 lamps
and metal heads. |
|
|
|
We
use the same light engine for the entire DL2 family, ensuring consistent
high-quality features like CRI, color
temperature, beam angle, and maximum-minimum ratios for all DL2 Series loading
dock lights. |
|
|
|
| Features |
|
•
Uses up to 94% less energy than traditional incandescent heads
• 100,000 hour life expectancy in typical applications (vs. 2,000 hours
for typical incandescent lights)
• Conveniently stores flat against the wall when not in use
• Safety bumper protects operators from injuries and mitigates damage
to the product
• Universal LED engine across all DL2 products
• Fixed wattage, eliminates the danger of incandescent lamps being
screwed into LED fixtures.
• 5-year warranty
• UL and cUL Listed
• Made in USA |
|
|
|
|
 |
|
|
 |
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase. |
|
|
PRICES |
Model
No. |
Lamp
Type/Head |
Arm
Style |
Weight
(lbs.) |
Prices |
|
2nd
Gen LED/Polycarbonate |
Gooseneck |
7.46 |
$522.16 |
|
|
INSTALLATION
INSTRUCTIONS |
|
CAUTION!The
individual user should determine prior to use whether this device is suitable,
adequate or safe for
the intended use. Since individual applications are subject to great variation,
the manufacturer makes no representation
or warranty as to the fit or suitability of these devices for any specific
application. If damage occurs, please replace
damaged parts immediately. |
|
Setup
and Mounting |
|
| Mount
your dock light in three easy steps |
|
| The
DL2 bracket is designed to fit most existing bolt hole patterns from previous
dock arm installations. |
|
Step
1. Select a mounting location suitable to support the weight of the
unit. If securing to a solid cinderblock or
cement structure, use 3/8” lag bolts with expansion anchors. If mounting
to a wood framed building structure,
fasten directly to a stud using 3/8” lag bolts. |
|
Step
2. See template below to drill appropriate sized holes for the four
(4) fasteners/wall anchors
(fasteners not included). Recommended bracket mounting height is 4–5
feet (121-152cm) from the floor and
2.5–9 inches (6–22cm) from the edge of the door opening. |
|
Step
3. When the dock arm is securely fastened to the wall, connect the cordset
into a suitable power source and
your DL2GN is ready to be used. |
|
CAUTION!
Plug the unit into an electrical outlet compliant with the ratings as specified
on the product label.
Max Weight: 30 lbs (14 kg)
120 VAC, 50/60Hz, 14 Watts |
|
Calibration |
|
Warning: This fixture is designed for installation in general Non-Hazardous locations
in accordance with the
National Electrical Code and applicable local electrical codes. Note: Electrical
Rating for this LED module
is 120-240 VAC, 50/60Hz, 14 Watts |
|

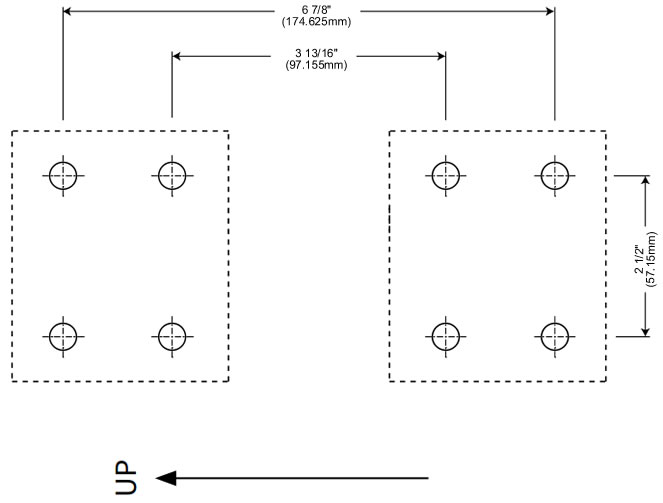

MOUNTING
BRACKET TEMPLATE (call our sales department for template) |
|
|
 |
 |
|
