HEAVY-DUTY
LED DOCK LIGHTS |
|
| Up
to 94% Less Energy! |
|
|
|
|
|
|
Because
of the advanced applications of LED technology, the HD Series LED Loading
Dock Light requires far less
energy than traditional incandescent fixtures, while accomplishing the same
lighting task. |
|
|
|
|
|
|
| Lower
Maintenance Costs! |
|
|
|
|
|
|
The
HD Series LED Loading Dock Lights will deliver more than 90% lumen maintenance
for over 10 years in typical
applications and environments. That is usually more than a 60,000 hour life
expectancy with a three year warranty. |
|
|
|
|
|
|
| Virtually
Indestructible! |
|
|
|
|
|
|

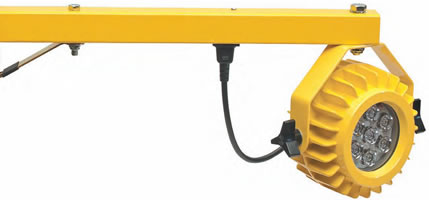

| The
HD Series LED Loading Dock Light Head is designed for the most demanding
environments including extreme temperatures and wet and damp locations. |
|
|
|
|
|
|
 |
|
|
 |
|
|
|
|
|
|
Heavy-duty
on/off switch and strain relief
are located in the recessed back plate,
reducing the chances of being impacted
and damaged by moving equipment in
the loading dock area. |
CAN
OUTLAST 25 INCANDESCENT BULBS! |
|
|
|
|
|
|
|
|
|
|
|
•
Light intensity exceeds a 300 watt incandescent bulb, while using only 18
watts.
• Operating temperature -20°F – 105° F
• Light head is completely sealed with a polycarbonate lens. Rated
for "Wet Locations" IP66, NEMA4
• Available as a complete dock light with arm and light head or just
as a light head.
• Ideal for use in food warehouses
• Dedicated constant current IP66 LED driver rated for 100,000 hours
of operation at 77° F
• Rugged cast aluminum housing
• Field repairable
• Emits cool white light designed to show true colors
• Voltage input: 100-240VAC, 50/60 Hz, Single Phase
• UL, cUL, CE certified and RoHs compliant |
|
|
|
|
|
|
 |
|
|
 |
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase. |
|
|
LED/HEAVY
DUTY PRICES |
Model
No. |
Arm
Length |
Arm
Style |
Fan |
Price |
|
24" |
Double
Strut |
No |
$623.76 |
|
Single
Strut Adjustable |
No |
$612.72 |
|
40" |
Double
Strut |
No |
$641.70 |
|
Double
Strut Adjustable |
No |
$651.36 |
|
Single
Strut Adjustable |
No |
$627.90 |
|
60" |
Double
Strut |
No |
$662.40 |
|
Double
Strut Adjustable |
No |
$672.06 |
|
Single
Strut Adjustable |
No |
$648.60 |
|
90" |
Double
Strut |
No |
$814.20 |
Fan
and Dock Light w/Heavy Duty LED Lamp Head |
|
40" |
Double
Strut |
Yes |
$990.29 |
|
60" |
Double
Strut |
Yes |
$996.02 |
|
- |
Heavy
Duty Head |
- |
$504.50 |
|
|

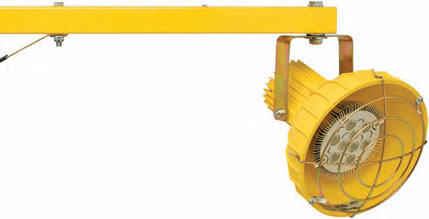

LED DOCK
LIGHT |
|
|
|
|
|
|
|
 |
|
|
|
 |
|
|
Wire
guard with security clips protect bulb from abusive contact
and keeps it locked in place. |
|
|
PAR 38
LED Retrofit Bulb |
|
|
|
•
Easily installs into existing Tri Lite poly-
carbonate lamp heads (INCHEAD-P
Housing)
• No fragile filament to break
• Optimized light angle to maximize trailer
lighting
• Lumen intensity comparable to 150 watt
PAR 38 bulb
• UL & CE listed and RoHS compliant
• Voltage range for use world wide
• Uses nine high intensity 3 watt LED's |
|
|
|
•
80% less energy than incandescent or halogen bulbs
• Achieves maximum light intensity instantly
• No fragile filament to break
• No shattered glass to sweep up
• Light is optimized for trailer illumination
• Ideal for use in food warehouses
• Voltage range for use world wide
• 3-Year Warranty |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase. |
|
|
LED/POLYCARBONATE
PRICES |
Model
No. |
Arm
Length |
Arm
Style |
Fan |
Price |
|
24" |
Double
Strut |
No |
$350.18 |
|
Single
Strut Adjustable |
No |
$335.83 |
|
40" |
Double
Strut |
No |
$365.98 |
|
Double
Strut Adjustable |
No |
$374.59 |
|
Flex
Double Strut |
No |
$475.06 |
|
Single
Strut Adjustable |
No |
$345.89 |
|
60" |
Double
Strut |
No |
$388.94 |
|
Double
Strut Adjustable |
No |
$397.55 |
|
Flex
Double Strut |
No |
$498.01 |
|
Single
Strut Adjustable |
No |
$368.84 |
|
90" |
Double
Strut |
No |
$541.07 |
|
Double
Strut Adjustable |
No |
$549.68 |
|
Flex
Double Strut |
No |
$581.26 |
Fan
and Dock Light w/Heavy Duty LED Lamp Head |
|
24" |
Double
Strut |
Yes |
$653.02 |
|
40" |
Double
Strut |
Yes |
$668.81 |
|
60" |
Double
Strut |
Yes |
$693.20 |
|
- |
Polycarbonate
Head & LED Bulb & Guard |
- |
$255.02 |
|
|
Heavy Duty LED Dock Light,
Loading Dock Light, Loading Dock Lights, Dock Light, Dock Lights, Dock
Light and Fan, Dock
Lights and Fan, Dock Loading Lights, Dock Loading Light, and Dock Lighting
System from your complete source for material
handling equipment. |
|
