Kee
Step Mini Stepover |
|
| A
range of modular, off-the-shelf step-overs that help your team navigate
obstructions on a roof. |
|
| Small
in size, big on safety |
 |
|
|
|
Roof surfaces can be extremely dangerous with
varying levels, uneven surfaces, and multiple ob-

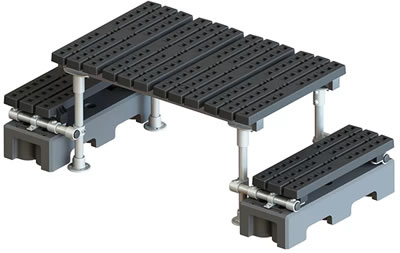

structions that need to be overcome. Kee Step
Mini Step-Overs create a safe way to cross roof
obstructions, such as pipework, plant equipment,
and conduits. Suitable for use on a variety of roof
types where there are changes in roof levels, our
step-overs create a safe, anti-slip, level walking
surface onto and across roofs. |
|
|
|
| Kee
Step Module Kits |
|
|
|
Available
as kits, the Step-Overs are supplied as
flat packed with full assembly instructions to allow
quick and easy installation. |
|
|
|
|
|
|
|
|
|
|
•
Two height clearance options, 7.8 inches and 15.7 inches
• Three lengths available, 3, 4, and 5 tread options
• Two fixing options, free standing and fixed |
|
|
KEY
FEATURES |
|
•
Safely Get Over Obstacles
• Range of Sizes
• Suitable for All Roof Types
• Standard Kit Formats
• Non-slip Treads
• High Fire Rating
• No Welding Needed
• Long Lasting |
|
|
|
|
|
Two
options are available, free standing, which the unit
stands on two 57.3 lbs base weights, or fixed, which can
be attached to suitable securing surfaces. |
|
|
|
|
|
| Standards |
|
|
|
|
|
|
|
Kee
Step Mini Steps are designed to be compliant with
OSHA 1910.23(e)(1)(iii), OSHA 1910.25(b)(3), OSHA
1910.23(c)(2-4), and OSHA 1910.23(e)(1)(vi) |
|
|
|
|
 |
|
|
| Why
do you need Kee Step Mini Stepover? |
|
Long-Lasting
Unlike it’s lumber-built alternative, Kee Step Mini Stepovers are designed
using galvanized components,
PVC weights, and nylon treads – all with an extremely long life expectancy
even in harsh rooftop environments. |
|
Designed
for Indoor and Outdoor Use
When used on rooftops the mini-step is designed with a custom PVC weight
to eliminate the need for rooftop
penetrations and provide wind resistance. For indoor or ground-based applications
simply bolt the base flange
to the surface. |
|

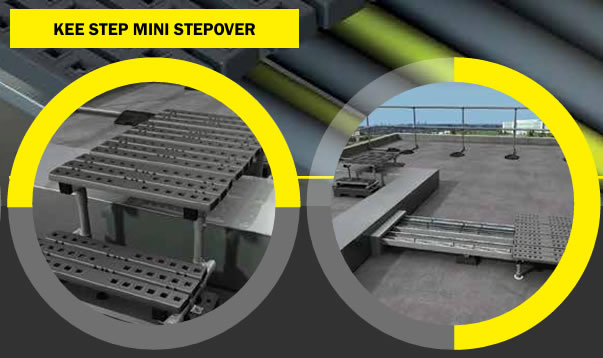

Use
anywhere on the roof
Roofs are cluttered with potential trip hazards, with conduit, ammonia lines,
and ductwork commonly
crisscrossing the walk path. Where a walk path and small obstruction meet
we recommend installing
Kee Step Mini Stepovers to eliminate the trip hazard and protect your worker
from a potential injury. |
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
Single
Step Short:
SAP-SO-3B-NS
Clearance of 8” up & 9” across |
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
Single Step Long:
SAP-SO-5B-NS
Clearance of 8” up & 29” across |
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
Double Step Short:
SAP-SO-3B2S-NS
Clearance of 18” up & 21” across |
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
Double Step Long:
SAP-SO-5B2S-NS
Clearance of 18” up & 40” across |
|
|
|
|
|
|
|
|
|
 |
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click a Price of the item you wish to purchase. |
|
|
|
Model
No. |
Description |
Price |
SAP-SO-3B-NS
| Mini-Stepover,
Clearance of 8"H & 9"W |
|
SAP-SO-5B-NS
| Mini-Stepover,
Clearance of 8"H & 29"W |
|
SAP-SO-3B2S-NS
| Mini-Stepover,
Clearance of 18"H & 21"W |
|
SAP-SO-5B2S-NS
| Mini-Stepover,
Clearance of 18"H & 40"W |
|
|
|
