EDGEHALT®
LADDER SAFETY GATE (LSG) |
| THE
SAFEST SAFETY GATE |
|
|
|
|
|
 |
|
New
patent-pending EdgeHalt® Ladder Safety Gates
are now the safest safety gates on the market. Their
innovative Slam-Proof™ technology closes each gate
in a quiet, controlled manner. Plus, they have been
tested to the OSHA, ANSI and Canada COHS
standards and exceed the loading requirement by
two times. EdgeHalt Safety Gates are also extremely
reliable, featuring updated springs that have been
tested to more than 1 million cycles and are guaran-
teed for the life of the gate. |
|
|
|
|
|
|
|
|
|
 |
|
|
|

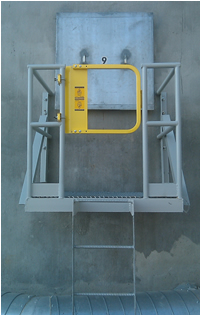

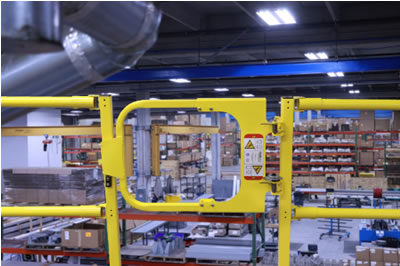

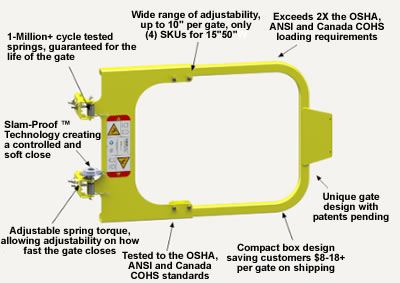

Slam-Proof™
Technology – A unique damping
system that provides safety to the operator while
the gate is closing. |
 |
|
|
|
Proven
Safety For Your Team – Tested to the
OSHA, ANSI and Canada COHS standards and
exceeds the loading requirement by two times
(OSHA 1910.29; OSHA 1910.28, ANSI A1264.1-
2017; Canada COHS SOR-86-304 Part II; ANSI
A14.3). |
|
|
|
Springs
Guaranteed For Life Of Gate – Tested
to exceed more than one million cycles, you can
feel good that the springs on your gate will likely
outlast everything around them. |
|
|
|
Always
In Place – Self-closing to protect
employees from dangerous falls. |
|
|
|
|
|
|
|
|
|
|
|
Save
On Shipping – The gate’s unique design
allows for a compact shipping box, reducing
shipping costs by an average of $8-$18+ per gate. |
|
|
|
|
|
|
|
|
|
|
|
|
AVAILABLE
IN FOUR FINISHES:
Powder Coat Yellow (PCY)
Hot Dipped Galvanized (GAL)

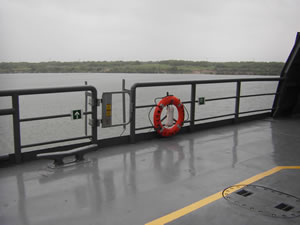

304 Stainless Steel (304SW)
Aluminum (ALU) |
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
 |
|
|
|
|
|
|
|
|

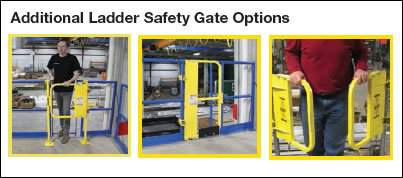

| STAND-OFF
MOUNTING SYSTEM (LSG-STNDOFF) |
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
 |
|
|
•
This system is an optional railing attachment that creates
increased platform space on the mezzanine edge and
provides a steadying point on the platform for personnel
to utilize when transitioning through the Ladder Safety Gate.
• No-drill adapter bracket kits are available for
mounting to angle iron, flat bar or nonstandard railings |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GATE
MODEL/SIZE |
GATE
FINISH TYPE |
Model
No. |
RAILING
OPENING WIDTH |
FLAT
SURFACE OPEING WIDTH |
304SW |
PCY |
GAL |
Min. |
Max. |
Min. |
Max. |
LSG-1520 |
15" |
20" |
17
5/16" |
23
9/10" |
|
|
|
LSG-2030 |
20" |
30" |
22
5/16" |
32
9/16" |
|
|
|
LSG-3040 |
30" |
40" |
32
5/16" |
42
9/16" |
|
|
|
LSG-4050 |
40" |
50" |
42
5/16" |
52
9/16" |
|
|
|
|
|
*Put
Gate Qty. in White Table Cells |
|
|
|
|
|
 |
|
|

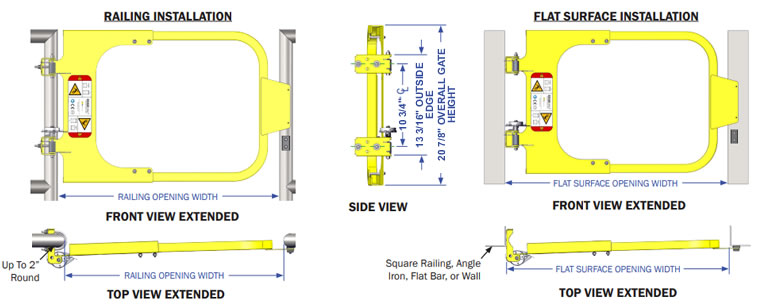

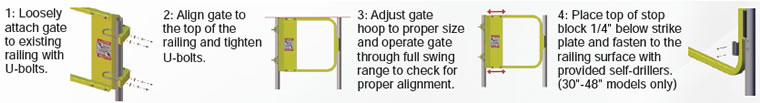

INSTALLATION (standard round pipe or square tube):
The gate ships fully assembled, including standard mounting hardware for
round pipe (up to 2" O.D.)
and square tubing (up to 1.5" x 1.5" O.D.). If mounting to angle
iron, flat bar or nonstandard railing,
gate bolts directly to railing (hardware not included) or by purchasing
and using a no-drill adapter
bracket kit. |
|
|
|
 |
|
 |
|
Optional
Adapter Brackets
Order gate at a size 2-1/2" smaller to account for mounting location. |
| Gate
Construction: |
|
|
|
|
|
|
•
Gate: 1-1/4", 11-gauge* square tubing. Minimum dimension from top of
gate arm to bottom of gate arm is 22-1/4".
• Mounting Bracket: Universal mounting bracket fits round railings
up to 2" O.D. and square railings up to
1-1/2" square. Bracket is adaptable to bolt to flat surfaces.
• Hinge Plate: 10 gauge, full height of gate. Hinge plate provides
for gate adjustment of 3-3/4", (-)1-1/4" to (+)2-1/2".
• Standard Hardware: U-bolts, flat washers, nuts and plastic thread
protector cap.
• Springs: Torsion type, stainless steel. Minimum of two (2) springs
per gate, housed within hinge pivot.
• Material & Finish: To be one of the following, based on model: |
|
-
Mild steel, powder coat yellow.
- Mild steel, hot dip galvanized.
- Stainless steel, 304, unpainted.
- Aluminum, 6061, unpainted. |
|
|
|
|
•
Gate Operation: Allows for 180° travel. Gate swing direction is reversible
by inverting or rotating.
• Packaging: Carton includes gate, standard mounting hardware, and
Installation/O&M Manual.
• Warranty: 1 Year Limited. |
|
|
|
|
| *Aluminum,
0.125” wall thickness. Stainless Steel, 16-gauge square tubing. |
|
|
|
 |
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase. |
|
|
PRICING
FOR LADDER SAFETY GATE - MILD STEEL |
Powder
Coat
Safety Yellow |
Hot-Dip
Galvanized |
Railing
Opening
Width |
Flat
Surface
Opening Width
| Ship
Wgt
(lbs.)
| Price
Ea. |
Powder
Coat
Safety Yellow |
Hot-Dip
Galv. |
Model
No. |
Model
No. |
Min. |
Max. |
Min. |
Max. |
|
|
15" |
20" |
17
5/16" |
23
9/10" |
19 |
$400 |
$512 |
|
|
20" |
30" |
22
5/16" |
32
9/16" |
24 |
$408 |
$528 |
|
|
30" |
40" |
32
5/16" |
42
9/16" |
28 |
$437 |
$544 |
|
|
40" |
50" |
42
5/16" |
52
9/16" |
30 |
$576 |
$624 |
|
|
| STAINLESS STEEL (304SW) Seal Welded |
Model
No. |
Railing
Opening
Width |
Flat
Surface
Opening Width
| Ship
Wgt
(lbs.)
| Price |
Min. |
Max. |
Min. |
Max. |
|
15" |
20" |
17
5/16" |
23
9/10" |
19 |
$976 |
|
20" |
30" |
22
5/16" |
32
9/16" |
24 |
$1,024 |
|
30" |
40" |
32
5/16" |
42
9/16" |
28 |
$1,216 |
|
40" |
50" |
42
5/16" |
52
9/16" |
30 |
$1,296 |
|
|
|
|
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase. |
|
|
|
|
| ALUMINUM |
|
Model
No. |
Fits
Opening Dim. |
Ship
Wgt.
(lbs.)
| Price
ea. |
Min. |
Max. |
|
16-3/4" |
20-1/2" |
20 |
$576 |
|
19-3/4" |
23-1/2" |
21 |
$608 |
|
22-3/4" |
26-1/2" |
22 |
$640 |
|
25-3/4" |
29-1/2" |
23 |
$672 |
|
28-3/4" |
32-1/2" |
24 |
$704 |
|
31-3/4" |
35-1/2" |
25 |
$736 |
|
34-3/4" |
38-1/2" |
26 |
$768 |
|
|
|
|
|
|
PRICING
- LADDER SAFETY GATE ADAPTER BRACKETS |
|
|
| All
Materials And Finishes (PCY/GAL/SS) |

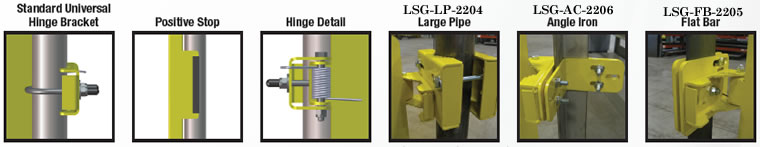

Ladder
Safety Gate Optional "No Drill" Mounting Adapter Brackets are
designed for unique mounting applications,
or where "no drill" installation is required or desirable. PS
Safety Access offers three optional adapter bracket models
available in two-hinge or threehinge variations |
a.
Large Pipe Adapter Bracket (LP-2204): The LP-2204 adapter bracket is
for square or rectangle railing columns
or mounting surfaces which are larger than 2" O.D. up
to 3-3/4" O.D. and/or 3"x3" square tube.
b. Flat Bar Adapter Bracket (FB-2205): The FB-2205 adapter bracket
is for rectangular bar stock columns larger
than 2” O.D. up to 4” width. The maximum thickness
capability of the FB-2205 is dependant upon the length of bolts.
The standard FB-2205 includes bolts to fit a maximum
thickness of 1/4”.
c. Angle Iron Adapter Bracket (AC-2206): The AC-2206 adapter bracket
is for angle iron railing columns.
It fits angle iron with a maximum dimension of 3-3/4”
x 3-3/4”.
d. Finish: On all exposed surfaces. Choose from options below: |
|
1. Powder Coat
Safety Yellow (PCY):
2. Hot-Dipped Galvanized (GAL).
3. Stainless Steel (SST): |
e. Two hinge variation compatible with Ladder Safety Gates 15”-36”.
Three hinge variation compatible with
Ladder Safety Gates 40”-44”. |
|
|
IMPORTANT:
When using the Optional Adapter Brackets, order Ladder Safety Gate Size
2-1/2”
smaller to account for mounting location. |
|
|
To
determine the proper size Ladder Safety Gate when using Adapter Brackets
perform the following:
Railing Opening - 2-1/2” = Fits Opening Dimension
Example: 24” Railing Opening - 2-1/2” = 21-1/2”
Choose the LSG-21 from the Chart. |
|
|
|
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase. |
|
|
|
|
|
|
|
| LARGE
PIPE ADAPTER BRACKET (LP-2204) |
|
|
|
|
|
|
|
|
 |
|
|
 |
|
|
|
|
|
|
|
|
Model
No. |
Ship
Wt. |
Price
/ Set |
|
9 |
$288 |
|
9 |
$384 |
|
9 |
$880 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
FLAT
BAR ADAPTER BRACKET (FB-2205) |
|
|
|
|
 |
|
 |
|
|
|
|
|
Model
No. |
Ship
Wt. |
Price
/ Set |
|
7 |
$120 |
|
7 |
$152 |
|
7 |
$400 |
|
|
|
|
|
|
|
|
|
ANGLE
IRON ADAPTER BRACKET (AC-2206) |
|
|
|
|
 |
|
 |
|
|
|
|
|
Model
No. |
Ship
Wt. |
Price
/ Set |
|
5 |
$112 |
|
5 |
$120 |
|
5 |
$240 |
|
|
|
|
|
|
|
|
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase. |
|
|
|
|
|
|
LADDER
SAFETY GATES STANDOFF MOUNTING SYSTEM |
|
|
|
|
 |
|
This system is
an optional railing attachment that creates increased
platform space on the mezzanine edge and provides a steadying point
on the platform for personnel to utilize when transitioning through the
Ladder Safety Gate. |
|
|
|
|
|
Model
No. |
Ship
Wt. |
Price |
|
5 |
$349 |
|
|
|
|
|
|
