ADJUSTABLE
SAFETY CAGE® |
375
LBS RATED | TYPE IAA | OSHA + ANSI COMPLIANT |
|
|
|
|
SAVES
TIME AND MONEY
SIMPLE SCAFFOLDING ALTERNATIVE |
|
|
|
Many
industries require professionals to tie off at an anchor point when working
at certain heights. This standard
helps keep people safe, but it can be a difficult standard to maintain.
The OSHA-compliant Little Giant® Adjustable
Safety Cage™ eliminates the need to tie-off, making jobs faster, safer,
and less expensive than many scaffolding
options. |
 |
|

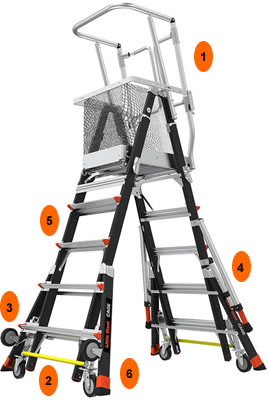

1.
FULLY ENCLOSED PLATFORM
42’’ handrail plus midspan and toe kick can eliminate the need
to tie
off in most situations. Enclosed platform promotes comfort while
elevated. |
|
|
|
2.
WHEEL LIFT™ CASTERS
Easily move the Cage while fully deployed. |
|
|
|
3.
TIP & GLIDE™ WHEELS
Easily move the Cage across the job site with Tip & Glide™ wheels. |
|
|
|
4.
DEPLOYABLE OUTRIGGERS
Outriggers help provide additional side-tip stability while in use.
Cage passes all ANSI tests for stability without outriggers
deployed. |
|
|
|
5.
NON-CONDUCTIVE FIBERGLASS
Non-conductive fiberglass rails rated to hold up to 375 lbs. |
|
|
|
6.
WIDE-FLARED BASE
Prevent incidents with a solid foundation, increasing side-tip stability. |
|
|
|

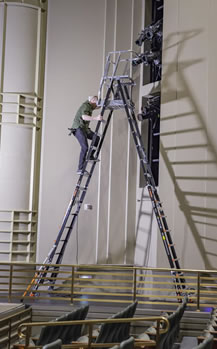

DID
YOU KNOW? |
|
The Adjustable
Safety Cage can easily be set up by one person,
unlike most scaffolding options. |
|
|
|
 |
|
|
|
 |
|
 |
|
COMPLY
WITH TIE-OFF RULES
Self-enclosing platform is a versatile,
safe alternative to ordinary stepladders. |
FAST
AND SAFE ALTERNATIVE
FOR TEMPORARY CAFOLDING
Easy to move and set up. Safe over
uneven surfaces and stairs. |
|
|
|
 |
|
 |
|

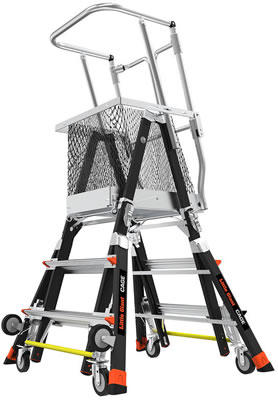

18503-240
w/Wheel Lift |
|

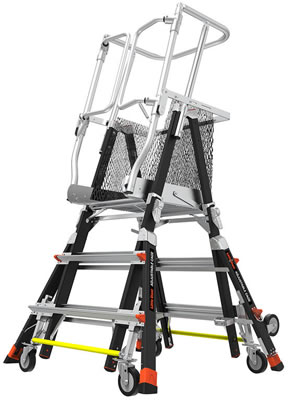

18503-817
w/Wheel Lift & Ratchet
Leveler |
|
|
|
|
|
 |
|
 |
|

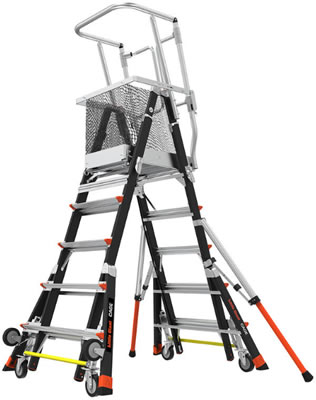

18509-240
w/Wheel Lift |
|

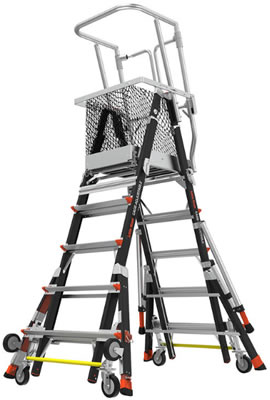

18509-817
w/Wheel Lift & Ratchet
Leveler |
|
|
|
|
|
|
|
 |
|
 |
|
 |
|

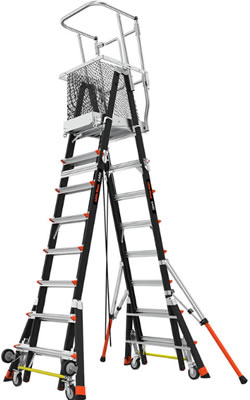

| 18515-240
w/Wheel Lift |
|

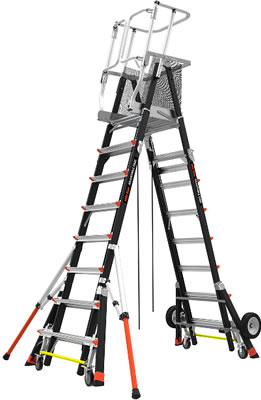

18515-243
w/all terrain Wheels
& Wheel Lift |
|
Closed |
|
|
|
|
|
|
|
 |
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click a Price of the item you wish to purchase. |
|
|
|
Part
No. |
Model |
Highest
Standing Level Min-Max |
Max
Reach* |
Spread
Min-Max |
Storage
Height |
Weight
(lbs.) |
Price |
18503-240** |
3'-5' |
3'-4'11" |
11'5" |
3'9"
- 5'11" |
7'10" |
102 |
|
18503-817** |
3'-5' |
3'-4'11" |
11'5" |
3'9"-5'11" |
7'10" |
105 |
|
18509-240 |
5'-9' |
4'11"-8'8.5" |
15'2.5" |
5'-7'5" |
9'10" |
129 |
|
18509-243 |
5'-9' |
4'11"-8'8.5" |
15'2.5" |
5'-7'5" |
9'10" |
133 |
|
18509-817 |
5'-9' |
4'11"-8'8.5" |
15'2.5" |
5'-7'5" |
9'10" |
130 |
|
18515-240 |
8'-14' |
7'8.5"-13'5" |
19'11" |
6'8.5"-10'6" |
12'9" |
151 |
|
18515-243 |
8'-14' |
7'8.5"-13'5" |
19'11" |
6'8.5"-10'6" |
12'9" |
156 |
|
18515-817 |
8'-14' |
7'8.5"-13'5" |
19'11" |
6'8.5"-10'6" |
12'9" |
153 |
|
|
*
A 5’ 6” PERSON WITH A 12” VERTICAL REACH
AVAILABLE OPTIONS: -240 INCLUDES WHEEL LIFT AND NET, -243 INCLUDES WHEEL
LIFT, NET AND ALL TERRAIN
WHEELS, -817 INCLUDES WHEEL LIFT AND RATCHET LEVELERS
BASE WIDTH: 3’ 9.5”
** OUTRIGGERS NOT AVAILABLE ON 3’-5’ MODELS |
|
|
|

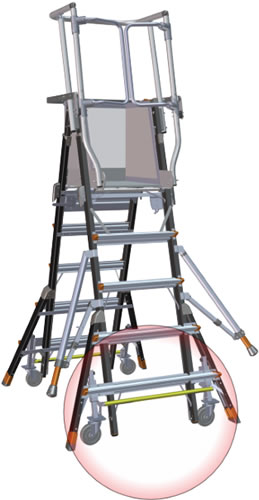

HOW-TO
CAGE: WHEEL LIFT |
|
|
|
|
 |
|
|
|
|
 |
1.
Place your hands on either side of the Cage to stabilize
yourself. |
|
2. Place your
(right or left) foot on the Wheel Lift bar
(yellow) and push down on the bar with your foot. |
|
|
|
 |

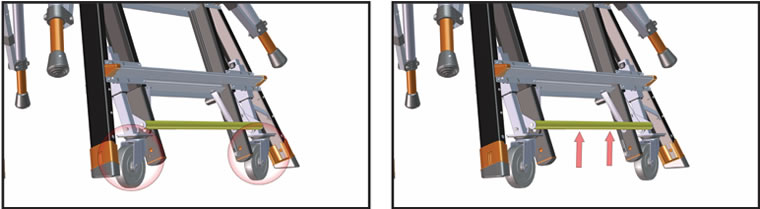

3.
Once the Wheel Lift wheels are engaged, move to the
other side of the Cage and repeat steps 1 and 2. The
Cage will be able to wheel freely now. |
|
4. To disengage
the Wheel Lift, place the toe end of
your foot under the bar and pull upward. |
|
|
|
