Hi-Viz®
Fluorescent Safety Rings are placed on
the studs of the MaxBullet® hardware to indicate
the top of the door opening in low light conditions. |
|
|
|
|
|
|
|
 |
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click a Part No. of the item you wish to
purchase. |
|
|
|
PRICING |
PART
# |
DESCRIPTION |
PRICE |
|

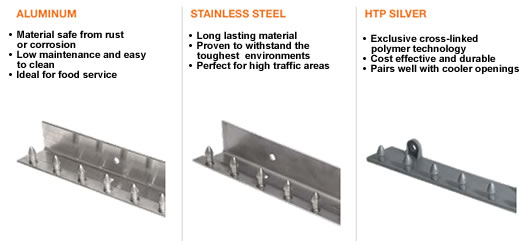

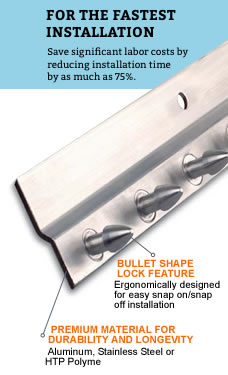

MaxBullet
Truck Mount Complete Strip Door Kit (8'w x 8'h - 8" x.198 Low
Temp
Scratch-Guard® Strips with 50% Overlap; MaxBullet® Truckmount Hardware
Kit; Hi-Viz® Fluorescent Safety Rings) |
$734 |
REPLACEMENT
PARTS |
|
Refrigerated
Trailer Strip Door Replacement Strips:
(16 - 8" x.198 Low Temp Scratch-Guard® Ribbed Strips, 8' long) |
$454 |
|
Hi-Viz®
Fluorescent Safety Rings (Package of 10) |
$4.30 |
|
| INSTALLATION |
|
|
|
|
|
|
|
|
|
|
 |
|
|
 |
|
 |
|
|
|
Figure
B |
|
Figure
C |
Figure
A |
|
|
|
|
|
|
|
|
Step
3 Measure width of trailer
and, if necessary, cut mounting bar
to length using saw. |
|
|
|
Step
2 Using the self-tapping screws
provided, install L-bracket on stud
as close to roller track as possible
without impeding movement of door
on track. Repeat for other side. |
Step
1 For trailers with roll-up
doors, locate the stud closest to
the door opening in the rear of the
trailer. |
|
|
Step
4 Place mounting bar on
L-brackets and using L-bracket
as a template, mark holes and drill
with a 1/4” drill bit. |
|
|
|
|
|
NOTE: For trailers with swing
doors, mount bar as close to top of
trailer as possible. Be sure to leave
room for mounting bar and bolts,
approximately 1” from top. |
|
|
|
|
|
|
|
|
|
|
|
NOTE: Remember to leave
room for mounting bar. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
 |
|
|
 |
|
Figure
D |
|
Figure
E |
|
|
Figure
F |
Step
5 Mount bar to L-brackets
using the provided bolts and
locknuts. |
Step
6 Install PVC strips using
preferred amount of overlap. Refer
to diagram on bottom of this
page for details on strip placement |
|
Step
7 Place Hi-Viz safety rings
on bullets where strips overlap
(see Figure F). |
|
|
|
|
|
|
|
|
Step
8 The strips should be trimmed
to leave 1/4” of clearance from the
floor surface. Use a common utility
knife to score and then tear
the strips by hand. |
|
|
|
|
|
|
|
|
|
|
|
| STRIP
PLACEMENT GUIDE |
|
|
|
|
|
|
|
PARTIAL
OVERLAP |
|
FULL OVERLAP |
|
|
|
|
|

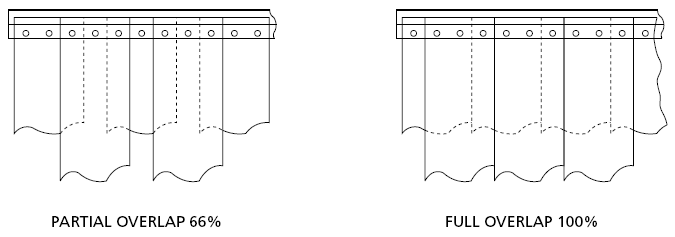

6“
WIDE
MATERIAL |
 |
|
|
|

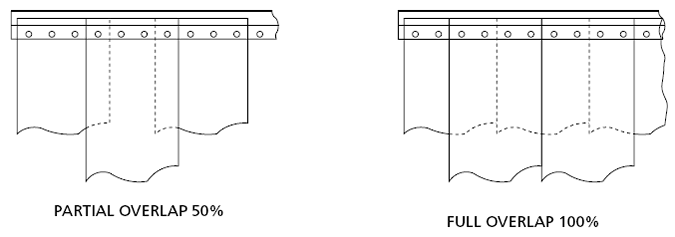

8“
WIDE
MATERIAL |
 |
|
|
|

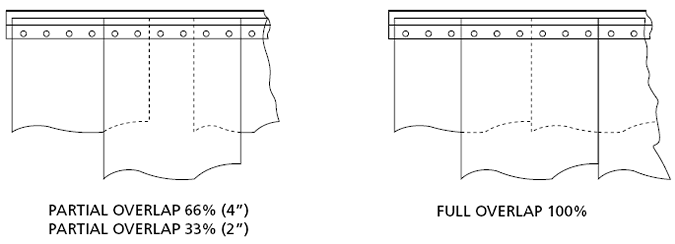

12“
WIDE
MATERIAL |
 |
|
|
