MINI-RAMP
(MR)
|
All
Welded Steel Construction Build To Last |
|
|
|
|
|
Don’t
interpret incorrectly thinking that small means “not as tough”.
There are a world of applications that have a
target height that is one-half or less of normal dock height. When your
high side is 33” or less you might consider
this economical solution. |
|
|
|
|
|
 |
|
With
the optional mobility package the Mini
does not need the hydraulic actuated under-
carriage to move it to the work. Two screw
jacks with rigid steel casters are mounted at
the balance point and a couple of people can
move it on a hard surface. Floor plate approach
both top and bottom insure a long life on the
grating whether you are using manual
equipment or forklift trucks. |
|
|
|
|
Capacities
start at 12,000# and go up from
there. Widths of 70” & 84” and lengths starting
at 15’. Call for special sizes and capacities. |

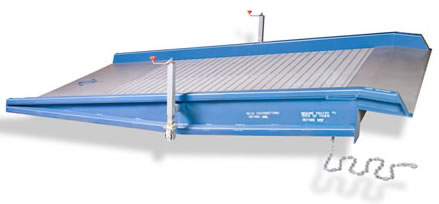

| Mini
Ramp shown with Screw Jack option. |
|
|
|
|
|
|
|
|
|
|
Features
for Mini Loading Ramps |
|
|
•Curb
design same as Full Size Ramp
• 8" of curb above drive surface
• Steel Diamond Deck Approach Plates (top & bottom)
• Serrated steel grating for traction & self cleaning
• Capacities from 12,000 lbs to 60,000 lbs |
|
|
|
|
|
|
Options
for Mini Loading Ramps |
|
|
Mobility
package – use the wheels to move the ramp into position.
The hand cranks rotate 90 degrees and self store. |
|
|
 |
|
 |
|
|

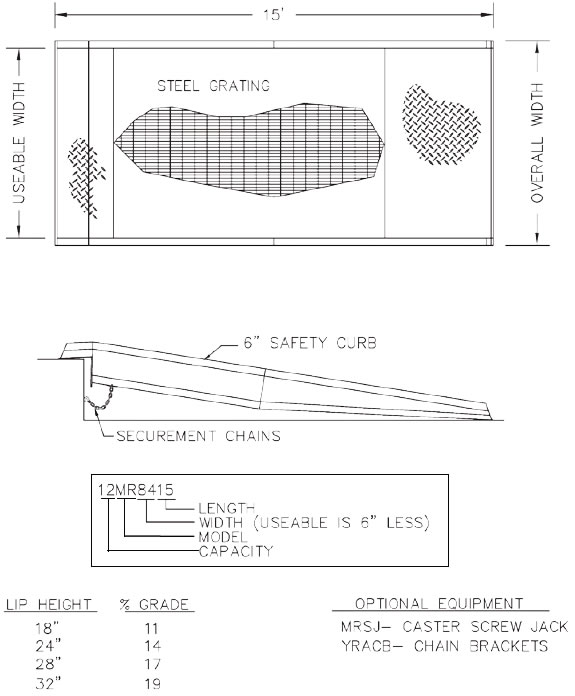

STEEL
MINI RAMPS MODEL MR |
| Mini
ramps are a smaller version of a yard ramp. Used for dock to ground applications
where the dock is 18-32" high. Typically for fork lift use. |
|
 |
|
|
|
 |
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase. |
|
|
PRICING |
Model |
Capacity
(lbs) |
Width |
Usable
Width |
Length |
Weight
(lbs) |
Price |
|
12,000 |
70" |
64" |
15' |
2254 |
$11,439 |
|
12,000 |
84" |
78" |
15' |
2300 |
$13,758 |
|
12,000 |
94" |
88" |
15' |
3026 |
$15,403 |
|
16,000 |
70" |
64" |
15' |
2254 |
$12,757 |
|
16,000 |
84" |
78" |
15' |
2265 |
$15,252 |
|
16,000 |
94" |
88" |
15' |
3240 |
$17,474 |
|
20,000 |
70" |
64" |
15' |
2626 |
$12,801 |
|
20,000 |
84" |
78" |
15' |
2933 |
$15,489 |
|
30,000 |
70" |
64" |
15' |
2986 |
$13,734 |
|
30,000 |
84" |
78" |
15' |
3295 |
$16,663 |
|
Mini
Ramps Screw Jack and Wheel (Per Pair) |
120 |
$891 |
|
Dock
mounted chain bracket |
6 |
$150 |
|
|
|
MINI-RAMP
UNLOADING INSTRUCTIONS |
| FLAT
BED |
|
|
|
|
|
|
|
| Shipped
on its side: |
|
|
|
|
|
|
1.
Remove any and all shipping rigging (i.e. straps, clamps, chains, etc.).
2. Using a lifting strap, wrap around the lift lug located on the top side.
3. Lift unit off the truck.
4. Have truck drive out from under the raised unit if possible.
5. Lower unit onto ground surface.
6. Tilt the ramp unit such that it will be laid over slowly using the lift.
7. Attach the screw jacks to both sides and raise the unit before moving. |
|
|
|
|
| Shipped
right side up: |
|
|
|
|
1.
Remove any and all shipping rigging (i.e. straps, clamps, chains, etc.).
2. Using lifting straps, lift the unit from four points so that the unit
will be lifted in the same position.
3. Have the truck move out from under the suspended unit.
4. Slowly lower the unit onto surface.
5. Attach the screw jacks to both sides of unit and raise the unit.
6. Manually move the unit into position. |
|
|
|
|
| CLOSED
TRUCK OR CONTAINER |
|
|
|
|
| Shipped
right side up: |
|
|
|
|
|
1.
Remove any restraining equipment.
2. Raise the unit.
3. Attached the screw jacks (if purchased).
4. Raise the unit with the screw jacks until the unit is off the ground.
5. Manually push the unit out of the truck/container.
6. Move to position. |
|
|
|
|
CAUTION:
These instructions are strictly a suggested method to unload your equipment
by the manufacturer.
Personnel unloading should consider all safety practices to safely unload
the unit. Also, when the unit is
in use, the unit should be secured and screw jacks completely raised off
the ground surface. |
|
