Pivot
Gate Style Mezzanine Safety Gate
|
Dual
Gate Design • Available in Custom Sizes |
|
 |
|
|
The
Protect-O-Gate Pivot Gate's
patented, double-gate design eliminates
the potential for falls and other accidents
associated with mezzanine loading areas. Pivot Style Safety Gates boast
patented durable designs, easy access and can ship fully assembled. The
Safety Gate
eliminates the need for unsafe
conventional devices, such as chains. A
clear choice for employee safety. Custom sizes are available. Contact us
for more information. |
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
Features |
|
|
|
|
|
|
|
|
|
|
|
•
Patented, durable design
• Easy access to staging area
• Can ship fully assembled
• Counterbalanced for easy operation
• 4" toe plate on ledge side |
|
•
Carbon or Stainless steel
• Single and Double-Pallet models
• Custom sizing available - contact us
• Available finishes: painted safety
yellow, corrosion resistant finish or
stainless steel |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Pivot
Gate Ease Of Use |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
 |
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Mezzanine
worker is protected while still allowing forklift access to the staging
area. |
|
Safety
Gate easily pivots to change positions. |
|
Mezzanine
worker now has access to the staging area while being protected from the
ledge. |
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
Dimensions |
|
|
|
|
|
|
|
|
|
|
Single-Pallet
Model (PG-04)
• Interior (Clearance): 56"W x 54.5"D x 66.5"H
• Exterior: 68"W x 63.25"D x 82"H

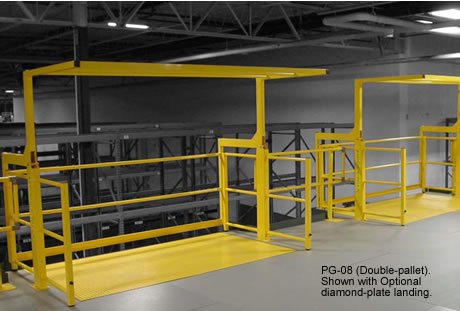

Double-Pallet Model (PG-08)
• Interior (Clearance): 108"W x 54.5"D x 66.5"H
• Exterior: 120"W x 63.25"D x 82"H |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Pivot
Gate Style Mezzanine Safety Gate Drawings |
|
|
|
|
|
|
|
|

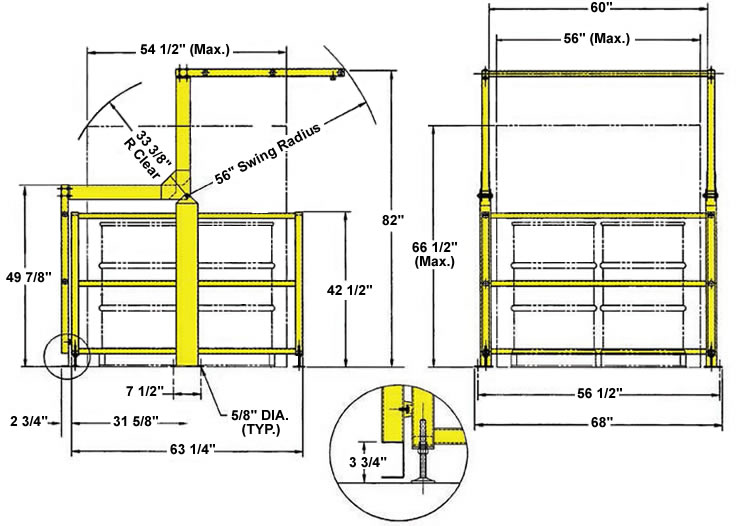

Single-pallet
Model No. PG-04 |
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|

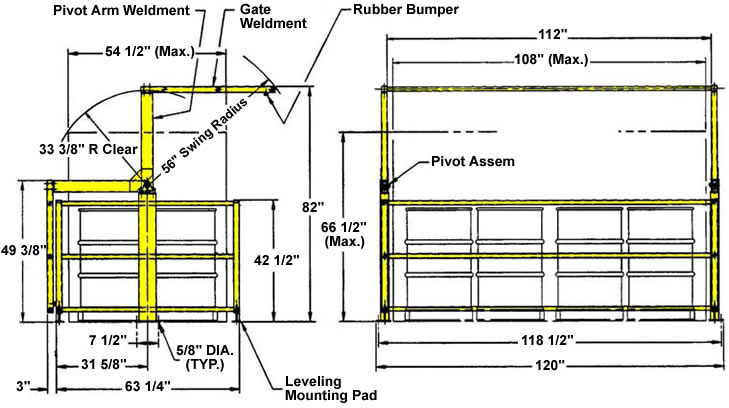

Double-pallet
Model No. PG-08 |
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
 |
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase. |
|
|
|
Pivot
Gate Style Mezzanine Safety Gate Prices |
|
|
Model
No. |
Overall
Dimensions |
Price |
|
68"W
x 66"D x 82"H |
$3,325 |
|
120"W
x 66"D x 82"H |
$3,960 |
|
Optional
Increased Height to Accommodate an 80" Tall Load |
$317 |
|
|
|
|
|
|

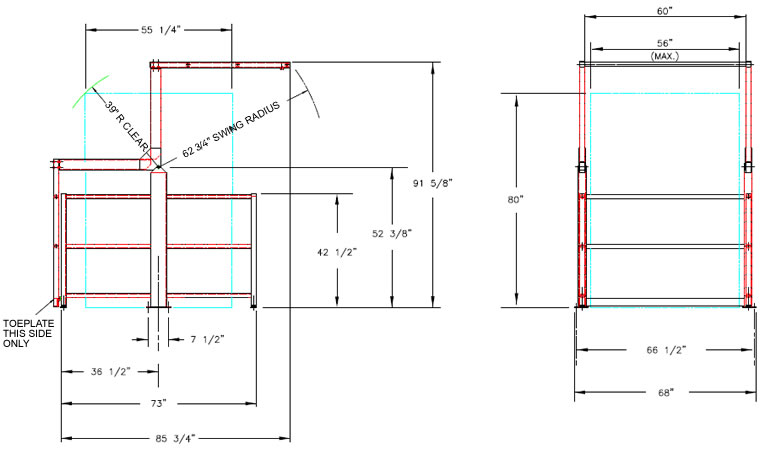

Single-pallet
Model With Optional Increased Height |
|
 |
|
