PREFABRICATED
STAIR LANDINGS
180 DEGREE SWITCH BACK TURN DESIGN
|
|
|
|
|
|
Heavy
Duty Structural Steel Platforms |
|
|
|
|
|
Easy
Bolt Together Assembly - Made to your size requirements |
|
|
|
|
|
 |
|
|
 |
|
|

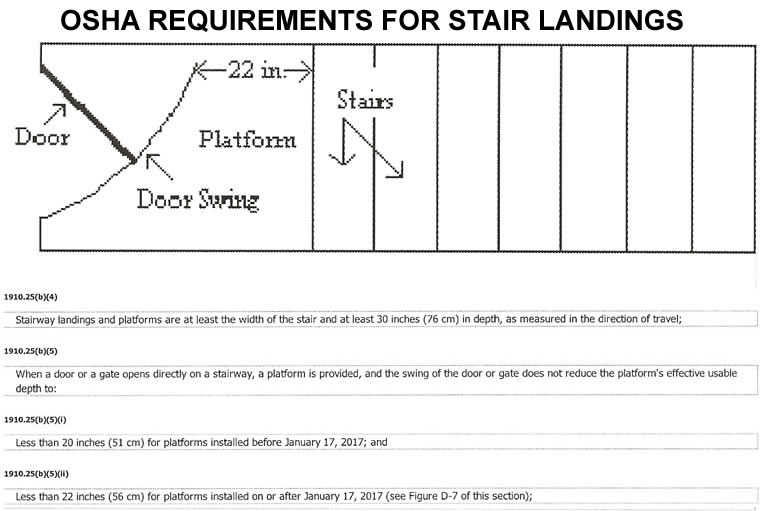

Meets
OSHA Requirements |
|
|
|
|
NOW!
5 COLOR CHOICES!
SAME PRICE! |
|
|
|
|
|
|

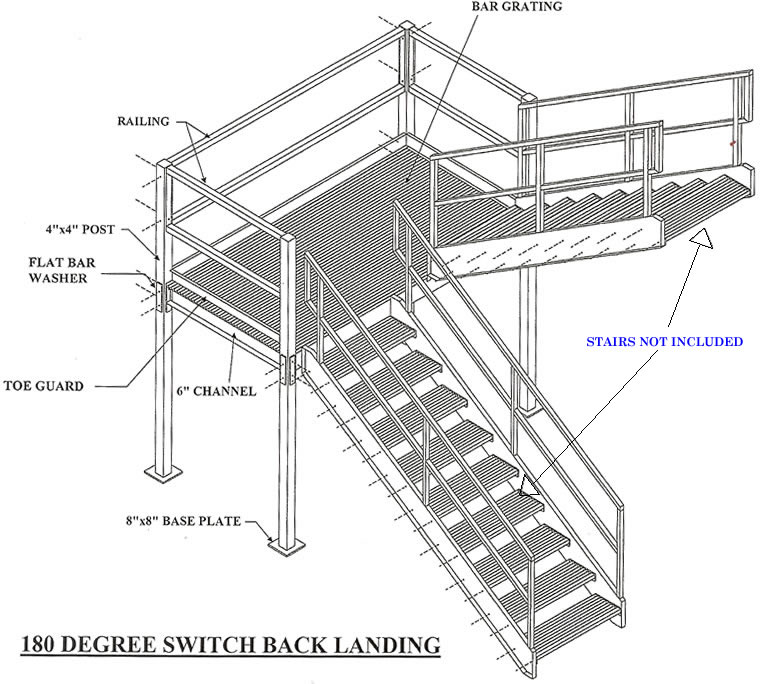

| Landing
shown with Stairs (stairs sold separately) |
|
|
|
|
|
|
CUSTOM
SIZES - SAME DAY QUOTES |
Custom sizes and
configurations are readily available. We provide same day price quotes
if you require a special
landing size, stair angle, specific tread rise/run, or a maximum horizontal
stair run to satisfy available floor space
constraints. |
|
|
|
|
|
| See
photos below price tables for examples of custom applications. |
|
|
|
 |
| NOTE:
Stairs not included, |
|
|
|
NEW!
Optional Finishes!
Our
standard finish is a quick dry polyester powder coat Gray (RAL
7005).
Also available in Black (RAL 9005), Blue (RAL
5010), White (RAL 9016) and
Safety Yellow (RAL 1023). In addition we are pleased to offer our products
with a
hot-dipped
galvanized finish or in a Two Part System which is our powder coat over a
hot-dipped galvanized undercoat. |
|
 |
|
Color
Disclaimer: Please note that the appearance of
the color blocks shown above may vary depending on the
device used to view this web page. |
|

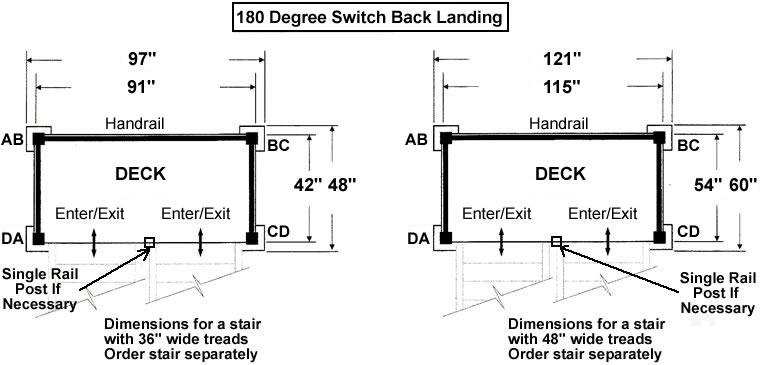

DIAGRAMS |
 |
|
|
|
|
 |
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click a Price of the item you wish to purchase. |
|
|
|
|
Custom
Sizes: These models listed below can be modified to any dimensions necessary
to meet your exact
requirements. |
|
|
Standard
Finish: |
Gray
polyester powder coat with black bar grating deck, other colors available
upon request. |
|
|
Ordering
Note: Specify any intermediate height and use price of next standard
height.
We will fabricate units to your exact requirements. Order
stairs separately. |
|
|
Click
here to view the
Stairs and Landings
Assembly Instructions. |
|
|
|
|
Stair
Tread Note: If your stairs are powder coated but
have galvanized treads,
we will supply a galvanized deck surface on the landing to match. |
|
|
|
|
|
|
|
|
180°
SWITCH BACK LANDING PRICES |
|
Stair
Tread
Width |
Landing
Width |
Landing
Depth |
Deck
Height
Above
Floor |
Overall
Height |
Model
# - Powder
Coatd Finish |
Price
-
Powder
Coat
Finish |
Model
# - All
Galv. Finish* |
Price
-
All Galv.
Finish |
36 |
91 |
42 |
36 |
78 |
LND-EXIT180-PC3636 |
|
LND-EXIT180-G3636 |
|
36 |
91 |
42 |
42 |
84 |
LND-EXIT180-PC3642 |
|
LND-EXIT180-G3642 |
|
36 |
91 |
42 |
48 |
90 |
LND-EXIT180-PC3648 |
|
LND-EXIT180-G3648 |
|
36 |
91 |
42 |
54 |
96 |
LND-EXIT180-PC3654 |
|
LND-EXIT180-G3654 |
|
36 |
91 |
42 |
60 |
102 |
LND-EXIT180-PC3660 |
|
LND-EXIT180-G3660 |
|
36 |
91 |
42 |
66 |
108 |
LND-EXIT180-PC3666 |
|
LND-EXIT180-G3666 |
|
36 |
91 |
42 |
72 |
114 |
LND-EXIT180-PC3672 |
|
LND-EXIT180-G3672 |
|
36 |
91 |
42 |
78 |
120 |
LND-EXIT180-PC3678 |
|
LND-EXIT180-G3678 |
|
36 |
91 |
42 |
84 |
126 |
LND-EXIT180-PC3684 |
|
LND-EXIT180-G3684 |
|
36 |
91 |
42 |
90 |
132 |
LND-EXIT180-PC3690 |
|
LND-EXIT180-G3690 |
|
36 |
91 |
42 |
96 |
138 |
LND-EXIT180-PC3696 |
|
LND-EXIT180-G3696 |
|
36 |
91 |
42 |
102 |
144 |
LND-EXIT180-PC36102 |
|
LND-EXIT180-G36102 |
|
36 |
91 |
42 |
108 |
150 |
LND-EXIT180-PC36108 |
|
LND-EXIT180-G36108 |
|
36 |
91 |
42 |
114 |
156 |
LND-EXIT180-PC36114 |
|
LND-EXIT180-G36114 |
|
36 |
91 |
42 |
120 |
162 |
LND-EXIT180-PC36120 |
|
LND-EXIT180-G36120 |
|
36 |
91 |
42 |
126 |
168 |
LND-EXIT180-PC36126 |
|
LND-EXIT180-G36126 |
|
36 |
91 |
42 |
132 |
174 |
LND-EXIT180-PC36132 |
|
LND-EXIT180-G36132 |
|
36 |
91 |
42 |
138 |
180 |
LND-EXIT180-PC36138 |
|
LND-EXIT180-G36138 |
|
36 |
91 |
42 |
144 |
186 |
LND-EXIT180-PC36144 |
|
LND-EXIT180-G36144 |
|
48 |
115 |
54 |
36 |
78 |
LND-EXIT180-PC4836 |
|
LND-EXIT180-G4836 |
|
48 |
115 |
54 |
42 |
84 |
LND-EXIT180-PC4842 |
|
LND-EXIT180-G4842 |
|
48 |
115 |
54 |
48 |
90 |
LND-EXIT180-PC4848 |
|
LND-EXIT180-G4848 |
|
48 |
115 |
54 |
54 |
96 |
LND-EXIT180-PC4854 |
|
LND-EXIT180-G4854 |
|
48 |
115 |
54 |
60 |
102 |
LND-EXIT180-PC4860 |
|
LND-EXIT180-G4860 |
|
48 |
115 |
54 |
66 |
108 |
LND-EXIT180-PC4866 |
|
LND-EXIT180-G4866 |
|
48 |
115 |
54 |
72 |
114 |
LND-EXIT180-PC4872 |
|
LND-EXIT180-G4872 |
|
48 |
115 |
54 |
78 |
120 |
LND-EXIT180-PC4878 |
|
LND-EXIT180-G4878 |
|
48 |
115 |
54 |
84 |
126 |
LND-EXIT180-PC4884 |
|
LND-EXIT180-G4884 |
|
48 |
115 |
54 |
90 |
132 |
LND-EXIT180-PC4890 |
|
LND-EXIT180-G4890 |
|
48 |
115 |
54 |
96 |
138 |
LND-EXIT180-PC4896 |
|
LND-EXIT180-G4896 |
|
48 |
115 |
54 |
102 |
144 |
LND-EXIT180-PC48102 |
|
LND-EXIT180-G48102 |
|
48 |
115 |
54 |
108 |
150 |
LND-EXIT180-PC48108 |
|
LND-EXIT180-G48108 |
|
48 |
115 |
54 |
114 |
156 |
LND-EXIT180-PC48114 |
|
LND-EXIT180-G48114 |
|
48 |
115 |
54 |
120 |
162 |
LND-EXIT180-PC48120 |
|
LND-EXIT180-G48120 |
|
48 |
115 |
54 |
126 |
168 |
LND-EXIT180-PC48126 |
|
LND-EXIT180-G48126 |
|
48 |
115 |
54 |
132 |
174 |
LND-EXIT180-PC48132 |
|
LND-EXIT180-G48132 |
|
48 |
115 |
54 |
138 |
180 |
LND-EXIT180-PC48138 |
|
LND-EXIT180-G48138 |
|
48 |
115 |
54 |
144 |
186 |
LND-EXIT180-PC48144 |
|
LND-EXIT180-G48144 |
|
|
*Galvanized
Finish Note: The coloration and degree of shine varies from one
production dipping to the next.
We cannot guarantee a specific color shade through the hot-dip galvanizing
process. |
|
| NOTE: Stairs not included, |
|
|
|
|
|
|
|
|
|
|
 |
|
|
 |
|
|

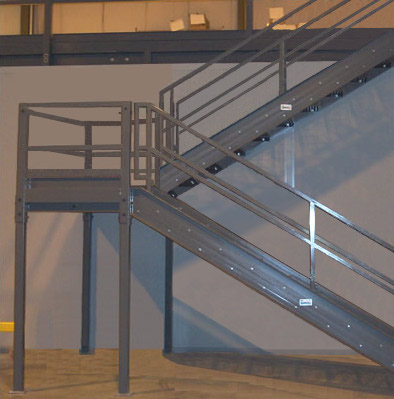

180
degree intermediate
landing |
|
Multi
story stair/landing tower
for egress |
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|

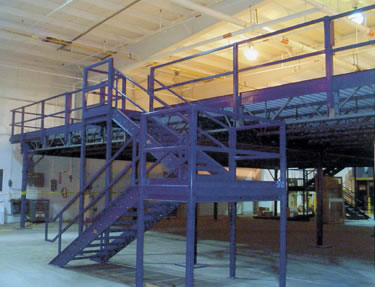

180
degree intermediate stair and landing
access to mezzanine |
|
|
|
|
|
|
|
|
|
|
 |
|
IBC
CODE REQUIREMENTS FOR STAIR LANDINGS |
|
1011.6
Stairway landings. There shall be a floor or landing
at the top and bottom of each stairway. The width of
landings shall be not less than the width of stairways served. Every
landing shall have a minimum width measured
perpendicular to the direction of travel equal to the width of the stairway. Where the stairway has a straight run the
depth need not exceed 48". Doors opening onto a landing shall not reduce
the landing to less than one-half the
required width. When fully open, the door shall not project more than 7"
into a landing. Where wheelchair spaces
are required on the stairway landing in accordance with Section 1009.6.3,
the wheelchair space shall not be located
in the required width of the landing and doors shall not swing over the wheelchair spaces. |
|
|
