ROUNDED
RACK GUARDS - SERIES RRG |
|
|
|
|
|

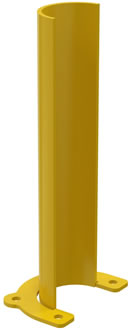

The
rounded rack upright guard protects pallet racking against damage from
fork trucks, pallet trucks and carts. A unique 3-sided design provides protection
to the rack from multiple angles. While the rounded structure of the unit
allows
the rack to sit deeper into the guard, diminishing the chance of unnecessary
contact. Installation hardware sold separately. |
 |
|
|
|
|
| Standard
Features: |
|
|
•
6" wide guard opening
• Schedule 10 steel construction
• Yellow powder coat finish
• Four pre-drilled mounting holes |
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
 |
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase. |
|
|
Model
No. |
Overall
Size
(WxLxH) |
Guard
Opening |
Mounting
Plate
(WxL) |
Powder
Coat |
Wt.
(lbs.) |
Price |
|
9.25"x6.5"x12" |
6" |
9.25"x6.5" |
Yellow |
12 |
$62.45 |
|
9.25"x6.5"x18" |
6" |
9.25"x6.5" |
Yellow |
17 |
$74.95 |
|
9.25"x6.5"x24" |
6" |
9.25"x6.5" |
Yellow |
22 |
$103.70 |
|
9.25"x7.25"x12" |
4" |
9.25"x7.25" |
Yellow |
11 |
$58.67 |
|
9.25"x7.25"x18" |
4" |
9.25"x7.25" |
Yellow |
16 |
$71.17 |
|
9.25"x7.25"x24" |
4" |
9.25"x7.25" |
Yellow |
21 |
$98.67 |
OPTIONS |
|
Anchor
Bolts for Concrete (1) 1/2" x5" |
|
1 |
$11.23 |
|
Anchor
Bolts for Concrete (4) 1/2" x5" |
|
4 |
$21.23 |
|
Anchor
Bolts for Concrete (1) 3/8" x3" |
|
1 |
$11.23 |
|
Anchor
Bolts for Concrete (4) 3/8" x3" |
|
4 |
$21.23 |
|
RRG-12-4-YL
DRAWING |
 |
|
RRG-12-6-YL
DRAWING |
 |
|
RRG-18-4-YL
DRAWING |
 |
|
RRG-24-4-YL
DRAWING |
 |
|
