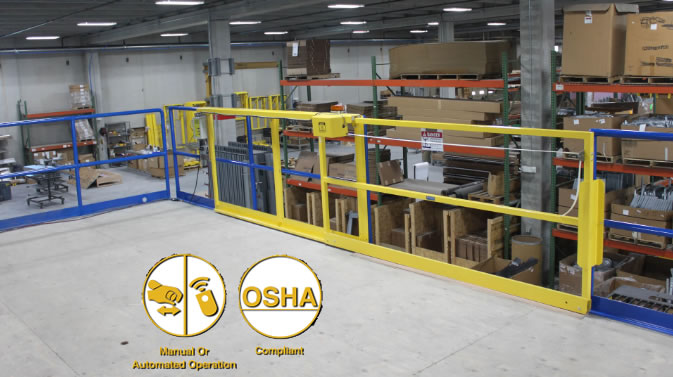

SAFEMEZZ
HORIZONTAL GATE (MGH) |
DURABLE,
FLEXIBLE SAFETY FOR YOUR MEZZANINE |
|
Material

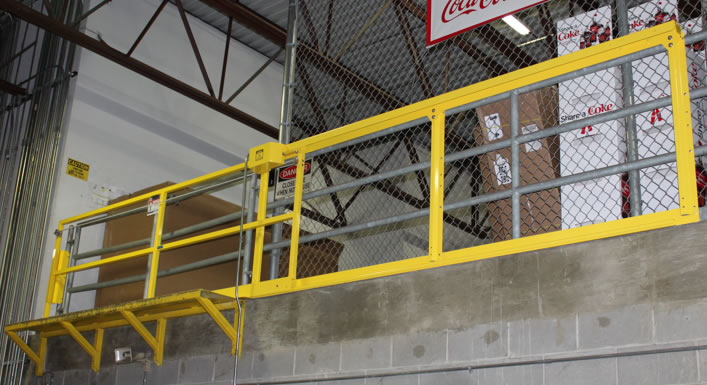

handling is more efficient with our SafeMezz® Horizontal Gate. Once
installed on your mezzanine, this gate
opens and closes as needed. Forklift materials to your elevated space and
slide the gate closed to protect employees
from dangerous workplace falls. |
|

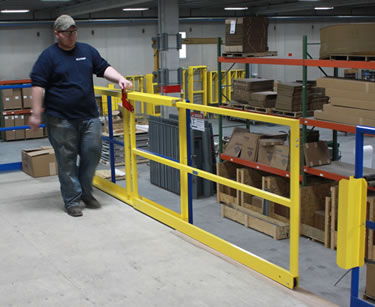

The
SafeMezz Horizontal Gate opens by manual or automated operation. Activate
your gate with the push of a

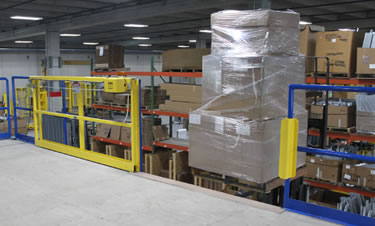

button or by the pull of a cord. Once material has been delivered to your
mezzanine, close the gate to protect the
mezzanine edge. This gate is ideal for mezzanines with limited headroom. |
|
Designed
to meet OSHA standards 1910.28 and 1910.29.
Available in powder coat safety yellow finish.
Heavy-duty 1.5" X 1.5" 11-gauge square tube gate construction |
|
| SAFEMEZZ®
HORIZONTAL GATE BENEFITS |
•
Ideal for material handling, mezzanine openings, pallet racking, warehousing
and picking/packaging areas
• 42” high gate with 4” safety toe board
• On-deck or off-deck mounting options
• Available in two stock sizes to meet your opening width requirements. |
|
|
|
MATERIAL:
• Gate: 1-1/2" square, 11-gauge tube, factory welded.
Solid horizontal top rail and mid-rail, 4" high toeboard,
42" overall height, and vertical members not to exceed
8' on center. |
 |
|
|
•
Gate material to be:
- Mild steel |
|
|
|
|
HARDWARE:
• Track, guides, brackets, and mounts: Furnished in
accordance with material type and dimensional
requirement of gate, in lengths and sizes appropriate
for handling and shipping. |
|
|
|
|
|
|
|
|
|
INSTALLATION:
• Mounting location: Deck mount (standard) or face
mount available. |
 |
|
|
|
|
|
FINISH:
• Mild steel: Powder coat yellow on all unfinished exposed
surfaces (standard). |
|
|
|
|
PERFORMANCE
RATING:
• Gate shall meet or exceed OSHA requirements, relative
to dimensions and loads, at the time of manufacture. |
|
|
|
|
|
 |
|
|
|
 |
|
|
|
|
|
|
|
 |
|
 |
|
|

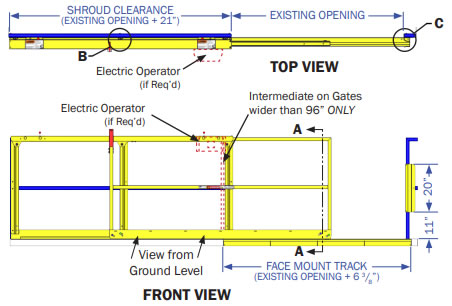

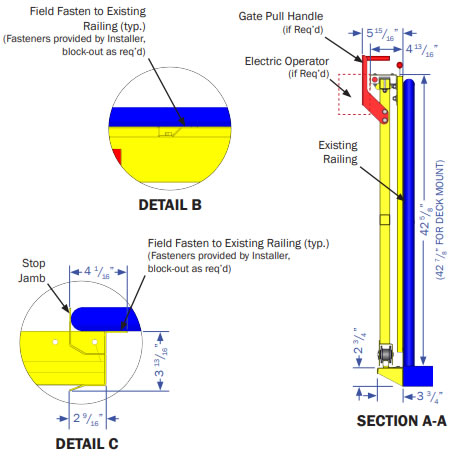

FACE MOUNT |
DECK MOUNT |
|
|
|
|
|
|
 |
|
HORIZONTAL
SLIDING MEZZANINE GATE TECHNICAL DATA: |
|
|
|
|
|

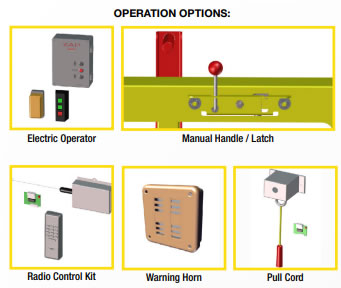

1.
Operation: |
|
|
a.
Manual
b. Electric; Electric Drive Operation, 115 VAC,
(24 VDC Secondary), 60 HZ, 1/3 HP. |
|
|
|
Operator
control panel includes timer-to-close
capability, obstruction sensing and one (1)
three-button (Open-Stop-Close) control panel
mounted push button station, and one (1)
remotely located wall mount, secondary three-
button push button. Includes Amber-colored
WARNING strobe light, activates when gate
is in operation. |
|
|
|
|
|
2.
Mounting Location: |
|
|
a.
Deck Mount
b. Face Mount |
|
|
|
|
|
|
3.
Gate Section: To be factory welded frame work
with horizontal top rail. Includes mid-rail, 4
high toe board, 42” overall height, and vertical
members not to exceed 8’0” on center.
Gate shall
meet or exceed Federal OSHA standard for
standard railings at the time of manufacture
relative to dimensions and loading. To be fa-
bricated from one of the following: |
|
 |
|
|
a.
Mild Steel
b. 304-2b Stainless Steel
c. 316L Stainless Steel |
|
|
|
|
|
|
4.
Rollers: To be minimum 2 5/8” diameter,
concealed within toe board. Rollers to be
non-corrosive. |
|
|
|
|
|
5.
Slide Direction: Gate system can be set up for
left or right slide direction during installation.
Refer to Installation Instructions in Operations
and Maintenance Manual. |
|
|
|
|
|
| 6.
Finish: |
|
|
a. Mild
steel mezzanine gates; exposed surfaces
to be Powder Coat Safety Yellow.
Hardware/fasteners to be zinc plated. |
|
|
|
|
|
|
7.
Warranty: To be One (1) Year from date of
shipment, finish excluded. |
|
|
|
|
|
| 8.
Available Options: |
|
|
a.
Remote controls; gate systems with electric
controls only.
b. Photo-eyes; gate systems with electric
controls only.
c. Pull cord switch; gate systems with electric
or pneumatic controls only |
|
|
|
|
|
|
9.
Exclusions: |
|
|
a.
All electric wiring or airline piping to and between all components by others.
b. Due to variances in field conditions, it is the responsibility of the
installer to ensure that the
product is installed to mounting structure that
is capable of supporting all imposed loading
from the product. The installer is responsible
for ensuring that the provided fastening hard-
ware or field configured mounting arrangement is
capable of supporting all field loads and
meets applicable codes and regulations. |
|
|
|
|
|
|
|
|
|
|
 |
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase. |
|
|
|
PRICING
FOR SAFEMEZZ HORIZONTAL GATE (MGH) |
Model
No. |
Operator
Option
| Stock
Size |
Shipping
Wgt. (lbs.) |
Price |
|
Manual |
72" |
259 |
$4,007 |
|
Electric |
72" |
259 |
$7,802 |
|
Manual |
96" |
320 |
$4,122 |
|
Electric |
96" |
320 |
$7,917 |
|
|
STOCK
WIDTH FACE MOUNT TRACK ($ADD FOR STOCK OPENING SIZES OF 72" &
96" |
Model
No. |
Size |
Price |
|
72"
wide |
$243.00 |
|
96"
wide |
$322.50 |
|
PRICING
FOR HORIZONTAL MEZZANINE GATE OPTIONS |
Model
No. |
Description |
Includes |
Price |
|
Co-Axial
Receiver |
Universal
Co-Axial Receiver (1 per gate required) |
$285.00 |
|
Keyless
Entry, 377 LM Wireless |
Keypad
Wireless Transmitter |
$217.50 |
|
Switch;
Ceiling
Pull Electric or Pneumatic/Electric Gates |
Switch;
Ceiling Pull with Rotating |
$198.00 |
|
Photoeye
Kit (DC)
(for electric only) |
PN:
501543; Sensor; Banner Swivel SMB185S (qty 2) |
$646.50 |
PN:
501530; Sensor; Banner Emitter S18DC |
PN:
501532; Sensor; Banner Receiver S18 DC |
PN:
511752; MGV; Photoeye Brkt - SS (qty 2) |
|
Warning
Horn Assembly |
|
$192.00 |
|
|
