SAFEMEZZ®
PALLET GATE (PLG) |
MATERIAL
HANDLING MADE SAFE AND EFFICIENT |
|
 |
|
|
|
Material
handling is more efficient with the SafeMezz® Pallet Gate. Once installed
on your mezzanine, simply

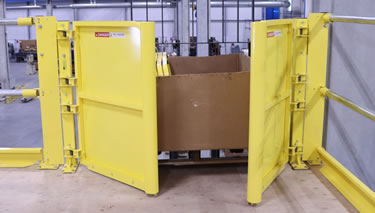

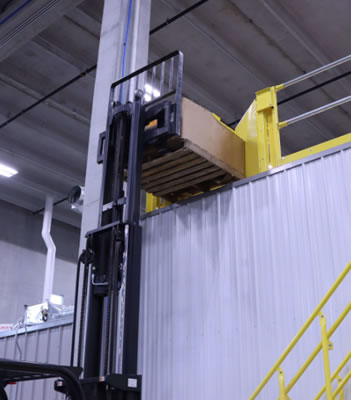

forklift your pallet of material through the self-closing pair of gates
and back away. The SafeMezz Pallet Gate
closes up against your material, protecting your mezzanine edge until the
pallet is removed from the opening.

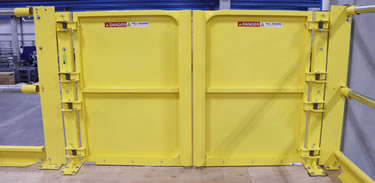

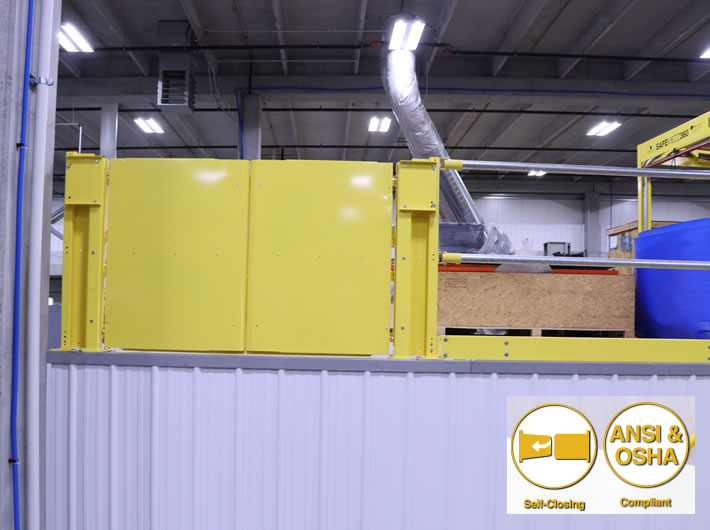

When not in use, the SafeMezz Pallet Gate acts as a safety railing –
always in place to protect employees
from dangerous falls. It's ideal for mezzanine openings, pallet racking
areas, warehouses and picking/packing
areas. |
|
|
|
| Improves
Efficiency |
|
MATERIAL:
• Standard Dimensions: 60", 72" or 96" opening width
(custom widths up to 96" available upon request)
• Gate: Formed 1-1/4" square, 11-gauge tubing,
self-closing
• Gate Columns: 3" square, 3/16" wall tube
• Teardrop Sheeting: 16-gauge
• Toeboard: 16-gauge adjustable toeboard
• Gate Operation: Allows for more than 90° travel |
•
Self-closing so you can forklift your materials to the
mezzanine and simply back away |
|
| •
No restrictions on overhead height |
|
|
|
Helps
Keep Employees Safe
• Acts as a safety railing when not in use to protect crew
members from mezzanine falls
• Meets OSHA 1910.29(b) and ANSI A1264.1-2017
requirements for loading and dimension |
|
|
|
|
|
FINISH:
• Finish on all exposed surfaces to be powder coat
safety yellow. |
Built
To Last
• All-steel construction
• Long-lasting hinges |
|
|
|
|
|
PERFORMANCE
RATING:
• Gate shall meet or exceed OSHA requirements,
relative to dimensions and loads, at the time of
manufacture |
INSTALLATION:
• Mounting Bracket: 10-gauge, formed 8" x 10-1/2" angle
bracket with integral support post connection
• Hinge Springs: Torsion type, stainless steel.
Includes four (4) springs per gate, housed within
hinge pivot |
|
|
|
|
|
 |
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase. |
|
|
|
PRICING
AND DIMENSIONS FOR SAFEMEZZ PALLET GATE |

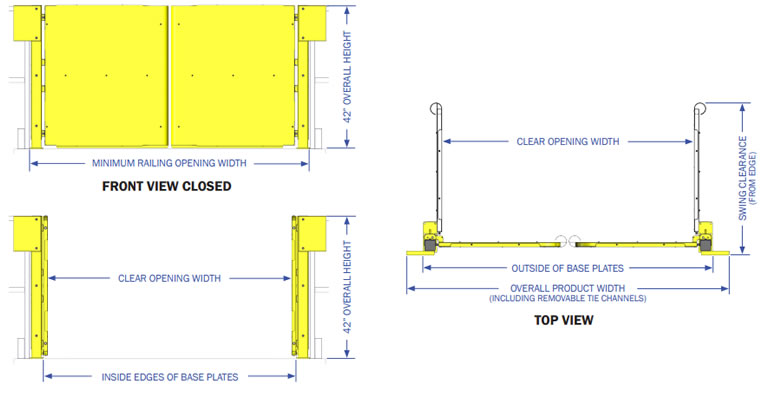

Model
No. |
Clear
Opening
Widths |
Swing
Clearance |
Min.
Railing
Opening Width |
Overall
Product
Width |
Shipping
Wgt. |
Price |
|
60" |
36
1/2" |
70
3/4" |
80" |
200 |
$2,625 |
|
72" |
42
1/2" |
82
3/4" |
92" |
220 |
$2,925 |
|
96" |
54
1/2" |
106
3/4" |
116" |
250 |
$3,300 |
|
| Finish:
Powder Coat Safety Yellow |
| Overall
unit width is opening width plus 10-3/4" (does not include Mounting
Bracket). |
|
|
