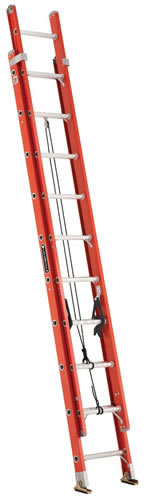

SERIES
FE3200 FIBERGLASS
EXTENSION LADDER |
TYPE
IA 300 LBS. LOAD CAPACITY |
|
|
|
|
 |
|
The
fiberglass extension ladder has a 300 pounds. load capacity,
rated ANSI Type IA. It is equipped with the MAXLOCK rung
lock, custom engineered from a patented, advanced molecular
polymer, MAXLOCK is the strongest, toughest, lightest rung lock
ever made. This ladder also includes the patented QuickLatch
system that provides a simple, intuitive method of securing the fly
and base sections of the ladder when extended. The ladder features
outside slide guides, D-shaped rungs fully serrated for a slip resistant
surface, non-marring rail end caps, rope and pulley and steel swivel
safety shoes with metal shield to be used with the tread down or in
spike position. The FE3200 fiberglass extension ladder meets or
exceeds the safety standards set by ANSI, CSA and OSHA. |
|
|
|
|
|
Features |
|
|
• Includes
our custom engineered MAXLOCK that is made from a
patented and advanced molecular polymer. Our MAXLOCK is
the strongest toughest lightest rung lock ever made
• Patented Quicklatch Runglock System
• Steel Swivel Safety Shoe With Metal Shield
• Direct Rung-Rail Connection
• Mar-Resistant Rail End Caps
• Outside Slide Guides
• D-Shaped Rungs |
|
|
|
|
|
|
|
 |
|
 |
|
 |
|
 |
|
|
|
Mar-resistant
rail end caps |
|
Outside
slide guides |
|
D-shaped
rungs |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
 |
|
 |
|
|
|
|
|
|
|
 |
|
|
MaxLock™
with
QuickLatch™ |
|
Steel
swivel safety shoes
with metal shield |
|
Direct
rung - rail
connection |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
SPECIFICATIONS |
|
|
|
|
|
|
| SIZES |
RAIL
DEPTH |
STACK
HEIGHT |
INSIDE
BASE |
WIDTH
FLY |
OUTSIDE
BASE |
WIDTH
FLY |
| 16'-28' |
3 1/4" |
6 1/4" |
14 11/16" |
13 11/16" |
17 1/16" |
16 1/16" |
| 32' |
3 5/16" |
6 1/2" |
15 5/16" |
14 5/16" |
17 11/16" |
16 11/16" |
| 32'-40' |
3 11/32" |
6 1/2" |
15 5/16" |
14 5/16" |
17 11/16" |
16 11/16" |
|
|
|
|
|
Ladder
shown. with rope
and pulley |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase. |
|
|
|
|
PRICING
FOR FIBERGLASS EXTENSION LADDER FE3200 SERIES |
| D-SHAPED
RUNG |
MODEL
NO. |
TOTAL
LENGTH |
LENGTH EA.
SECTION |
MAX.
EXTENDED
LENGTH |
MAX.
REACH |
MAX.
STANDING
HT. |
APPROX.
WT. (LBS.)
|
APPROX.
VOLUME
(FT3) |
PRICE |
|
16' |
8' |
13' |
15'
11" |
9'
4" |
31 |
7.8 |
$393.42 |
|
20' |
10' |
17' |
19'
10" |
13'
3" |
42 |
9.6 |
$438.32 |
|
24' |
12' |
21' |
23'
8" |
17'
1" |
51 |
11.5 |
$508.32 |
|
28' |
14' |
25' |
27'
7" |
21' |
60 |
13.4 |
$601.18 |
|
32' |
16' |
29' |
31'
5" |
24'
10" |
67 |
16.2 |
$747.68 |
|
36' |
18' |
32' |
34'
4" |
27'
9" |
84 |
15.8 |
$936.08 |
|
40' |
20' |
35' |
37'
3" |
30'
8" |
92 |
17.5 |
$1,099.24 |
|
|
| *Does
not include rope and pulley |
|
ACCESSORIES |
|
|
|
|
|
|
|
|
|
 |
|
 |
|
|
 |
|
 |
|
|
|
|
|
PK-E04A |
|
Rope
and Pulley |
|
|
|
Rigid
Pole Grip |
|
|
|
|
|
|
|
|
|
Ladder
Lash |
|
|
|
|
|
Heavy
duty pulley and
thick rope system |
|
|
|
3/16”
x 1” steel–plated
bar formed into a “V”
shape and covered with
heavy rubber tread makes
an ideal pole grip and can
be added to ladders
already in service. |
|
|
|
|
Lash
for wrapping around
objects up to 17” in dia.
Made of 2” Dacron webbing
with forged steel snaps and
a quick adjustment with clip. |
|
|
|
|
PK120B |
|
|
|
|
|
|
|
|
|
|
|
|
|
PK-E11R |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase. |
|
|
|
PRICING |
MODEL
NO. |
DESCRIPTION |
WGT. |
PRICE |
|
Rope
& Pulley Kit |
1 |
$31.82 |
|
Rigid
Pole Grip |
1.9 |
$43.08 |
|
Ladder
Lash |
1.1 |
$120.86 |
|
|
