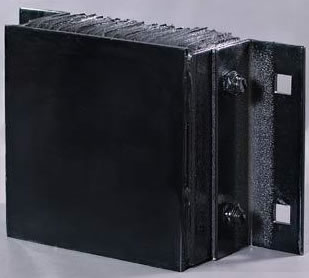

STEEL
FACE RUBBER BUMPERS
|
|
 |
|
Protect
your building and loading docks from
heavy traffic!The 3/8" thick steel-face plate
eliminate wear from up-and-down friction
movement of trailers loading and unloading.
Provides a longer wear expectancy and fewer
replacement costs. Excellent for medium and
heavy traffic loading docks. |
|
|
|
Uses/Applications: |
|
•
Ideal for use in docking areas where excessive
friction from up-and-down trailer movement
occurs.
• Can be used in any material-handling system
area where heavy-duty protection is required. |
|
|
|
|
|
Features |
|
|
|
•
Available ability to deflect and absorb shock with standard
laminated bumper beneath the steel-face.
• Comes in a wide variety of models, and can be mounted in
various heights, from flush mount to 12" above dock,
depending on highest impact area. |
|
|
|
Installation |
|
• Structural
mounting angles permit welded
installations or provide bolting through steel.
• No assembly required. |
|
|
|
|
|
|
|
|
|
|
|
|
|
Material/Thickness |
|
 |
|
|
|
|
|
• Durable
Laminated Dock Bumpers contain
80% recycled material from fabric reinforced
rubber pads cut from selected recycled truck
tires.
• Standard pad thickness at 4-1/2" and 6" thick.
Heights at 6", 10", and 12".
• Steel-face is 3/8" thick, heavy-duty, high carbon
steel that is mounted to standard laminated dock
bumper.
• Also available in extra-thick sizes of 9", 10-1/2",
and 12" projections. (Call for prices.) |
|
|
|
|
|
|
|
Specifications |
|
|
|
•
Resilient rubber material cut to uniform size
pads 4-1/2" thick with overall projection of
5-1/4" (other pad thickness available: 6", 9",
10-1/2", and 12"). Punched to receive 3/4"
supporting rods.

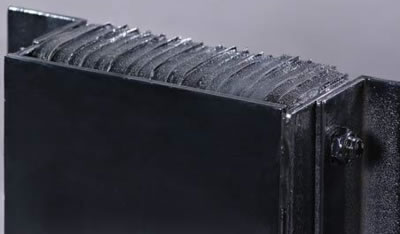

• Bumper to have 3/8" steel-face plate equal to
the rubber surface dimensions. Plate to be
welded to two slotted steel support plates
which extend back to the 3/4" supporting rods.
Brackets to be punched with elongated slots to
allow steel-face to move on impact.
• Finish to be black only. |
|
|
|
|
|
Benefits |
|
|
|
• Eliminates wear from
up-and-down friction
movement of trailers loading and unloading.
• Cost-effective due to longer wear expectancy
and fewer replacement costs..
• Impervious to weather damage.
• Maintenance free.
• 5 year warranty. |
|
|
|
|
|
|
|
|
|
 |
|
|
 |
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase. |
|
|
PRICES |

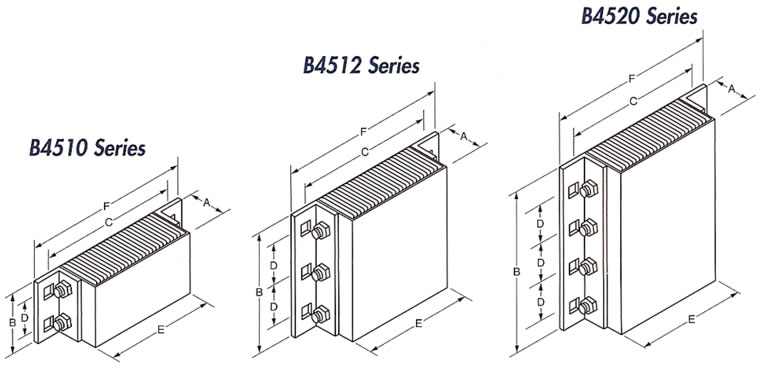

Model
No. |
Size*
(A x B x C) |
Vertical
Bolt
Hole Centers (D) |
Rubber
Length (E) |
Overall
Length (F) |
Weight |
Prices |
**4
1/2" Thick Series - Overall Thickness Approximately 5 1/8" |
|
10"
x 14" |
6" |
10" |
16" |
48
lbs |
$148.30 |
|
10"
x 18" |
6" |
14" |
20" |
58
lbs |
$189.60 |
|
10"
x 24" |
6" |
20" |
26" |
73
lbs |
$277.30 |
|
10"
x 36" |
6" |
32" |
38" |
72
lbs |
$413.50 |
|
12"
x 14" |
4" |
10" |
16" |
35
lbs |
$182.80 |
|
12"
x 18" |
4" |
14" |
20" |
44
lbs |
$199.20 |
|
12"
x 24" |
4" |
20" |
26" |
58
lbs |
$308.70 |
|
12"
x 36" |
4" |
32" |
38" |
84
lbs |
$500.70 |
|
20"
x 11" |
6" |
7" |
13" |
73
lbs |
$228.70 |
|
24"
x 11" |
4" |
7" |
13" |
56
lbs |
$266.20 |
|
36"
x 11" |
4" |
7" |
13" |
85
lbs |
$365.60 |
6"
Thick Series - Overall Thickness 6 3/4" |
|
10"
x 14" |
6" |
10" |
16" |
33
lbs |
$192.80 |
|
10"
x 18" |
6" |
14" |
20" |
40
lbs |
$259.90 |
|
10"
x 24" |
6" |
20" |
26" |
55
lbs |
$370.10 |
|
10"
x 36" |
6" |
32" |
38" |
82
lbs |
$454.80 |
|
12"
x 14" |
4" |
10" |
16" |
39
lbs |
$228.70 |
|
12"
x 18" |
4" |
14" |
20" |
50
lbs |
$296.80 |
|
12"
x 24" |
4" |
20" |
26" |
72
lbs |
$379.90 |
|
12"
x 36" |
4" |
32" |
38" |
105
lbs |
$526.40 |
|
20"
x 11" |
6" |
7" |
13" |
53
lbs |
$278.40 |
|
24"
x 11" |
4" |
7" |
13" |
64
lbs |
$362.60 |
|
36"
x 11" |
4" |
7" |
13" |
100
lbs |
$453.90 |
|
* Projection x Height x Bolt
Hole Centers (Length).
** Thin Steel Face with overall thickness of 4-1/8" is available
at no additional charge. Please specify when ordering.
Note: 1/4" flat plates may be substituted for one or both
angles.
Note: Available in 9" thick pads with an overall 9-3/4"
projection. Other standard sizes available. |
|
