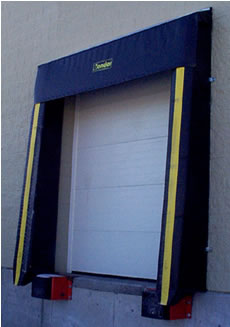

T-1DT
SERIES - 1400 |
|
|
For door
openings up to 8' wide x up to 12' high with inclined driveways |
|
|
Tapered
Drape Seals
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
Construction |
|
Polyfoam
Core |
|
|
Bondor
foam dock seals are constructed
of the finest materials and assembled to
give you years of dependable service. |
|
Insulating
polyurethane foam conforms
to the shape of the truck to form a tight
weatherseal. |
|
|
|
|
|
|
|
Mounting
Board |
|
Galvanized
Hardware |
|
|
Our
foam core is bonded to a kiln-dried
pressure treated 2" thick wood back-
board for an easy, long-lasting
installation. |
|
All Bondor
Foam Seals are provided
with appropriate galvanized mounting
brackets. Building fasteners not included. |
|
|
|
|
|
|
|
Color |
|
|
|
|
|
|
Permanent
Guide Stripe |
|
|
|
|
Standard colors are
black with a yellow
guide stripe. Other colors available upon
request. |
|
|
A
4" wide contrasting guide stripe is
sewn on. |
|
|
|
|
|
|
|
|
|
|
|
|
Drape
Curtain |
|
|
|
|
Our weighted
curtain is made the width
of the seal opening, and it covers the
face of the sidepads. |
|
|
|
|
|
|
|
|
|
Rugged
Vinyl Cover |
|
|
Top
quality abrasion resistant 22 oz. vinyl coated nylon fabric is used to cover
our
standard seals. A 40 oz. nylon reinforced vinyl material is used on our
heavy duty seals. |
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
Vents |
|
|
|
|
|
|
|
All
vertical pads are provided with covered vents to allow air to escape during
compression of the seal, reducing the amount of stress on the vinyl fabric.
Grommets in bottom panels allow drainage of moisture. |
|
|
|
|
|
|
|
Full
Width Header |
|
|
|
|
|
|
|
Header
to consist of full width, weighted drape curtain with mounting backboard.
Curtain
to be supported between side pads by galvanized pipe sewn into curtain. |
|
|
|
|
|
|
|
Tapered
Side Pads |
|
|
|
|
|
|
|
Tapered
side pads accommodate a pitched ramp approach to your building. The specific
taper is custom made to match the angle of your driveway. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
3"
wide x 9' - 4" long x 3/4" plywood backboard |
|
|
|
 |
|
 |
|
|
|
|
|
Top
View |
|
|
|
|
|
Square
side pad cross section shown above |
|
|
|
|
|
|
|
|
|
Truck
Bumpers Required |
|
|
|
|
|
|
|
|
|
|
|
To
order a series T-1DT Tapered Drape Seal: |
|
|
|
|
|
|
|
|
Front
View |
|
|
|
|
Side
View |
|
| 1. |
Determine

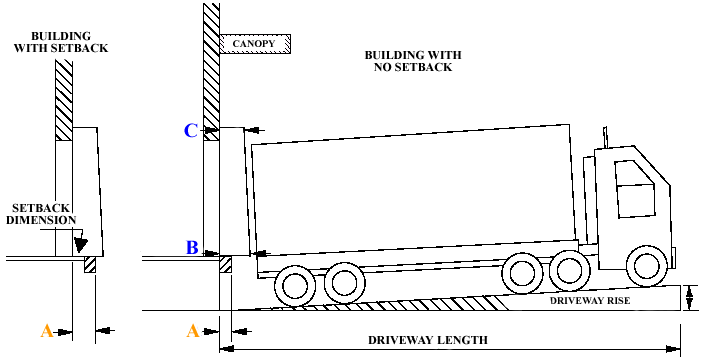

(measure) your inclined driveway to establish the amount of driveway rise
and your driveway length.
See sketch below. |
|
 |
|
|
"A"
Note: In cases where the building wall is setback from the edge of the
dock, the actual bumper projection required is less
the building setback. Example: The incline chart indicates a 12"
bumper "A" dimension but the building wall is setback 3",
therefore the actual bumper necessary would be 9". |
|
|
|
|
| 2. |
Determine
the requried dock bumper size and dock seal side pad dimensions by using
the incline chart below. This
chart is designed to leave the top of the truck approximately 6" from
the building wall when the truck is fully docked. |
|
|
|
|
a. Find your driveway rise in the left column and follow across the chart to
a driveway length closest to your actual
measured length. Dimensions A,B & C are the recommended sizes of your dock
bumpers and your dock seal taper.
Dimensions B & C will be used in the price tables below to order the actual correct dock
seal model #. |
|
|
|
|
b. Example: Driveway rise is 24", driveway length is 40'. At the intersection
of these two rows in the chart, dimensions
A = 12, B = 16
and C = 10. This means that for this example
you would have dock bumpers (or a dock projection)
of 12" with foam side pads which taper from 16" at the bottom
to 10" at the top. |
|
|
|
|
|
|
|
|
|
|
|
|
|
Driveway
Length |
|
|
| 10' |
20' |
30' |
40' |
50' |
60' |
70' |
|
|
|
Rise" |
A |
B |
C |
A |
B |
C |
A |
B |
C |
A |
B |
C |
A |
B |
C |
A |
B |
C |
A |
B |
C |
|
|
|
| 2 |
| 4 |
| 6 |
| 8 |
| 10 |
| 12 |
| 14 |
| 16 |
| 18 |
| 20 |
| 22 |
| 24 |
| 26 |
| 28 |
| 30 |
| 32 |
| 34 |
| 36 |
| 38 |
| 40 |
| 42 |
| 44 |
| 46 |
| 48 |
| 50 |
| 52 |
|
| 9 |
14 |
12 |
| 10.5 |
16 |
12 |
| 12 |
16 |
10 |
| 14 |
18 |
10 |
| 16 |
20 |
10 |
| 17 |
22 |
12 |
| 19 |
23 |
10 |
| 21 |
25 |
10 |
| 23 |
27 |
10 |
| 25 |
29 |
10 |
| 27 |
31 |
10 |
| 29 |
33 |
10 |
| 31 |
35 |
10 |
| 33 |
37 |
10 |
| 35 |
39 |
10 |
| 36 |
40 |
10 |
| 38 |
42 |
10 |
| 40 |
44 |
10 |
| 42 |
46 |
10 |
| 44 |
48 |
10 |
| 46 |
50 |
10 |
| 48 |
52 |
10 |
| 50 |
54 |
10 |
| 52 |
56 |
10 |
| 54 |
58 |
10 |
| 55 |
59 |
10 |
|
| 9 |
14 |
14 |
| 9 |
14 |
12 |
| 9 |
14 |
12 |
| 10.5 |
16 |
12 |
| 12 |
16 |
12 |
| 12 |
16 |
10 |
| 12 |
16 |
10 |
| 14 |
18 |
10 |
| 15 |
20 |
12 |
| 16 |
20 |
10 |
| 16 |
20 |
10 |
| 17 |
22 |
12 |
| 18 |
22 |
10 |
| 19 |
23 |
10 |
| 20 |
24 |
10 |
| 21 |
25 |
10 |
| 22 |
26 |
10 |
| 23 |
27 |
10 |
| 24 |
28 |
10 |
| 25 |
29 |
10 |
| 26 |
30 |
10 |
| 27 |
31 |
10 |
| 28 |
32 |
10 |
| 29 |
33 |
10 |
| 30 |
34 |
10 |
| 31 |
35 |
10 |
|
| 9 |
14 |
14 |
| 9 |
14 |
14 |
| 9 |
14 |
12 |
| 9 |
14 |
12 |
| 10.5 |
16 |
14 |
| 10.5 |
16 |
12 |
| 10.5 |
16 |
12 |
| 12 |
16 |
12 |
| 12 |
16 |
10 |
| 12 |
16 |
10 |
| 13 |
18 |
12 |
| 14 |
18 |
10 |
| 14 |
18 |
10 |
| 15 |
20 |
12 |
| 16 |
20 |
10 |
| 16 |
20 |
10 |
| 17 |
22 |
12 |
| 17 |
22 |
12 |
| 18 |
22 |
10 |
| 19 |
23 |
10 |
| 19 |
23 |
10 |
| 20 |
24 |
10 |
| 21 |
25 |
10 |
| 21 |
25 |
10 |
| 22 |
26 |
10 |
| 22 |
26 |
10 |
|
| 9 |
14 |
14 |
| 9 |
14 |
14 |
| 9 |
14 |
14 |
| 9 |
14 |
12 |
| 9 |
14 |
12 |
| 9 |
14 |
12 |
| 9 |
14 |
12 |
| 10.5 |
16 |
12 |
| 10.5 |
16 |
12 |
| 10.5 |
16 |
12 |
| 12 |
16 |
12 |
| 12 |
16 |
10 |
| 12 |
16 |
10 |
| 12 |
16 |
10 |
| 13 |
18 |
12 |
| 14 |
18 |
10 |
| 14 |
18 |
10 |
| 15 |
20 |
12 |
| 15 |
20 |
12 |
| 16 |
20 |
10 |
| 16 |
20 |
10 |
| 16 |
20 |
10 |
| 17 |
22 |
12 |
| 17 |
22 |
12 |
| 18 |
22 |
10 |
| 18 |
22 |
10 |
|
| 9 |
14 |
14 |
| 9 |
14 |
14 |
| 9 |
14 |
14 |
| 9 |
14 |
12 |
| 9 |
14 |
12 |
| 9 |
14 |
12 |
| 9 |
14 |
12 |
| 9 |
14 |
12 |
| 9 |
14 |
12 |
| 10.5 |
16 |
12 |
| 10.5 |
16 |
12 |
| 10.5 |
16 |
12 |
| 12 |
16 |
12 |
| 12 |
16 |
12 |
| 12 |
16 |
10 |
| 12 |
16 |
10 |
| 12 |
16 |
10 |
| 13 |
18 |
12 |
| 13 |
18 |
12 |
| 14 |
18 |
10 |
| 14 |
18 |
10 |
| 14 |
18 |
10 |
| 15 |
20 |
12 |
| 15 |
20 |
12 |
| 16 |
20 |
10 |
| 16 |
20 |
10 |
|
| 9 |
14 |
14 |
| 9 |
14 |
14 |
| 9 |
14 |
14 |
| 9 |
14 |
14 |
| 9 |
14 |
12 |
| 9 |
14 |
12 |
| 9 |
14 |
12 |
| 9 |
14 |
12 |
| 9 |
14 |
12 |
| 9 |
14 |
12 |
| 9 |
14 |
12 |
| 10.5 |
16 |
12 |
| 10.5 |
16 |
12 |
| 10.5 |
16 |
12 |
| 10.5 |
16 |
12 |
| 12 |
16 |
12 |
| 12 |
16 |
12 |
| 12 |
16 |
10 |
| 12 |
16 |
10 |
| 12 |
16 |
10 |
| 12 |
16 |
10 |
| 13 |
18 |
12 |
| 13 |
18 |
11 |
| 14 |
18 |
10 |
| 14 |
18 |
10 |
| 14 |
18 |
10 |
|
| 9 |
14 |
14 |
| 9 |
14 |
14 |
| 9 |
14 |
14 |
| 9 |
14 |
14 |
| 9 |
14 |
14 |
| 9 |
14 |
12 |
| 9 |
14 |
12 |
| 9 |
14 |
12 |
| 9 |
14 |
12 |
| 9 |
14 |
12 |
| 9 |
14 |
12 |
| 9 |
14 |
12 |
| 9 |
14 |
10 |
| 10.5 |
16 |
12 |
| 10.5 |
16 |
12 |
| 10.5 |
16 |
12 |
| 10.5 |
16 |
12 |
| 12 |
16 |
12 |
| 12 |
16 |
12 |
| 12 |
16 |
12 |
| 12 |
16 |
10 |
| 12 |
16 |
10 |
| 12 |
16 |
10 |
| 12 |
16 |
10 |
| 13 |
18 |
12 |
| 13 |
18 |
12 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Special
Order Products - Contact Us |
|
Use
Standard T-1D (Drape Seal) |
|
|
|
|
|
|
| 3. |
Select
the desired model # from the price charts below by finding your B and C dimensions determined above and
the door height range for your door opening such as: using the dimensions
determined above (B dim. of 16 and
C dim. of 10) for a door with a height of 12'
and a width of 8' the model # for the standard seal is
T-1DT/P16/SQ-12/T1610/8WX12H. |
|
|
|
|
|
| 4. |
Add
desired special options from below. |
|
|
|
|
|
| 5. |
Remember
to order 2 dock bumpers per seal from our bumpers section if they are not
existing. |
|
|
|
|
|
| 6. |
We
invite you to let our engineers review your dock seal application. Complete
the truck dock dimension sheet
on our contact page and we will confirm your dock seal selection. |
|
|
|
 |
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click a Model No. of the item you wish to
purchase. |
|
|
|
| Table
A: T-1DT Series Pricing - Use tables B & C (shown below) for optional
wear pleats |
Bottom
Side Pad
Projection
(Inches)
B |
Top Side Pad
Projection
(Inches)
C |
Door Opening
Height Range
up to and
Including
(Feet) |
Side
Pad
Height
(Feet) |
Drape
Curtain
Drop from
Top of
Side Pad
(In.) |
Recommended
Dock Bumper |
T-1DT Tapered Drape Dock
Seal - add door width x door
height to base Model # below |
Price |
| 14 |
12 |
10 |
10 |
24 |
9"-#B910-14 |
T-1DT/P14/SQ-12/T1412/--W X --H |
$1,163 |
| 14 |
12 |
11 |
11 |
36 |
9"-#B910-14 |
T-1DT/P14/SQ-12/T1412/--W
X --H |
$1,255 |
| 14 |
12 |
12 |
12 |
48 |
9"-#B910-14 |
T-1DT/P14/SQ-12/T1412/--W
X --H |
$1,346 |
| 14 |
10 |
10 |
10 |
24 |
9"-#B910-14 |
T-1DT/P14/SQ-12/T1410/--W
X --H |
$1,163 |
| 14 |
10 |
11 |
11 |
36 |
9"-#B910-14 |
T-1DT/P14/SQ-12/T1410/--W
X --H |
$1,255 |
| 14 |
10 |
12 |
12 |
48 |
9"-#B910-14 |
T-1DT/P14/SQ-12/T1410/--W
X --H |
$1,346 |
| 16 |
14 |
10 |
10 |
24 |
10 1/2"-#B10510-14 |
T-1DT/P16/SQ-12/T1614/--W
X --H |
$1,273 |
| 16 |
14 |
11 |
11 |
36 |
10 1/2"-#B10510-14 |
T-1DT/P16/SQ-12/T1614/--W
X --H |
$1,363 |
| 16 |
14 |
12 |
12 |
48 |
10 1/2"-#B10510-14 |
T-1DT/P16/SQ-12/T1614/--W
X --H |
$1,456 |
| 16 |
12 |
10 |
10 |
24 |
10 1/2"-#B10510-14 |
T-1DT/P16/SQ-12/T1612/--W
X --H |
$1,273 |
| 16 |
12 |
11 |
11 |
36 |
10 1/2"-#B10510-14 |
T-1DT/P16/SQ-12/T1612/--W
X --H |
$1,363 |
| 16 |
12 |
12 |
12 |
48 |
10 1/2"-#B10510-14 |
T-1DT/P16/SQ-12/T1612/--W
X --H |
$1,456 |
| 16 |
10 |
10 |
10 |
24 |
10 1/2"-#B10510-14 |
T-1DT/P16/SQ-12/T1610/--W
X --H |
$1,273 |
| 16 |
10 |
11 |
11 |
36 |
10 1/2"-#B10510-14 |
T-1DT/P16/SQ-12/T1610/--W
X --H |
$1,363 |
| 16 |
10 |
12 |
12 |
48 |
10 1/2"-#B10510-14 |
T-1DT/P16/SQ-12/T1610/--W
X --H |
$1,456 |
| B Dim. |
C Dim. |
Door
Height |
Pad Height |
Drape
Drop |
Bumper |
Model # |
Price |
| 18 |
16 |
10 |
10 |
24 |
12"-#B1210-14 |
T-1DT/P18/SQ-12/T1816/--W
X --H |
$1,381 |
| 18 |
16 |
11 |
11 |
36 |
12"-#B1210-14 |
T-1DT/P18/SQ-12/T1816/--W
X --H |
$1,472 |
| 18 |
16 |
12 |
12 |
48 |
12"-#B1210-14 |
T-1DT/P18/SQ-12/T1816/--W
X --H |
$1,566 |
| 18 |
14 |
10 |
10 |
24 |
12"-#B1210-14 |
T-1DT/P18/SQ-12/T1814/--W
X --H |
$1,381 |
| 18 |
14 |
11 |
11 |
36 |
12"-#B1210-14 |
T-1DT/P18/SQ-12/T1814/--W
X --H |
$1,472 |
| 18 |
14 |
12 |
12 |
48 |
12"-#B1210-14 |
T-1DT/P18/SQ-12/T1814/--W
X --H |
$1,566 |
| 18 |
12 |
10 |
10 |
24 |
12"-#B1210-14 |
T-1DT/P18/SQ-12/T1812/--W
X --H |
$1,381 |
| 18 |
12 |
11 |
11 |
36 |
12"-#B1210-14 |
T-1DT/P18/SQ-12/T1812/--W
X --H |
$1,472 |
| 18 |
12 |
12 |
12 |
48 |
12"-#B1210-14 |
T-1DT/P18/SQ-12/T1812/--W
X --H |
$1,566 |
| 18 |
10 |
10 |
10 |
24 |
12"-#B1210-14 |
T-1DT/P18/SQ-12/T1810/--W
X --H |
$1,381 |
| 18 |
10 |
11 |
11 |
36 |
12"-#B1210-14 |
T-1DT/P18/SQ-12/T1810/--W
X --H |
$1,472 |
| 18 |
10 |
12 |
12 |
48 |
12"-#B1210-14 |
T-1DT/P18/SQ-12/T1810/--W
X --H |
$1,566 |
| B Dim. |
C Dim. |
Door
Height |
Pad Height |
Drape
Drop |
Bumper |
Model # |
Price |
| 20 |
18 |
10 |
10 |
24 |
14"-contact us |
T-1DT/P20/SQ-12/T2018/--W
X --H |
$1,490 |
| 20 |
18 |
11 |
11 |
36 |
14"-contact us |
T-1DT/P20/SQ-12/T2018/--W
X --H |
$1,584 |
| 20 |
18 |
12 |
12 |
48 |
14"-contact us |
T-1DT/P20/SQ-12/T2018/--W
X --H |
$1,674 |
| 20 |
16 |
10 |
10 |
24 |
14"-contact us |
T-1DT/P20/SQ-12/T2016/--W
X --H |
$1,490 |
| 20 |
16 |
11 |
11 |
36 |
14"-contact us |
T-1DT/P20/SQ-12/T2016/--W
X --H |
$1,584 |
| 20 |
16 |
12 |
12 |
48 |
14"-contact us |
T-1DT/P20/SQ-12/T2016/--W
X --H |
$1,674 |
| 20 |
14 |
10 |
10 |
24 |
14"-contact us |
T-1DT/P20/SQ-12/T2014/--W
X --H |
$1,490 |
| 20 |
14 |
11 |
11 |
36 |
14"-contact us |
T-1DT/P20/SQ-12/T2014/--W
X --H |
$1,584 |
| 20 |
14 |
12 |
12 |
48 |
14"-contact us |
T-1DT/P20/SQ-12/T2014/--W
X --H |
$1,674 |
| 20 |
12 |
10 |
10 |
24 |
14"-contact us |
T-1DT/P20/SQ-12/T2012/--W
X --H |
$1,490 |
| 20 |
12 |
11 |
11 |
36 |
14"-contact us |
T-1DT/P20/SQ-12/T2012/--W
X --H |
$1,584 |
| 20 |
12 |
12 |
12 |
48 |
14"-contact us |
T-1DT/P20/SQ-12/T2012/--W
X --H |
$1,674 |
| 20 |
10 |
10 |
10 |
24 |
14"-contact us |
T-1DT/P20/SQ-12/T2010/--W
X --H |
$1,490 |
| 20 |
10 |
11 |
11 |
36 |
14"-contact us |
T-1DT/P20/SQ-12/T2010/--W
X --H |
$1,584 |
| 20 |
10 |
12 |
12 |
48 |
14"-contact us |
T-1DT/P20/SQ-12/T2010/--W
X --H |
$1,674 |
| B Dim. |
C Dim. |
Door
Height |
Pad Height |
Drape
Drop |
Bumper |
Model # |
Price |
| 22 |
20 |
10 |
10 |
24 |
16"-contact us |
T-1DT/P22/SQ-12/T2220/--W
X --H |
$1,600 |
| 22 |
20 |
11 |
11 |
36 |
16"-contact us |
T-1DT/P22/SQ-12/T2220/--W
X --H |
$1,692 |
| 22 |
20 |
12 |
12 |
48 |
16"-contact us |
T-1DT/P22/SQ-12/T2220/--W
X --H |
$1,784 |
| 22 |
18 |
10 |
10 |
24 |
16"-contact us |
T-1DT/P22/SQ-12/T2218/--W
X --H |
$1,600 |
| 22 |
18 |
11 |
11 |
36 |
16"-contact us |
T-1DT/P22/SQ-12/T2218/--W
X --H |
$1,692 |
| 22 |
18 |
12 |
12 |
48 |
16"-contact us |
T-1DT/P22/SQ-12/T2218/--W
X --H |
$1,784 |
| 22 |
16 |
10 |
10 |
24 |
16"-contact us |
T-1DT/P22/SQ-12/T2216/--W
X --H |
$1,600 |
| 22 |
16 |
11 |
11 |
36 |
16"-contact us |
T-1DT/P22/SQ-12/T2216/--W
X --H |
$1,692 |
| 22 |
16 |
12 |
12 |
48 |
16"-contact us |
T-1DT/P22/SQ-12/T2216/--W
X --H |
$1,784 |
| 22 |
14 |
10 |
10 |
24 |
16"-contact us |
T-1DT/P22/SQ-12/T2214/--W
X --H |
$1,600 |
| 22 |
14 |
11 |
11 |
36 |
16"-contact us |
T-1DT/P22/SQ-12/T2214/--W
X --H |
$1,692 |
| 22 |
14 |
12 |
12 |
48 |
16"-contact us |
T-1DT/P22/SQ-12/T2214/--W
X --H |
$1,784 |
| 22 |
12 |
10 |
10 |
24 |
16"-contact us |
T-1DT/P22/SQ-12/T2212/--W
X --H |
$1,600 |
| 22 |
12 |
11 |
11 |
36 |
16"-contact us |
T-1DT/P22/SQ-12/T2212/--W
X --H |
$1,692 |
| 22 |
12 |
12 |
12 |
48 |
16"-contact us |
T-1DT/P22/SQ-12/T2212/--W
X --H |
$1,784 |
| 22 |
10 |
10 |
10 |
24 |
16"-contact us |
T-1DT/P22/SQ-12/T2210/--W
X --H |
$1,600 |
| 22 |
10 |
11 |
11 |
36 |
16"-contact us |
T-1DT/P22/SQ-12/T2210/--W
X --H |
$1,692 |
| 22 |
10 |
12 |
12 |
48 |
16"-contact us |
T-1DT/P22/SQ-12/T2210/--W
X --H |
$1,784 |
|
|
|
|
|
|
|
 |
|
|
|

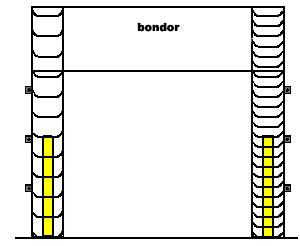

Optional
Wear Pleats/Surfaces (use charts below) |
|
|
 |
|
|
|
|
|
40 oz.
wear pleat surfaces for the
full length of the side pads provide
maximum wear and abrasion
resistance. Available in 4" or 8"
exposure. |
|
|
|
|
|
|
|
NOTE: Each seal ordered with
wear pleats includes pleats on
drape curtain. |
|
|
|
|
|
|
|
|
|
|
|
|
|
8"
pleat exposure shown |
|
|
|
|
|
|
|
|
8"
pleat exposure
shown here |
|
4"
pleat exposure
shown here |
|
|
|
|
|
|
|
|
|
|
|
|
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click a Model No. of the item you wish to
purchase. |
|
|
| Table
B: T-1DT Series Pricing with Optional Wear Pleat Surface - 8" exposure |
Bottom
Side Pad
Projection
(Inches)
B |
Top Side
Pad
Projection
(Inches)
C |
Door
Opening
Height
Range
up to and
Including
(Feet) |
Side
Pad
Height
(Feet) |
Drape
Curtain
Drop from
Top of
Side Pad
(Inches) |
Recommended
Dock Bumper |
T-1DT Tapered Drape Dock
Seal - add door width x door
height to base Model # below |
Price |
| 14 |
12 |
10 |
10 |
24 |
9"-#B910-14 |
T-1DT/P14/SQ-12/T1412/WP8/--W
X --H |
$1,519 |
| 14 |
12 |
11 |
11 |
36 |
9"-#B910-14 |
T-1DT/P14/SQ-12/T1412/WP8/--W
X --H |
$1,645 |
| 14 |
12 |
12 |
12 |
48 |
9"-#B910-14 |
T-1DT/P14/SQ-12/T1412/WP8/--W
X --H |
$1,773 |
| 14 |
10 |
10 |
10 |
24 |
9"-#B910-14 |
T-1DT/P14/SQ-12/T1410/WP8/--W
X --H |
$1,519 |
| 14 |
10 |
11 |
11 |
36 |
9"-#B910-14 |
T-1DT/P14/SQ-12/T1410/WP8/--W
X --H |
$1,645 |
| 14 |
10 |
12 |
12 |
48 |
9"-#B910-14 |
T-1DT/P14/SQ-12/T1410/WP8/--W
X --H |
$1,773 |
| 16 |
14 |
10 |
10 |
24 |
10 1/2"-#B10510-14 |
T-1DT/P16/SQ-12/T1614/WP8/--W
X --H |
$1,627 |
| 16 |
14 |
11 |
11 |
36 |
10 1/2"-#B10510-14 |
T-1DT/P16/SQ-12/T1614/WP8/--W
X --H |
$1,757 |
| 16 |
14 |
12 |
12 |
48 |
10 1/2"-#B10510-14 |
T-1DT/P16/SQ-12/T1614/WP8/--W
X --H |
$1,883 |
| 16 |
12 |
10 |
10 |
24 |
10 1/2"-#B10510-14 |
T-1DT/P16/SQ-12/T1612/WP8/--W
X --H |
$1,627 |
| 16 |
12 |
11 |
11 |
36 |
10 1/2"-#B10510-14 |
T-1DT/P16/SQ-12/T1612/WP8/--W
X --H |
$1,757 |
| 16 |
12 |
12 |
12 |
48 |
10 1/2"-#B10510-14 |
T-1DT/P16/SQ-12/T1612/WP8/--W
X --H |
$1,883 |
| 16 |
10 |
10 |
10 |
24 |
10 1/2"-#B10510-14 |
T-1DT/P16/SQ-12/T1610/WP8/--W
X --H |
$1,627 |
| 16 |
10 |
11 |
11 |
36 |
10 1/2"-#B10510-14 |
T-1DT/P16/SQ-12/T1610/WP8/--W
X --H |
$1,757 |
| 16 |
10 |
12 |
12 |
48 |
10 1/2"-#B10510-14 |
T-1DT/P16/SQ-12/T1610/WP8/--W
X --H |
$1,883 |
| B Dim. |
C Dim. |
Door Height |
Pad Height |
Drape
Drop |
Bumper |
Model # |
Price |
| 18 |
16 |
10 |
10 |
24 |
12"-#B1210-14 |
T-1DT/P18/SQ-12/T1816/WP8/--W
X --H |
$1,737 |
| 18 |
16 |
11 |
11 |
36 |
12"-#B1210-14 |
T-1DT/P18/SQ-12/T1816/WP8/--W
X --H |
$1,867 |
| 18 |
16 |
12 |
12 |
48 |
12"-#B1210-14 |
T-1DT/P18/SQ-12/T1816/WP8/--W
X --H |
$1,991 |
| 18 |
14 |
10 |
10 |
24 |
12"-#B1210-14 |
T-1DT/P18/SQ-12/T1814/WP8/--W
X --H |
$1,737 |
| 18 |
14 |
11 |
11 |
36 |
12"-#B1210-14 |
T-1DT/P18/SQ-12/T1814/WP8/--W
X --H |
$1,867 |
| 18 |
14 |
12 |
12 |
48 |
12"-#B1210-14 |
T-1DT/P18/SQ-12/T1814/WP8/--W
X --H |
$1,991 |
| 18 |
12 |
10 |
10 |
24 |
12"-#B1210-14 |
T-1DT/P18/SQ-12/T1812/WP8/--W
X --H |
$1,737 |
| 18 |
12 |
11 |
11 |
36 |
12"-#B1210-14 |
T-1DT/P18/SQ-12/T1812/WP8/--W
X --H |
$1,867 |
| 18 |
12 |
12 |
12 |
48 |
12"-#B1210-14 |
T-1DT/P18/SQ-12/T1812/WP8/--W
X --H |
$1,991 |
| 18 |
10 |
10 |
10 |
24 |
12"-#B1210-14 |
T-1DT/P18/SQ-12/T1810/WP8/--W
X --H |
$1,737 |
| 18 |
10 |
11 |
11 |
36 |
12"-#B1210-14 |
T-1DT/P18/SQ-12/T1810/WP8/--W
X --H |
$1,867 |
| 18 |
10 |
12 |
12 |
48 |
12"-#B1210-14 |
T-1DT/P18/SQ-12/T1810/WP8/--W
X --H |
$1,991 |
| B Dim. |
C Dim. |
Door Height |
Pad Height |
Drape Drop |
Bumper |
Model # |
Price |
| 20 |
18 |
10 |
10 |
24 |
14"-contact us |
T-1DT/P20/SQ-12/T2018/WP8/--W
X --H |
$1,845 |
| 20 |
18 |
11 |
11 |
36 |
14"-contact us |
T-1DT/P20/SQ-12/T2018/WP8/--W
X --H |
$1,975 |
| 20 |
18 |
12 |
12 |
48 |
14"-contact us |
T-1DT/P20/SQ-12/T2018/WP8/--W
X --H |
$2,102 |
| 20 |
16 |
10 |
10 |
24 |
14"-contact us |
T-1DT/P20/SQ-12/T2016/WP8/--W
X --H |
$1,845 |
| 20 |
16 |
11 |
11 |
36 |
14"-contact us |
T-1DT/P20/SQ-12/T2016/WP8/--W
X --H |
$1,975 |
| 20 |
16 |
12 |
12 |
48 |
14"-contact us |
T-1DT/P20/SQ-12/T2016/WP8/--W
X --H |
$2,102 |
| 20 |
14 |
10 |
10 |
24 |
14"-contact us |
T-1DT/P20/SQ-12/T2014/WP8/--W
X --H |
$1,845 |
| 20 |
14 |
11 |
11 |
36 |
14"-contact us |
T-1DT/P20/SQ-12/T2014/WP8/--W
X --H |
$1,975 |
| 20 |
14 |
12 |
12 |
48 |
14"-contact us |
T-1DT/P20/SQ-12/T2014/WP8/--W
X --H |
$2,102 |
| 20 |
12 |
10 |
10 |
24 |
14"-contact us |
T-1DT/P20/SQ-12/T2012/WP8/--W
X --H |
$1,845 |
| 20 |
12 |
11 |
11 |
36 |
14"-contact us |
T-1DT/P20/SQ-12/T2012/WP8/--W
X --H |
$1,975 |
| 20 |
12 |
12 |
12 |
48 |
14"-contact us |
T-1DT/P20/SQ-12/T2012/WP8/--W
X --H |
$2,102 |
| 20 |
10 |
10 |
10 |
24 |
14"-contact us |
T-1DT/P20/SQ-12/T2010/WP8/--W
X --H |
$1,845 |
| 20 |
10 |
11 |
11 |
36 |
14"-contact us |
T-1DT/P20/SQ-12/T2010/WP8/--W
X --H |
$1,975 |
| 20 |
10 |
12 |
12 |
48 |
14"-contact us |
T-1DT/P20/SQ-12/T2010/WP8/--W
X --H |
$2,102 |
| B Dim. |
C Dim. |
Door Height |
Pad Height |
Drape Drop |
Bumper |
Model # |
Price |
| 22 |
20 |
10 |
10 |
24 |
16"-contact us |
T-1DT/P22/SQ-12/T2220/WP8/--W
X --H |
$1,955 |
| 22 |
20 |
11 |
11 |
36 |
16"-contact us |
T-1DT/P22/SQ-12/T2220/WP8/--W
X --H |
$2,084 |
| 22 |
20 |
12 |
12 |
48 |
16"-contact us |
T-1DT/P22/SQ-12/T2220/WP8/--W
X --H |
$2,212 |
| 22 |
18 |
10 |
10 |
24 |
16"-contact us |
T-1DT/P22/SQ-12/T2218/WP8/--W
X --H |
$1,955 |
| 22 |
18 |
11 |
11 |
36 |
16"-contact us |
T-1DT/P22/SQ-12/T2218/WP8/--W
X --H |
$2,084 |
| 22 |
18 |
12 |
12 |
48 |
16"-contact us |
T-1DT/P22/SQ-12/T2218/WP8/--W
X --H |
$2,212 |
| 22 |
16 |
10 |
10 |
24 |
16"-contact us |
T-1DT/P22/SQ-12/T2216/WP8/--W
X --H |
$1,955 |
| 22 |
16 |
11 |
11 |
36 |
16"-contact us |
T-1DT/P22/SQ-12/T2216/WP8/--W
X --H |
$2,084 |
| 22 |
16 |
12 |
12 |
48 |
16"-contact us |
T-1DT/P22/SQ-12/T2216/WP8/--W
X --H |
$2,212 |
| 22 |
14 |
10 |
10 |
24 |
16"-contact us |
T-1DT/P22/SQ-12/T2214/WP8/--W
X --H |
$1,955 |
| 22 |
14 |
11 |
11 |
36 |
16"-contact us |
T-1DT/P22/SQ-12/T2214/WP8/--W
X --H |
$2,084 |
| 22 |
14 |
12 |
12 |
48 |
16"-contact us |
T-1DT/P22/SQ-12/T2214/WP8/--W
X --H |
$2,212 |
| 22 |
12 |
10 |
10 |
24 |
16"-contact us |
T-1DT/P22/SQ-12/T2212/WP8/--W
X --H |
$1,955 |
| 22 |
12 |
11 |
11 |
36 |
16"-contact us |
T-1DT/P22/SQ-12/T2212/WP8/--W
X --H |
$2,084 |
| 22 |
12 |
12 |
12 |
48 |
16"-contact us |
T-1DT/P22/SQ-12/T2212/WP8/--W
X --H |
$2,212 |
| 22 |
10 |
10 |
10 |
24 |
16"-contact us |
T-1DT/P22/SQ-12/T2210/WP8/--W
X --H |
$1,955 |
| 22 |
10 |
11 |
11 |
36 |
16"-contact us |
T-1DT/P22/SQ-12/T2210/WP8/--W
X --H |
$2,084 |
| 22 |
10 |
12 |
12 |
48 |
16"-contact us |
T-1DT/P22/SQ-12/T2210/WP8/--W
X --H |
$2,212 |
|
|
|
|
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click a Model No. of the item you wish to
purchase. |
|
|
|
| Table
C: T-1DT Series Pricing with Optional Wear Pleat Surface - 4" exposure |
Bottom
Side Pad
Projection
(Inches)
B |
Top Side
Pad
Projection
(Inches)
C |
Door
Opening
Height
Range up
to and
Including
(Feet) |
Side
Pad
Height
(Feet) |
Drape
Curtain
Drop
from Top
of Side
Pad
(Inches) |
Recommended
Dock Bumper |
T-1DT Tapered Drape Dock Seal -
add door width x door height to
base Model # below |
Price |
| 14 |
12 |
10 |
10 |
24 |
9"-#B910-14 |
T-1DT/P14/SQ-12/T1412/WP4/--W
X --H |
$1,708 |
| 14 |
12 |
11 |
11 |
36 |
9"-#B910-14 |
T-1DT/P14/SQ-12/T1412/WP4/--W
X --H |
$1,856 |
| 14 |
12 |
12 |
12 |
48 |
9"-#B910-14 |
T-1DT/P14/SQ-12/T1412/WP4/--W
X --H |
$2,002 |
| 14 |
10 |
10 |
10 |
24 |
9"-#B910-14 |
T-1DT/P14/SQ-12/T1410/WP4/--W
X --H |
$1,708 |
| 14 |
10 |
11 |
11 |
36 |
9"-#B910-14 |
T-1DT/P14/SQ-12/T1410/WP4/--W
X --H |
$1,856 |
| 14 |
10 |
12 |
12 |
48 |
9"-#B910-14 |
T-1DT/P14/SQ-12/T1410/WP4/--W
X --H |
$2,002 |
| 16 |
14 |
10 |
10 |
24 |
10 1/2"-#B10510-14 |
T-1DT/P16/SQ-12/T1614/WP4/--W
X --H |
$1,818 |
| 16 |
14 |
11 |
11 |
36 |
10 1/2"-#B10510-14 |
T-1DT/P16/SQ-12/T1614/WP4/--W
X --H |
$1,966 |
| 16 |
14 |
12 |
12 |
48 |
10 1/2"-#B10510-14 |
T-1DT/P16/SQ-12/T1614/WP4/--W
X --H |
$2,113 |
| 16 |
12 |
10 |
10 |
24 |
10 1/2"-#B10510-14 |
T-1DT/P16/SQ-12/T1612/WP4/--W
X --H |
$1,818 |
| 16 |
12 |
11 |
11 |
36 |
10 1/2"-#B10510-14 |
T-1DT/P16/SQ-12/T1612/WP4/--W
X --H |
$1,966 |
| 16 |
12 |
12 |
12 |
48 |
10 1/2"-#B10510-14 |
T-1DT/P16/SQ-12/T1612/WP4/--W
X --H |
$2,113 |
| 16 |
10 |
10 |
10 |
24 |
10 1/2"-#B10510-14 |
T-1DT/P16/SQ-12/T1610/WP4/--W
X --H |
$1,818 |
| 16 |
10 |
11 |
11 |
36 |
10 1/2"-#B10510-14 |
T-1DT/P16/SQ-12/T1610/WP4/--W
X --H |
$1,966 |
| 16 |
10 |
12 |
12 |
48 |
10 1/2"-#B10510-14 |
T-1DT/P16/SQ-12/T1610/WP4/--W
X --H |
$2,113 |
| B Dim. |
C Dim. |
Door Height |
Pad Height |
Drape Drop |
Bumper |
Model # |
Price |
| 18 |
16 |
10 |
10 |
24 |
12"-#B1210-14 |
T-1DT/P18/SQ-12/T1816/WP4/--W
X --H |
$1,926 |
| 18 |
16 |
11 |
11 |
36 |
12"-#B1210-14 |
T-1DT/P18/SQ-12/T1816/WP4/--W
X --H |
$2,074 |
| 18 |
16 |
12 |
12 |
48 |
12"-#B1210-14 |
T-1DT/P18/SQ-12/T1816/WP4/--W
X --H |
$2,221 |
| 18 |
14 |
10 |
10 |
24 |
12"-#B1210-14 |
T-1DT/P18/SQ-12/T1814/WP4/--W
X --H |
$1,926 |
| 18 |
14 |
11 |
11 |
36 |
12"-#B1210-14 |
T-1DT/P18/SQ-12/T1814/WP4/--W
X --H |
$2,074 |
| 18 |
14 |
12 |
12 |
48 |
12"-#B1210-14 |
T-1DT/P18/SQ-12/T1814/WP4/--W
X --H |
$2,221 |
| 18 |
12 |
10 |
10 |
24 |
12"-#B1210-14 |
T-1DT/P18/SQ-12/T1812/WP4/--W
X --H |
$1,926 |
| 18 |
12 |
11 |
11 |
36 |
12"-#B1210-14 |
T-1DT/P18/SQ-12/T1812/WP4/--W
X --H |
$2,074 |
| 18 |
12 |
12 |
12 |
48 |
12"-#B1210-14 |
T-1DT/P18/SQ-12/T1812/WP4/--W
X --H |
$2,221 |
| 18 |
10 |
10 |
10 |
24 |
12"-#B1210-14 |
T-1DT/P18/SQ-12/T1810/WP4/--W
X --H |
$1,926 |
| 18 |
10 |
11 |
11 |
36 |
12"-#B1210-14 |
T-1DT/P18/SQ-12/T1810/WP4/--W
X --H |
$2,074 |
| 18 |
10 |
12 |
12 |
48 |
12"-#B1210-14 |
T-1DT/P18/SQ-12/T1810/WP4/--W
X --H |
$2,221 |
| B Dim. |
C Dim. |
Door Height |
Pad Height |
Drape Drop |
Bumper |
Model # |
Price |
| 20 |
18 |
10 |
10 |
24 |
14"-contact us |
T-1DT/P20/SQ-12/T2018/WP4/--W
X --H |
$2,038 |
| 20 |
18 |
11 |
11 |
36 |
14"-contact us |
T-1DT/P20/SQ-12/T2018/WP4/--W
X --H |
$2,183 |
| 20 |
18 |
12 |
12 |
48 |
14"-contact us |
T-1DT/P20/SQ-12/T2018/WP4/--W
X --H |
$2,331 |
| 20 |
16 |
10 |
10 |
24 |
14"-contact us |
T-1DT/P20/SQ-12/T2016/WP4/--W
X --H |
$2,038 |
| 20 |
16 |
11 |
11 |
36 |
14"-contact us |
T-1DT/P20/SQ-12/T2016/WP4/--W
X --H |
$2,183 |
| 20 |
16 |
12 |
12 |
48 |
14"-contact us |
T-1DT/P20/SQ-12/T2016/WP4/--W
X --H |
$2,331 |
| 20 |
14 |
10 |
10 |
24 |
14"-contact us |
T-1DT/P20/SQ-12/T2014/WP4/--W
X --H |
$2,038 |
| 20 |
14 |
11 |
11 |
36 |
14"-contact us |
T-1DT/P20/SQ-12/T2014/WP4/--W
X --H |
$2,183 |
| 20 |
14 |
12 |
12 |
48 |
14"-contact us |
T-1DT/P20/SQ-12/T2014/WP4/--W
X --H |
$2,331 |
| 20 |
12 |
10 |
10 |
24 |
14"-contact us |
T-1DT/P20/SQ-12/T2012/WP4/--W
X --H |
$2,038 |
| 20 |
12 |
11 |
11 |
36 |
14"-contact us |
T-1DT/P20/SQ-12/T2012/WP4/--W
X --H |
$2,183 |
| 20 |
12 |
12 |
12 |
48 |
14"-contact us |
T-1DT/P20/SQ-12/T2012/WP4/--W
X --H |
$2,331 |
| 20 |
10 |
10 |
10 |
24 |
14"-contact us |
T-1DT/P20/SQ-12/T2010/WP4/--W
X --H |
$2,038 |
| 20 |
10 |
11 |
11 |
36 |
14"-contact us |
T-1DT/P20/SQ-12/T2010/WP4/--W
X --H |
$2,183 |
| 20 |
10 |
12 |
12 |
48 |
14"-contact us |
T-1DT/P20/SQ-12/T2010/WP4/--W
X --H |
$2,331 |
| B Dim. |
C Dim. |
Door Height |
Pad Height |
Drape Drop |
Bumper |
Model # |
Price |
| 22 |
20 |
10 |
10 |
24 |
16"-contact us |
T-1DT/P22/SQ-12/T2220/WP4/--W
X --H |
$2,147 |
| 22 |
20 |
11 |
11 |
36 |
16"-contact us |
T-1DT/P22/SQ-12/T2220/WP4/--W
X --H |
$2,291 |
| 22 |
20 |
12 |
12 |
48 |
16"-contact us |
T-1DT/P22/SQ-12/T2220/WP4/--W
X --H |
$2,439 |
| 22 |
18 |
10 |
10 |
24 |
16"-contact us |
T-1DT/P22/SQ-12/T2218/WP4/--W
X --H |
$2,147 |
| 22 |
18 |
11 |
11 |
36 |
16"-contact us |
T-1DT/P22/SQ-12/T2218/WP4/--W
X --H |
$2,291 |
| 22 |
18 |
12 |
12 |
48 |
16"-contact us |
T-1DT/P22/SQ-12/T2218/WP4/--W
X --H |
$2,439 |
| 22 |
16 |
10 |
10 |
24 |
16"-contact us |
T-1DT/P22/SQ-12/T2216/WP4/--W
X --H |
$2,147 |
| 22 |
16 |
11 |
11 |
36 |
16"-contact us |
T-1DT/P22/SQ-12/T2216/WP4/--W
X --H |
$2,291 |
| 22 |
16 |
12 |
12 |
48 |
16"-contact us |
T-1DT/P22/SQ-12/T2216/WP4/--W
X --H |
$2,439 |
| 22 |
14 |
10 |
10 |
24 |
16"-contact us |
T-1DT/P22/SQ-12/T2214/WP4/--W
X --H |
$2,147 |
| 22 |
14 |
11 |
11 |
36 |
16"-contact us |
T-1DT/P22/SQ-12/T2214/WP4/--W
X --H |
$2,291 |
| 22 |
14 |
12 |
12 |
48 |
16"-contact us |
T-1DT/P22/SQ-12/T2214/WP4/--W
X --H |
$2,439 |
| 22 |
12 |
10 |
10 |
24 |
16"-contact us |
T-1DT/P22/SQ-12/T2212/WP4/--W
X --H |
$2,147 |
| 22 |
12 |
11 |
11 |
36 |
16"-contact us |
T-1DT/P22/SQ-12/T2212/WP4/--W
X --H |
$2,291 |
| 22 |
12 |
12 |
12 |
48 |
16"-contact us |
T-1DT/P22/SQ-12/T2212/WP4/--W
X --H |
$2,439 |
| 22 |
10 |
10 |
10 |
24 |
16"-contact us |
T-1DT/P22/SQ-12/T2210/WP4/--W
X --H |
$2,147 |
| 22 |
10 |
11 |
11 |
36 |
16"-contact us |
T-1DT/P22/SQ-12/T2210/WP4/--W
X --H |
$2,291 |
| 22 |
10 |
12 |
12 |
48 |
16"-contact us |
T-1DT/P22/SQ-12/T2210/WP4/--W
X --H |
$2,439 |
|
|
| ARCHITECTURAL
SPECIFICATIONS - Model T-1DT Tapered Drape Foam Seal |
|
| Truck
Dock Seals |
|
Truck
dock seals shall be Drape Type as manufactured by the Bondor Division of
FS Industries, W. Greenwich, RI,
to fit a door opening of 8' wide x 12' high. |
|
| Construction |
|
Pads to have a polyurethane
foam core bonded to a 2" x 12" kiln dried wood backboard to
give a finished projection
of ______________. Side pads to be 10' - 0" long (standard). Side
pads to have 4" wide contrasting guide stripe sewn
on. Bottom of pads to have 3" upward taper to prevent pinching between
truck and bumpers. Bottom of pads to be
closed with covered side vents to allow air during compression and to
prevent condensation. Header to consist of
full width, weighted drape curtain with mounting strip. Curtain to be
supported between side pads by galvanized pipe
sewn into curtain. Curtain to be provided with elastic shock cords to
hold curtain in place. |
|
| Cover
Material |
|
| Pads
to be completely wrapped with 22 oz. vinyl coated nylon. |
|
Bondor, Dock Door Loading
Seal, Dock Door Seals, Foam Truck Dock Seals, Dock Seals, Loading Dock
Door Seals, Loading
Dock Seals, Tapered Drape Seals, Wear Pleats from your source for material
handling equipment. |
|
