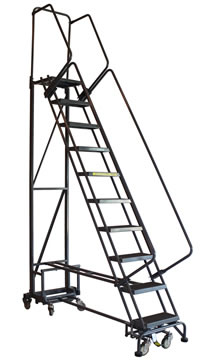

The
Navigator |
Special
purpose ladder under ANSI 14.7 |
|
|
|
|
|
|
| Ideal
for retail environments that are looking for a safer alternative to A-Frame
ladders. |
|
|
|
|
|
|
|
|
Specifically
designed to provide easy access to narrow aisles and tight spaces. A safer
option to “A” frame ladders,
the Navigator includes handrails and a more gradual climbing slope. The
weight actuated lockstep gives the ladder a
very secure feel when climbing. Can reduce accidents and worker’s compensation
claims. |
|
|
|
|
|
|
|
|
 |
|
• Available
7-10 Steps
• Standard or folding side rails
• All Direction design
• 450 lbs. capacity
• Abrasive mat tread, other treads available
• Patented weight activated lockstep is standard |
|
|
|
|
• 14”
Deep Top Step
• Gray powder coat finish
• Ships unassembled and boxed, available assembled
• Meets OSHA and ANSI
• CAL OSHA available |
|
|
|
|
|
|
|
|
The
Navigator and its small base are designed to give an associate the ability
to
access stock in the most challenging areas. The Navigator and its All Directional
design can be seen moving in and out of tight aisle areas and being utilized
throughout
a day in multiple areas of a stock or store room. Associates will love the
easy
maneuverability, the extra support of the top handrails, the strong side
rails and the
comfort of the deep top step. The Patented Weight Actuated Lock Step will
be a
must for safety conscious employers. The Patented Weight Actuated Lock Step
prevents utilization of the ladder while in the rolling position. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
 |
|
|
|
|

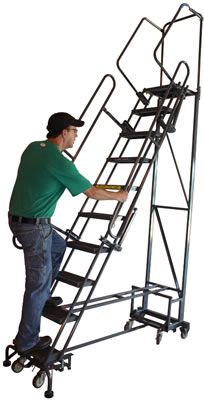

Navigator
worker showing clearance |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Navigator
worker
moving hospital
rails |
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
Navigator
Back Base |
|
Navigator
Back Angle |
|
|
|
|
 |
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase. |
|
|
|
PRICING |
Steps
Including
Top Step |
Top
Step
Height |
Overall
Height |
Model
# |
Base
W x L |
Weight
(lbs.) |
Price |
The
Navigator with Standard Fixed Rails |
7 |
70 |
108 |
|
26 x 51 |
160 |
$1,243 |
8 |
80 |
113 |
|
26 x 57 |
176 |
$1,372 |
9 |
90 |
123 |
|
26 x 63 |
192 |
$1,450 |
10 |
100 |
133 |
|
26 x 69 |
210 |
$1,554 |
The
Navigator with Folding Side Rails |
9 |
90 |
123 |
|
26 x 63 |
192 |
$1,579 |
10 |
100 |
133 |
|
26 x 69 |
210 |
$1,683 |
|
|
|
|
|
|
|
|
|
|
LADDER
REPLACEMENT PARTS & OPTIONS |
|
|
|
|
|
|
|
|
|
|
 |
|
Rear
Exit or Side Exit Available |
|
|
|
|
|
•
Handrails must be welded in place
• 28" deep top step required for Side Exit
• Not available on ladders with spring
loaded casters |
|
|
|
|
|
|
|
|
|
|
|
|
|
| Part # |
Description |
Number per Set |
Price |
| *PR-2 |
2" Replacement Casters Sets |
4 |
|
| *PR-3 |
3" Replacement Caster Sets |
4 |
|
| PS |
Replacement Springs |
4 |
|
| PTHDS |
Replacement Rubber Tips |
4 |
|
| SBR-4 |
4" Replacement Casters Sets |
4 |
|
| FW-2 |
10" Rubber Wheels |
2 |
|
DONUT |
2.5"
Donut Style Pads |
2 |
|
|
|
|
|
|
|
|
|
|
*Must
specify # of steps and width (Set includes casters, springs, rubber tips
and hardware) |
|
|
|
|
|
*1-5
Step Spring Loaded Caster ladders require PR-2, 6-7 PR-3. |
|
|
|
|
|
|
|
|
|
|
|
|
COLORS
AVAILABLE FOR ALL POWDER COATED LADDERS |
|
|
|
|
|
| Colors |
Item # |
1-4 Step* |
5-8 Step |
9-15 Step |
| Gray |
STD |
Price |
Price |
Price |
| Blue |
BU* |
NC |
NC |
NC |
| Black |
BL* |
NC |
NC |
NC |
|
|
|
|
|
|
*1-4
step ladders, non-gray, will ship All Welded, contact us for pricing
on other colors. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Call
to Order Items Below |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
OPTIONS |
Add |
All
ladders ship flat - set-up available |
2
- 7 step ladders Setup |
$72.00
Per ladder |
8
- 12 step ladders Setup |
$108.00
Per ladder |
21"
deep top step |
$194.00 |
28"
deep top step |
$233.00 |
Wooded
Skid |
$110.00
Standard on
13-15 step ladder |
Rear
Exit |
$234.00 |
Side
exit; must have 28" DTS |
$234.00 |
Employee
Only Sign |
$146.00 |
Skid
plate on legs. Replaces rubber feet |
$112.00 |
Fold
Down rails (4 steps and above)* |
$262.00 |
All-Welded
1-7 steps* |
$102.00 |
CAL
OSHA 6-9 steps |
$113.00 |
CAL
OSHA 10-15 steps |
$177.00 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| *Avaliable
on ladders with 14" Deep Top Steps Only. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
