WESTON

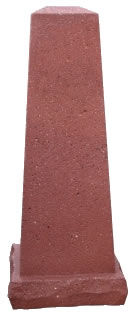

CONCRETE BOLLARD TF6034 |
|
BOLLARDS Made of all shapes and sizes offer dependable solutions for security, traffic
flow and numerous
other applications – while enhancing the aesthetic appeal of any project.
Whether spherical, cylindrical or
mimicking the contour of natural stone, our bollards are constructed of
steel rebar encased in concrete to
provide superior strength and protection. Choose from a near-endless array
of colors, textures and finishes. |
|
|
|
|
 |
|
Weston
concrete bollard that can hold cast-in or silk-screened logo or for an
elegant touch, add a bronze plaque as a memorial or a marker. Tapers to
8"
square at top. Two mounting options available. Inquire for details on optional
customization. |
|
|
|
|
MATERIAL:
Reinforced concrete
SHAPE: Rectangle
REINFORCEMENT: 1/4" & 3/8" Dia. steel rebar
CORE SIZE: 4" Dia. x 14" H |
|
|
|
|
|
Mounting
Options:

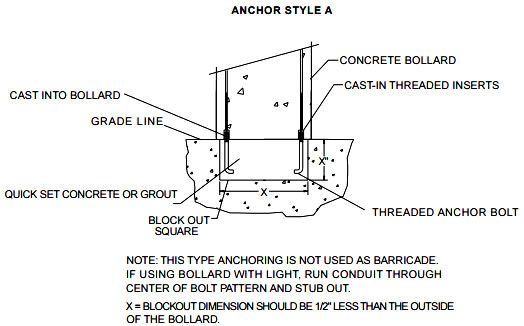

Option A: (4) 1/2" Threaded Inserts

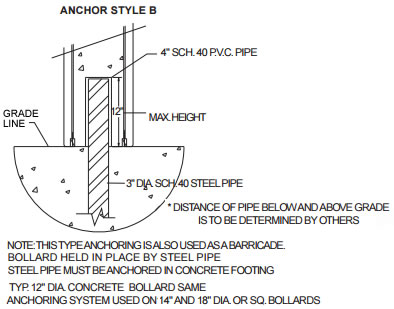

Option B: 4" x 14" Core |
|
TF6034 |
|
|
|
|
|
 |
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase. |
|
|
|
PRICING
FOR STANDARD FINISH BOLLARDS |
Model
No. |
Size |
Weight |
Price |
|
8"
x 14" x 37" |
350
lbs |
$453.80 |
|
|

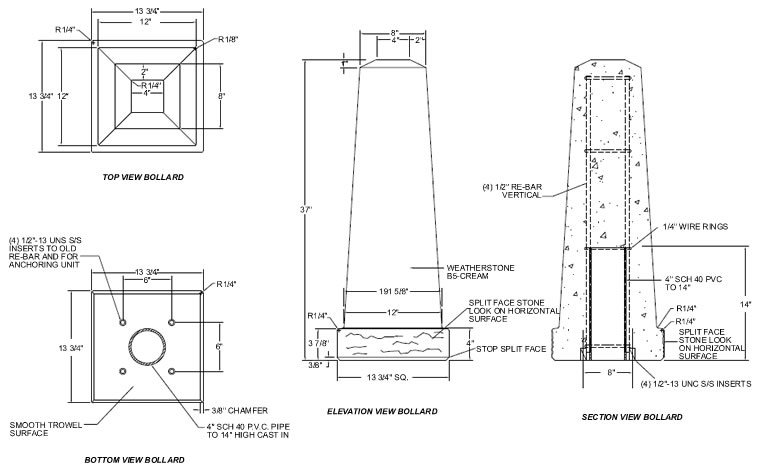

TF6034
DRAWING |
 |
|
SPECIFICATIONS |
|
1.1
SUMMARY
A. Section includes: Furnish Precast Concrete indicated
on drawings or specified
herein.
1.2 REFERENCES
A. American Society for Testing & Material
1. ASTM C33 2.
ASTM C150 3. ASTM C31 |
|
1.5
SUBMITTALS
A. Submit product data, shop drawings and samples.
1. Product Data: Manufacturer's
specifications and technical data edited specifically for
proposed
system, including the following specific information:
a.
Detailed specification of construction fabrication.
b.
Manufacturer's installation instructions
c.
Maintenance literature
d.
Product warranty
2. Shop Drawings: Indicate
pertinent dimensions, general construction, component
connections
anchoring methods, hardware and installation procedures.
3. Samples as requested
by Architect. |
|
1.6
QUALITY ASSURANCE
A. Qualifications of Manufacturer: Manufacturer to
be prequalified by specifier prior to bidding.
Failure to comply will result
in disqualification of bid. Manufacturer to have at least five years
experience in the manufacturer
of precast concrete bollards field proven for at least
five years. |
|
1.10
WARRANTY
Manufacturer shall submit a written warranty for precast
products for the period of two years
upon acceptance of products. |
|
2.2
MATERIALS
A. Portland Cement: ASTM C150 specifications for
Portland Cement.
B. Aggregates: All aggregates to meet ASTM C33 specifications,
to be cleaned of foreign
matter and properly graded
to size.
C. Coloring: Pigments used shall be inorganic, resistant
to alkalinity and used as per
manufacturers recommendations. |
|
Bollard
Installation |
 |
|
|
|
|
|
 |
|
|
