ZERO
LIFTS
|
|
|
|
|
|
|
|
|
|
XZ
Series Floor Level Lifts |
|
|
|
|
|
|
|
|
|
|
|
These
industrial grade, hydraulic scissor lift tables feature a unique pan-style
platform that sits only 3/8" above
the floor when fully lowered. This low-profile design allows them to be
loaded and unloaded by a hand pallet
truck. Use them in facilities where fork lifts or stackers aren't available.
An additional advantage of hand pallet
truck accessibility is the opportunity for workers to function at their
own pace without having to wait for a fork
lift and certified operator to load the lifts for them. With capacities
up to 6,000 lbs. and multiple platform (pan)
sizes, virtually any load can be accommodated. |
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|

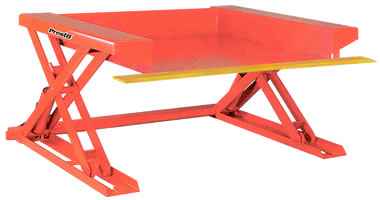

XZ
Series Lift - Side View |
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
Features |
|
|
|
|
|
|
|
|
|
|
|
•
Available in 2,000 lb, 4,000 lb and 6,000 lb capacities
• Loads can be accessed from 4 sides with minimal
reach over
• 35" vertical travel
• External 1 HP 115/1/60 power unit |
|
•
Optional power units available
• Foot or hand-held control
• 6" flexible yellow safety toe guard
• Lifting eyes for safe positioning
• Custom designs available |
|
|
|
|
 |
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase. |
|
|
XZ
Series Floor Level Lift Prices |
Model
No. |
Lift
Capacity |
Platform
Size W x D |
Lowered
Height |
Raised
Height |
Dimensions
W x L |
Lifting
Speed |
Shipping
Weight |
Price |
XZ44 Series |
|
2000
lbs |
44"
x 48" |
3/8" |
35
3/8" |
61
1/4" x 59" |
40
sec |
1300
lbs |
$9,110 |
|
4000
lbs |
44"
x 48" |
3/8" |
35
3/8" |
61
1/4" x 59" |
44
sec |
1325
lbs |
$9,520 |
XZ50 Series |
|
2000
lbs |
50"
x 48" |
3/8" |
35
3/8" |
67
1/4" x 59" |
40
sec |
1400
lbs |
$9,110 |
|
4000
lbs |
50"
x 48" |
3/8" |
35
3/8" |
67
1/4" x 59" |
44
sec |
1425
lbs |
$9,520 |
|
|
|
