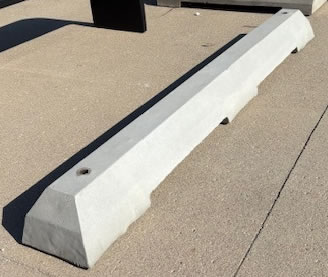

84"
CONCRETE PARKING STOP
WITH DRAIN HOLES |
|
|
 |
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click a Price of the item you wish to purchase. |
|
|
|
|
|
|
|
|
| GENERAL
SPECIFICATIONS: |
|
 |
|
|
|
|
|
Our company maintains at all times a quality control program
as herein outlines so as to insure that all precast meets all
requirements as specified under physical requirements. All
precast shall be manufactured by skilled workmen who have
at least five years experience in similar work and supervised
by foremen certified by the ACI (American Concrete Institute). |
|
|
|
|
|
|
MANUFACTURING
All precast work shall be true to dimensions and have clean,
accurate arrises and details faithfully executed. Reinforcing
steel shall conform to ASTM 615 for rebar, and deformations
shall conform to ASTM-M-0305. All precast shall have a
minimum compressive strength of 5,000 psi at 28 days of age
when tested by means of 6 x 12 cylinder molds from the
materials. There shall be a maximum of 4-6% air entrainment
for all precast according to ASTM standards. |
|
|
|

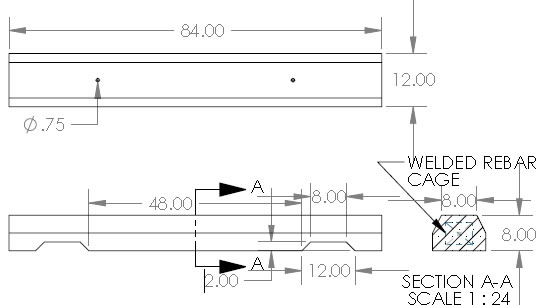

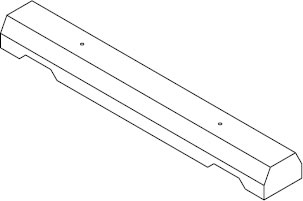

MODEL:
WHEELSTOP84 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
Weight: 600 lbs.
Dimensions: 84"L |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
REINFORCEMENT
All concrete products have reinforcement characteristics
such as rebar or fiberglass. |
|
COLOR
Color to be uniform throughout as approved by owner
or specifier in accordance with manufacturer's
recommendation. |
|
|
MOLDS
The forms for the precast units shall be constructed of
metal or fiberglass, and designed to withstand casting
pressures without distortion. All anchors, inserts, bolts,
etc., will be placed and secured in the forms as required
for the attach- ment and handling of the units. These shall
be clamped or secured so as to hold them in position
during fabrication. |
|
|
|
|
MATERIALS
Portland Cement: ASTM C150 Type I or III
All aggregate to meet ASTM C33 Specifications |
|
|
|
REQUIRED
MATERIALS FOR APPROVAL
A. Shop drawings with dimensions, general construction
component parts, anchoring details and installation
instructions.
B. Samples upon request of architect.
C. Complete data on manufacturer's specifications and
technical information. |
|
|
PHYSICAL
CHARACTERISTICS
All exposed surfaces are treated to remove the surface
matrix and expose the aggregate produced by chemical
retardent - not sand blasting. All precast shall have water
repellent sealer treatment applied in strict accordance
with manufacturer's specifications. All tolerances shall
be within 1/8" of specified dimensions, designed for
structural analysis and calculation |
|
|
|
|
WARRANTY:
We provide a two-year limited warranty on all our
precast concrete products. Plastic, metal, and wood
products are warranted for one year from date of
purchase. |
|
|
|
 |
|
