KEE LITE ALUMINUM FITTINGS

HANDRAILS • LIGHTING GRIDS • STORE FIXTURES • PLAYGROUNDS • GUARD RAILS • SET DESIGN & PROPS
Kee Lite Aluminum Fittings are perfect for handrails, lighting grids, store fixtures, playgrounds, guard rails, set design and props. Kee Lite Aluminum Fittings are also great for water treatment facilities, corrosive environments, industrial and commercial retail and restaurant design, municipal and instituational applications.
Aesthetic look and design
• Light weight
Corrosion resistant
• Large set screws resist thread stripping
Low long term maintenance
Available for Schedule 40 Pipe Sizes 1"-2"
Recessed Set Screws for a Smooth Look
Cost Effective Alternative to Welding

WATER TREATMENT FACILITIES • CORROSIVE ENVIRONMENTS • INDUSTRIAL/COMMERCIAL
RETAIL & RESTAURANT DESIGN • MUNICIPAL • INSTITUTIONAL

KEE LITE fittings are made from high-grade Aluminum Silicon Magnesium alloy to provide you with a lightweight,
corrosion resistant and strong alternative for fabrication of pipe structures. Kee Lite fittings offer you flexibility, to be
used for a variety of applications from contemporary to industrial; your imagination is the only limitation you have.
Because Kee Lite fittings can be easily installed with a hex key and pipe cutters, there is no need to weld, thread or
drill, saving you both time and money. Kee Lite is securely locked into place using recessed setscrews that provide a
smooth look to your rail system.

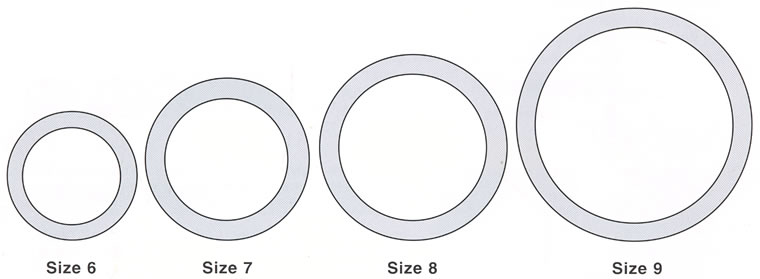

PIPE SIZE NOTE: Pipe sizes are specified by the inside diameter. Refer to diagrams below the price chart to
verify your outside diameter.
Click on button or text to jump to the product you desire.
kee safety inc type l10 single socket tee kee safety inc type l14 straight coupling kee safety inc type l15 90 degree elbow kee safety inc type l19 adjustable side outlet tee kee safety inc type l20 side outlet elbow kee safety inc type l21 side outlet tee kee safety inc type l25 three socket tee
Type L14
Straight
Coupling
Type L15
90°
Elbow
Type L19
Adjustable Side
Outlet Tee
Type L21
Side Outlet
Tee
Type L25
Three Socket
Tee
kee safety inc type l26 two socket cross kee safety inc type l29 30 degree to 60 degree single socket tee kee safety inc type l30 30 to 45 degree adjustable cross kee safety inc type l35 three socket cross kee safety inc type l45 crossover kee safety inc type l46 combination socket tee & crossover kee safety inc type lc50 single swivel socket
Type L26
Two Socket
Cross
Type L29
30° to 60° Single
Socket Tee
Type L30
30° to 45°
Adjustable Cross
Type L35
Three Socket
Cross
Type L45
Crossover
Type LC50
Single Swivel
Socket
kee safety inc type lf50 female single socket member kee safety inc type lm50 male single socket member kee safety inc type lc51 double swivel socket kee safety inc type lm51 male double socket member kee safety inc type lc52 corner swivel socket kee safety inc type lm52 male corner swivel socket member kee safety inc type lb54 adjustable elbow
Type LC51
Double Swivel
Socket
Type LC52
Corner Swivel
Socket
Type LM52
Male Corner Swivel
Socket Member
Type LB54
Adjustable
Elbow
kee safety inc type lc58 swivel flange kee safety inc type lm58 male wall plate kee safety inc type l61 flange kee safety inc type l62 standard failing flange kee safety inc type l68 wall flange kee safety inc type l69 railing flange with toeboard adapter kee safety inc type l84 plug
Type L61
Flange
Type L68
Wall
Flange
Type L84
Plug
kee safety inc type l114 swivel tee kee safety inc type l148 heavy duty rectangular flange kee safety inc type l150 heavy duty 4 hole square flange kee safety inc type l152 4 hole square flange kee safety inc type l160 smooth handrail fitting kee safety inc type l164 offset all flange technical specifications and dimensions for Kee Safety aluminum fittings
Type L114
Swivel
Tee
Type L148
Heavy Duty
Rectangular Flange
Type L150
Heavy Duty 4 Hole
Square Flange
Type L164
Offset Wall
Flange

Order Online, by Phone or by E-Mail

~ Add items to your online shopping cart ~
Click the Model No. of the item you wish to purchase.


Type L10 - Single Socket Tee
Back to Top
Type L10 Single Socket Tee is designed to give a 90 degree butt joing between two pipes. Type L10 Single Socket Tee is frequently used for the joint between end uprights and the middle rail where the site is straight and level.
Designed to give a 90° butt joint between two pipes.
Frequently used for the joint between end uprights
and the middle rail where the site is straight and level. Also used for base ties on racking. This fitting cannot
be used where the pipe through the sleeve 'A' is
required to be joined within the fitting.
Model No. Pipe Ref. Inches Weight Price
A B C D
L10-6 6 2.05 1.67 2.2 0.29 lbs
$16.46
L10-7 7 2.56 2.09 2.52 0.44 lbs
$20.72
L10-8 8 2.91 2.36 2.76 0.66 lbs
$26.64
L10-9 9 3.54 2.91 3.23 1.06 lbs
$53.00
Type L14 - Straight Coupling
Back to Top
Type L14 Straight Coupling is designed to give an in-line joint between tubes of the same size. Type L14 Straight Coupling is frequently used to allow full pipes to be used in railing applications.
Designed to give an in-line joint between tubes of
the same size. Frequently used to allow full pipes to
be used in railing applications.

Note: It is not advisable to join the upper and lower
rails of a railing within the same bay.

Model No. Pipe Ref. Inches Weight Price
A B C D
L14-6 6 1.97 3.94 1.67 0.40 lbs
$18.60
L14-7 7 2.32 5.12 2.09 0.73 lbs
$22.34
L14-8 8 2.56 5.83 2.36 0.82 lbs
$28.44
Type L15 - 90 degree Elbow
Back to Top
Type L15 90 Degree Elbow is a 90 degree elbow joint. Type L15 90 Degree Elbow is often used as an end joint for the top rail of safety railings on a level site.
A 90° elbow joint, most frequently used as an end
joint for the top rail of safety railings on a level site.
Model No. Pipe Ref. Inches Weight Price
A B C D
L15-6 6 2.05 1.67 2.2 0.31 lbs
$21.36
L15-7 7 2.56 2.09 2.32 0.62 lbs
$26.06
L15-8 8 2.91 2.36 2.56 0.88 lbs
$35.16
L15-9 9 3.54 2.91 3.07 1.46 lbs
$44.88
Type L19 - Adjustable Side Outlet Tee
Back to Top
Type L19 Adjustable Side Outlet Tee fittings are used to form angle joints between 60 and 200 degrees. Type L19 Adjustable Side Outlet Tee fittings are normally used in pairs and are priced, weighed and sold as such.
Used to form variable angle joints between 60° and
200°.

Note: Type L19 fittings are normally used in pairs,
and are sold, priced, and weighed as such.
Model No. Pipe Ref. Inches Weight Price/Pair
A B C
L19-6 6 1.67 2.95 0.79 lbs
$45.22
L19-7 7 2.09 3.54 1.28 lbs
$61.62
L19-8 8 2.36 3.54 1.46 lbs
$63.98
Type L20 - Side Outlet Elbow
Back to Top
Type L20 Side Outlet Elbow is a 90-degree corner joint most frequently used
      for the top rail of safety railing. Type L20 Side Outlet Elbow 90 degree corner joint can also be
      considered for the corner joint of benches, work tables, and other rectangular structures.
A 90° corner joint most frequently used for the top
rail of safety railing. It can also be considered for
the corner joint of benches, work tables, and other
rectangular structures.
Model No. Pipe Ref. Inches Weight Price
A B C D
L20-6 6 2.05 1.67 1.97 0.42 lbs
$26.84
L20-7 7 2.56 2.09 2.32 0.77 lbs
$39.28
L20-8 8 2.91 2.36 2.56 1.1 lbs
$41.92
Type L21 - Side Outlet Tee
Back to Top
Type L21 Side Outlet Tee are often paired with Type L20 to give
      a 90-degree corner joint for the middle rail of safety-railing and other rectangular structures. Type L21 Side Outlet Tee is used so that the upright passes through the fitting.
Most frequently paired with Type L20 to give a 90° corner joint for the middle rail of safety-railing and
other rectangular structures. The upright passes
through the fitting.
Model No. Pipe Ref. Inches Weight Price
A B C D
L21-6 6 2.05 1.67 2.2 0.35 lbs
$24.74
L21-7 7 2.56 2.09 2.52 0.66 lbs
$33.58
L21-8 8 2.91 2.36 2.76 0.95 lbs
$42.32
Type L25 - Three Socket Tee
Back to Top
Type L25 Three Socket Tee is most
      commonly used as the 90 degree joint between the top rail and an intermediate upright on safety railing. Type L25 Three Socket Tee can be
      used where a join is required in the horizontal pipe.
Most commonly used as the 90° joint between the
top rail and an intermediate upright on safety
railing. As there are two socket set screws in the
sleeve, this Kee Lite fitting can be used where a join
is required in the horizontal pipe. The Type L10
fitting can be used as an alternative when a join in the pipe is not required.
Model No. Pipe Ref. Inches Weight Price
A B C D E
L25-6 6 2.05 1.67 1.97 4.09 0.46 lbs
$24.98
L25-7 7 2.56 2.09 2.32 5.12 0.77 lbs
$31.18
L25-8 8 2.91 2.36 2.56 5.83 1.12 lbs
$39.18
L25-9 9 3.54 2.91 3.07 7.09 1.81 lbs
$56.52

Order Online, by Phone or by E-Mail

~ Add items to your online shopping cart ~
Click the Model No. of the item you wish to purchase.


Type L26 - Two Socket Cross
Back to Top
Type L26 Two Socket Cross is usually
      paired with Type L25 to give a 90 degree joint between the middle rail and an intermediate upright on safety railing. The upright passes through the Type L26 Two Socket Cross.
Usually paired with Type L25 to give a 90° joint
between the middle rail and an intermediate upright
on safety railing. The upright passes through the
fitting.
Model No. Pipe Ref. Inches Weight Price
A B C D
L26-6 6 1.67 2.2 4.09 0.37 lbs
$29.32
L26-7 7 2.09 2.52 5.12 0.62 lbs
$35.02
L26-8 8 2.36 2.76 5.83 0.99 lbs
$42.18
L26-9 9 2.91 3.23 7.09 1.46 lbs
$54.66
Type L29 - 30° to 60° Single Socket Tee
Back to Top
Type Ll29 30 to 60 Degree Single Socket Tee is an adjustable fitting most
	frequently used for struts and braces. Type Ll29 30 to 60 Degree Single Socket Tee is suitable for connecting an
	angled staircase rail to a vertical upright.
This adjustable fitting is most frequently used for
struts and braces. It can be used at any selected
angle between 30° and 60°. Suitable for connecting
an angled staircase rail to a vertical upright.
Model No. Pipe Ref. Inches Weight Price
A B C D E
L29-7 7 3.23 3.74 1.06 2.07 0.70 lbs
$35.00
L29-8 8 3.66 4.25 1.18 2.32 0.90 lbs
$44.22
Type L30 - 30° to 45° Adjustable Cross
Back to Top
Type L30 30 to 45 Degree Adjustable Cross fitting can be used for railing on
      staircases between the mid-rail and intermediate upright which is required to remain vertical. Type L30 30 to 45 Degree Adjustable Cross can be used at any selected
	angle between 30 and 45 degrees.
This adjustable fitting can be used for railing on staircases between the mid-rail and intermediate
upright which is required to remain vertical. It can be
used at any selected angle between 30° and 45°.
Model No. Pipe Ref. Inches Weight Price
A B C D
L30-7 7 8.46 2.07 2.13 1.15 lbs
$49.06
L30-8 8 9.65 2.34 2.36 1.52 lbs
$55.62
Type L35 - Three Socket Cross
Back to Top
Type L35 Three Socket Cross is frequently used to tie uprights with horzontal
	pipes in three directions, all at 90 degrees to the upright. The upright passes through the Type L35 Three Socket Cross.
Most frequently used to tie uprights with horizontal pipes in three directions, all at 90° to the upright. The upright passes through the fitting.
Model No. Pipe Ref. Inches Weight Price
A B C D E
L35-6 6 1.97 2.2 4.09 2.05 0.68 lbs $38.40
Type L45 - Crossover
Back to Top
Type L45 Crossover is designed to add a 90 degree offset crossover
	joint. Type L45 Crossover may be also used to add intermediate levels
	on racks.
Designed to give a 90° offset crossover joint.
Frequently used on safety railing, where, to reduce
cost by minimizing the pipe cuts, a continuous
horizontal rail is used. Pipe cannot be joined within
this Kee Lite fitting. It may be also used to give
intermediate levels on racks.
Model No. Pipe Ref. Inches Weight Price
A B C
L45-6 6 1.73 1.57 0.26 lbs
$29.82
L45-7 7 2.13 1.97 0.68 lbs
$36.40
L45-8 8 2.4 2.2 0.77 lbs
$42.16

Order Online, by Phone or by E-Mail

~ Add items to your online shopping cart ~
Click the Model No. of the item you wish to purchase.


Type L46 - Combination Socket Tee and Crossover
Back to Top
Type L46 Combination Socket Tee and Crossover is used on racking to
	join horizontal carrying rails to the upright, leaving the socket to take a horizontal tie across the section. Type L46 Combination Socket Tee and Crossover keeps the horizontal pipe
	 outside the upright for shelved racking and inside the upright for pallet racking.
Used on racking to join horizontal carrying rails to
the upright, leaving the socket to take a horizontal
tie across the section. For shelved racking, it is usual
to have the horizontal pipe outside the upright. On
pallet racking, it is preferable to have the carrying
rails inside the upright.
Model No. Pipe Ref. Inches Weight Price
A B C D E F
L46-6 6 1.67 1.57 2.05 1.73 1.97 0.42 lbs $35.50
Type LC50 - Single Swivel Socket
Back to Top
Type LC50 Single Swivel Socket is a complete swivel socket combination fitting. Type LC50 Single Swivel Socket is made of LM50 and LF50.
Complete Swivel Socket combination fitting
consisting of LM50 and LF50.
Model No. Pipe Ref. Weight Price
A B
LC50-66 6 6 0.68 lbs
$32.34
LC50-77 7 7 0.90 lbs
$38.64
LC50-88 8 8 1.10 lbs
$43.06
Type LF50 - Female Socket Member
Back to Top
Type LF50 Female Socket Member is the female part of a swivel socket. Type LF50 Female Socket Member is used with the male LM50, LM51
      and LM52 to create complete swivel sockets.
The female part of a swivel fitting combination.
Used with the male LM50, LM51 and LM52 to
create complete swivel sockets.
Model No. Pipe Ref. Inches Weight Price
A B C D E Ø
LF50-6 6 1.97 1.67 2.95 2.09 0.38 0.37 lbs
$15.30
LF50-7 7 2.32 2.09 3.54 2.32 0.38 0.55 lbs
$19.04
LF50-8 8 2.56 2.36 3.54 2.64 0.38 0.64 lbs
$22.78
Type LM50 - Male Single Socket Member
Back to Top
Type LM50 Single Socket Member is the male part of the LC50 Single Swivel Socket. Type LM50 Single Socket Member can be used to attach flat panels to
	tubular structures.
The male part of a swivel fitting combination. This
fitting can also be used to attach flat panels to
tubular structures.
Model No. Pipe Ref. Inches Weight Price
A B C D E Ø
LM50-6 6 1.97 1.73 1.85 0.43 0.38 0.26 lbs
$17.06
LM50-7 7 2.32 2 1.97 0.43 0.38 0.33 lbs
$18.12
LM50-8 8 2.56 2.36 2.17 0.43 0.38 0.44 lbs
$20.24
Type LC51 - Double Swivel Socket
Back to Top
Type LC51 Double Swivel Socket is a complete combination fitting
	consisting of two LF50 and one LM51. Type LC51 Double Swivel Socket component dimensions are available <br>
	by referencing parts LF50 and LM51.
Complete combination fitting consisting of two
LF50 and one LM51. For dimensions, see LF50
and LM51.
Model No. Inches Weight Price
A B C
LC51-666 6 6 6 1.26 lbs
$57.00
LC51-777 7 7 7 1.61 lbs
$69.66
LC51-888 8 8 8 1.88 lbs
$75.16
Type LM51 - Male Double Socket Member
Back to Top
Type LM51 Male Double Socket Member is part of the LC51 combination fitting. Type LM51 Male Double Socket Member can also be used to attach
	flat panels to tubular structures.
One part of the LC51 combination fitting. This
can also be used for attaching flat panels to tubular
structures.
Model No. Pipe Ref. Inches Rivet Hole Weight Price
A B C D E F Ø
LM51-6 6 1.97 1.73 1.85 0.43 1.67 0.38" 0.35 lbs
$19.06
LM51-7 7 2.32 2 1.97 0.43 2.09 0.38" 0.51 lbs
$27.44
LM51-8 8 2.56 2.36 2.17 0.43 2.36 0.38" 0.60 lbs
$29.64
Type LC52 - Corner Swivel Socket
Back to Top
Type LC52 Corner Swivel Socket is a complete combination fitting consisting
	of two LF50 and one LM52. For Type LC52 Corner Swivel Socket dimensions, see LF50 and LM52.
Complete combination fitting consisting of two
LF50 and one LM52. For dimensions, see LF50
and LM52.
Model No. Inches Weight Price
A B C
LC52-666 6 6 6 1.30 lbs
$56.72
LC52-777 7 7 7 1.61 lbs
$69.26
LC52-888 8 8 8 1.88 lbs
$74.96
Type LM52 - Male Corner Swivel Socket Member
Back to Top
Type LM52 Male Corner Swivel Socket Member is part of combination
	fitting LC52. Type LM52 Male Corner Swivel Socket Member can also be used for
	attaching flat panels to tubular structures.
One part of combination fitting LC52. This fitting
can also be used for attaching flat panels to tubular
structures.
Model No. Pipe Ref. Inches Rivet Hole Weight Price
A B C D E F Ø
LM52-6 6 1.97 1.73 1.85 0.43 1.67 0.38" 0.35 lbs
$19.04
LM52-7 7 2.32 2.00 1.97 0.43 2.09 0.38" 0.51 lbs
$27.34
LM52-8 8 2.56 2.36 2.17 0.43 2.36 0.38" 0.60 lbs
$29.56
Type LB54 - Adjustable Elbow
Back to Top
Type LB54 Adjustable Elbow is a swivel fitting designed as an in-line
	varaible angle connection, adjustable from 45 to 200 degrees. Type LB54 Adjustable Elbow comes with the approriate nut and bolt.
A swivel fitting designed as an in-line variable angle
connection, adjustable from 45° to 200°. Nut and
bolt are included.
Model No. Pipe Ref. Inches Weight Price
A B C D
LB54-66 6 1.97 1.65 3.97 0.77 lbs
$53.18
LB54-77 7 2.28 2.17 4.69 1.43 lbs
$66.06
LB54-88 8 2.56 2.36 5.16 1.61 lbs
$83.24

Order Online, by Phone or by E-Mail

~ Add items to your online shopping cart ~
Click the Model No. of the item you wish to purchase.


Type LC58 - Swivel Flange
Back to Top
Type LC58 Swivel Flange is a swivel fitting for attachment of angled
	pipe to a flat setting. Type LC58 Swivel Flange is not recommended for use as a base flange
	to support guardrailing or balustrading.
A swivel fitting for attachment of angled pipe to a
flat setting.

Warning: This fitting is not recommended for use
as a base flange to support guardrailing or
balustrading.

Model No. Pipe Ref. Fixing Hole Weight Price
A Ø
LC58-6 6 0.45" 0.74 lbs
$31.96
LC58-7 7 0.45" 0.93 lbs
$40.82
LC58-8 8 0.45" 1.23 lbs
$44.68
Type LM58 - Male Wall Plate
Back to Top
Type LM58 Male Wall Plate may be ued for various wall and
	brace fixing applications. Type LM58 Male Wall Plate is often combined with LF50 to make LC58.
This fitting may be considered for various wall and
brace fixing applications. It is often combined with
Type LF50 to give an adjustable angle fitting Type
LC58.
Model No. Inches Rivet Hole Fixing Hole Weight Price
B C D E F Ø Ø
LM58 3.38 1.32 0.31 2.07 1.78 0.38" 0.45" 0.37 lbs $16.72
Type L61 - Flange
Back to Top
Type L61 Flange is used on sturctures where fixing is positional only. Type L61 Flange is not recommended for use a a base flange to support
	gaurdrailing or balustrading.

This flange, with holes provided for countersunk
head fixing screws only, is used on structures where
the fixing is positional only. Frequently used as a
wall-fixing bracket. See Type L152 for a square
based alternate to this fitting.

Warning: It is not recommended for use as a base
flange to support guardrailing or balustrading.

Model No. Pipe Ref. Inches Weight Price
A B C D E F Ø
L61-6 6 1.67 1.97 0.31 3.94 1.93 0.25 0.46 lbs
$22.98
L61-7 7 2.09 2.17 0.31 4.33 2.4 0.25 0.64 lbs
$28.10
L61-8 8 2.36 2.36 0.31 4.72 2.64 0.25 0.71 lbs
$33.00
Type L62 - Standard Railing Flange
Back to Top
Type L62 Standard Railing Flange is ideal for use when a structural fixing
	is required. Type L62 Standard Railing Flange has two socket set screws in the vertical
	socket to give greater stability in the upright.
Ideal when a structural fixing is required. Type L62
should always be used to fix down guard-railing and
balustrading. The holes are of sufficient diameter to
give a good fixing with either a mechanical or
chemical anchor. The two socket set screws in the vertical socket give greater stability to the upright. The fixing holes in the flanges should be inline with the applied load.
Model No. Pipe Ref. Inches Weight Price
A B C D E F G Ø
L62-6 6 1.97 3.54 0.35 3.5 5.04 2.95 0.55 0.77 lbs
$30.56
L62-7 7 2.18 3.54 0.35 4.02 5.51 3.23 0.55 0.94 lbs
$33.60
L62-8 8 2.43 3.54 0.35 4.53 6.3 3.31 0.55 1.17 lbs
$39.18
Type L68 - Wall Flange
Back to Top
Type L68 Wall Flange is a side palm fixing for guardrailing and balustrading
	to walls, parapets, steps and ramps. Type L68 Wall Flange is made so that the upright cannot drop through
	the socket.
Side palm fixing for guardrailing and balustrading
to walls, parapets, steps and ramps. The upright
cannot drop through the socket.

Warning: If the upright is required to pass through
the fitting by machining out the base stop, the
bottom-fixing hole will be unusable.

Model No. Pipe Ref. Inches Weight Price
A B C D E F G H Ø
L68-6 6 1.67 2.8 2.52 0.95 2.95 3.98 0.31 0.45 0.53 lbs
$36.42
L68-7 7 2.09 3.39 3.15 1.1 3.5 4.45 0.31 0.45 0.77 lbs
$36.42
L68-8 8 2.36 3.78 3.62 1.22 3.94 5.04 0.31 0.45 0.95 lbs
$42.10
Type L69 - Railing Flange With Toeboard Adapter
Back to Top
Type L69 Railing Flange With Toeboard Adapter has been designed for guardrailing
	and balustrading applications. Type L69 Railing Flange With Toeboard Adapter provides the addded benefit of
	attaching a kick plate to the base.
The Type L69 fitting has been designed for
guardrailing and balustrading applications and
provides the added benefit of attaching a kick plate
to the base. The base plate holes are of sufficient
diameter to allow for attachment with either a
mechanical or chemical anchor, the side plates have
slotted holes to allow for a degree of sideways
movement for ease of installation.
Model No. Pipe Ref. Inches Weight Price
A D E F G H F K L M N P Q R Ø
L69-8 8 0.39 0.59 6.30 3.54 3.15 4.41 2.28 0.79 0.45 5.12 1.97 0.31 2.24 0.45 1.65 lbs $63.88
Type L84 - Plug
Back to Top
Type L84 Plug is made to be difficult to remove once installed. A rubber mallet is recommended for use with the Type L84 Plug.
A metal drive-in plug, which is difficult to remove
when installed. For proper insertion, a rubber mallet
should be used.
Model No. Pipe Ref. Inches Weight Price
A B C D
L84-6 6 1.34 1.2 0.22 0.04 lbs
$5.90
L84-7 7 1.69 1.22 0.24 0.11 lbs
$9.10
L84-8 8 1.93 1.22 0.24 0.11 lbs
$10.56
Type L114 - Swivel Tee
Back to Top
Type L114 Swivel Tee is an internal swivel fitting, designed to accomodate
	varying angles on handrailing to staircases, ramps, or bracing. Type L114 Swivel Tee eliminates the need for specially drilled
	angle fittings.
An internal swivel fitting, designed to accommodate
varying angles on handrailing to staircases, ramps,
or bracing. Used in conjunction with types L10,
L15, L25, or L45 it eliminates the need for specially
drilled angle fittings. Patent Pending.
Model No. Pipe Ref. Inches Weight Price
A B C D E
L114-6 6 1.69 2.2 1.77 1.26 0.40 lbs
$29.66
L114-7 7 2.09 2.52 1.69 1.57 0.64 lbs
$39.62
L114-8 8 2.36 2.76 1.81 1.57 0.78 lbs
$44.84
Type L148 - Heavy Duty Rectangular Flange
Back to Top
Type L148 Heavy Duty Rectangular Flange is a structural base fixing
	used to fix down guardrailing and balustrading. Type L148 Heavy Duty Rectangular Flange has two socket set screws in the
	vertical socket to give greater stability to the upright.
Type L148 is a structural base fixing used to fix down guardrailing and balustrading. This fitting is available
with 2 or 4 fixing holes which are of sufficient
diameter to give a good fixing with either a
mechanical or chemical anchor. The two socket set screws in the vertical socket give greater stability to
the upright. It is recommended that the fixing holes in
the flanges should be inline with the applied load.
Model No. Pipe Ref. Inches Weight Price
A B C D E F G H J Ø
L148-92 9 3.07 3.43 0.47 3.03 7.80 5.12 6 1.75 13/16 2.49 lbs
$102.50
L148-94 9 3.07 3.43 0.47 3.03 7.80 5.12 6 1.75 9/16 2.49 lbs
$115.40
Type L150 - Heavy Duty 4 Hole Square Flange
Back to Top
Type L150 Heavy Duty 4 Hole Square Flange is a heavy duty, four point
	fixing base flange. Type L150 Heavy Duty 4 Hole Square Flange is ideal when a
	structural fixing is required.
A heavy duty, four point fixing base flange. Ideal
when a structural fixing is required.
Model No. Pipe Ref. Inches Weight Price
A B C D E F Ø
L150-8 8 2.56 3 0.51 5 3.50 0.45 1.61 lbs $56.16
Type L152 - 4 Hole Square Flange
Back to Top
Type L152 4 Hole Square Flange is a four point fixing base or
	wall flange. See L150 if Type L152 4 Hole Square Flange is not heavy duty enough.
A four point fixing base or wall flange. See L150 if
a heavy duty version is required.
Model No. Pipe Ref. Inches Weight Price
A B C D E F Ø
L152-6 6 1.97 1.81 0.25 2.99 2.06 0.31 0.35 lbs
$21.54
L152-7 7 2.32 2.17 0.31 3.35 2.38 0.45 0.59 lbs
$26.44
L152-8 8 2.56 2.56 0.31 3.62 2.63 0.45 0.68 lbs
$32.16
Type L160 - Smooth Handrail Fitting
Back to Top
Type L160 Smooth Handrail Fitting is designed to provide attachment for
	a smooth handrail. Type L160 Smooth Handrail Fitting swivels to allow the handrail
	to be placed at any angle.
Designed to provide attachment for a smooth
handrail. The fitting swivels allowing the handrail to
be placed at any angle. Installation instructions are
available, contact us for the information.
Model No. Pipe Ref. Inches Weight Price
A B C D E F
L160-7 7 2.32 1.57 0.39 1.57 2.52 0.24 lbs
$44.84
L160-8 8 2.32 1.57 0.31 1.57 2.64 0.22 lbs
$44.88
Type L164 - Offset Wall Flange
Back to Top
Type L164 Offset Wall Flange is designed for side palm fixing of uprights
	to steel channels, walls, parapets, steps and ramps. Type L164 Offset Wall Flange is designed so that the upright
	cannot drop through the socket.
This fitting is designed for side palm fixing of
uprights to steel channels, walls, parapets, steps and ramps. The upright cannot drop through the socket.
Model No. Pipe Ref. Inches Weight Price
A B C D E F Ø
L164-8 8 2.56 4 0.5 4 3 0.45 1.87 lbs $83.86
TECHNICAL SPECIFICATIONS

Back to Top

Pipe Reference Chart
• Kee Lite Fittings are made from high grade
  Aluminum Silicon Magnesium Alloy
• Recommended set screw torque is 29 lbs./ft.
• Minimum slip load capacity on Aluminum Schedule
   40 pipe: 1,700 lbs. (safety factor = 2)
• Minimum slip load capacity on steel Schedule
   40 pipe: 2,000 lbs. (Safety factor = 2)
• Larger set screws are designed to resist thread
  stripping
• Minimum Material UTS: 33,000 PSI
• All Kee Lite Fittings undergo independent
  testing by TÜV
Kee Lite
Pipe Size
Nom.
Bore* in
Pipe Dia.
O.D. in
Fitting
I.D. in
Tube Dia.
OD in
6 1 1.32 1.38 1 5/16
7 1.25 1.66 1.72 1 5/8
8 1.50 1.90 1.94 1 7/8
9 2 2.38 2.41 2 3/8
* Nominal Bore is an arbitrary dimension because the bore varies
with the wall thickness of the pipe. Pipe sizes are shown in the table
and in the drawings below.
Pipe For Your Structure
Structures built using Kee Lite Fittings will require either
steel or aluminum pipe. We suggest using Schedule 40
Anodized Aluminum Pipe, Alloy 6105 - T5/6 which we
have in stock. Pipe is available for fittings sizes 6, 7, 8,
and 9 in either 24 foot or 12 foot long sections. We can
even cut pipe to your exact requirements.
Kee Lite Aluminum fittings are designed
to suit Schedule 40 (aluminum and steel),
pipe sizes 1" - 2".
Pipe is available for Kee Klamp fittings sizes 6, 7, 8 and 9 in either 24 foot or 12 foot long sections.

Aluminum Fittings, Aluminum Pipe Fitting, Aluminum Pipe Fittings, Aluminum Pipe Railing, Kee Klamp, Kee Klamps, Pipe
Hand Rail, Pipe Handrail, Pipe Rail, Pipe Rail Fittings, Pipe Railing, Slip on Pipe Fittings, and Kee Lite from your complete
source for material handling equipment.
[HOME] [ORDER] [SEARCH] [QUOTE] [INFO] [ABOUT US] [STEEL PRODUCTS] [E-MAIL]
