BACKSAVER LITE PRODUCT LINE

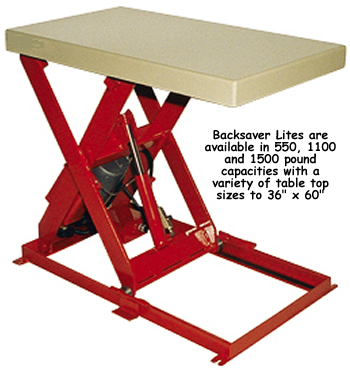

backsaver lite Backsaver Lite Lifts are available in three basic
configurations. Stationary, Portable with DC power and
Compacts with extended vertical travel in a small footprint.
Capacities are from 500 to 1,500 lbs. with travel up to 35" depending on model. These rugged, dependable, low capacity
lifts are packed with features.
Now featuring
Quick Ship Lift Tables
backsaver lite
Low pressure hydraulics
Fast raising and lowering
Fully adjustable down speed
Heavy-duty torque tubes to minimize deflection
Lubricated for life pins, rollers and bushings
Full width straight through axles for increased stability
    throughout the travel range
Heavy-duty wire braided hoses for maximum burst strength
Tell-tale return hydraulic line prevents fluid spillage
Built-in maintenance chocks
Bolt-on power unit is neat, clean and allows for easy access
    to all components

The World's Best Vertical Work Positioners Shipped in Three Weeks or Less!
PRICE QUALITY AVAILABILITY
Best Value
Lowest Ownership Cost
Best Performance
Best Warranty
What You Need
When You Need It
Our SwiftLift™ initiative employs modern engineering,
materials planning and manufacturing technology to
drastically reduce production lead times allowing us to
ship many products in one week or less! But SwiftLift
is much more than just a stocking program. It puts lift
tables, palletizers, container tilters, portable lifts and
more into three availability categories. So now you can
create thousands of pre-engineered equipment configu-
rations as well as some custom variations for shipment
in an industry best three weeks or less.
Stock - Ships in One Week or Less - More than 50
configurations of Lift Table, Container Tilter, Pallet
Level Loader, and Portable Lift Models
Modified - Ships in Two Weeks or Less - Includes
several popular options plus any platform size up to
72” x 96”.
Modified+ - Ships in Three Weeks or Less - Virtually
unlimited configurations including the addition of any
standard option and even light customization.

Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click a Price of the item you wish to purchase.


MODEL CAPACITY
(LBS)
VERTICAL
TRAVEL
LOWERED
HEIGHT
STANDARD
PLATFORM
MAXIMUM
PLATFORM
VOLTAGE WEIGHT
(LBS)**
BASE
PRICE
MINIMUM
TOP
ANY
OVERSIZED
TOP

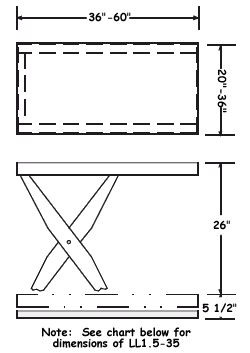

LL1.5-35 1,500 36" 6 1/4" 24" X 48" 36" X 60" 115/1/60 450
LL05.5-26 550 26" 5 1/2" 20" X 36" 36" X 60" 115/1/60 240
LL1.1-26 1,100 26" 5 1/2" 20" X 36" 36" X 60" 115/1/60 255
•Swiftlift Quick Ship.
PLATFORM OPTIONS:
Bellows Accordion Skirting
Vinyl black and yellow 3" pleats. Requires minimum of 8" oversize platform for mounting.
Encloses base and leg assembly. (Not available in portable lite lifts).................................................... $985.02 (installed)
POWER UNITS/HYDRAULIC OPTIONS:
External Mount of any standard internal power unit, includes five feet of hydraulic hose and return
line................................................................................................................................................... $186.81
Air Power Unit and Controls
1.0 gpm at 80 psi and 80 cfm free air, with lift fully loaded, hand or foot valve control included.
5 feet of hose included. Filter, regulator and lubricator not included...........................................Add $1,868.14
(External mount; for stationary units only.)
No Controls with air motor ............................................................................................................No Deduct
ELECTRICAL OPTIONS:
Upper Travel Limitswitch
External, mounted on a pedestal ........................................................................................................... $747.26
(Not available mounted internally for 05.5-26 or 1.1-26 models, consult us.)
Spare battery for DC powered Lite Lifts .............................................................................................. $271.73
Lower Limitswitch
External, mounted on a pedestal ........................................................................................................... $747.26
(Not available mounted internally for 05.5-26 or 1.1-26 models, consult us.)
PORTABILITY OPTIONS:
Model LL1.5-35
Semi-Live Portable
With skid spotter.................................................................................................................................$1,010.49
No skid spotter ...................................................................................................................... Deduct <$120>
Casters
2 each, 4" swivel & 4" rigid with floor lock............................................................................$1,010.49
Note: Semi-live adds approximately 1-1/2” to the low height of the lift. Casters add 3-3/8’’ to the low height of the lift.
All portability options are to be used with the lift platform in the low position only.
