BACKSAVER LITE COMPACT PRODUCT LINE

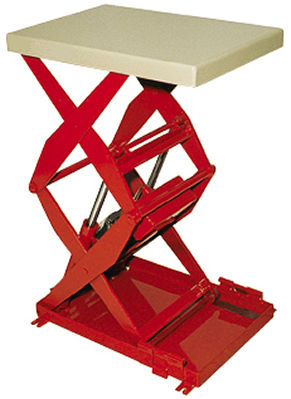

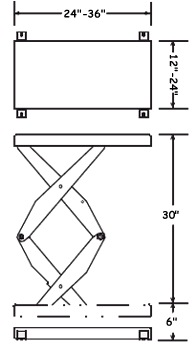

backsaver lite compact Compact versions of the Backsaver Lite models. Backsaver Lite
Compacts feature a double scissor mechanism to provide a full
36" of lifting height in a very small 12" x 24" footprint. Oversize
platforms to 24" x 36" are available
Low pressure hydraulics backsaver lite compact
Fast raising and lowering
Fully adjustable down speed

Heavy-duty torque tubes to
   minimize deflection

Lubricated for life pins, rollers
   and bushings
Full width straight through axles for
    increased stability throughout the
    travel range
Heavy-duty wire braided hoses for
    maximum burst strength
Tell-tale return hydraulic line
   prevents fluid spillage
Built-in maintenance chocks
Bolt-on power unit is neat, clean
   and allows for easy access to all
    components

Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click a Price of the item you wish to purchase.


MODEL CAPACITY
(LBS)
VERTICAL
TRAVEL
LOWERED
HEIGHT
STANDARD
PLATFORM
MAXIMUM
PLATFORM
VOLTAGE WEIGHT
(LBS)**
BASE PRICE
MINIMUM TOP
ANY
OVERSIZED
TOP
LS05-30 500 30" 6" 12" X 24" 12" X 24" 115/1/60 175
N/A
LS05-30W 500 30" 6" 16" X 24" 24" X 36" 115/1/60 200
LS1-30 1,000 30" 6" 16" X 24" 24" X 36" 115/1/60 225
PLATFORM OPTIONS:
Bellows Accordion Skirting
Vinyl black and yellow 3" pleats. Requires minimum of 8" oversize platform for mounting.
Encloses base and leg assembly. (Not available in portable lite lifts)....................................................$985.02 (installed)
POWER UNITS/HYDRAULIC OPTIONS:
External Mount of any standard internal power unit, includes five feet of hydraulic hose and return
line................................................................................................................................................... $186.81
Air Power Unit and Controls
1.0 gpm at 80 psi and 80 cfm free air, with lift fully loaded, hand or foot valve control included.
5 feet of hose included. Filter, regulator and lubricator not included...........................................Add $1,868.14
(External mount; for stationary units only.)
No Controls with air motor ............................................................................................................No Deduct
ELECTRICAL OPTIONS:
Upper Travel Limitswitch
External, mounted on a pedestal ........................................................................................................... $747.26
(Not available mounted internally for 05.5-26 or 1.1-26 models, consult us.)

Lower Limitswitch
External, mounted on a pedestal ........................................................................................................... $747.26
(Not available mounted internally for 05.5-26 or 1.1-26 models, consult us.)
PORTABILITY OPTIONS:
All portability options are to be used with the lift platform in the low position only.
Model LS05-30, LS05-30W and LS1-30
A mini-dolly is available which consists of a steel dolly with two swivel and two rigid side mounted hard
rubber casters, and a foot operated floor lock
.......................................................................................$1,103.90
Note: Adds 2-1/2" to low height.
