ALWAYS OPEN...ALWAYS CLOSED

CLEAR-FLEX II

the new world standard for quality - featuring improved edges for optimum safety and superior clarity assuring maximum efficiency.

CLEAR-FLEX II -
	Clearly in your future!

ENERGY SAVINGS

Our Clear-Flex II® Strip Door saves you energy costs by reducing the amount of heated or cooled air lost through your unprotected opening. Superior design features, like rounded edges to prevent cutting and concaveness to promote tight sealing, assure maximum efficiency and safety. Our special fabrication process keeps the strips hanging straight without warping, even under temperature extremes.

DUST CONTROL
The Clear-Flex II® Strip Door’s sealing properties prevent the movement of dust, dirt and other contaminants from one area to another. This helps reduce overall clean-up costs in the plant.


NOISE CONTROL		MINIMAL MAINTENANCE

Strip doors and curtains provide a virtually unbreakable sound barrier. Tests by an independent testing laboratory have confirmed that Clear-Flex II® Strip Doors significantly reduce the transmission of sound. Re- searchers assigned our products a sound transmission rating of Class 13.		Maintenance is minimal with the Clear-Flex II® Strip Door. An occasional application of our exclusive Vinyl Strip Cleaner is usually all that is required. Dilute as required for cleaning tasks, but generally three (3) parts water to one (1) part cleaner is sufficient. Apply by hand (protective gloves recommended) with a soft cloth or use in conventional steam cleaning equipment. (Material Safety Data Sheets are supplied with orders.)

SPECIAL SAFETY STRIPS

Clear-Flex II® Strip Doors are supplied with special bright orange safety strips. These strips, when hung at the extreme right and left of the Clear-Flex II® Strip Door, clearly mark the throughways to help prevent accidents. The safety strips are provided at no extra charge. (NOTE: Safety Strips are not USDA approved; therefore, unless specified, they are not supplied when USDA material is ordered.)

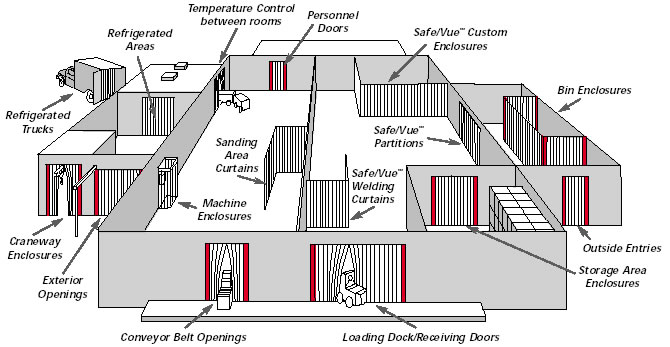

TAKE A WALK THROUGH OUR ENVIRONMENTAL CONTROL APPLICATIONS



1. Craneway enclosures	7. Sanding area curtains	12. Partitions
2. Exterior openings	8. Conveyor belt openings	13. Storage area enclosures
3. Refrigerated areas	9. Loading dock/receiving doors	14. Bin enclosures
4. Machine enclosures	10. Safe/Vue welding curtains	15. Outside entries
5. Temperature control between rooms	11. Nose-or dust-reducing machine enclosures	16. Reefer doors and man other applications
6. Personnel doors	11. Nose-or dust-reducing machine enclosures	16. Reefer doors and man other applications

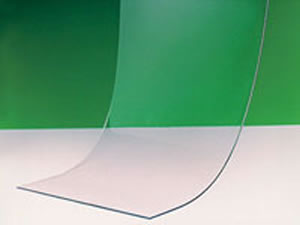

STANDARD STRIP MATERIAL	Formulated for indoor/outdoor applications, withstanding temperatures from -10°F to 150°F. Our most versatile material. Will not discolor in sun light. Is available in Smooth, Scratch-Guard® or Offset Ribbed in the following sizes:


	4" x .060 (Smooth Only)		24” x .080 (Smooth Only) 24” x .120 (Smooth Only) 24” x .160 (Smooth Only)	48" x .060 (Smooth Only) 48" x .080 (Smooth Only) 48" x .120 (Smooth Only) 48" x .160 (Smooth Only)
	6" x .060 (Smooth Only)
	8" x .080 (Smooth Only)
	12" x .080 (Smooth Only) 12" x.120 16"x.160	36” x .080 (Smooth Only) 36” x .120 (Smooth Only) 36” x .160 (Smooth Only)

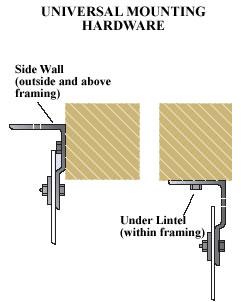

UNIVERSAL MOUNTING SYSTEM FOR STRIP DOORS

The universal mounting system is available in your choice of aluminum or galvanized steel. All mounting holes are pre-studded.


This innovative system, consisting of a specially designed angle and face plates, allows the Clear-Flex II® Strip Door to be mounted in either the lintel (inside frame, underheader) or side wall (header) position (note diagrams this page).

Each strip is secured between the vertical side of the angle and one foot face plate sections. Worn or damaged strips may be easily replaced by simply removing the necessary number of face plate sections, replacing the appropriate strips and reattaching the face plates.


	See Bottom of page for Installation Instructions

		Horizontal Slide Kit
		Clear-Flex II® Strip Doors may be attached to a galvanized steel trolley system enabling the user to slide the strip door away from the doorway, thus allowing unobstructed traffic. Allow sufficient wall space for curtain storage on either side of the door as needed. Side wall mounted only.


MaxBullet® Mounting Systems


		See Bottom of page for Installation Instructions

MaxBullet® Aluminum Our best seller! The aluminum hardware won't rust or corrode.	MaxBullet® HTP® Silver Our exclusive cross-linked polymer technology is more cost effective and super tough.


			Order Online, by Phone, or by E-Mail
			~ Add items to your online shopping cart ~ Click a Part No. of the item you wish to purchase.

PRICING FOR CLEAR-FLEX II® STRIP DOORS WITH VARIOUS
MOUNTING HARDWARE

Strip Width and Thickness: 4" x .060
Strip Type: Standard/Smooth
Overlap (Inches/%): 1"/50%

NOTE: Part Numbers listed are for standard/smooth strip
materials only.

Walk-In Aluminum
Door Size W x H	Part #	Price
2' x 3'	401836	$131
2' x 4'	402674	$118
2' x 5'	402693	$133
3' x 3'	401169	$178
3' x 4'	401177	$214
3' x 5'	401185	$249
4' x 3'	401193	$236
4' x 4'	401201	$286
4' x 5'	401209	$331
5' x 3'	401217	$279
5' x 4'	401225	$346
5' x 5'	401233	$405

Strip Width and Thickness: 6" x .060
Strip Type: Standard/Smooth
Overlap (Inches/%): 2"/66%

NOTE: Part Numbers listed are for standard/smooth strip
materials only.

Door Size W x H	MaxBullet® Aluminum		MaxBullet® HTP Silver		Universal Aluminum		Universal Galvanized
Door Size W x H	Part #	Price	Part #	Price	Part #	Price	Part #	Price
3' x 4'	441599	$164	-	-	452153	$174	452780	$402
3' x 5'	441085	$181	455724	$74	452154	$183	452781	$716
3' x 6'	440329	$198	455725	$84	452776	$2,035	452782	$901
3' x 7'	440357	$215	455090	$157	452119	$217	452783	$468
4' x 4'	441954	$208	455442	$79	452777	$775	452784	$198
4' x 5'	441477	$147	-	-	452392	$250	452785	$959
4' x 6'	441730	$254	-	-	452778	$722	452786	$463
4' x 7'	440409	$277	455024	$181	452120	$294	452787	$152
5' x 4'	-	-	455728	$96	452159	$279	452788	$204
5' x 5'	442649	$299	455729	$94	452160	$300	452789	$678
5' x 6'	-	-	-	-	452779	$1,450	452790	$1,069
5' x 7'	440075	$566	455568	$224	452121	$360	452791	$860


			Order Online, by Phone, or by E-Mail
			~ Add items to your online shopping cart ~ Click a Part No. of the item you wish to purchase.

Strip Width and Thickness: 8" x .080
Strip Type: Standard/Smooth
Overlap (Inches/%): 2"/50%

NOTE: Part Numbers listed are for standard/smooth strip
materials only.

Door Size W x H	MaxBullet® Aluminum		MaxBullet® HTP Silver		Universal Aluminum		Universal Galvanized
Door Size W x H	Part #	Price	Part #	Price	Part #	Price	Part #	Price
3' x 7'	440000	$195	455000	$136	452000	$122	452563	$184
4' x 7'	440001	$249	455001	$170	452246	$275	452803	$226
5' x 7'	440183	$332	455092	$215	452792	$148	452804	$208
6' x 7'	440255	$385	455093	$257	452793	$377	452582	$352
7' x 7'	440185	$436	455459	$186	452794	$421	452805	$1,450
8' x 7'	440187	$490	455460	$209	452795	$905	452806	$254
3' x 8'	440182	$209	455301	$150	452796	$706	452337	$129
4' x 8'	440100	$268	455002	$189	452208	$185	452807	$248
5' x 8'	440002	$356	455003	$235	452210	$349	452549	$302
6' x 8'	440003	$413	455004	$280	452212	$406	452564	$380
7' x 8'	440298	$489	455095	$332	452797	$720	452548	$430
8' x 8'	440004	$529	455005	$365	452250	$541	452547	$484
3' x 9'	-	-	-	-	452798	$1,745	452808	$1,195
4' x 9'	441989	$287	455221	$133	452799	$1,887	452809	$569
5' x 9'	440212	$379	-	-	452800	$542	452810	$980
6' x 9'	440586	$442	455094	$191	452457	$274	452811	$52
7' x 9'	440432	$502	455305	$360	452801	$956	452812	$100
8' x 9'	440385	$567	455526	$252	452802	$652	452813	$416

*Quick Ship Item

Strip Width and Thickness: 12" x .120
Strip Type: Standard/Smooth
Overlap (Inches/%): 4"/66%

NOTE: Part Numbers listed are for standard/smooth strip
materials only.

Door Size W x H	MaxBullet® Aluminum		MaxBullet® HTP Silver		Universal Aluminum		Universal Galvanized
Door Size W x H	Part #	Price	Part #	Price	Part #	Price	Part #	Price
8' x 7'	-	-	455368	$396	452814	$1,055	452835	$2,170
8' x 8'	440076	$598	455036	$440	452248	$611	452836	$600
8' x 9'	440294	$645	455322	$486	452815	$427	452837	$1,129
8' x 10'	440005	$692	455039	$528	452252	$463	452838	$649
8' x 11'	-	-	455529	$196	452816	$224	452839	$1,584
8' x 12'	440749	$785	455099	$775	452817	$521	452840	$358
9' x 7'	-	-	455325	$431	452818	$230	452841	$693
9' x 8'	441763	$465	455326	$479	452819	$1,891	452842	$343
9' x 9'	440104	$719	455084	$770	452214	$713	452405	$437
9' x 10'	440887	$769	455327	$580	452266	$502	452421	$459
9' x 11'	440989	$566	455733	$419	452820	$786	452843	$260
9' x 12'	441859	$597	455328	$678	452821	$734	452844	$905
10' x 7'	441226	$471	455330	$403	452822	$962	452845	$525
10' x 8'	440358	$750	455331	$544	452823	$4,223	452846	$288
10' x 9'	440347	$544	455332	$601	452824	$15,389	452847	$1,331
10' x 10'	440006	$866	455042	$653	452236	$858	452848	$810
10' x 11'	440998	$924	455057	$478	452825	$617	452849	$911
10' x 12'	440007	$983	455085	$770	452256	$994	452850	$763
11' x 7'	-	-	-	-	452826	$1,750	452851	$1,008
11' x 8'	-	-	455735	$385	452827	$620	452852	$1,791
11' x 9'	-	-	-	-	452828	$1,903	452853	$396
11' x 10'	440565	$620	-	-	452829	$278	452854	$1,172
11' x 11'	440106	$985	455232	$769	452216	$1,000	452855	$639
11' x 12'	442439	$1,047	455636	$553	452830	$2,884	452856	$2,291
12' x 7'	-	-	455334	$570	452831	$1,086	452857	$1,185
12' x 8'	440090	$610	455335	$647	452832	$676	452858	$843
12' x 9'	442307	$952	455336	$716	452833	$1,128	452859	$522
12' x 10'	440413	$1,022	455337	$779	452032	$1,047	452860	$964
12' x 11'	441131	$1,093	455738	$850	452834	$1,176	452861	$234
12' x 12'	440049	$1,163	455045	$920	452258	$1,172	452448	$1,122


			Order Online, by Phone, or by E-Mail
			~ Add items to your online shopping cart ~ Click a Part No. of the item you wish to purchase.

Strip Width and Thickness: 16" x .160
Strip Type: Standard/Smooth
Overlap (Inches/%): 6"/75%

NOTE: Part Numbers listed are for standard/smooth strip
materials only.

Door Size W x H	Universal Aluminum		Universal Galvanized
Door Size W x H	Part #	Price	Part #	Price
10' x 10'	452862	$2,236	452881	$843
10' x 11'	452863	$776	452882	$1,545
10' x 12'	452864	$433	452883	$507
12' x 10'	452865	$815	452884	$1,569
12' x 12'	452866	$2,277	452885	$1,667
12' x 13'	452867	$490	452886	$1,056
12'x 14'	452868	$161	452887	$385
14' x 12'	452869	$819	452888	$952
14'x 14'	452870	$326	452889	$2,259
14' x 15'	452871	$235	452890	$430
14' x 16'	452872	$141	452891	$1,801
15' x 12'	452873	$1,684	452892	$1,627
15' x 14'	452874	$380	452893	$382
15' x 15'	452875	$369	452894	$1,120
16' x 11'	452876	$2,493	452895	$648
16' x 12'	452877	$2,351	452896	$1,370
16' x 14'	452878	$1,311	452897	$184
16' x 15'	452879	$571	452898	$363
16' x 16'	452880	$2,934	452899	$1,300


Clear-Flex II® Strip Door Installation Instructions
Using Universal Mounting Hardware

			TOOLS NEEDED
			• Pen or Pencil to Mark Drill Holes • Drill • 5/16” Diameter Fasteners • Step Stool or Ladder • Utility Knife to Cut Strips

	IMPORTANT
	Prior to installation, unroll all door strips and place them on a clean, flat surface in a warm atmosphere for a minimum of twenty-four (24) hours. This will allow the strips to return to their original form.

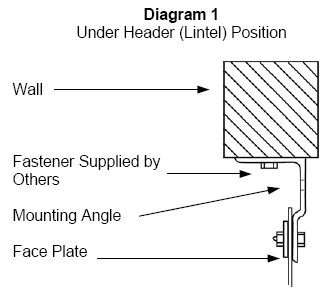

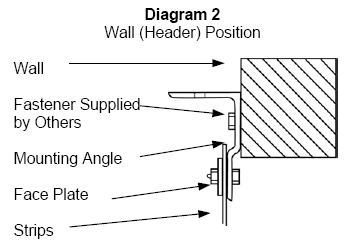

	1. Mount the pre-drilled angle bracket in either the under
		header or wall position shown in Diagrams 1 and 2 using appropriate fasteners supplied by others (recommended 5/16” diameter).

		2. Place bolts in designated holes in angle, referring to Bolt
			Placement Guide below.

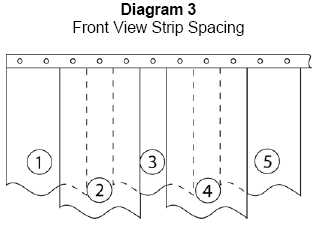

		3. Attach strips to bolts in angle, making sure that the
			concave sides are facing each other (Diagram 3), starting and ending with orange strips, securing with the 1 foot sections of pre-drilled face plates.

		4. Once all of the door strips have been attached, the strips
			can be trimmed to leave ¼” of clearance from the floor surface. Your PVC door strips may be trimmed by using a common utility knife to score and then be torn by hand. The door strips need to hang for 24 to 48 hours before final trim to allow for proper alignment



		MODIFICATION OF UNITS

		1. Measure width and determine size of opening if smaller
			than standard unit.

		2. Lay out pre-drilled mounting angles, measure exact length

			required, cut excess out of the shortest length.

		3. Follow installation instructions for mounting position
			desired shown in Diagrams 1 and 2

		4. If you are not able to complete the recommended overlap
			of the last strip, you have the option of altering the overlap on the last few strips or trimming the excess to match the opening using a utility knife and a straight edge to score the material then tearing off by hand.


BOLT PLACEMENT GUIDE *Arrows represent recommended placement of bolts.

PARTIAL OVERLAP	FULL OVERLAP

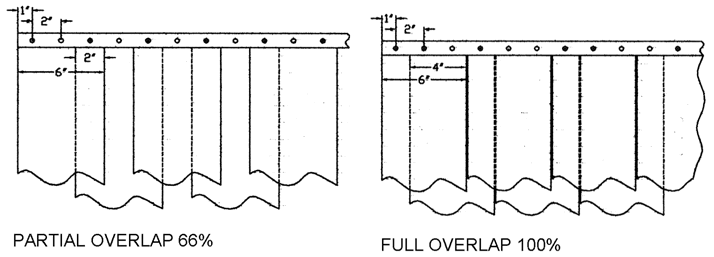

6" WIDE MATERIAL

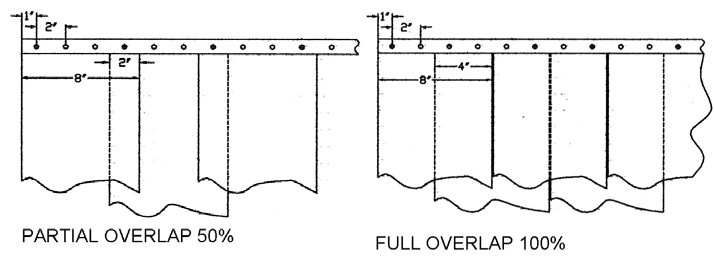

8" WIDE MATERIAL

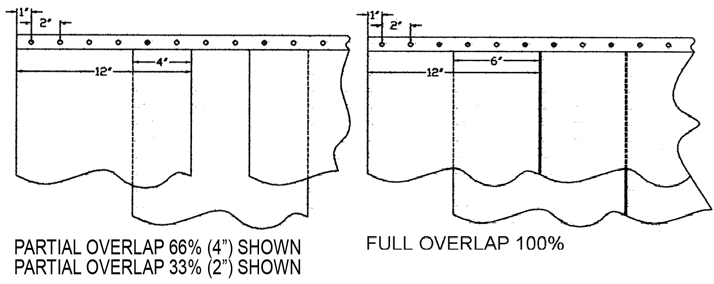

12" WIDE MATERIAL

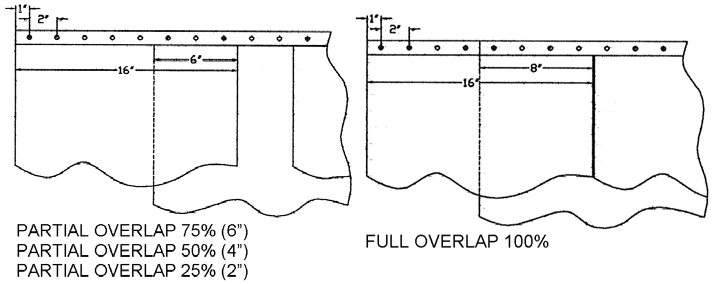

16" WIDE MATERIAL


Clear-Flex II® Strip Door Installation Instructions
Using the Maximus System™ Hardware

				TOOLS NEEDED
				• Pen or Pencil to Mark Drill Holes • Drill • 5/16” Diameter Fasteners • Step Stool or Ladder • Utility Knife to Cut Strips

		IMPORTANT
		Prior to installation, unroll all door strips and place them on a clean, flat surface in a warm atmosphere for a minimum of twenty-four (24) hours. This will allow the strips to return to their original form.

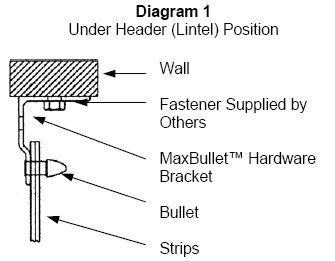

		1. Mount the MaxBullet™ hardware bracket in either
			the under header or wall position shown in Diagrams 1 and 2 using appropriate fasteners supplied by others (recommended 5/16” diameter).



		2. Press the door strips onto the “bullets” of the hardware

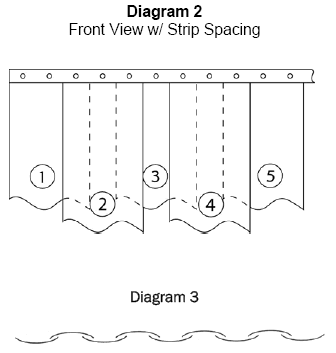

			bracket making certain that the concave sides are facing each other (Diagram 4). Attach strip numbers 1 and 3 (see Diagram 3) with concave side toward you, leaving desired spacing between strips as indicated by the diagram on reverse side of this sheet.

	Diagram 4

		3. Attach strip number 2 with concave side away from you
		3. Attach strip number 2 with concave side away from you
			over strip numbers 1 and 3 (Diagram 3).

		4. Attach all of the remaining door strips in the same manner
			as in Steps 2 and 3 making certain that the concave sides face each other (Diagram 4).

		5. Once all of the door strips have been attached, the strips
			can be trimmed to leave ¼” of clearance from the floor surface. Your PVC door strips may be trimmed by using a common utility knife to score and then be torn by hand. The door strips need to hang for 24 to 48 hours before final trim to allow for proper alignment.

		* NSF certification applies when hardware is installed with approved low-temp PVC strip material.


STRIP PLACEMENT GUIDE

PARTIAL OVERLAP	FULL OVERLAP

6" WIDE MATERIAL

8" WIDE MATERIAL

12" WIDE MATERIAL

16" WIDE MATERIAL


Clear-Flex II® Strip Door Installation Instructions (Food Service Model)
Using the Maximus System™ Hardware

			TOOLS NEEDED
			• Pen or Pencil to Mark Drill Holes • Drill • 5/16” Diameter Fasteners • Step Stool or Ladder • Utility Knife to Cut Strips

	IMPORTANT
	Prior to installation, unroll all door strips and place them on a clean, flat surface in a warm atmosphere for a minimum of twenty-four (24) hours. This will allow the strips to return to their original form.

	1. Mount the MaxBullet™ hardware bracket
		using lag screws provided on the inside wall of walk-in, centered appropriately above conventional door opening.



	2. Seal opening at ends of MaxBullet™ hardware
		bracket with NSF-approved silicone sealant (Diagram 1).

	3. Press the door strips onto the “bullets” of the
		hardware bracket making certain that the concave sides are facing each other (Diagram 3). Attach strip numbers 1 and 3 (see Diagram 2) with concave side toward you, leaving desired spacing between strips as indicated by the diagram on reverse side of this sheet. Then attach strip number 2 with concave side away from you. Proceed with strip number 5 toward you, again leaving the appropriate spacing as per diagram on reverse side of this sheet. Proceed until all strips are in place.

	4. Once all of the door strips have been attached, the
		strips can be trimmed to leave ¼” of clearance from the floor surface. Your PVC door strips may be trimmed by using a common utility knife to score and then be torn by hand. The door strips need to hang for 24 to 48 hours before final trim to allow for proper alignment.


STRIP PLACEMENT GUIDE

PARTIAL OVERLAP	FULL OVERLAP

6" WIDE MATERIAL

8" WIDE MATERIAL

12" WIDE MATERIAL

16" WIDE MATERIAL

Clear-Flex, Aleco Strip Doors, Plastic Strip Door, PVC Strip Door, Strip Door, Strip Doors, Vinyl Strip Door, Welding Strip, Truck
Mount Strip Door, Insect Barrier, and Traffic Doors from your source for material handling equipment.

ALWAYS OPEN...ALWAYS CLOSED

CLEAR-FLEX II

Clear-Flex, Aleco Strip Doors, Plastic Strip Door, PVC Strip Door, Strip Door, Strip Doors, Vinyl Strip Door, Welding Strip, Truck Mount Strip Door, Insect Barrier, and Traffic Doors from your source for material handling equipment.

Clear-Flex, Aleco Strip Doors, Plastic Strip Door, PVC Strip Door, Strip Door, Strip Doors, Vinyl Strip Door, Welding Strip, Truck
Mount Strip Door, Insect Barrier, and Traffic Doors from your source for material handling equipment.
