Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase. |
|
|
 |
|

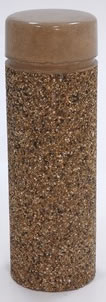

Description: Custom cast-in-place and silk
screened logos available. Two-way reflective
tape also an option. |
|
|
|
|
 |
|
Size: 12" Dia. x 36" H.
Weight: 330 lbs.
Material: Reinforced Concrete.
Reinforcing: 1/4" Dia. rebar. |
|
|
Features: Smooth top cap w/Exposed aggregate
bollard & Weatherstone cap w/Weatherstone
bollard. (Unless specified). |
|
|
Hardware: (4) - 1/2" Dia. threaded inserts.
(3)
- 1/2" Dia. anchor bolts provided. |
|
|
Anchoring: Method A or B.
Maintenance: Rinse with water & mild detergent.
Annual resealing recommended.
Packaging: Banded to pallet. |
|
|
|
|
|
|
PRICE: $492.30 |
|
|
|
|
|
|
|
|
|
|
|
|
This
Quick Ship item is only available in one color -
Standard Weatherstone Sand. |
|
|
|
CONCRETE
COLORS AND FINISHES |
|
|
|
|
BOLLARD
INSTALLATION |
| |
 |
|
SPECIFICATIONS |
|
|
|
 |
|
1.1
SUMMARY
A. Section includes: Furnish Precast Concrete Bollard
indicated on drawings or
specified herein.
1.2 REFERENCES
A. American Society for Testing & Material
1. ASTM C33 2. ASTM C150
3. ASTM C31 |
|
1.5
SUBMITTALS
A. Submit product data, shop drawings and samples.
1. Product Data: Manufacturer's
specifications and
technical
data edited specifically for proposed
system,
including the following specific information:
a.
Detailed specification of construction
fabrication.
b.
Manufacturer's installation instructions
c.
Maintenance literature
d.
Product warranty

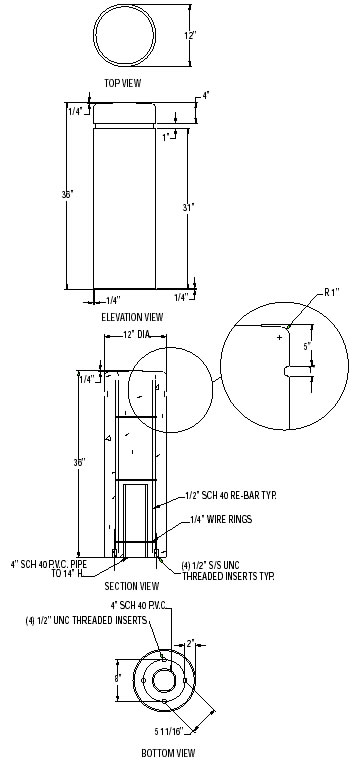

2. Shop Drawings: Indicate
pertinent dimensions,
general construction,
component connections
anchoring
methods, hardware and installation
procedures.
3. Samples as requested
by Architect. |
|
1.6
QUALITY ASSURANCE
A. Qualifications of Manufacturer: Manufacturer to
be prequalified by specifier prior
to bidding. Failure
to comply will result in disqualification
of bid.
Manufacturer to have at least
five years experience
in the manufacturer of
precast concrete bollards
field proven for at least five
years. |
|
1.10
WARRANTY
Manufacturer shall submit a written warranty for
precast products for the period of two years upon
acceptance of products. |
|
2.2
MATERIALS
A. Portland Cement: ASTM C150 specifications for
Portland Cement.
B. Aggregates: All aggregates to meet ASTM C33
specifications, to be cleaned
of foreign matter and
properly graded to size.
C. Coloring: Pigments used shall be inorganic,
resistant to alkalinity and
used as per manufacturers
recommendations. |
|
|
|
