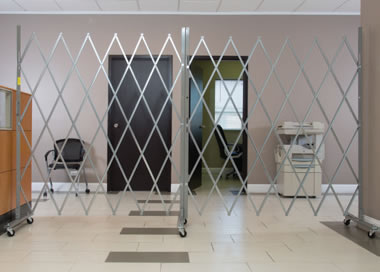

ECO GATES™

SECURE THE PLANET WITH ECO GATES™
The Only Folding Door Gates Made With
Heavy-duty Galvanized Steel. They'll withstand
any type of weather like heat, rain and snow. They
also stand up to harsh industrial chemicals and cleaners.
We Rivet Our Gates Back to Back with Aircraft
Quality Aluminum Rivets. They'll hold up to more
stress, they won't rust — ever — and they won't crack
and the webbing won't separate.
Eco Gates Are Hinged and Can Be
Mounted Left or Right — they collapse and pivot
completely out of the way, providing safe door
openings, 100% clear of obstructions.
And they're easy to install. You can install our gates in less than 30 minutes!
Made using less steel
and recycled
materials.
By providing that added light and better air circulation you'll save on air
conditioning costs. Plus the increased security of folding door gates
means less theft and reduced loss prevention costs. And that means a
healthier workplace, a safer school, and a more secure warehouse.
Our Folding Security Gates pivot 180°
on their Mountings — so they pivot
completely out of the way, leaving the
opening completely clear of obstructions.
See instructions below price table.
Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click the Model No. of the item you wish to purchase.
PRICING
Model No.
Width
(Ft.)
Collapsed
Height
In Use
Height
Weight
(lbs.)
Price
6 - 8 ft
6'  6"
6'
69
$559.40
8 - 10 ft
6'  6"
6'
77
$592.70
10 - 12 ft
6'  6"
6'
85
$635.00
14 - 16 ft
6'  6"
6'
105
$830.10
8 -10 ft
7' 6"
7'
100
$660.70
12-14 ft
7' 6"
7'
122
$804.40
3 - 4 ft
6'  6"
6'
43
$183.60
5 - 6 ft
6'  6"
6'
48
$212.90
up to 12'
6'  6"
6'
106
$686.00
adds 6'
6'  6"
6'
48
$396.40
ECO GATE™ INSTALLATION INSTRUCTIONS
About Our Heavy-Duty Folding Gates heavy duty steel folding
• For installation on concrete floors.
• Bottom of gate hinges on bearing washer and pin set into floor hole.
   Do not remove bottom floor pin.
• Top of gate hinges on "L" bracket bolted to wall or door frame.

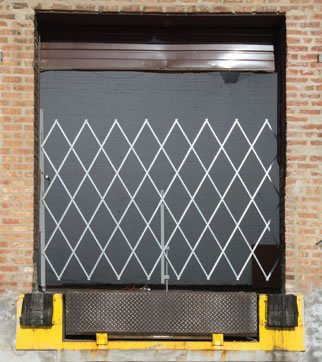

• To install gates inside overhead doors, bollards or to clear obstructions,
   6" or 9" extension brackets are required.
• Optional "H" Bracket joins each half of gate for added security.

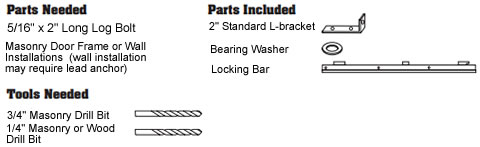

parts provided with each gate
heavy duty steel folding Step 3: Extend gate and hang "L" bracket
on top of gate to verify where it will be
mounted. To release tension you may lift
the wheel 1/2"-3/4" off the floor. Mark and
drill pilot holes into door frame or wall. It
may be easier to drill pilot holes if you remove
the gate from it's floor mount. Place bearing
washer and bottom gate pin back into floor
mount. Slip "L" bracket over top of gate
and bolts (bolts not included.)
parts provided with each gate Step 1: Before Installing decide on gate
placement. "L" brackets that form top hinge
allows gate placement in the recess of door
frame. Installation can also be made outside
• Wood door frames or walls: 5/16" x 2"
   lag bolts.
• Steel door frames or walls: Drill and tap
   for 5/16" x 2" lag bolts.
• Brick or concrete frames or walls:
   5/16" x    2" lag bolts set into 3/8" holes
   with lead anchors.
or inside of wall next to door or opening frame. Either side of
gate can be toward the outside of building. Put the "operating
side" (the end with center drop pins) to the side used when
padlocking the gate halves. A label on the operating side
indicates RHT (right) or LFT (left) of a person facing the
operating side.
Extension brackets (order separately) clear
overhead door tracks, bollards or
obstructions. 6" brackets provide 4-3/4"
clearance, 9" brackets provide 7-1/4"
clearance.
heavy duty steel folding gates Step 2: Have a helper extend the gate and
stand it upright where it will be mounted.
CAUTION: Check to confirm gate will
swing away from opening when not in
use. This will provide a clear opening for
normal traffic.		 heavy duty steel folding gates Step 4: Raise center drop pin and use
attached notch to keep in place, this
prevents damage to floor surface. Extend
and retract gate to its stops to work out
stiffness. Repeat steps 2-3 for other half
of gate. CAUTION: Notice that center drop
pin at this stage hits the other half of gate or
rests on floor. Do not cut off drop pin.
Step 5 addresses misalignment.
• Drill 3/4" diameter x 3" deep hole, 1-1/4"
   from wall into the floor for gate pin to
   set into.
• For 6" extension bracket drill 6" O.C.
   from wall.
• For 9" extension bracket drill 9" O.C.
   From wall.
heavy duty steel folding gates Step 5: With center drop pin raised, extend
both halves of gates together to center of
opening, mark floor for center drop pin hole
and drill a 3/4" diameter x 3" deep hole. Lower
center drop pin (Note: some larger gates have
an additional pin in the center of each web,
mark and drill these last.) Secure gate halves
with 1/2" shaft diameter padlock. Open gates
slowly at first to avoid warping.
Place a bearing washer over floor hole and
set bottom gate pin into floor mount hole.
heavy duty steel folding gates Option: H bracket mounts overhead in
center of gate. Extend both halves of gate
together to center of opening. Position "H"
bracket, mark and drill pilot holes into
mounting surface. Attach "H" bracket
with bolts (not included.)
galvanized gate All gates come in a galvanized finish that never needs maintenance - delivering
a higher level of security with a lower cost of ownership. They stand up to
4-Season weather like heat, rain and snow and they won't be harmed by
harsh industrial chemicals and cleaners. They are virtually maintenance free.
Galvanized Finish
