GRID
RAIL PROTECTIVE GUARDS


Choose
from three standard heights to protect your valuable
equipment and manufacturing areas. Grid rail is one piece all
welded construction. Use straight or corner sections as stand
alone barriers or in groups to protect an entire area.













44"
high  3 rail straight

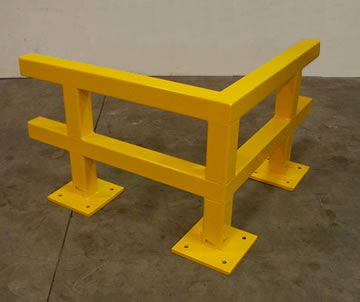

29 9/16" high  2 rail corner












• Three standard
heights to choose
15 3/16", 29 9/16",
and 44".
• 4" x 4" x 3/16" square structural
tubing
construction.
• Giant 12" x 12" x 3/4" footplates.
• Attractive safety yellow standard finish
(blue and gray also available)
• Optional floor fasteners available.
• All welded steel end caps (no plastic
inserts to break or lose).
• Custom sizes readily available.
• All welded corner sections.

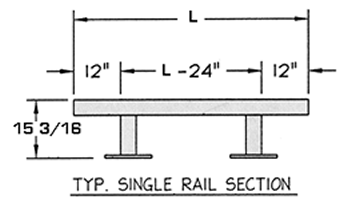

15 3/16" high  single rail straight



















BFKR ANCHOR
BOLT KIT




CROSS
SECTION VIEW

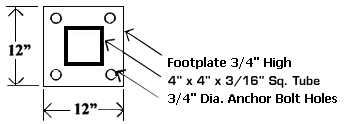

FOOTPLATE

















Order
Online, by Phone, or by EMail



~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase.






PRICING
FOR SINGLE RAIL  15 3/16" HIGH







* STRAIGHT SECTIONS
Model #
* Length
Weight
Price
GR154
4'
128
$224.25
GR156
6'
138
$248.40
GR158
8'
149
$277.15
GR1510
10'
160
$304.75
†
BFK4
Fastener
kit of (4) 5/8" x
4 1/2" wedge anchors
$14.95
** CORNER SECTIONS

2' X 2'
128
$250.70

4' X 4'
209
$369.15

6' X 6'
296
$485.30

Fastener kit of (4) 5/8" x
4 1/2" wedge anchors
$14.95


















*
NOTE: For special length on straight section pricing use
price of next larger size. Example: 7'4" section use price
of 8' section.









†
Order 8 floor fasteners per straight section and 12 fasteners per corner
section except 2' x 2' corner uses only 8.






**
NOTE: For pricing on special corner lengths. Add the length of each
leg together and use the price of the next equal
or larger total standard length. Example #1 to price a 5' x 3' corner
total length is 8', therefore use the price of 4' x 4'
(=8') at a price of $369.15. Example #2 to price a 5' x 4' corner
(total 9') use the price of 6' x 6' standard at a price of
$485.30.










Order
Online, by Phone, or by EMail



~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase.






PRICING
FOR DOUBLE RAIL  29 9/16" HIGH

* STRAIGHT SECTIONS
Model #
* Length
Weight
Price
GR294
4'
201
$378.35
GR296
6'
222
$405.95
GR298
8'
243
$538.20
GR2910
10'
264
$587.65
†
BFK4
Fastener
kit of (4) 5/8" x
4 1/2" wedge anchors
$14.95
**CORNER SECTIONS

2' X 2'
168
$382.95

4' X 4'
293
$598.00

6' X 6'
410
$731.40

Fastener kit of (4) 5/8" x
4 1/2" wedge anchors
$14.95
















*
NOTE: For special length on straight section pricing use
price of next larger size. Example: 7'4" section use price
of 8' section.














†
Order 8 floor fasteners per straight section and 12 fasteners per corner
section except 2' x 2' corner uses only 8.







**
NOTE: For pricing on special corner lengths. Add the length of each
leg together and use the price of the next equal
or larger total standard length. Example #1 to price a 5' x 3' corner
total length is 8', therefore use the price of 4' x 4'
(=8') at a price of $598.00. Example #2 to price a 5' x 4' corner
(total 9') use the price of 6' x 6' standard at a price of
$731.40.











Order
Online, by Phone, or by EMail



~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase.






PRICING
FOR TRIPLE RAIL  44" HIGH

* STRAIGHT SECTIONS
Model #
* Length
Weight
Price

4'
274
$532.45

6'
306
$563.50

8'
337
$800.40

10'
368
$869.40

Fastener
kit of (4) 5/8" x
4 1/2" wedge anchors
$14.95
**CORNER SECTIONS

2' X 2'
208
$515.20

4' X 4'
377
$825.70

6' X 6'
524
$977.50

Fastener kit of (4) 5/8" x
4 1/2" wedge anchors
$14.95



















*
NOTE: For special length on straight section pricing use
price of next larger size. Example: 7'4" section use price
of 8' section.




















†
Order 8 floor fasteners per straight section and 12 fasteners per corner
section except 2' x 2' corner uses only 8.











**
NOTE: For pricing on special corner lengths. Add the length of each
leg together and use the price of the next equal
or larger total standard length. Example #1 to price a 5' x 3' corner
total length is 8', therefore use the price of 4' x 4'
(=8') at a price of $825.70. Example #2 to price a 5' x 4' corner
(total 9') use the price of 6' x 6' standard at a price of
$977.50.

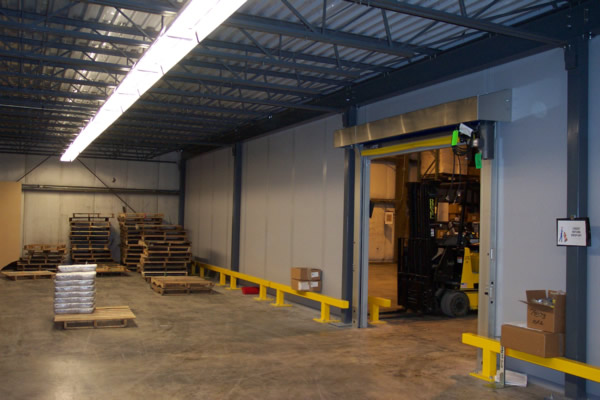

Single
rail sections used to protect fragile wall panels
