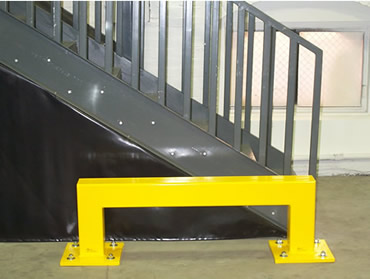

Keep
errant fork lift traffic away
from personnel traffic
|
|

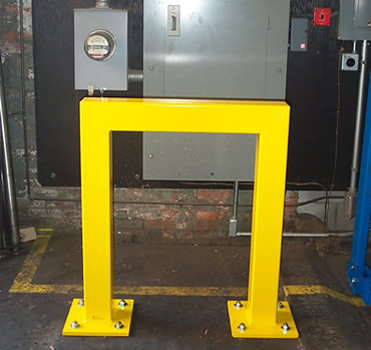

Protect
equipment and operations
from production traffic
|
|
|
|
|
 |
|
 |
|
 |
|
|
|
|
MGFK8
ANCHOR
BOLT KIT
|
|
|
|
|
|
|

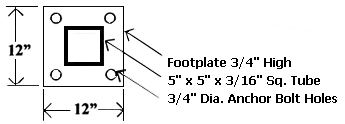

FOOTPLATE
|
|
CROSS SECTION VIEW
|
|
|
|
|
|
|
|
|
 |
|
 |
|
|
|
|

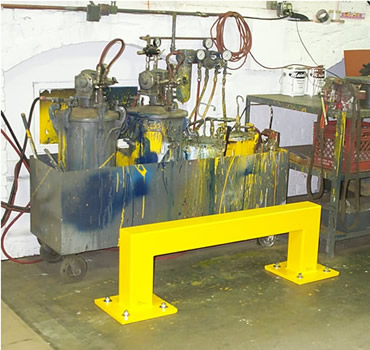

Sensitive
paint area kept safe and clear of rolling carts.
|
Keep
critical access areas clear and safe.
|
|
|
|
|
|
 |
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~
Add items to your online shopping cart ~
Click the Model No.
of the item you wish to purchase.
|
|
|
|
|
|
|
|
PRICING
|
|
MODEL NO. |
HEIGHT |
*LENGTH |
WEIGHT |
PRICE |
| MG0924 |
9" |
24 |
102 |
$434.00
|
| MG0936 |
9" |
36 |
114 |
$456.00
|
| MG0948 |
9" |
48 |
126 |
$479.00
|
| MG1624 |
16" |
24 |
140 |
$447.00
|
| MG1636 |
16" |
36 |
152 |
$469.00
|
| MG1648 |
16" |
48 |
164 |
$492.00
|
| MG2424 |
24" |
24 |
156 |
$462.00
|
| MG2436 |
24" |
36 |
168 |
$484.00
|
| MG2448 |
24" |
48 |
180 |
$506.00
|
| MG3624 |
36" |
24 |
186 |
$484.00
|
| MG3636 |
36" |
36 |
192 |
$506.00
|
| MG3648 |
36" |
48 |
204 |
$529.00
|
| MG4224 |
42" |
24 |
192 |
$495.00
|
| MG4236 |
42" |
36 |
204 |
$518.00
|
| MG4248 |
42" |
48 |
216 |
$540.00
|
| MG4824 |
48" |
24 |
204 |
$506.00
|
| MG4836 |
48" |
36 |
216 |
$529.00
|
| MG4848 |
48" |
48 |
228 |
$551.00
|
|
|
Fastener Kit of (8) 5/8" x 4 1/2"
wedge anchors |
$38.00
|
|
|
|
* Add
7" to length dimension to determine overall
dimension out to out of baseplates.
|
|
Heavy
Duty Machine Guards, Barrier Gates, Bollard, Column
Protectors, Commercial Railing, Folding Gates, Guard
Rails, Guardrail,
Machine Guards, Rail, Protective Guards, Railing,
and Traffic Barricade from your source for material
handling equipment.
|
|
