HEAVY-DUTY
MANUAL TURNTABLES
|
|
 |
|
|
 |
|
Maximize
workspace and minimize wasteful motion.
Bench-top turntables allow workers to stay in one
position and rotate items for access from all sides.
No need to walk around the table to access areas
out of view. Easy, smooth rotation. More than one
person can work on projects without getting in each
other's way. Use for hundreds of applications; displays,
paint spraying, assembly units, repairs, etc. Rugged 1/2"
steel plate construction. Easy, smooth rotation won't jostle
delicate parts. The double tier units, suffix DPED and
CDPED, feature a stationary shelf for storing parts and
tools. Series PED and DPED feature a turn knob height
adjustment operation while the CPED and CDPED
feature a gas cylinder up and down mechanism (like
found in office chairs).
|
A) TT-7/8 |
|
|
B) TT-4 |
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
 |
|
 |
|
|
|
|
|
|
|
C) TT-PED |
|
D) TT-DPED |
|
E) TT-CPED |
|
F) TT-CDPED |
|
|
|
 |
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase. |
|
|
PRICES
FOR THE HEAVY-DUTY MANUAL TURNTABLES |
| Type |
Model No. |
Diameter |
Height Range |
Capacity
(lbs) |
Weight (lbs) |
Price |
A |
|
8" |
7/8" |
500
lbs |
4
lbs |
$99.90 |
B |
|
8" |
4" |
500
lbs |
6
lbs |
$123.70 |
A |
|
12" |
7/8" |
500
lbs |
11
lbs |
$136.10 |
B |
|
12" |
4" |
500
lbs |
13
lbs |
$156.20 |
A |
|
18" |
7/8" |
1000
lbs |
35
lbs |
$260.00 |
B |
|
18" |
4" |
500
lbs |
40
lbs |
$293.60 |
C |
|
18" |
21"
to 32" |
300
lbs |
60
lbs |
$391.10 |
D |
|
18" |
25"
to 36" |
300
lbs |
95
lbs |
$473.70 |
E |
|
18" |
20"
to 30" |
300
lbs |
50
lbs |
$421.10 |
F |
|
18" |
24"
to 34" |
300
lbs |
85
lbs |
$611.10 |
A |
|
24" |
7/8" |
1000
lbs |
75
lbs |
$382.40 |
A |
|
30" |
7/8" |
1000
lbs |
123
lbs |
$568.70 |
|
|
POWERED
TURNTABLES
|
|
|
|
|
 |
|
The
Powered Turntable helps keep tedious material handling at
your fingertips. Easy, smooth clockwise rotation for hundreds
of applications. Rotation speed is non-adjustable. Rugged 5/16"
steel plate construction. These Powered Turntables are wired to
115V, 1 phase. An on/off selector switch incorporated in a 3
foot cord provides power to the unit. A foot control is available.
A side skirt to protect items from getting into the rotating mechanism
is standard. |
|
|
|
|
 |
|
model
PT-100 |
|
|
|
|
|
 |
|
|
model
PT-250 |
|
model
PT-750 |
|
|
|
|
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase. |
|
|
PRICES
FOR POWERED TURNTABLES |
| Model No. |
Diameter |
Height |
Capacity
(lbs) |
R. P.
M |
Weight
(lbs) |
Prices |
|
12" |
4-1/2" |
100 |
3-1/2 |
34 |
$1,681.20 |
|
18" |
5-1/2" |
250 |
3 |
56 |
$2,012.50 |
|
18" |
6-3/8" |
750 |
2 |
66 |
$2,499.90 |
|
|

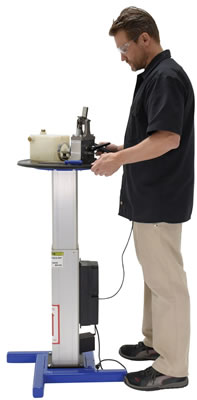

TURNTABLES
WITH POWERED HEIGHT ADJUSTMENT
|
|
|
|
|
|
 |
|
Turntables
with Powered Height Adjustment allow the operator to raise or lower
turntable to an ergonomic height. Each unit has a 360 degree manual turntable.
Rugged 5/16" steel plate construction. DC power with hand control for
height
adjustment and features an on-board charger. Hand held pendant control
connects to power unit with a coil cord. Height is adjusted with linear-actuator. |
|
|
|
|
|
|
|
•
Manually rotated turntable allows easy
ergonomic positioning
• Power height adjustment provides
maximum operator convenience
• Rubber top surface provides added grip
while turning product
• Turntable motion allows access to areas
out of view without walking around |
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase. |
|
|
PRICES
FOR TURNTABLES W/POWERED HEIGHT ADJUSTMENT |
| Model
No. |
Diameter |
Height
Range |
Capacity
(lbs) |
Weight
(lbs) |
Prices |
|
18" |
26
15/16" to 42 15/16" |
750 |
234 |
$2,844.90 |
|
24" |
27
11/16" to 42 11/16" |
750 |
290 |
$3,251.10 |
|
30" |
27
11/16" to 42 11/16" |
750 |
330 |
$3,673.70 |
|
|
Heavy-Duty Manual Turntables,
Stationary Shelf, Powered Turntables, On/Off Selector Switch, Foot Control,
and
Turntables with Powered Height Adjustment from your source for material
handling equipment. |
|
