HEAVY DUTY STEEL
FOLDING GATES PAIRS
heavy duty steel folding gates The Only Folding Security Gates Made With
Heavy-Duty Galvanized Steel.
They withstand brutal 4-season conditions like rain and
snow. Our Gates stand up to harsh industrial chemicals
and cleaners too.
The Strongest Folding Security Gates on the Market.
Our Security Gates are the only gates made with solid
galvanized steel 5/8” self-securing drop pins designed to
fit directly into floor holes. They provide maximum strength
and maximum security. You cannot buy a stronger gate!
They're Riveted Back to Back with Aircraft Quality
Aluminum Rivets.
They'll hold up to more stress, are rust
resistant, they won't crack and the webbing
won't separate.
Need Custom Security Gates? No Problem! No
matter what your situation is, we can build a gate to
your specs.

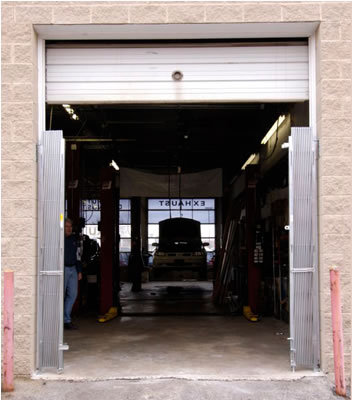

Our Folding Security Gates pivot 180°
on their Mountings — so they pivot completely
out of the way, leaving the opening completely
clear of obstructions.		 heavy duty steel folding
heavy duty steel folding

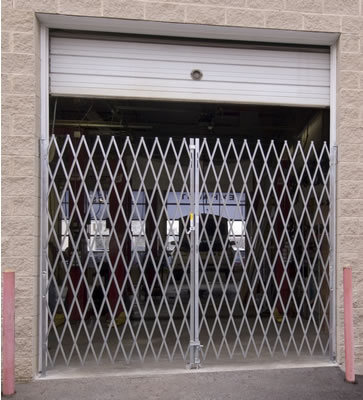

heavy duty steel folding Pair Folding Security Gates are perfect
for securing any kind of hall, entryway
or window in any type of business or
industry. Gates have open webbing that
allows greater air circulation and visibility
during the day, and tight security around
the clock. They're perfect for lift-up
doors, and larger doorways and hallways.
Gates up to 24' wide are always in stock.
Larger sizes are also available with quick
turnaround. Pair Folding Security Gates
are ideal for openings greater than 12'.
By providing more light and better air circulation you'll save on air conditioning costs. And the increased security
folding gates provide means less theft and reduced loss prevention costs. And that means a healthier workplace,
a safer school, and a more secure warehouse.
Our Pair Folding Security Gates are equipped with brackets, bearing washers and casters.
Pair Folding Security Gates can be installed virtually anywhere and any way you need them, including, inside door
jambs, outside door jambs, between posts or bollards, attached to pallet racks, between walls and even in windows!
And they're easy to install. You can install our gates in less than 30 minutes!
PAIR FOLDING GATE INSTALLATION INSTRUCTIONS
About Our Heavy-Duty Folding Gates heavy duty steel folding
• For installation on concrete floors.
• Bottom of gate hinges on bearing washer and pin set into floor hole.
   Do not remove bottom floor pin.
• Top of gate hinges on "L" bracket bolted to wall or door frame.
• To install gates inside overhead doors, bollards or to clear obstructions,
   6" or 9" extension brackets are required.
• Optional "H" Bracket joins each half of gate for added security.

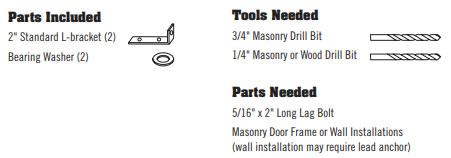

parts provided with each gate
heavy duty steel folding Step 3: Extend gate and hang "L" bracket
on top of gate to verify where it will be
mounted. To release tension you may lift
the wheel 1/2"-3/4" off the floor. Mark and
drill pilot holes into door frame or wall. It
may be easier to drill pilot holes if you remove
the gate from it's floor mount. Place bearing
washer and bottom gate pin back into floor
mount. Slip "L" bracket over top of gate
and bolts (bolts not included.)

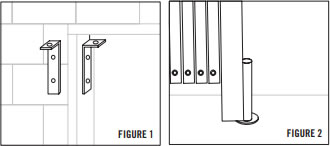

parts provided with each gate Step 1: Before Installing decide on gate
placement. "L" brackets that form top hinge
allows gate placement in the recess of door
frame. Installation can also be made outside
• Wood door frames or walls: 5/16" x 2"
   lag bolts.
• Steel door frames or walls: Drill and tap
   for 5/16" x 2" lag bolts.
• Brick or concrete frames or walls:
   5/16" x    2" lag bolts set into 3/8" holes
   with lead anchors.
or inside of wall next to door or opening frame. Either side of
gate can be toward the outside of building. Put the "operating
side" (the end with center drop pins) to the side used when
padlocking the gate halves. A label on the operating side
indicates RHT (right) or LFT (left) of a person facing the
operating side.
Extension brackets (order separately) clear
overhead door tracks, bollards or
obstructions. 6" brackets provide 4-3/4"
clearance, 9" brackets provide 7-1/4"
clearance.
heavy duty steel folding gates Step 2: Have a helper extend the gate and
stand it upright where it will be mounted.
CAUTION: Check to confirm gate will
swing away from opening when not in
use. This will provide a clear opening for
normal traffic.		 heavy duty steel folding gates Step 4: Raise center drop pin and use
attached notch to keep in place, this
prevents damage to floor surface. Extend
and retract gate to its stops to work out
stiffness. Repeat steps 2-3 for other half
of gate. CAUTION: Notice that center drop
pin at this stage hits the other half of gate or
rests on floor. Do not cut off drop pin.
Step 5 addresses misalignment.
• Drill 3/4" diameter x 3" deep hole, 1-1/4"
   from wall into the floor for gate pin to
   set into.
• For 6" extension bracket drill 6" O.C.
   from wall.
• For 9" extension bracket drill 9" O.C.
   From wall.
heavy duty steel folding gates Step 5: With center drop pin raised, extend
both halves of gates together to center of
opening, mark floor for center drop pin hole
and drill a 3/4" diameter x 3" deep hole. Lower
center drop pin (Note: some larger gates have
an additional pin in the center of each web,
mark and drill these last.) Secure gate halves
with 1/2" shaft diameter padlock. Open gates
slowly at first to avoid warping.
Place a bearing washer over floor hole and
set bottom gate pin into floor mount hole.
heavy duty steel folding gates Option: H bracket mounts overhead in
center of gate. Extend both halves of gate
together to center of opening. Position "H"
bracket, mark and drill pilot holes into
mounting surface. Attach "H" bracket
with bolts (not included.)
galvanized gate All gates come in a galvanized finish that never needs maintenance - delivering
a higher level of security with a lower cost of ownership. They stand up to
4-Season weather like heat, rain and snow and they won't be harmed by
harsh industrial chemicals and cleaners. They are virtually maintenance free.
Galvanized Finish
Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click the Model No. of the item you wish to purchase.
PRICING FOR FOLDING GATES PAIRS
Model No. Collapsed Height In Use Height Weight Price
WIDTHS FROM 6' TO 8'
PFG865 6' 6" 6' 96
$635.04
PFG870 7' 6' 6" 104
$692.50
PFG875 7' 6" 7' 110
$704.59
PFG880 8' 7' 6" 112
$749.95
PFG885 8' 6" 8' 130
$769.61
 WIDTHS FROM 8' TO 10'
PFG1065 6' 6" 6' 104
$672.84
PFG1070 7' 6' 6" 110
$712.15
PFG1075 7' 6" 7' 120
$749.95
PFG1080 8' 7' 6" 132
$789.26
PFG1085 8' 6" 8' 148
$827.06
 WIDTHS FROM 10' TO 12'
PFG1265 6' 6" 6' 112
$721.22
PFG1270 7' 6' 6" 116
$769.61
PFG1275 7' 6" 7' 122
$807.41
PFG1280 8' 7' 6" 152
$884.52
PFG1285 8' 6" 8' 158
$923.83
WIDTHS FROM 12' TO 14'
PFG1465 6' 6" 6' 128
$827.06
PFG1470 7' 6' 6" 138
$864.86
PFG1475 7' 6" 7' 140
$913.25
PFG1480 8' 7' 6" 164
$961.63
PFG1485 8' 6" 8' 174
$1,010.02
WIDTHS FROM 14' TO 16'
PFG1665 6' 6" 6' 140
$941.98
PFG1670 7' 6' 6" 164
$981.29
PFG1675 7' 6" 7' 166
$1,038.74
PFG1680 8' 7' 6" 180
$1,115.86
PFG1685 8' 6" 8' 196
$1,211.11
WIDTHS FROM 16' TO 18'
PFG1865 6' 6" 6' 160
$1,115.86
PFG1870 7' 6' 6" 170
$1,173.31
PFG1875 7' 6" 7' 180
$1,270.08
PFG1880 8' 7' 6" 186
$1,327.54
PFG1885  8' 6" 8' 190
$1,404.65
  WIDTHS FROM 18' TO 20'
PFG2065 6' 6" 6' 178
$1,270.08
PFG2070 7' 6' 6" 180
$1,327.54
PFG2075 7' 6" 7' 185
$1,442.45
PFG2080 8' 7' 6" 192
$1,519.56
PFG2085 8' 6" 8' 197
$1,634.47
  WIDTHS FROM 22' TO 24'
PFG2470 7' 6' 6" 230
$2,404.08
PFG2480 8' 7' 6" 240
$2,500.85
*UPS SHIPPABLE
