HIGH DECK LADDER TRUCKS

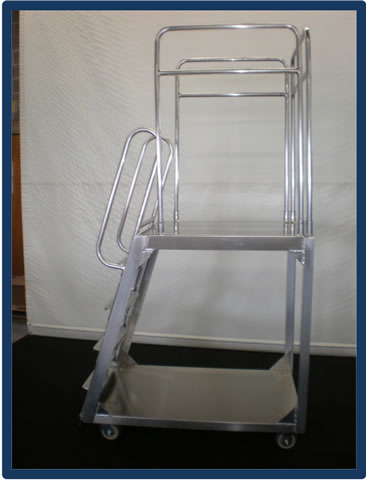

5-STEP ALUMINUM LADDER CART (SH-5-TR)

Product Type: Ladder Cart
Weight:
125
Capacity: 500
Dimensions: 30.5 x 52 x 90
Options/Variations: Custom Shelf Sizes, High capacity
Casters

High Deck Stock Picker Ladder Cart | 3 Shelf | 5-Step
Ladder | Aluminum picking cart ideal for picking and
packaging operations, as well as many other appl -
ications. All welded construction provides extra strength
for heavy loads. 5" wheels standard, can be upgraded
to increase capacity.

FEATURES
• Stable stock picking up to 10’.
• Average 108” eye level.
• Available with or without Step-Lock.
• Safety rails and non-slip steps.
• Customizable to fit your specific application.
Comes with step lock

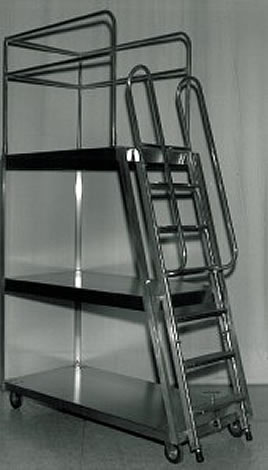

6-STEP ALUMINUM LADDER CART (SH-6-TR)

Product Type: Ladder Cart
Weight:
202
Capacity: 1300
Dimensions: 30.5 x 70 x 108
Options/Variations: Custom Shelf Sizes, High capacity
Casters

High Deck Stock Picker Ladder Cart | 3 Shelf | 5-Step
Ladder | Aluminum picking cart ideal for picking and
packaging operations, as well as many other appli-
cations. All welded construction provides extra strength
for heavy loads. 5" wheels standard.

Comes with step lock

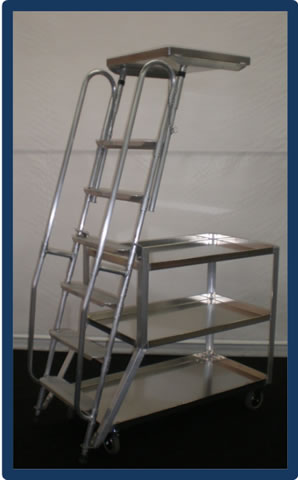

6-STEP ALUMINUM LADDER CART (S-7)

Product Type: Ladder Cart
Weight: 95
Capacity: 500
Dimensions: 21.5 x 49 x 78
Options/Variations: Custom Shelf Sizes, High capacity Casters

High Deck Stock Picker Ladder Cart | 3 Shelf | 6-Step
Ladder Aluminum picking cart ideal for picking and
packaging operations, as well as many other appli-
cations. All welded construction provides extra strength
for heavy loads. 5" wheels standard, can be upgraded.

FEATURES
• Stable stock picking up to 11’.
• Average 10’ eye level.
• Compact, maneuverable design.
• Available with or without step lock.
• Safety rails and non-slip steps.
• Customizable to fit your specific application
Comes with step lock

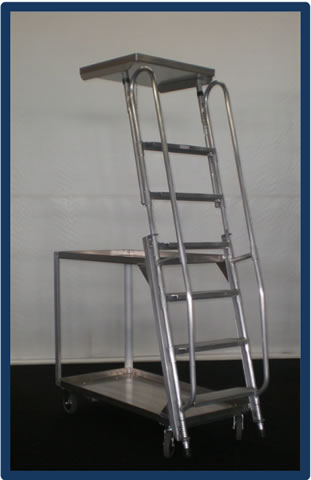

6-STEP ALUMINUM LADDER CART (S-7-2)

Product Type: Ladder Cart
Weight:
83
Capacity: 500
Dimensions: 21.5 x 49 x 78
Options/Variations: Custom Shelf Sizes, High capacity
Casters

High Deck Stock Picker Ladder Cart | 2 Shelf | 6-Step
Ladder | Aluminum picking cart ideal for picking and
packaging operations, as well as many other appli-
cations. All welded construction provides extra strength
for heavy loads. 5" wheels standard, can be upgraded
to increase capacity. Includes steel counterweight
opposite ladder end for increased stability and safety.

FEATURES
• Stable stock picking up to 11’.
• Average 120” eye level.
• Compact, maneuverable design.
• Available with or without Step-Lock.
• Safety rails and non-slip steps.
• Customizable to fit your specific application.
Comes with step lock

Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click the Model No. of the item you wish to purchase.


SPECIFICATIONS AND PRICING
Dimensions in inches, weight in pounds.
DESCRIPTIONS
MODEL NO.'S
Width, overall 30 1/2 30 1/2 21 1/2 21 1/2
Length, overall 52 70 49 49
Height, overall 90 108 78 78
Height, top step 40 60 60 60
Height, standing platform 48 66 - -
Height, top shelf - - 38 38
Height, work tray - - 78-95 78-95
Average maximum eye level 108 126 120 120
Top shelf size - - 21 x 37 21 x 37
Work tray size - - 21 x 21 21 x 21
Standing platform size 30 1/4 x 36 30 1/4 x 48 1/4 - -
Center shelf size - 30 1/4 x 57 3/4 21 x 37 -
Bottom shelf size 30 1/4 x 48 3/4 30 1/4 x 66 1/4 21 x 45 21 x 45
Shelf flange clearance 37 3/4 28 3/4 top 13 1/2 28 3/4
  24 bottom
Steps 4 3/4 x 18 1/2 4 3/4 x 18 1/2 4 3/4 x 18 1/2 4 3/4 x 18 1/2
Net weight 125 202 95 83
Shipping weight (estimated) 155 222 115 100
Load capacity, load at rest (Any shelf capable
of bearing total load capacity.)
500 1300 500 500
PRICE
$3,981
$4,340
$2,839
$2,810
Material - satin-finish aluminum, 1/8" sheet and 3/4" IPS pipe.
Casters - 5" non-marking tires, ball-bearing casters, corner-mounted, swivels on ladder end.

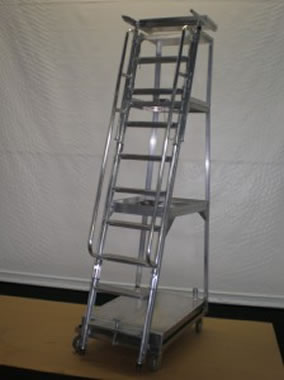

MODEL AL-1

rolling ladders with truck
truck ladders

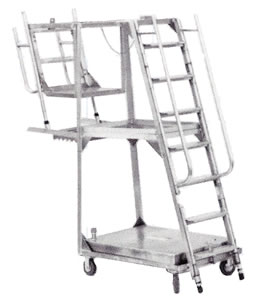

MODEL AL-1
DESIGN FEATURES
Hi-Ladder, adjustable work tray plus low ballast tank
make high jobs easier and safer.
EASILY REACH TO 15 FEET
The AL-1 Hi-Ladder truck provides a stable, maneuver-
able work platform for maintenance or stock picking in
normally out-of-reach areas. Top step height is over 8
feet which puts user eye level at 13 feet with a reach to
15 feet or more. Handy adjustable work tray extends
to over 11 feet put it where it's needed for high-rack
stock work, painting, wiring, ceiling work, window
washing, etc.
FOLDS TO CLEAR DOORWAYS
Hi-Ladder AL-1 clears standard doorways with hinged
top section folded. Top section locks in upright position
with safety spring latch, secured with quick-release wing-
nuts and studs.
DISMANTLES FOR SHIPPING
The AL-1 is dismantled and shipped in two compact
cartons, reducing shipping costs.
BALLAST TANK ADDS STABILITY
The ballast tank holds 170 pounds of water to give
added stability. The low center of gravity of the ballast
tank combined with Step Lock, provides a rigid work
platform.
SAFETY ENGINEERED
The spring-loaded 9-step ladder with Step Lock is
equipped with extra-strength extruded steps, IPS pipe
ladder frame and safety handrails. Other features that
reduce impact, noise and wear include: rubber ladder
stops, Delrin ladder guide sleeves, a rubber ladder feet.
Casters have ball-bearing swivels, wheels with non-
marking rubber tires and shimmy dampeners.

Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click the Model No. of the item you wish to purchase.


PRICING AND SPECS FOR MODEL AL-1
DESCRIPTIONS AL-1
Width, overall 28 1/2
Length, overall, ladder erected 46 1/4
Length, top section folded down 66 1/4
Height,overall, ladder erected 103
Work tray fully extended 136 1/2
Height with top section folded down 79
Height, top step 90
Average maximum eye level 160
Work tray size 12 x 23 1/2
Top shelf size 16 1/4 x 20 1/4
Bottom shelf 28 1/4 x 42
Clearance, bottom shelf (above tank) 31 1/2
Center frame to top shelf 29 3/4
(Center shelf may be acquired by placing plywood
or other panel in center angle frame)

Steps 4 3/4 x 17
Weight, truck, ballast tank empty 149
Weight, truck, ballast tank full 319
Shipping weight (estimated) 169
Load capacity, load at rest 500
PRICE $5,616
Material - satin-finish aluminum, 1/8" sheet and 3/4" IPS pipe. Casters - 5" non-marking tires, ball-bearing casters, corner-
mounted, swivels on ladder end.

Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click the Model No. of the item you wish to purchase.


OPTIONS
STEP LOCK step lock
The Step Lock is standard on many ladder trucks
and may be ordered as an option on any other ladder
truck. Locks down ladder even when user is off ladder.
Eliminates rolling on inclines or while loading truck.
PART #B0006-1 PRICE: $121.00
WRITING SHELF
writing shelf
Provides convenient out-of-the-way protection for stock
lists or other papers. Slides out from beneath top shelf from
either end of truck. Available on all trucks with flat shelves.
PRICE: UPON REQUEST
SANDED STEPS (not shown)
Sand-grit step surfaces may be ordered for ladders in
place of the standard step-tread.
PRICE: $22.90 Each Step
extension shelf
EXTENSION SHELF
A 6-inch reinforced shelf-extension is available for all
low- and medium-height ladder trucks with a top shelf.
PRICE: UPON REQUEST
