SLIP ON PIPE FITTINGS

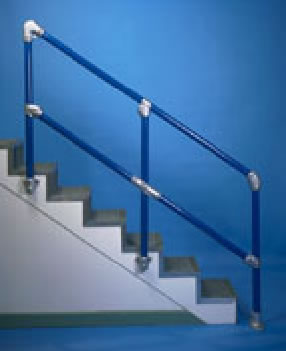

Build your own railings for stairs, catwalks and racks with no welding, threading or drilling.

Build your own railings for stairs, catwalks and racks.
(No welding, threading or drilling) 100% reusable.

Fittings are strong malleable cast iron fittings, made for use with
standard or Extra Heavy pipe size 3/4" to 2" ID equivalent tube or
conduit. Galvanized for indoor or outdoor use.
Slip on pipe fittings are strong malleable cast iron fittings.
Silp on pipe fittings are made for use with standard or extra heavy pipe size tube.
Slip on pipe fittings are galvanized for indoor or outdoor use.
Pipe Sizes
Std. Pipe ID Pipe OD Fitting ID Fitting Pipe No.
3/4" 1.05 1.09 5
1" 1.315 1.375 6
1 1/4" 1.66 1.72 7
1 1/2" 1.90 1.94 8
2" 2.375 2.440 9
Slip on pipe fittings are 100 percent reusable.
PIPE SIZE NOTE:Pipe sizes are specified by the inside diameter. Refer to diagrams below the price chart to verify your outside diameter.

Order Online, by Phone or by E-Mail

~ Add items to your online shopping cart ~
Click the Model No. of the item you wish to purchase.

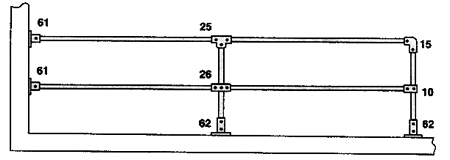

Type 10 Single Socket Tee is designed to give a 90 degree butt joint between two lengths of pipe. Type 14 Straight Couplings are designed to make an inline joint between  pipes of the same size. Type 15 90 Degree Elbow  joints are most frequently used as an end joint  for the top rail of guardrailing on a level site.
Type 10 - Single Socket Tee
Model No. Pipe Size Price
10-5 3/4" $13.96
10-6 1" $16.30
10-7 1 1/4"
$22.60
10-8 1 1/2"
$27.24
10-9 2"
$51.18
Type 14 - Straight Couplings
Model No. Pipe Size Price
14-5 3/4"
$18.66
14-6 1"
$19.30
14-7 1 1/4"
$25.64
14-8 1 1/2"
$29.32
14-9 2"
$40.62
Type 15 - 90° Elbow
Model No. Pipe Size Price
15-5 3/4"
$19.76
15-6 1"
$20.86
15-7 1 1/4"
$27.50
15-8 1 1/2"
$34.84
15-9 2"
$53.76

Type 19 Adjustable Side Outlet Tee is used in pairs to form variable angle joints between 90 and 180 degrees. Type 20 Side Outlet Elbow is a 90 degree corner joint most frequently used for the top rail of guardrailing. Type 21 90 Degree Outlet Tee is most frequently paired with Type 20 Side Outlet Elbow to make a 90 degree corner joint for the middle rail of guardrailing and other rectangular structures.
Type 19 - Adjustable Side Outlet Tee
Model No. Pipe Size Price
19-5 3/4"
$38.48
19-6 1"
$42.84
19-7 1 1/4"
$53.78
19-8 1 1/2"
$56.58
19-9 2"
$96.16
Type 20 - Side Outlet Elbow
Model No. Pipe Size Price
20-5 3/4"
$29.08
20-6 1"
$28.08
20-7 1 1/4"
$40.72
20-8 1 1/2"
$50.52
20-9 2"
$71.68
Type 21 - 90° Side Outlet Tee
Model No. Pipe Size Price
21-5 3/4"
$21.18
21-6 1"
$21.72
21-7 1 1/4"
$31.90
21-8 1 1/2"
$36.28
21-9 2"
$67.16

Type 25 Three Socket Tee is most commonly used as the 90 degree joint between the top rail and an intermediate upright on guardrailing. Type 26 Two Socket Cross is usually paired with Type 25 Three Socket Tee to give a 90 degree joint between the middle rail and an intermediate upright on a guard railing. Type 29 30 to 60 Degree Single Socket Tee is an alternative to the Type 12 45 Degree Single Socket Tee fitting.
Type 25 - Three Socket Tee
Model No. Pipe Size Price
25-5 3/4"
$26.96
25-6 1"
$25.44
25-7 1 1/4"
$39.98
25-8 1 1/2"
$44.10
25-9 2"
$65.08
Type 26 - Two Socket Cross
Model No. Pipe Size Price
26-5 3/4"
$22.22
26-6 1"
$25.48
26-7 1 1/4"
$30.82
26-8 1 1/2"
$39.10
26-9 2"
$63.14
Type 29 - 30°-60° Single Socket Tee
Model No. Pipe Size Price
29-6 1"
$26.02
29-7 1 1/4"
$35.02
29-8
1 1/2"
$39.38

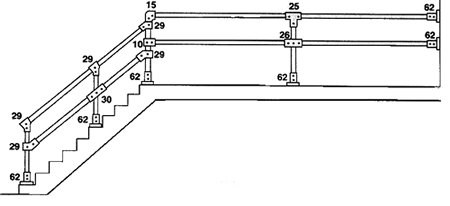

Type 30 is an adjustable fitting used for guardrailing on a slope between the mid-rail and an intermediate upright which is required to remain vertical. The Type 35 Three Socket Cross fitting is most frequently used to tie uprights with horizontal pipe in three directions, all at 90 degrees to the upright. Type 45 Crossover is designed to create a 90 degree offset crossover joint and is  frequintly used on guardrailing where a continuous horizontal pipe is used.
Type 30 - 30°-45° Adjustable Crossover
Model No. Pipe Size Price
30-6 1"
$45.10
30-7 1 1/4"
$52.42
30-8 1 1/2"
$64.78
Type 35 - Three Socket Cross
Model No. Pipe Size Price
35-5 3/4"
$29.38
35-6 1"
$31.16
35-7 1 1/4"
$46.56
35-8 1 1/2"
$48.96
35-9 2"
$103.34
Type 45 - Crossover
Model No. Pipe Size Price
45-5 3/4" $26.24
45-6 1" $21.34
45-7 1 1/4" $29.84
45-8 1 1/2" $35.08
45-9 2" $56.06

Type C50 is a combination fitting with 170 degrees of variation in the angle that can be created and is typically used to create angular supports and braces within a structure. Type C51 Double Swivel Socket is a complete combination of two F50 fittings and one M51 fitting. Type 61 Flange is for use on structures where fixing required is positional only.
Type C50 - Single Swivel Socket
Model No. Pipe Size Price
C50-55 3/4"
$33.66
C50-66 1"
$36.26
C50-77 1 1/4"
$38.88
C50-88 1 1/2"
$43.54
C50-99 2"
$87.72
Type C51 - Double Swivel Socket
Model No. Pipe Size Price
C51-555 3/4"
$62.06
C51-666 1"
$59.64
C51-777 1 1/4"
$69.90
C51-888 1 1/2"
$78.36
C51-999 2"
$148.12
Type 61 - Regular Flange
Model No. Pipe Size Price
61-4 1/2"
$20.98
61-5 3/4"
$16.80
61-6 1"
$17.98
61-7 1 1/2"
$25.20
61-8 1 1/2"
$32.64
61-9 2"
$45.88

Type 62 Flange is ideal when a structural fixing is required. Type 133 Plastic Plug is used to fit open ended pipe. Type C58 Swivel Flange is a swivel fitting for attachement of angled pipe to a flat surface.
Type 62 - Standard Railing Flange
Model No. Pipe Size Price
62-5 3/4"
$34.02
62-6 1"
$31.22
62-7 1 1/4"
$36.16
62-8 1 1/2"
$46.56
62-9 2"
$58.88
Type 133 - Plastic Pipe Plug
Model No. Pipe Size Price
133A 1/2"
$6.56
133B 3/4"
$6.88
133C 1"
$7.62
133D 1 1/4"
$8.20
133E 1 1/2"
$8.60
Type C58 - Swivel Flange
Model No. Pipe Size Price
C58-5 3/4"
$38.86
C58-6 1"
$37.60
C58-7 1 1/4"
$42.38
C58-8 1 1/2"
$46.46
C58-9 2"
$74.56

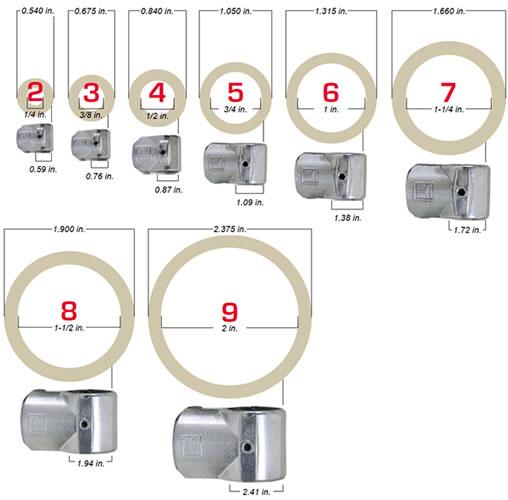

Pipe sizes are specified by the inside diameter; refer to this diagram to verify the outside diameter.
