LOADING DOCK

Guide Light Set

The Brightest Dock Guide Lights Available!

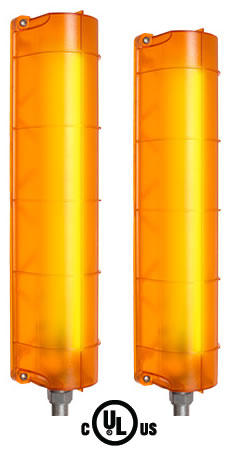

The new LED Loading Dock Guide Light Set helps
to safely and accurately align a truck trailer with the
dock door. One hundred bright LEDs per set make
these guide lights easily visible, even in daylight! The
LEDs are covered by a weatherproof polycarbonate
amber housing, a color best suited for contrast and
depth perception in mist, fog, and other inclement
weather. Rugged and durable for long life, the
guide lights are resistant to shock and vibration.
An ideal dock safety solution made even better
with these key features:
• Long-life LEDs reduce replacement costs and down time.
• Maintenance free – 5 year limited warranty.
• Energy efficient.
• 120 VAC units are UL and cUL certified.
• Outdoor Rated.
• Made in the USA.

LED Guide and Safety Lighting System
The LED Loading Dock Guide Light Set can be combined with the "Stop & Go" lights to provide
a simple and reliable safety system that reduces the risk of accidents in and around loading docks.

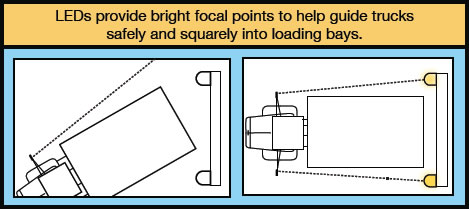

LED Guide Lights provide added safety by improving a driver’s depth perception when backing into
an open dock. Optimally, the LED set is installed below the dock bumpers, and in view of the
mirrors of a typical truck cab to indicate the entrance of the loading dock. The LEDs provide a
bright focal point for drivers and reduces the risk of trucks overrunning a dock.
Technical Specifications
• * DGLED-120: 120 VAC, 60Hz, 70mA.
• * DGLED-12: @12 VAC/VDC, 650 mA.
• 15"H x 3 5/8”W x 2 3/4”D
• Easy installation on any vertical surface.
• No separate power supply required for AC units.
• DGLED-12 units connect directly to AC/DC
   power supply. (12-24V)
• Easily activated by any on/off switch, control
   relay, or permanent power supply.
Benefits of LEDs
Use less power, 5X brighter than incandescent
models.
Brighter LEDs mean higher visibility and a safer
loading dock.
LEDs are rugged; no fragile filaments or glass parts
to break Virtually maintenance free – 5 year limited
warranty on the LED’s.
* Electrical rating is per single DGLED fixture.

Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click the Part No. of the item you wish to purchase.


PRICING
Part No.
Description
Price
12-24 AC/DC Guide Light Set
$409.50
120 VAC Guide Light Set
$409.50
Replacement Parts For DGLED
Housing Cover
$16.63
Base
$16.63
