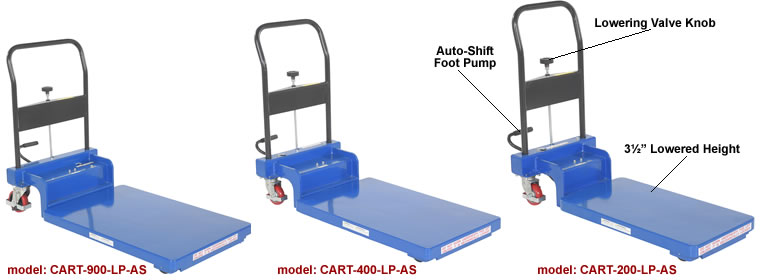

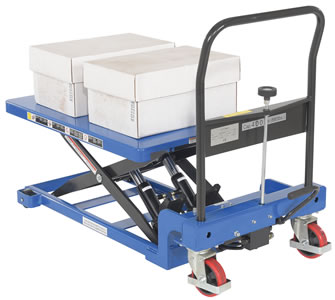

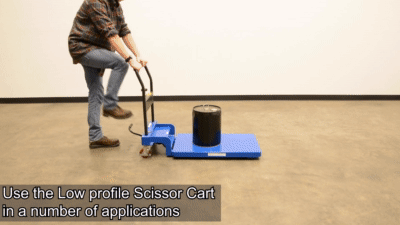

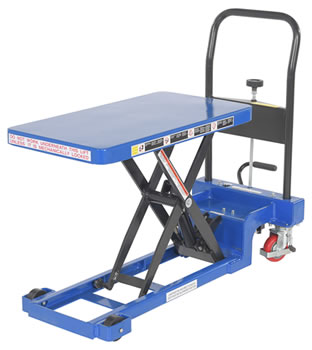

LOW PROFILE SCISSOR CARTS WITH AUTO-SHIFT

The sleek steel design is extremely efficient and ergonomically friendly!
In areas of congestion a low profile scissor cart is a must. With a two speed foot pump, the platform is easily
raised/lowered to the desired position. Not only is this design extremely efficient but also ergonomically friendly.
With a raised steering handle the user can maintain a proper working posture during transit. The sleek steel design,
with a powder coated finish for baked in added toughness, is simple to clean and limits needless scuffs or abrasions.
Mold on rubber casters with brakes roll easily over a variety of surfaces.
Auto-Shift
Auto-Shift is a two-speed pump that automatically
shifts between speeds based on the output pressure
of the hydraulic system. Internal features of the pump
include primary pressure relief and pressure compen-
sated return-flow mechanisms, an integrated lowering
valve, and an auto-shifting valve assembly. The pump
also utilizes replaceable sleeve bearings, valve com-
ponents, and seals to simplify maintenance requirements
and maximize service life.
Standard Features:
• Auto-Shift is a two-speed pump that automatically
   shifts between speeds based on the output pressure
   of the hydraulic system.
• High handle to minimize slouching during transport.
• Low profile design with a 3½” lowered height.
• Single scissor design.
• Robust capacity for handling products large and small.
• Mold-on-rubber casters with brakes roll smoothly.
• Tough baked-in powder-coated blue finish.

Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click the Model No. of the item you wish to purchase.


Model No.
Platform Size
(W x L)
Overall Size
(LxWx H)
Service
Range
Uniform
Cap.
Weight
(lbs)
Price
17 3/4" x 27 1/2"
44 1/8" x 17 3/4" x 34 5/8"
3 1/2"x23 5/8"
200
161
$1,371
19 5/8" x 32 1/4"
44 7/8" x 19 5/8" x 34 5/8"
3 1/2"x23 5/8"
400
199
$1,509
23 5/8" x 35 1/2"
52 1/8" x 23 5/8" x 34 5/8"
3 1/2"x23 5/8"
900
274
$1,987
