MID-HEIGHT LADDER TRUCKS

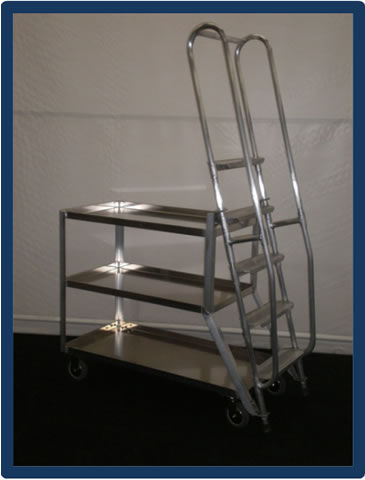

5-STEP ALUMINUM LADDER CART (S-5-1)

Product Type: Ladder Cart
Weight: 75
Capacity: 500
Dimensions: 20 x 45 x 71.5
Options/Variations: Custom Shelf Sizes, High capacity Casters

Stock Picker Ladder Cart | 5 Step Ladder | 3 Shelf |
Aluminum stock picking cart ideal for picking and pack-
aging operations, as well as many other applications. All
welded construction provides extra strength for heavy
loads. 5" wheels standard, can be upgraded to increase
capacity.

High-reach ladder combined with standard truck puts
eye level at about nine feet, with reach at ten to eleven
feet. Safety rails and non-slip ladder with Step-Lock
allow stable high-stack order filling yet unit is compact
and maneuverable.
FEATURES
• Stable stock picking up to 10’.
• Average 9’ eye level.
• Compact, maneuverable design.
• Available with or without step lock.
• Safety rails and non-slip steps.
• Customizable to fit your specific application
Comes with step lock

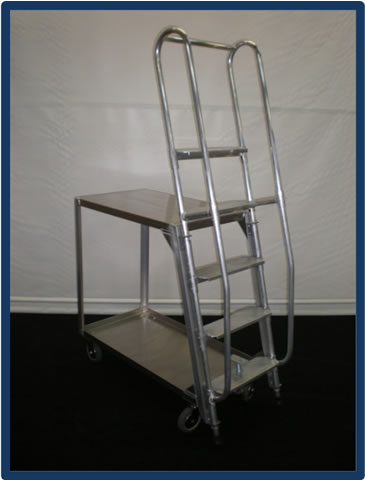

5-STEP ALUMINUM LADDER CART (S-5-1-2)

Product Type: Ladder Cart
Weight:
65
Capacity: 500
Dimensions: 21 x 45 x 71.5
Options/Variations: Custom Shelf Sizes, High capacity
Casters

Stock Picker Ladder Cart | 5 Step Ladder | 2 Shelf |
Aluminum stock-picking cart ideal for picking and
packaging operations, as well as many other applications.
All welded construction provides extra strength for
heavy loads. 5" wheels standard, can be upgraded to
increase capacity. Includes steel counterweight opposite
ladder end for increased stability and safety

Similar to S-5-1 without center shelf. Reinforced gussets
at ladder end.
FEATURES
• Stable stock picking up to 9’.
• Average 90” eye level.
• Compact, maneuverable design.
• Available with or without Step-Lock.
• Safety rails and non-slip steps.
• Customizable to fit your specific application.
Comes with step lock

5-STEP ALUMINUM LADDER CART (S-6)

Product Type: Ladder Cart
Weight:
81
Capacity: 500
Dimensions: 21.5 x 49 x 71.5
Options/Variations: Custom Shelf Sizes, High capacity
Casters

Stock Picker Ladder Cart | 5 Step Ladder | 3 Shelf |
Aluminum picking cart ideal for picking and packaging
operations, as well as many other applications. All
welded construction provides extra strength for heavy
loads. 5" wheels standard, can be upgraded

Three-shelf, heavy duty truck for stock picking and main-
tenance. Extended 5-step ladder with safety rails puts
eye level at about nine feet. Shelves are larger than
Model S-5-1 for more carrying space. Shelf flanges up
for containing tools or parts.
FEATURES
• Stable stock picking up to 10’.
• Average 9' eye level.
• Compact, maneuverable design.
• Available with or without Step-Lock.
• Safety rails and non-slip steps.
• Customizable to fit your specific application.
Does not comes with step lock
(step lock is optional see below)

5-STEP ALUMINUM LADDER CART (S-6-2)

Product Type: Ladder Cart
Weight:
73
Capacity: 500
Dimensions: 21.5 x 49 x 71.5
Options/Variations: Custom Shelf Sizes, High capacity
Casters

Stock Picker Ladder Cart | 5 Step Ladder | 2 Shelf |
Aluminum picking cart ideal for picking and packaging
operations, as well as many other applications. All
welded construction provides extra strength for heavy
loads. 5" wheels standard, can be upgraded

Does not comes with step lock
(step lock is optional see below)

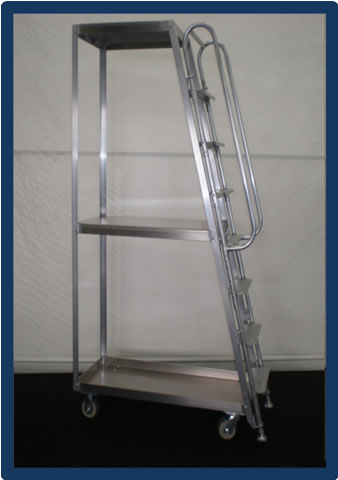

5-STEP ALUMINUM LADDER CART (SH-6)

Product Type: Ladder Cart
Weight:
100
Capacity: 500
Dimensions: 21.5 x 49 x 85
Options/Variations: Custom Shelf Sizes, High capacity
Casters

High Deck Stock Picker Ladder Cart | 3 Shelf | 5-Step
Ladder | Aluminum picking cart ideal for picking and
packaging operations, as well as many other appli-
cations. All welded construction provides extra strength
for heavy loads. 5" wheels standard.

FEATURES
• Stable stock picking up to 10’.
• Average 110” eye level.
• Compact, maneuverable design.
• Available with or without Step-Lock.
• Safety rails and non-slip steps.
• Customizable to fit your specific application.
Comes with step lock

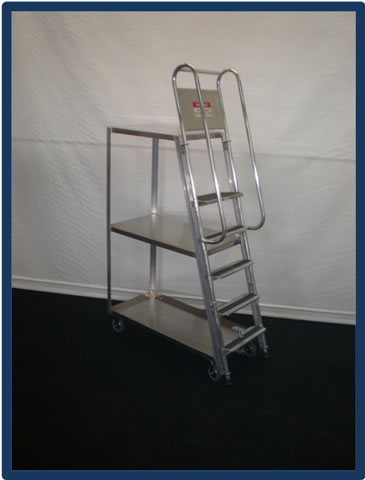

5-STEP ALUMINUM LADDER CART (SH-6-WM)

Product Type: Ladder Cart
Weight:
101
Capacity: 500
Dimensions: 21.5 x 49 x 85
Options/Variations: Custom Shelf Sizes, High capacity
Casters

High Deck Stock Picker Ladder Cart | 3 Shelf | 5-Step
Ladder | Aluminum picking cart ideal for picking and
packaging operations, as well as many other appli-
cations. All welded construction provides extra strength
for heavy loads. 5" wheels standard.

FEATURES
• Stable stock picking up to 10’.
• Average 110" eye level.
• Available with or without Step-Lock.
• Safety rails and non-slip steps.
• Customizable to fit your specific application.
Same as SH-6-WM-1 without step lock.

5-STEP ALUMINUM LADDER CART (SH-6-WM-1)

Product Type: Ladder Cart
Weight:
101
Capacity: 500
Dimensions: 21.5 x 49 x 85
Options/Variations: Custom Shelf Sizes, High capacity
Casters

Standard Hi-Shelf Stock Picker with wide top step, sand-coated step surfaces and safety Step Lock. Provides user reach of over 11 feet.

FEATURES
• Stable stock picking up to 10’.
• Average 110" eye level.
• Available with or without Step-Lock.
• Safety rails and non-slip steps.
• Customizable to fit your specific application.
Comes with step lock

Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click the Model No. of the item you wish to purchase.


SPECIFICATIONS AND PRICING
Dimensions in inches, weight in pounds.
DESCRIPTIONS
MODEL NO.'S
Width, overall 20 20 21 1/2 21 1/2 21 1/2 21 1/2 21 1/2
Length, overall 45 45 49 49 49 49 49
Height, overall 71 1/2 71 1/2 71 1/2 71 1/2 85 85 85
Height, top step 50 30 50 50 50 50 50
Height, top shelf 38 38 38 38 66 66 66
Average maximum eye level 110 110 110 110 110 110 110
Top shelf size 19 1/2 x 31 1/2 19 1/2 x 31 1/2 21 x 37 21 x 37 21 1/4 x 26 3/4 21 1/4 x 26 3/4 21 1/4 x 26 3/4
Center shelf size 19 1/2 x 31 1/2 28 1/2 21 x 37 ~ 21 1/4 x 36 1/2 21 1/4 x 36 1/2 21 1/4 x 36 1/2
Bottom shelf size 19 1/2 x 39 1/2 19 1/2 x 39 1/2 21 x 45 21 x 45 21 1/4 x 45 21 1/4 x 45 21 1/4 x 45
Shelf flange clearance, top 13 1/2 ~ 13 1/2 ~ 28 1/2
28 1/2 28 1/2
Shelf flange clearance, bottom 13 1/2 28 1/2 13 1/2 28 1/2
26 3/4

26 3/4

26 3/4
Steps 4 3/4 x 17 4 3/4 x 17 4 3/4 x 17 4 3/4 x 17 4 3/4 x 18 1/2 4 3/4 x 18 1/2 4 3/4 x 18 1/2
Net weight 75 65 81 71 100 101 103
Shipping weight (estimated) 95 85 101 91 120 121 123
Load capacity, load at rest 500 500 500 500 500 500 500
PRICE
$2,466
$2,434
$2,469
$2,434
$2,476
$2,607
$2,682
Material - satin-finish aluminum, 1/8" sheet and 3/4" IPS pipe.
Casters - 5" non-marking tires, ball-bearing casters, corner-mounted, swivels on ladder end.

Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click the Model No. of the item you wish to purchase.


OPTIONS
STEP LOCK step lock
The Step Lock is standard on many ladder trucks
and may be ordered as an option on any other ladder
truck. Locks down ladder even when user is off ladder.
Eliminates rolling on inclines or while loading truck.
PART #B0006-1 PRICE: $121.00
WRITING SHELF
writing shelf
Provides convenient out-of-the-way protection for stock
lists or other papers. Slides out from beneath top shelf from
either end of truck. Available on all trucks with flat shelves.
PRICE: UPON REQUEST
SANDED STEPS (not shown)
Sand-grit step surfaces may be ordered for ladders in
place of the standard step-tread.
PRICE: $22.90 Each Step
extension shelf
EXTENSION SHELF
A 6-inch reinforced shelf-extension is available for all
low- and medium-height ladder trucks with a top shelf.
PRICE: UPON REQUEST
