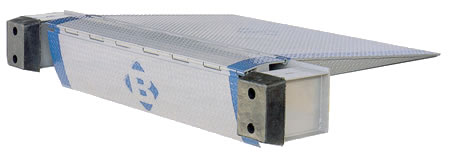

LO-DOCK
LEVELER
|
MODEL
LD |
|
|
|
Fast
and easy to operate, Our edge of dock-
leveler is positioned by lifting a self-storing
handle and pulling the handle to the dock
floor. The latch assembly activates the lip
forward to the floor of the trailer as the handle
is lifted. When released, the handle auto-
matically returnes to a stored position. The
optimum dock height for conventional trailers
is 51", while the proper dock height for
refrigerated equipment is 55". Refrigerated
lip is optional. Widths of 72" and 78" are
available.
|
 |
|
|
|
• Capacities
from 20,000 to 25,000 pounds |
|
|
|
• Automatically returns to stored
position when truck leaves. |
|
|
|
•
Self-Storing handle. |
|
|
Now
without expensive dock alterations,
you can raise the height of your present dock
as much as 11". Lo-dock levelers can easily
be installed on any concrete dock without
welding or modifications. Refrigerated lip is
optional. Complete technical information and
installation instructions are available upon
request. |
|
|
|
|
• Bumper
and bumper blocks included. |
|
|
|
• Raises
edge of dock levelers to proper working height. |
|
|
|
• Completely
assembled; no site welding required. |
|
|
|
DRAWING
AND DIMENSIONS |
|
 |
|
|
|
|
|
| Model # |
A |
B |
C |
D |
| 20LD72-3 |
72" |
94" |
3" |
30" |
| 25LD72-3 |
72" |
94" |
3" |
30" |
| 20LD72-5 |
72" |
94" |
5" |
48" |
| 25LD72-5 |
72" |
94" |
5" |
48" |
| 20LD72-7 |
72" |
94" |
7" |
52" |
| 25LD72-7 |
72" |
94" |
7" |
52" |
| 20LD72-9 |
72" |
94" |
9" |
64" |
| 25LD72-9 |
72" |
94" |
9" |
64" |
| 20LD72-11 |
72" |
94" |
11" |
78" |
| 25LD72-11 |
72" |
94" |
11" |
78" |
| 20LD78-3 |
78" |
100" |
3" |
30" |
| 25LD78-3 |
78" |
100" |
3" |
30" |
| 20LD78-5 |
78" |
100" |
5" |
48" |
| 25LD78-5 |
78" |
100" |
5" |
48" |
| 20LD78-7 |
78" |
100" |
7" |
52" |
| 25LD78-7 |
78" |
100" |
7" |
52" |
| 20LD78-9 |
78" |
100" |
9" |
64" |
| 25LD78-9 |
78" |
100" |
9" |
64" |
|
|
|
|
 |
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase. |
|
|
|
PRICING
AND SPECIFICATIONS |
RAMP
UP |
RAMP
LENGTH |
For
Freightline Trailers |
For
Refrigerated Trailers |
MODEL |
WEIGHT |
PRICE |
MODEL |
WEIGHT |
PRICE |
20000
LB CAPACITY
|
3" |
30" |
|
799 |
$4,002 |
|
814 |
$4,095 |
5" |
48" |
|
1,034 |
$4,608 |
|
1,049 |
$4,704 |
7" |
52" |
|
1,137 |
$5,220 |
|
1,152 |
$5,480 |
9" |
64" |
|
1,334 |
$5,827 |
|
1,348 |
$5,923 |
11" |
78" |
|
1,480 |
$6,437 |
~ |
~ |
- |
13" |
90" |
|
1,705 |
$7,048 |
~ |
~ |
- |
3" |
30" |
|
896 |
$4,304 |
|
914 |
$4,400 |
5" |
48" |
|
1,110 |
$4,913 |
|
1,128 |
$5,008 |
7" |
52" |
|
1,210 |
$5,522 |
|
1,228 |
$5,618 |
9" |
64" |
|
1,414 |
$6,149 |
|
1,432 |
$6,225 |
11" |
78" |
|
1,571 |
$6,740 |
~ |
~ |
- |
13" |
90" |
|
1,861 |
$7,349 |
~ |
~ |
- |
25000
LB CAPACITY
|
3" |
30" |
|
1007 |
$4,470 |
|
1028 |
$4,587 |
5" |
48" |
|
1,258 |
$5,757 |
|
1,279 |
$5,268 |
7" |
52" |
|
1,383 |
$5,152 |
|
1,404 |
$6,110 |
9" |
64" |
|
1,638 |
$6,513 |
|
1,659 |
$6,630 |
11" |
78" |
|
1,829 |
$7,193 |
~ |
~ |
- |
13" |
90" |
|
2,063 |
$7,873 |
~ |
~ |
- |
3" |
30" |
|
1,077 |
$4,812 |
|
1,100 |
$4,927 |
5" |
48" |
|
1,355 |
$5,492 |
|
1,378 |
$5,609 |
7" |
52" |
|
1,484 |
$6,172 |
|
1,507 |
$6,292 |
9" |
64" |
|
1,750 |
$6,854 |
|
1,773 |
$6,972 |
11" |
78" |
|
1,953 |
$7,535 |
~ |
~ |
- |
13" |
90" |
|
2,239 |
$8,214 |
~ |
~ |
- |
30000
LB CAPACITY
|
3" |
30" |
|
1,007 |
$4,997 |
|
1,028 |
$5,138 |
5" |
48" |
|
1,258 |
$5,757 |
|
1,279 |
$5,897 |
7" |
52" |
|
1,383 |
$6,680 |
|
1,404 |
$6,823 |
9" |
64" |
|
1,638 |
$7,437 |
|
1,650 |
$7,578 |
11" |
78" |
|
1,829 |
$8,190 |
~ |
~ |
- |
3" |
30" |
|
1,077 |
$5,377 |
|
1,100 |
$5,519 |
5" |
48" |
|
1,355 |
$6,137 |
|
1,378 |
$6,277 |
7" |
52" |
|
1,484 |
$6,898 |
|
1,507 |
$7,038 |
9" |
64" |
|
1,750 |
$7,589 |
|
1,773 |
$7,798 |
|
|
|
|
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase. |
|
|
|
| Lo-Dock
units are shipped completely assembled installation instructions are available
upon request |
|
PRICING
FOR OPTIONS |
| MODEL |
WEIGHT |
DESCRIPTION |
PRICE |
|
25 |
SET
OF 3" CHANNEL CURBS WELDED TO -3 LO-DOCK |
$138.50 |
|
34 |
SET
OF 3" CHANNEL CURBS WELDED TO -5 LO-DOCK |
$160.40 |
|
48 |
SET
OF 3" CHANNEL CURBS WELDED TO -7 LO-DOCK |
$180.00 |
|
62 |
SET
OF 3" CHANNEL CURBS WELDED TO -9 LO-DOCK |
$204.20 |
|
78 |
SET
OF 3" CHANNEL CURBS WELDED TO -11 LO-DOCK |
$220.40 |
|
108 |
SET
OF 3" CHANNEL CURBS WELDED TO -13 LO-DOCK |
$311.50 |
|
6 |
ALL
FASTENERS REQUIRED FOR MOUNTING LO-DOCKS |
$281.50 |
|
|

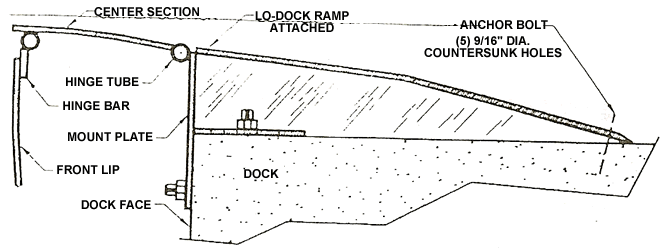

INSTALLATION |
LO-DOCK
APPLICATION - 3" TO 9" TOO LOW |
|
|
|
|
 |
|
|
|
|
| NOTE:
REMOVE LATCH AND HANDLE BEFORE INSTALLING UNIT |
| Latch
and handle are attached to mount plate for shipping purposes only! |
|
|
|
| 1.
Position Lo-dock unit into desired location. |
| 2. This unit requires (5) heavy-duty expansion shield anchor bolts and (9)
3/4" x 4" + wedge anchor bolts. |
| 3.
Drill 9/16" pilot hole through top approach plate mount holes. |
| 4.
Move Lo-dock out of position and drill pilot holes with 7/8" drill. |
| 5.
Place expansion shields in holes with threads facing down. |
| 6.
Re-position Lo-dock unit and anchor with 1/2" Flat Head Socket Cap
Screw x 3 1/2" long. |
| 7.
Drill and anchor front of Lo-dock with 3/4" x 4" wedge anchors. |
| 8.
Attach latch arm. Position with notch facing the dock. Bolt latch. Latch
should swing freely. |
| 9.
Remove bolt from handle. Position handle into sleeve tube with bend facing
out. Replace bolt. |
| 10.
Test unit form proper operation. |
|
