MOVIT® POLYPROPYLENE BARRIER

A FULL PROOF BARRICADE

Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click a Price of the item you wish to purchase.


movit polypropylene barrier To Various Application page
Available Colors
Quality Testings
Measurement
Personalized Logo
PRICE: $212.70 ea.
Black sign w/out
wording ............ $14.30
Connector
PRICE
: $23.80
Ideal for both indoor and outdoor use, the Movit® barricade's patented design (U.S. Patent No. 9,771,736) is
the most visually appealing pedestrian barricade available today. An attractive and affordable steel barricade
alternative, the Movit® barricade is the only barricade with stanchion compatibility, and its unique one-piece
design and interlocking ends provide for a strong and durable crowd control experience. The Movit® barricade’s
strengthened polypropylene formula is recyclable, environmentally friendly, and will never rust, chip, or scratch.
The Movit® crowd control barricade's unique double sided locking mechanism even allows the unit to span uneven
ground. These plastic barriers are lightweight and easy for work crews to handle and arrange. Yet at just under
26 Lbs, these traffic safety barricades can effectively handle crowds and lines. The Movit® line comes in a variety
of popular colors and has a built-in plug and play branding area perfect for marketing, advertising, and safety
messaging. With all these advantages, it is no wonder that the Movit® has been so successfully used at hundreds
of prominent events all around the world.

Now you can replace old, rusting metal fence barriers with a modern and functional designed fence, light, versatile,
easy to store, and pleasing in appearance with ecological and recyclable polypropylene.
The only "one piece" product in the market,allowing for stronger unit with no weak points, as seen below:
movit polypropylene barrier

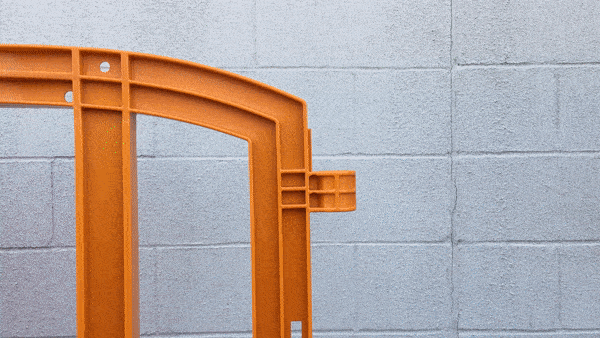

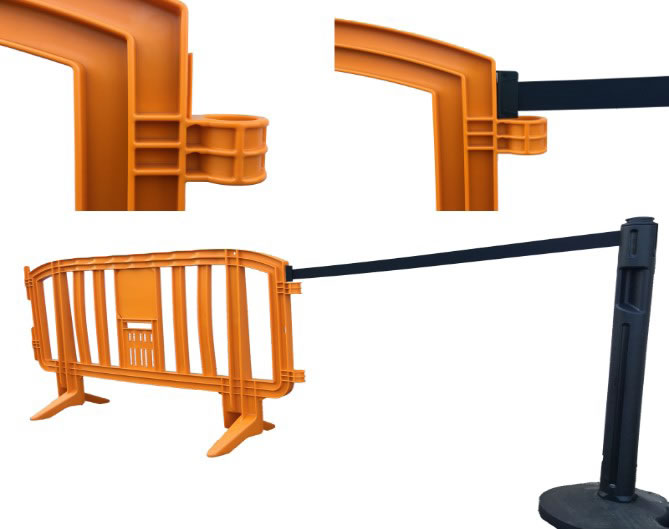

Stanchion Compatibility
We are proud to present the first barricade on the market with stanchion compatibility! Compatible with most major
brands, this feature enables the Movit barricade to interconnect with crowd control stanchions - enabling new safety
configurations and maximizing the utility of each venue or facility's existing traffic safety equipment.

Plug & Play Branding Panel
A newly designed branding panel incorporates alternating
mounts that allow for easy placement of marketing materials,
on either side. Just slide in your poster/sign!

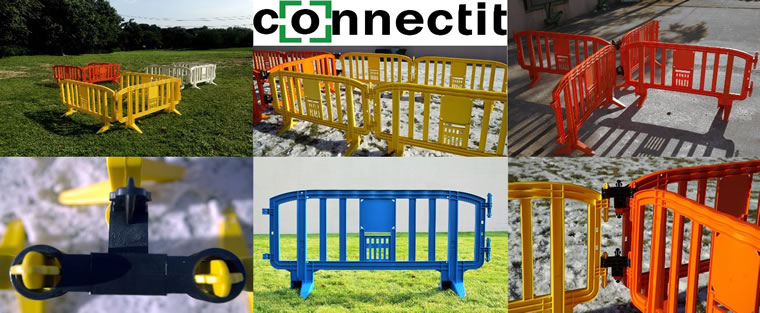

Introducing the CONNECTIT – The Movit Connector
The Connectit allows maximum barrier set-up flexibility for our users, including T-Junctions and corrals.

ADVANTAGE
movit polypropylene barrier Durable

Ecological:

• Manufactured in polypropylene
• Recyclable
• Does not rust

movit polypropylene barrier Functional:

• Easy to handle
• Lightweight
• Quick interlinking units
• No removable feet - no weak points

Personalize using your color and logo (see below)
QUALITY TESTING
Quality control tests performed for durability, compression, distortion drop test, and water-resistant (by LGAI - General Laboratory - a department of the Catalonia Government).
Quality Testing
TECH SPECIFICATIONS
movit polypropylene barrier Length: 6.6' (75")
Height: 3.3'(39")
Weight: 12 Kg/26.5 lbs.
Accepted load: 500 Kg/1102 lbs.
Thermal resistance: +55C,-20C/+131F,-4F
Available colors: gama RAL
Recyclable material

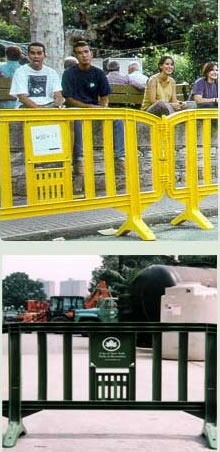

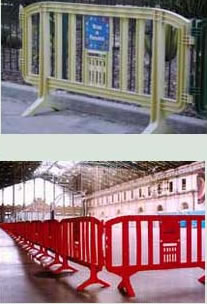

VARIOUS APPLICATION
movit polypropylene barrier movit polypropylene barrier movit polypropylene barrier
Parking
movit polypropylene barrier
Construction
movit polypropylene barrier
Park
Restaurant
Private Pool

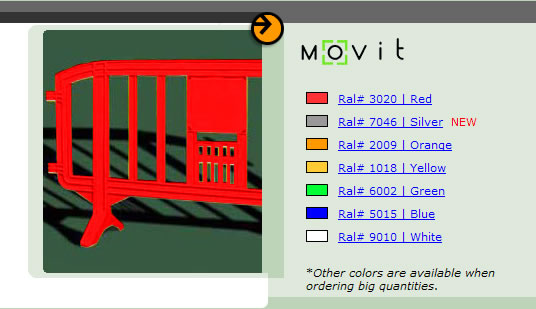

MOVIT COLORS
Back to Top
movit polypropylene barrier colors

TESTS CONDUCTED
Back to Top
Tests Conducted
Realized by LGAI (Laboratorio General de Ensayos e Investigaciones)
File number 99011028
movit polypropylene barrier Drop test
The free-fall vertical impact test was carried out using barrier section under
ambient conditions (23°C/73°F 50% R.H.) and after having been conditioned
for 4 hours in a "CLIMATEST" climate-controlled chamber at a temperature
of -10°C/14°F. The drop was performed with the barrier section in a tilted
position, i.e., impact first occurred on one of the two legs of the railing, as
seen in the photo.

The drop was repeated with the other leg, and finally against each one of the
two feet of each individual leg. A total of five drops for railing at ambient
conditions and five drops for the railing conditioned at -10°C/14°F were
made. The drop height was one metre at all times.

Drop test results: SATISFACTORY:
No breaks, cracks or deformation were
observed in the railing or its legs.
movit polypropylene barrier Compression test Point
4.1.2 of ANSI A10.18 states that "the structure of the railing must withstand
a load of at least 90.7 kg/200 pounds applied in any direction at any point of
the top". The test was conducted with an "IBERTEST" press, EMIB60
model. A load of 500 kp (much higher than the minimum required by the
above standard) was applied vertically. The test duration was 4 hours.
Compression test results:
SATISFACTORY:
No breaks, cracks or deformation were observed in the
railing.
movit polypropylene barrier Bending test
At the middle of the top part of the railing, a compressive force of 61 kp was
applied at the side for one hour and the deformation experienced at this point
was measured at the same time. When the force was released at the end of
the test, the deformation was 9 mm/0.354 inch, with a residual deformation of
4 mm/0.157 inch after one hour.
Water absorption
The test was conducted as per UNE 53-028-90. Water absorption by a plastic material may lead to swelling and
cause alterations in the dimensions and/or physical properties of the material. Several samples of the railing were cut,
then weighed before and after being immersed in distilled water at 23°C/73°F for 24 hours. Several other samples were
placed in boiling water for 30 minutes. The weight difference represents the increased mass due to absorption.
Water absorption results: SATISFACTORY: Samples at 23°C/73°F for 24 hours: 0.009% Samples at
100°C/212°F for 30 minutes: 0.022%
Determination of latent stress and strain
The test was conducted as per UNE 53-248 and consisted of immersing the samples in a hot surfactant bath for a
certain amount of time, then removing the samples from the surfactant bath and inspecting them to see if any cracks,
swelling or breaks have appeared at any point or area of the sample. The time period was 24 hours and the
temperature was 80°C/176°F. Test results: SATISFACTORY: No cracks, swelling, grooves or breaks were
observed in the samples.

Ageing tests
An entire railing was immersed in a "CLIMATEST" climate-controlled chamber in order to conduct ageing tests
consisting of the following climate-controlled cycles: 4 hours at -10°C/14°F, followed by 8 hours at 60°C/140°F and
90% relative humidity. A total of 4 cycles were carried out, for a total of 48 hours. After the railing was removed from
the chamber and inspected damage due to deformation or cracks, the drop test was repeated from a height of 1 metre
against one of the legs.
Results: SATISFACTORY

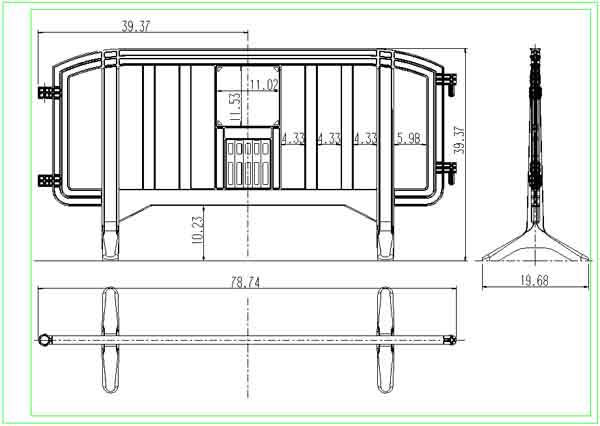

MEASUREMENT
Back to Top
movit polypropylene barrier dimensions

PERSONALIZED LOGO
Each Movit Barricade can be permanently Logoed with your Name,
Trademark, or Web Site. We can also add Sponsors, Supporter's, and
Advertiser's. The Movit Barricade can be used as a portable Billboard
Allowing Your Message to be seen every 6 Feet. Movit can be Personalized
in any way! The Color choices are endless, with custom colors available.
We maintain 6 colors in stock at all times.
