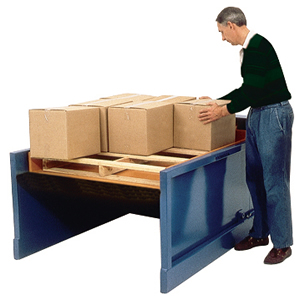

ROLL-ON LEVEL LOADER

roll-on level loader With internal hydraulic power, PalletPal® Roll-On™ Level
Loaders lower to floor height so pallets can be rolled on
and off with a hand pallet truck. The lift is then easily adjusted
by pushbutton or foot switch control to maintain an ideal height
for manual loading and unloading. The narrow side and
back panels provide easy reach over for four sided access.
Now available with One Touch Auto Leveling
Allows the operator to “dial-in” the exact increment of travel
for loading or unloading. It will also return the platform to full
height (or to fully lowered position) at “one touch of the button.”
roll-on level loader
roll-on level loader

Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click a Price of the item you wish to purchase.


ROLL-ON Level Loader
MODEL CAPACITY
(LBS)
LOW
HEIGHT
VERTICAL
TRAVEL
PLATFORM
SIZE
STANDARD
H.P.
RISE
TIME IN
SEC.
STANDARD
VOLTAGE
WEIGHT
(LBS.)
PRICE
ROLLC2.5-28 2500 3/8" 28" 44" X 48" 1 22 115/1/60 1485
ROLLC4-28 4000 3/8" 28" 44" X 48" 1 30 115/1/60 1650
ROLLC2.5-28 Non-Standard Platform Widths (widths other than 38", 40", 42", 48" or 52"): Contact us to order N/A
$10,818
ROLLC4-28 Non-Standard Platform Widths (widths other than 38", 40", 42", 48" or 52"): Contact us to order N/A
$15,964
OPTIONS FOR ROLL-ON LEVEL LOADER: Notes:
One Touch Auto Leveling .................... Contact Sales Downspeed is a fixed flow control.
Air operated power unit: ROLLC does not require lagging to floor.
(Photoelectric Eye is eliminated in favor of a flexible lip)
............................................................. Add $1,868.14
ROLLC is not suitable for water washdown applications.
Stainless steel is not available.
For Level Loaders supplied with no controls, Consult us for
deductions.
