ROUND CONCRETE BOLLARD
TF6011

BOLLARDS Made of all shapes and sizes offer dependable solutions for security, traffic flow and numerous
other applications – while enhancing the aesthetic appeal of any project. Whether spherical, cylindrical or
mimicking the contour of natural stone, our bollards are constructed of steel rebar encased in concrete to
provide superior strength and protection. Choose from a near-endless array of colors, textures and finishes.
Bollard can be used as security barrier. Can also be modified with inserts
and add a wood seat for a security bench.
MATERIAL:
Concrete
SHAPE:
Circle
REINFORCEMENT:
Yes
ADDITIONAL FEATURES:
Mounting Options: A or B

Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click the Model No. of the item you wish to purchase.


PRICING FOR STANDARD FINISH BOLLARDS
Model No.
Size
Weight
Price
30" dia x 32"
1610 lbs
$764.60
Available Colors

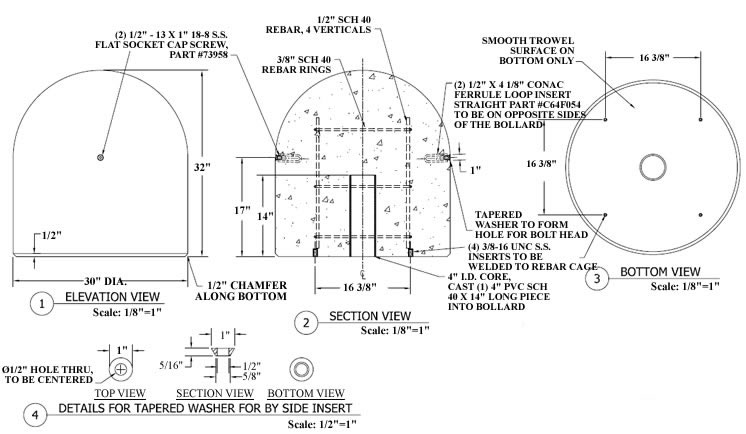

DRAWING FOR TF6011

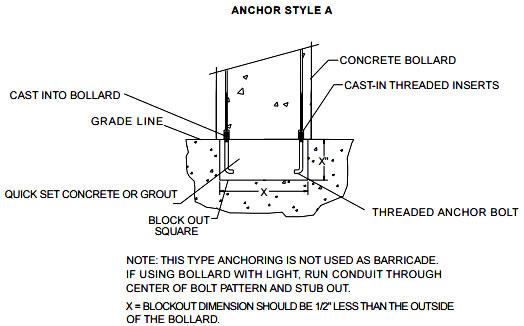

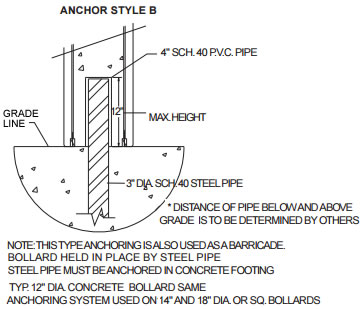

Bollard Installation

SPECIFICATIONS
1.1 SUMMARY
   A. Section includes: Furnish Precast Concrete indicated on drawings or specified
        herein.
1.2 REFERENCES
   A. American Society for Testing & Material
        1. ASTM C33     2. ASTM C150      3. ASTM C31
1.5 SUBMITTALS
   A. Submit product data, shop drawings and samples.
        1. Product Data: Manufacturer's specifications and technical data edited specifically for
            proposed system, including the following specific information:
            a. Detailed specification of construction fabrication.
            b. Manufacturer's installation instructions
            c. Maintenance literature
            d. Product warranty
        2. Shop Drawings: Indicate pertinent dimensions, general construction, component
            connections anchoring methods, hardware and installation  procedures.
        3. Samples as requested by Architect.
1.6 QUALITY ASSURANCE
   A. Qualifications of Manufacturer: Manufacturer to be prequalified by specifier prior to bidding.
        Failure to comply will result in disqualification of bid. Manufacturer to have at least five years
        experience in the manufacturer of precast concrete bollards field proven for at least
        five years.
1.10 WARRANTY
   Manufacturer shall submit a written warranty for precast products for the period of two years
    upon acceptance of products.
2.2 MATERIALS
   A. Portland Cement: ASTM C150 specifications for Portland Cement.
   B. Aggregates: All aggregates to meet ASTM C33 specifications, to be cleaned of foreign
        matter and properly graded to size.
   C. Coloring: Pigments used shall be inorganic, resistant to alkalinity and used as per
        manufacturers recommendations.
