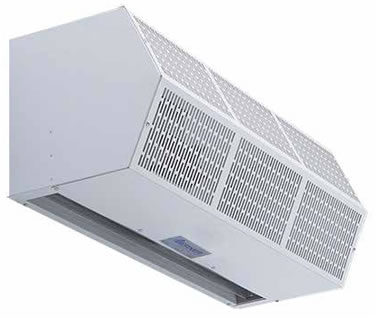

High Performance 7 Air Curtains

( AMBIENT, UNHEATED)
Single-speed, high-performance, white or black
aluminum exterior cover.
EPH Listed to ANSI/NSF-37
Chosen by restaurants and kitchen designers who are
concerned with meeting food service standards, health
department requirements, and their own criteria for
flying insect control when the door is open.
AIR CURTAIN SERIES #SHD07
Optional: Custom Colors &
Stainless Steel Available - call us

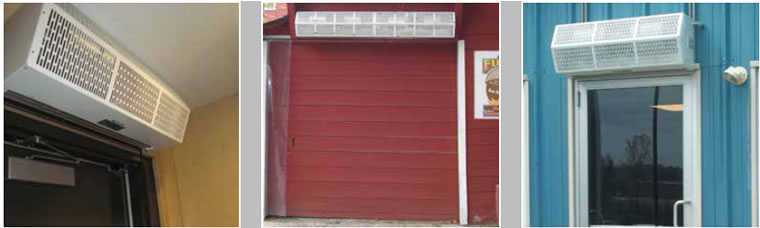

IDEAL APPLICATIONS:
Kitchen / Employee Service Doors
For mounting heights to 7' (insect control)
Standard Construction Installation & Mounting
• EPH Listed per NSF 37
• 14” high x 15” deep
• ¾ hp single speed motor(s)
• White or black aluminum exterior cover
• Wall and top mounting
Simple to install, operate & maintain
• Single lengths up to 10’
• No Assembly Required
• Wall plate included
• 1/4” keyhole slots for wall mounting
• 5/16” threaded inserts for top mounting
Control Options
Optional: Wall mounting plate
Activation device (required) options:
• door switch
• on/off switch
Click here for Installation & Maintenance Instructions
Control Packages:
• Basic
Building Automation & Door Controller versions available.



Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click the Model No. of the item you wish to purchase.

SANITATION CERTIFIED HIGH PERFORMANCE 7
Ambient (Unheated) Air Curtain

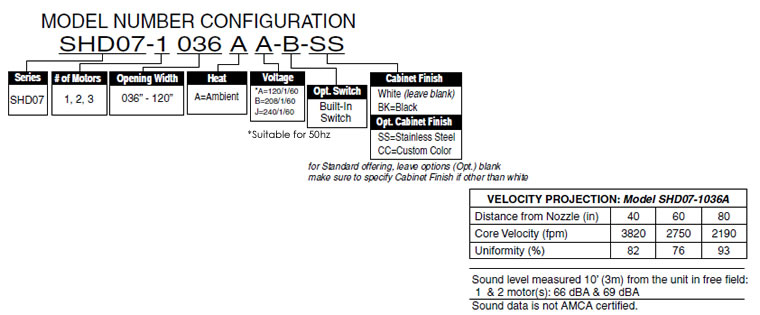

MODEL
120-240V
Nozzle
Width
(in)
Max
Vel. at
Nozzle
(fpm)
Avg.
Outlet
Vel.
(fpm)
Air
Volume
(cfm)
Outlet
Vel.
Uniformity
Power
Rating
(kW)
 Motor(s)
@ hp
Net
Wt.
(lbs)
Price
36
5,917
2,110
1,846
73%
0.77
1 @ 3/4
50
$1,274
42
4,418
1,716
1,752
79%
0.75
1 @ 3/4
52
$1,392
48
3,815
1,613
1,882
38%
0.73
1 @ 3/4
53
$1,415
60
3,963
1,869
2,726
74%
1.18
2 @ 3/4
70
$1,969
72
5,917
2,110
3,692
73%
1.54
2 @ 3/4
100
$2,116
87
4,418
1,657
3,504
79%
1.5
2 @ 3/4
104
$2,631
99
3,815
1,564
3,764
38%
1.46
2 @ 3/4
106
$2,714
114
5,917
1,999
5,538
73%
2.31
3 @ 3/4
150
$3,492
116.5
4,418
1,923
5,444
73%
2.29
3 @ 3/4
152
$3,613
Specify voltage: 120/1/60, 208/1/60, 240/1/60 Specify color: White(standard) or Black, if none chosen White will ship.
NOTE: Operation at 50 Hz will generate approximately a 17% reduction in air performance.
See Electrical Performance Chart below for amp draws/total load requirements.

Recommended for openings where the door stays open for an extended period or does not have a lot of traffic.
Includes: Field Mounted Door Switch
SANITATION CERTIFIED 7 Accessories
BASIC CONTROL PACKAGE
MODEL #
SWITCH TYPE & MOTOR VOLTAGE
Price
NEMA 1 Plunger 120-240V
$60
NEMA 1 Roller 120-240V
$97

Ambient (Unheated) Air Curtain
Electrical Performance Chart
120/1/60 (voltage code A)
208/1/60 (voltage code B)
240/1/60 (voltage code J)
MOTOR AMP DRAW = 7.5 each
MOTOR AMP DRAW = 3.8 each
MOTOR AMP DRAW = 3.8 each
MODEL
#
CKTS
AMPS
PER
CIRCUIT
BREAKER
RATING
PER
CIRCUIT
#
CKTS
AMPS
PER
CIRCUIT
BREAKER
RATING
PER
CIRCUIT
#
CKTS
AMPS
PER
CIRCUIT
BREAKER
RATING
PER
CIRCUIT
SHD07-1036A
1
7.5
15
1
3.8
15
1
3.8
15
SHD07-1042A
SHD07-1048A
SHD07-2060A
1
15
20
1
7.6
15
1
7.6
15
SHD07-2072A
SHD07-2084A
SHD07-2096A
SHD07-3108A
1
22.5
25
1
11.4
15
1
11.4
15
SHD07-3120A

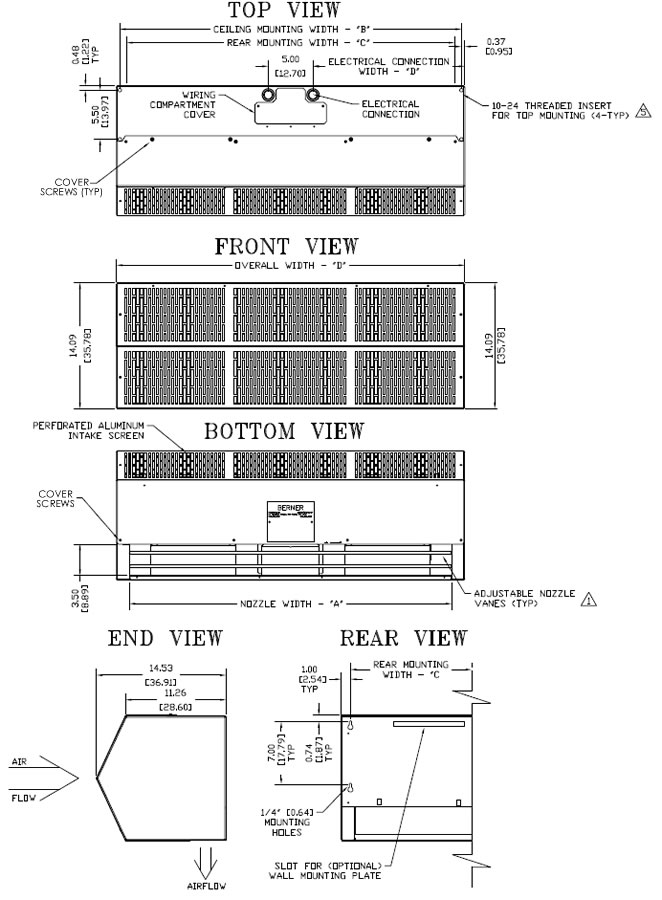

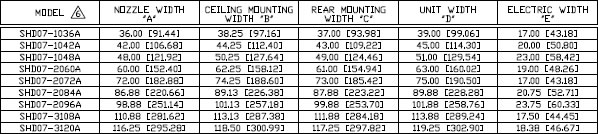

SHD07 AMBIENT SYSTEM
NOTES:
1. Air curtain must be installed so air stream is not obstructed when
    deflected 20° to either side of Ç.
2. Electrical connections to be flexible.
3. Field verify dimensions.
4. Anchors to supporting structure by others.
5. Adequacy of supporting structure is to be verified by a professional
    structural engineer.
6. Letter "A" in model number designates ambient unit.
7. Dimensions in inches [centimeters].

INSTALLATION & MAINTENANCE INSTRUCTIONS
Commercial High
Performance 10
Air Curtain
(Air Door)
Sanitation Certified
High Performance 7
Air Curtain
(Air Door)
TABLE OF CONTENTS
I. UNCRATING
II. GENERAL MOUNTING INSTRUCTIONS
III. WALL MOUNTING
IV. SUSPENDED MOUNTING
V. ELECTRICAL CONNECTIONS
VI. FIELD CONNECTIONS
VII. OPERATING INSTRUCTIONS
VIII. MAINTENANCE AND CLEANING
IX. SERVICE

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
A. Read all instructions before installing or using this air curtain.
B. Use this unit only in the manner intended by the manufacturer and described in this manual. Any other use not recommended
     by the manufacturer may cause fire, electric shock, or injury to persons. If you have any questions, contact the manufacturer.
C. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power
     from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent
     warning device, such as a tag, to the service panel.
D. Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable national and local
      codes having jurisdiction, including fire-rated construction. See below, ELECTRICAL CONNECTIONS (NEC Code ANSI/NFPA
      No. 70).
E. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
F. To reduce the risk of fire, do not store or use gasoline or other flammable vapors and liquids in the vicinity of the air curtain.
G. This air curtain is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such
     as furniture, pillows, bedding, papers, clothes, etc. and curtains at least 1 inch from the top, back, front, sides and at least
     6 feet from the discharge of the air curtain.
H. Extreme caution is necessary when any air curtain is used by or near children or invalids, and whenever the heater is left
     operating unattended.
I. Do not operate any air curtain after it malfunctions. Disconnect power at the service panel and have the air curtain inspected
    by a reputable electrician before reusing.
J. To disconnect the air curtain, turn controls to “off”, and turn off power to the air curtain circuit at main disconnect panel.
K. Do not insert or allow foreign objects to enter any ventilation or discharge opening as this may cause an electric shock or fire,
     or damage the air curtain.
L. To prevent a possible fire, do not block the air intake or discharge of the air curtain in any manner.
M. The air curtain has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable vapors
      or liquids are used or stored.
N. This heater may include an audible or visual alarm to warn that parts of the heater are getting excessively hot. If the alarm
      sounds (or illuminates), immediately turn the heater off and inspect for any objects on or adjacent to the heater that may have
      blocked the airflow or otherwise caused high temperatures to have occurred.
DO NOT OPERATE THE HEATER WITH THE ALARM SOUNDING (OR ILLUMINATING).
I. UNCRATING
Carefully examine the carton(s) for damage. If the
carton is damaged, immediately notify the shipping
company. Do not delay in filing claim. If the air
curtain(s) were shipped on wooden skids, remove
protective wood and banding straps securing the
carton(s) to the skid. Open the carton(s) and
remove all protective packaging.
Immediately verify that the electrical rating nameplate
located on the cover matches electrical power supply
available. Retain the shipping carton(s) until the air
curtain(s) are installed and properly operating.
ACCESSORIES:

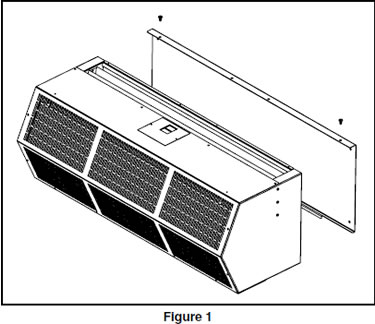

If the air curtain was ordered with a wall mounting
plate, remove and save the two (2) locking screws
from the back corners and detach the wall mounting
plate. See Figure 1.
If the air curtain(s) were ordered with optional electrical
accessories, the accessories will be found in the carton
containing the air curtain or in a separate carton(s)
accompanying the air curtain(s). Check all of the
cartons/skids for accessories before discarding.

Simple to Install
Easy to operate & maintain

II. MOUNTING INSTRUCTIONS (General)
INDOOR MOUNTING - Environmental/ Insect/Dust
Control
OUTDOOR MOUNTING (Unheated Only) - Insect/
Dust Control
The Commercial High Performance 10 & the Sanitation
Certified High Performance 7 Air Curtains are designed
to be an effective barrier against cold drafts in the winter
and hot air in the summer, flying insects and airborne
contaminants.
To achieve optimum protection, the air curtain should
be mounted on the inside of the building, flush to the
wall and as close to the top of the door opening as

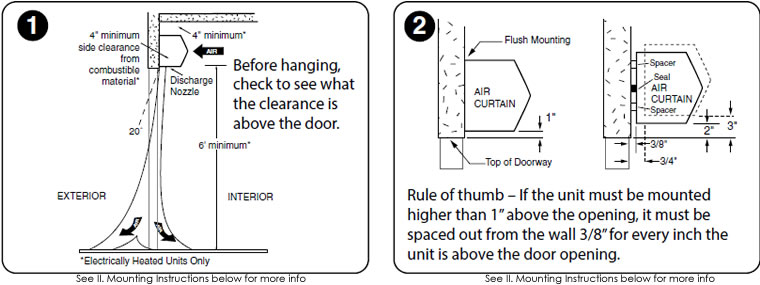

possible. To ensure peak performance, keep the air
stream free of obstructions.
The air curtain will not perform properly if negative air
pressure exists in the building. Under these conditions,
a means for makeup air to the building must be provided
so that the air pressure on both sides of the opening is in
balance.
Before mounting the air curtain, check the supporting
structure to verify that it has sufficient load-carrying
capacity to support the weight of the air curtain(s).
The mounting hardware (supplied by others) should
be capable of supporting a minimum of three (3)
times the weight of the air curtain.
See Table 1 or Table 2.
Figure 2
IMPORTANT: A minimum of 4” is required above
Model
CHD08
Ambient
CHD08
Electric
Model
SHD07
Ambient
CHD10-1036
50
52
SHD07-1036
50
CHD10-1042
52
55
SHD07-1042
52
CHD10-1048
53
56
SHD07-1048
53
CHD10-1060
54
63
SHD07-2060
70
CHD10-2060
70
96
SHD07-2072
84
CHD10-2072
84
104
SHD07-2084
104
CHD10-2084
104
110
SHD07-2096
106
CHD10-2096
106
112
SHD07-3108
150
CHD10-3096
120
148
SHD07-3120
152
CHD10-2108
107
119

CHD10-3108
150
156

CHD10-2120
108
126

CHD10-3120
152
159

the top of the air curtain for the installation and
removal of the inlet screen and access to
electrical compartment.
A. When determining the mounting location for the air
curtain(s), make sure that nothing interferes with the
curtain of air developed when the discharge vanes
are directed from 0° to 20° toward the door open-
ing. If the air stream strikes any obstruction (the
top edge of the doorway, a door opening device,
etc.), the effectiveness of the air curtain will be
greatly reduced. See Figure 2.

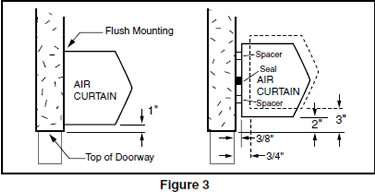

B. For optimum performance, the bottom of the air
curtain (discharge nozzle) should be no more than
1” above the top of the door opening with the air
curtain(s) mounted flush to the wall. If the air
curtain must be mounted higher, it must be
spaced out from the wall 3/8” for every inch
the air curtain is above the door opening. See
Figure 3
. For optimum protection, any void
between the air curtain and the wall should be
sealed along the full length of the air curtain.
TABLE 1 - CHD10 Unit Weight TABLE 2 -
SHD07 Unit Weight
C. Do not block (obstruct) the air intake grill.
     Insufficient airflow can cause the unit to overheat.
D. Electric heated air curtain(s) shall:
1. Have a minimum clearance of at least 4”
    between the sides and top of the air curtain
    and any combustible material.
2. Have a minimum clearance of at least 6’
    between the bottom of the air curtain and
    the floor.
3. Be installed Indoors Only.
E. Proceed to either Section III - Wall Mounting
     or Section IV - Suspended Mounting

III. WALL MOUNTING
If a wall mounting plate was ordered with the air curtain,
proceed to B. Wall Mounting – using the wall mounting
plate (sold separately), otherwise proceed:
A. WALL MOUNTING - without wall mounting
     plate
1. Making sure that the air curtain is centered over
the opening, determine the exact mounting
location of the air curtain.
NOTE: A minimum of 4” is recommended above
the air curtain to provide clearance for installation
and removal of the cover housing.
2. Remove the screen by removing screws from
the top, bottom and front of the air curtain,
and slide the screen away from the blower
assembly.

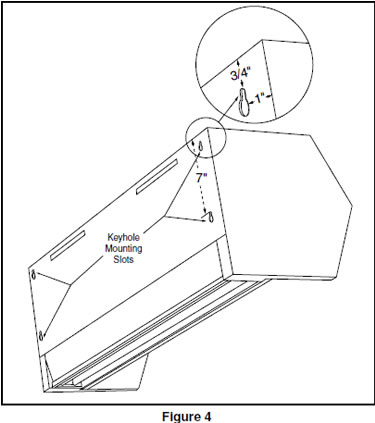

3. The air curtain is equipped with four 1/4" key-
hole mounting slots on the back of each unit
for wall mounting. The slots are spaced 1"
from the ends, and 3/4" and 7" from the top.
See Figure 4.
4. Mark the wall according to the length of the air
curtain. The wall must provide sufficient support
for the air curtain. If the keyhole slots are not
located where suitable support is available, drill
new holes in the unit back plate where space is
available.
5. The mounting hardware (supplied by others)
must be capable of supporting a minimum of
three times the net weight of the air curtain. See
Weight Chart, Table 1 or Table 2.
6. Keyhole Mounting: Install the mounting
hardware (supplied by others), allowing for
space to hang the air curtain by not fully
tightening. Without touching the blower wheels,
lift and slip the air curtain over the mounting
hardware by grasping the inlet rings of the
blower housing. Tighten the mounting hard-
ware. See Figure 5.
7. Drilled Mounting Holes: Lift the air curtain by
grasping the inlet rings on the blower housing,
without touching the blower wheels, and install
the mounting hardware (supplied by others)
through the drilled holes.
8. Reinstall the screen using hardware removed
    in Step 2.
9. Proceed to Section V - Electrical Connections.
B. WALL MOUNTING – using the wall mounting
plate (sold separately)
1. PREPARATION
a. Position and center the mounting plate over the
door opening. The mounting plate must be
positioned with the “Z” lip on top. Drill
mounting holes on the mounting plate.
See Figure 6.
b. Mark the wall in the center of each mounting
plate hole. The wall must provide sufficient
support for the air curtain. The mounting
hardware (supplied by others) must be
capable of supporting a minimum of three
times the net weight of the air curtain. See
Weight Chart, Table 1 or Table 2
. If the
location of the marks on the wall do not
provide suitable support, mark and drill
additional holes.
c. Drill the four holes as marked on the wall and
attach the mounting plate with anchors (if used)
and the four mounting screws (provided by
others).
2. ATTACHING THE AIR CURTAIN
    TO THE MOUNTING PLATE
a. Raise the air curtain over the door (air discharge
nozzle facing down) and on to the mounting
plate. First, tilt the unit upward matching the
rectangular openings to the “Z” lip on the
mounting plate. See Figure 7.
b. Lower the air curtain into place, allowing it to
    rest on the lower lip of the mounting plate.
c. After the air curtain is securely attached to the
mounting plate, re-install the two (2) locking
screws at the bottom corners. See Figure 7.
IV. SUSPENDED MOUNTING

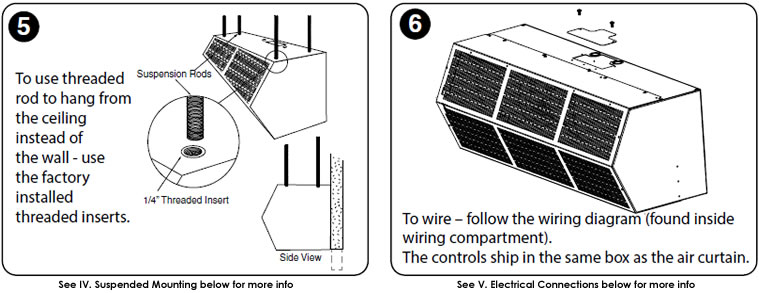

A. For top mounting using suspension rods, four.
(4) factory installed 1/4” threaded inserts are
located in the top of the air curtain.
See Figure 8
B. Install 1/4” threaded rods, or other suitable
hardware at a location with sufficient support for
the air curtain. The mounting hardware (supplied
by others) must be capable of supporting a
minimum of three times the net weight of the air
curtain. See Weight Chart, Table 1 or Table 2.
C. Attach threaded rods, or other suitable hardware
     to the top mounted threaded inserts.
D. Proceed to Section V – Electrical Connections
V. ELECTRICAL CONNECTIONS
All electrical wiring and connections MUST be per-
formed by qualified personnel in accordance with
the latest edition of the National Electrical Code
ANSI/NFPA No. 70 or, in Canada, the Canadian
Electrical Code, Part 1-C.S.A. Standard C22.1
and local codes and regulations.
MAKE SURE THE CORRECT
VOLTAGE AS MARKED ON THE UNIT
IS USED.
A. A separate line voltage supply with a suitable
branch circuit protection device should be run
directly from the main electrical panel to the unit.
A disconnect switch for each branch circuit is a
required part of this installation. See the voltage
label on the unit for circuiting and total electrical
load. The wiring diagram is located in the wiring
compartment.
VI. FIELD CONNECTIONS
A. ELECTRICALLY HEATED MODELS
B. All field wiring must be copper with a minimum
The heater circuit may be controlled by a remote
thermostat, manually through a unit mounted or
remote mounted three position - fan only/off/fan
with heat switch. Overheating protection is provided
by auto reset thermal cutouts built into the blower
assembly (see wiring diagram). Proceed to
Section VII - Operating Instructions.
insulation of 60°C within approved conduit. If any
of the wire supplied with the unit must be replaced,
it must be replaced with copper wiring with a
minimum insulation of 90°C.

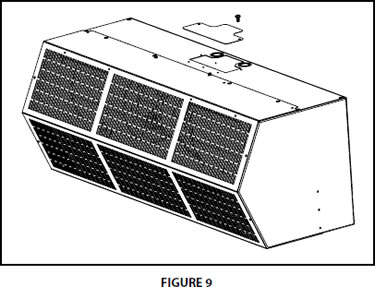

C. Remove the wiring compartment cover on top
     of the air curtain. See Figure 9.
D. The top of the air curtain has knockouts on each
side of the wiring compartment. Remove the
required knockout and connect the power
supply to the air curtain. Connect all supply
and control circuit wires according to the
wiring diagram provided.
NOTE: For Electrically heated air curtains provided
with the optional remote thermostat, mount and wire
the thermostat according to thermostat instructions
and wiring diagram.
For Electrically heated air curtains proceed to
Section V - Field Connections, otherwise
proceed to Section VI - Airflow Adjustments
VII. OPERATING INSTRUCTIONS
A. GENERAL OPERATION
Air curtain operation may be divided into four areas:
control package, fan activation, fan speed selection,
and heat activation. Depending on the type of
controls ordered one or more of the following
may be applicable. The air curtain must be properly
installed before it is used.
1. Control packages control the air curtain’s
sequence of operation. Unit modes/control
packages are built into the unit and may not
be changed in the field. Refer to your wiring
diagram for specifics about activation
connections and sequence of operation.
a. Basic Control Package – The unit is activated
by a door or selector switch. Either switch
may be line voltage or low voltage (24V).
b. Deluxe Control Package – The unit is
activated by a door or selector switch, but
has a factory installed time delay allowing
the unit to keep running for a period of
time after the door closes.
B. AIR STREAM ADJUSTMENT
1. With the air curtain operating and the door in.
its full open position, check to see that nothing is
obstructing the airflow at the discharge nozzle
vanes.
c. Comfort Plus Control Package – Available
only on heated units, the unit is activated by
a door or selector switch AND a thermostat
to provide supplemental heating.
NOTE: Not available with 575V motors.
2. Find the air stream split location. Hold a hand-
kerchief by its corners, approximately 12” above
the floor. Gently move the handkerchief back
and forth in the doorway. Make sure the air is
being directed to both the inside and the outside.
See Figure 10. The split location is indicated
where the handkerchief is vertical with minimal
or no fluttering.
2. Unheated air curtains will have the fans
activated by a door or selector switch or
sensor. The unit may be single speed and
require no fan speed selector (On/Off), or may
have three fan speeds which require either a
unit or remote mounted switch (Off, High,
Med, Low).
3. The split location should be approximately 3”
outside the doorway. If necessary adjust the
discharge nozzle vanes by de-energizing the unit,
loosening the nozzle vane locking screws and
adjusting vanes.
3. Heated air curtains will have fans activated by
a door or selector switch or sensor, but may
also be activated by the thermostat in Comfort
Plus Mode. The unit has three fan speeds
which can be set by either a unit or remote
mounted switch (Low, Med, High, Off, Low
heat, Med Heat, High Heat).
4. Heat activation is controlled by either a unit or
remote mounted thermostat, and a unit or remote
mounted switch.
VIII. MAINTENANCE & CLEANING
CAUTION: ELECTRIC SHOCK HAZARD
Disconnect power whenever servicing unit.
More than one disconnect may be required
to de-energize unit.
Keep your air curtain operating at peak efficiency by
cleaning the blower wheels, motor(s) and intake grill.
Buildup of dust on the blower wheels can cause
vibration, noise and excessive wear on the motor
bearings. The frequency of cleaning will depend
on the environment where the unit is operating.
Dirty, dusty or greasy environments could require a
cleaning schedule of once every two months. If the
environment is not that dirty, the unit(s) should be
scheduled for cleaning a minimum of once every
(6) months.
A. PERFORMING PREVENTIVE
     MAINTENANCE
1. Disconnect and lockout power to the unit. IX. SERVICE

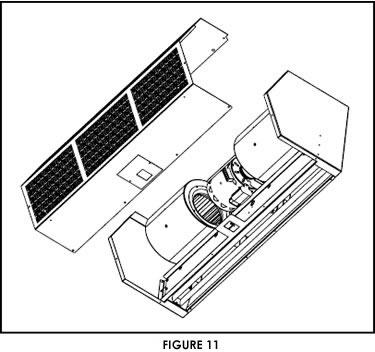

2. Remove the intake screen by removing the
Any service performed on the air curtain MUST be
done by qualified personnel.
machine screws located around the bottom,
front and top of the screen See Figure 11.
Our air curtains require very little servicing. All parts
are easily accessible for periodic inspection and
maintenance. Units should be cleaned at least twice
a year. Your particular application (the amount of dirt
and dust in the air) and location of the unit(s) will
determine how often your unit(s) will need to be
cleaned and serviced. All motors have permanently
lubricated, sealed, sleeve bearings and require no
maintenance
3. Vacuum and scrape (if necessary) to remove
the build-up of dirt and debris. The motor(s)
are permanently lubricated and require no
additional lubrication. Re-install the cover
and intake grill.
4. Switch the power on after cleaning.
CAUTION: STAND CLEAR OF THE UNIT OR
WEAR SAFETY GOGGLES AS LOOSE DEBRIS
MAY BE PRESENT AND MAY EXIT THE
NOZZLE.

Sanitation Certified High Performance 7 Air Curtain, High Performance 7 Air Curtain, Commercial Air Curtain, Commercial
Air Door, Unheated Air Curtain, Air Curtains, and Insect Barrier from your source for material handling equipment.



[HOME] [ORDER] [SEARCH] [QUOTE] [INFO] [ABOUT US] [STEEL PRODUCTS] [E-MAIL]
