SHIPS LADDER -
68° STEEP INCLINE

ships ladder extented handrail hatch access models
STRUCTURAL STEEL STAIRWAYS
SHIPS LADDER DESIGN
safe access with minimum space requirement
NOW! 5 COLOR CHOICES!
SAME PRICE!
   Quality engineered to your specific height
       requirement.
  Designed for safety and convenience.
  Heavy duty bar grating stair treads won't
      sag or dish (supplied as standard).
  Factory welded handrails of
       1 1/2" x 11 ga. square tubing.
 10" structural channel stringers.
 Fire proof construction.
 Standard finish gray polyester powder
      coated, others available upon request.
 Standard 24" wide treads, 27" overall stair
      width. Other widths available upon request.
 Tread depth is 6".

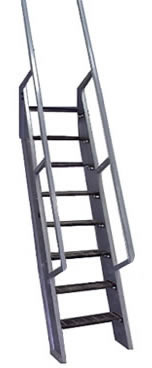

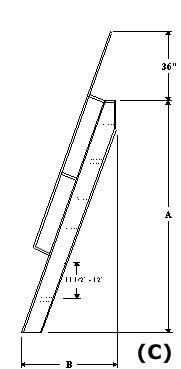

(C) Standard Extended
Handrail Models

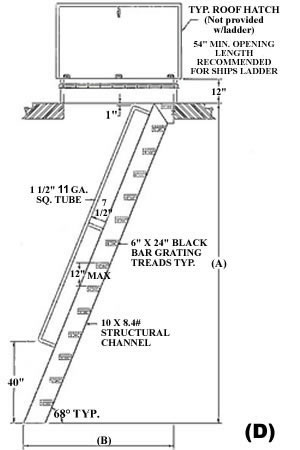

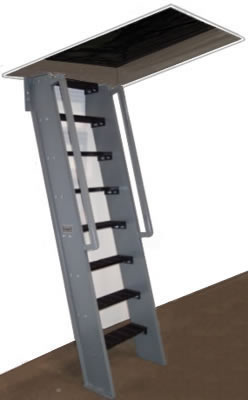

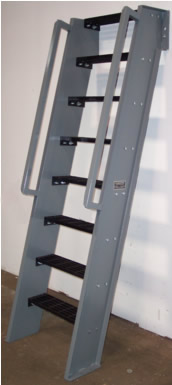

(D) Hatch Access Models
(Short Handrail)
ships ladder extented handrail ships ladder
OSHA CONFORMANCE
See Details Below Price Tables
CUSTOM SIZES - SAME DAY QUOTES
Custom sizes and configurations are readily available.
We provide same day price quotes if you require a
special stair angle, specific tread rise/run, or a maximum
horizontal stair run to satisfy available floor space
constraints.
NEW! Optional Finishes!
Our standard finish is a quick dry polyester powder coat Gray (RAL 7005).
Also available in Black (RAL 9005), Blue (RAL 5010), White (RAL 9016) and
Safety Yellow (RAL 1023). In addition we are pleased to offer our products with a
hot-dipped galvanized finish or in a Two Part System which is our powder coat over a
hot-dipped galvanized undercoat.
Color Disclaimer: Please note that the appearance of the color blocks shown above may vary depending on the device used
to view this web page.

ships ladder ships ladder
Vertical Handrail to 42" guard height
optional on ships ladders. (VHR)

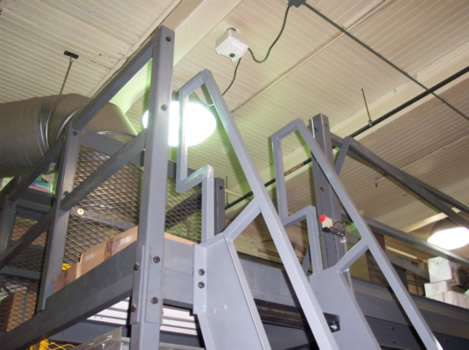

Walk-thru handrail optional on ships ladder (WTHR)

Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click a Price of the item you wish to purchase.


Add $122.00 to standard pricing and add -
VHR to Model No.
Add $183.00 to standard pricing and -
WTHR to Model No.
ships ladder extented handrail ships ladder
Steel Stair Treads
steel stair treads
Bar grating stair treads are safe, self-
cleaning, skid-resistant and economical.
steel stair treads
Important Note When Ordering: Specify actual floor to floor height when ordering, stairways are custom designed to meet your height
requirements
. (A Dimension) *Other sizes available upon request.

Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click a Price of the item you wish to purchase.


(C) PRICING FOR STANDARD EXTENDED HANDRAIL MODELS
Type
Model No.
(A) Height Range (B)
Horizontal Run
Tread
Width
Nominal
Overall
Width
(A) Price w/Pwdr.
Coated Frame
& Black Bar
Grating Treads
(B)
Price with
all Galv.
Finish
Price with
Galv. & Pwdr.
Coat
Low Ht.
(in.)
Upper
Ht. (in.)
SL2438 36" 41" 19 1/2 - 22 3/16 24" 27"
SL2444 42" 47" 22 1/2 - 24 24" 27"
SL2450 48" 53" 24 5/16 - 26 7/8 24" 27"
SL2456 54" 59" 27 1/4 - 28 7/8 24" 27"
SL2462 60" 65" 29 3/16 - 31 11/16 24" 27"
SL2468 66" 71" 32 - 33 11/16 24" 27"
SL2474 72" 77" 34 - 36 7/16 24" 27"
SL2480 78" 83" 36 13/16 - 38 1/2 24" 27"
SL2486 84" 89" 38 7/8 - 41 1/4 24" 27"
SL2490 90" 95" 41 9/16 - 43 3/8 24" 27"
SL2498 96" 101" 43 11/16 - 46 1/16 24" 27"
SL24104 102" 107" 46 7/16 - 48 3/16 24" 27"
SL24110 108" 113" 48 9/16 - 50 7/8 24" 27"
SL24116 114" 119" 51 1/4 - 53 1/16 24" 27"
SL24122 120" 125" 53 7/16 - 55 11/16 24" 27"
SL24128 126" 131" 56 1/16 - 57 7/8 24" 27"
SL24134 132" 137" 58 1/4 - 60 1/2 24" 27"
SL24140 138" 143" 60 7/8 - 62 3/4 24" 27"
SL24146 144" 149" 63 1/8 - 65 3/8 24" 27"
SL24152 150" 155" 65 11/16 - 67 9/16 24" 27"
SL24158 156" 161" 67 15/16 - 70 3/16 24" 27"
SL24164 162" 167" 70 9/16 - 72 7/16 24" 27"
SL24170 168" 173" 72 13/16 - 75 24" 27"
SL24178 174" 179" 75 3/8 - 77 1/4 24" 27"
SL24184 180" 185" 77 5/8 - 79 7/8 24" 27"
SL24190 186" 191" 80 1/4 - 82 1/8 24" 27"

Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click a Price of the item you wish to purchase.


(D) PRICES FOR FLUSH TREAD HATCH ACCESS MODELS
Type
Model No.
(A) Height Range (B)
Horizontal
Run
Tread
Width
Nominal
Overall
Width
(A) Price w/Pwdr.
Coated Frame
& Black Bar
Grating Treads
(B)
Price with
all Galv.
Finish
Price with
Galv. & Pwdr.
Coat
Lower
Ht. (in)
Upper
Ht. (in)
FTHASL2438 36" 41" 24 5/16 - 26 5/16 24" 27"
FTHASL2444 42" 47" 26 3/4 - 28 3/4 24" 27"
FTHASL2450 48" 53" 29 3/16 - 31 3/16 24" 27"
FTHASL2456 54" 59" 31 9/16 - 33 5/8 24" 27"
FTHASL2462 60" 65" 34 - 36 1/16 24" 27"
FTHASL2468 66" 71" 36 7/16 - 38 7/16 24" 27"
FTHASL2474 72" 77" 38 7/8 - 40 7/8 24" 27"
FTHASL2480 78" 83" 41 5/16 - 43 5/16 24" 27"
FTHASL2486 84" 89" 43 11/16 - 45 3/4 24" 27"
FTHASL2490 90" 95" 46 1/8 - 48 3/16 24" 27"
FTHASL2498 96" 101" 48 9/16 - 50 9/16 24" 27"
FTHASL24104 102" 107" 51 - 53 24" 27"
FTHASL24110 108" 113" 53 7/16 - 55 7/16 24" 27"
FTHASL24116 114" 119" 55 13/16 - 57 7/8 24" 27"
FTHASL24122 120" 125" 58 1/4 - 60 1/4 24" 27"
FTHASL24128 126" 131" 60 11/16 - 62 11/16 24" 27"
FTHASL24134 132" 137" 63 1/8 - 65 1/8 24" 27"
FTHASL24140 138" 143" 65 1/2 - 67 9/16 24" 27"
FTHASL24146 144" 149" 67 15/16 - 70 24" 27"
FTHASL24152 150" 155" 70 3/8 - 72 3/8 24" 27"
FTHASL24158 156" 161" 72 13/16 - 74 13/16 24" 27"
FTHASL24164 162" 167" 75 1/4 - 77 1/4 24" 27"
FTHASL24170 168" 173" 77 5/8 - 79 11/16 24" 27"
FTHASL24178 174" 179" 80 1/16 - 82 1/8 24" 27"
FTHASL24184 180" 185" 82 1/2 - 84 1/2 24" 27"
FTHASL24190 186" 191" 84 15/16 - 86 15/16 24" 27"
SAFETY WARNING: These ladders are to be ascended and descended with the user always facing the ladder.
Never descend the ladder facing away from the ladder.

OSHA STANDARD 1910.25 STAIRWAYS
Walking-Working Surfaces and Personal Fall Protection Systems Final Rule
Frequently Asked Questions
The intent of OSHA’s Walking-Working Surfaces standard, 29 CFR Part 1910, Subpart D & I, is to increase the
protection of general industry employees and employers from hazards associated with walking-working surfaces. The
rule making will significantly reduce the number of worker deaths and injuries that occur each year resulting from
workplace slip, trip, and fall hazards. The final rule was published on November 18, 2016, and became effective on
January 17, 2017. Some requirements in the final rule have compliance dates after the effective date and will be
discussed in further detail below. This final rule and the associated preamble, providing more detailed explanation of
the rule, is available on the Federal Register website at 81 FR 82494, Walking-Working Surfaces; Personal Protective
Equipment; Final Rule, November 18, 2016.
OSHA requirements are set by statute, standards, and regulations. The Agency’s interpretations explain these require-
ments and how they apply to particular circumstances, but they do not create additional employer obligations. Note
that our enforcement guidance may be affected by legislative or rule making changes to OSHA requirements. Also,
from time to time we update our guidance in response to new information. To keep apprised of such developments,
you can consult OSHA’s website at http://www.osha.gov.
This webpage provides guidance, in a question and answer format, regarding OSHA’s Final Rule, Walking-Working
Surfaces and Personal Protective Equipment, 29 CFR Part 1910, Subpart D and I. These Frequently Asked Questions
(FAQs) are divided into five sections: general questions, rope descent system (RDS) questions, outdoor advertising
questions, residential roof questions, and agricultural operation questions.

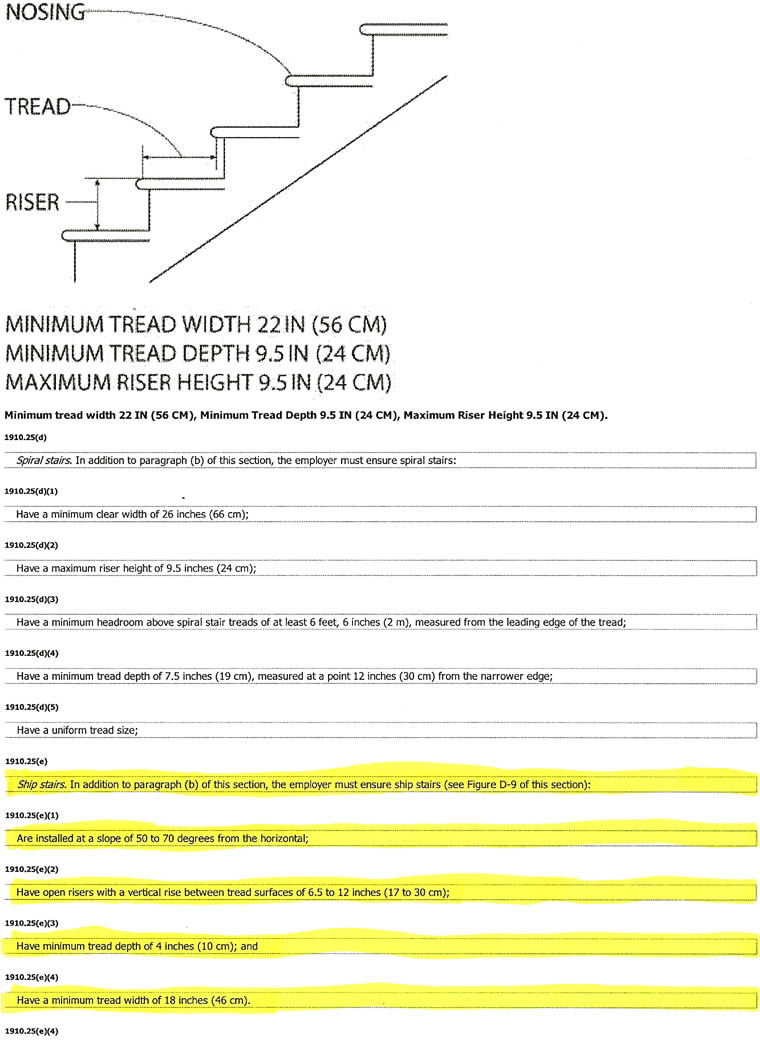

Standard Stairs
Does the exception to the 9.5-inch riser height and 9.5-inch tread depth requirements for stairs installed before
January 17, 2017 (§19210.25(c)(5)), also apply to stairs designed and fabricated, but not yet installed, by that date?
Stairs with design drawings issued for construction or that were in fabrication before January 17, 2017, but not
installed, will be in compliance if they met the previous requirements for standard stairs.

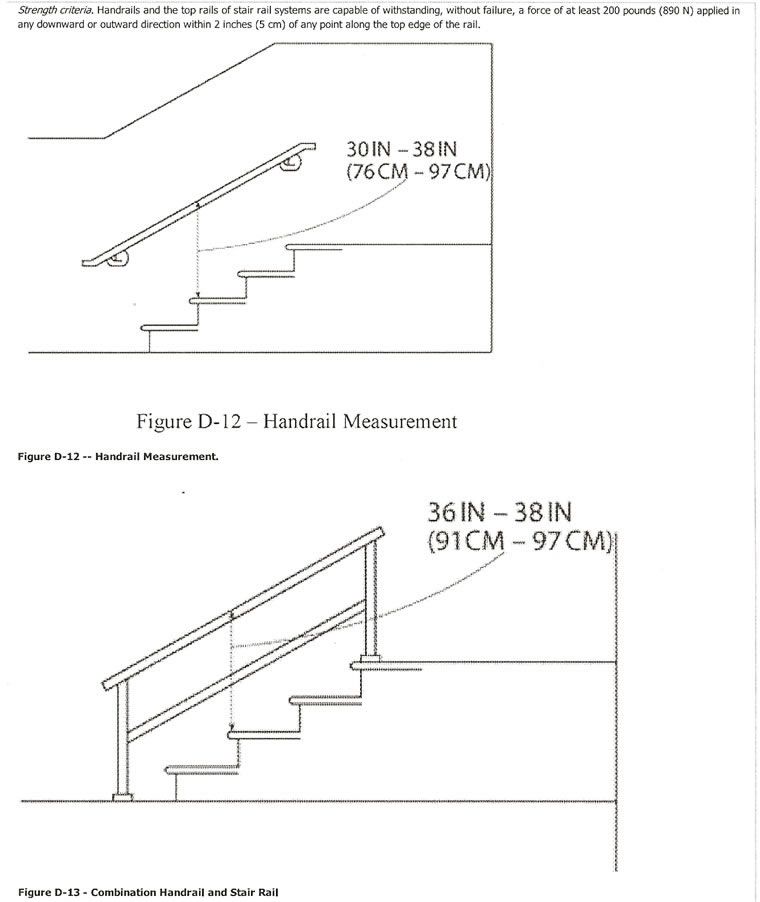

Under the previous standard, stairs with a handrail that doubles as a stair rail could have a rail height of 30 to 34
inches. If an employer's stairs were installed prior to January 17, 2017, must the rails have a minimum height of
36 inches if the stair rail doubles as a handrail?
The final rule does not affect stair rail systems and handrails installed before January 17, 2017 that were in com-
pliance with the requirements in the old standard.
Does the requirement that standard stairs have a slope between 30 to 50 degrees apply to stairs installed after January
7, 2017. Therefore, the maximum angle for standard stairs is 45 degrees.
Yes. The final rule limits the maximum rise height and minimum tread depth to 9.5 inches for standard stairs installed
after January 17, 2017. Therefore, the maximum angle for standard stairs is 45 degrees.
Are stairs installed after January 17, 2017, that have an angle of 50 degrees considered to be ships stairs?

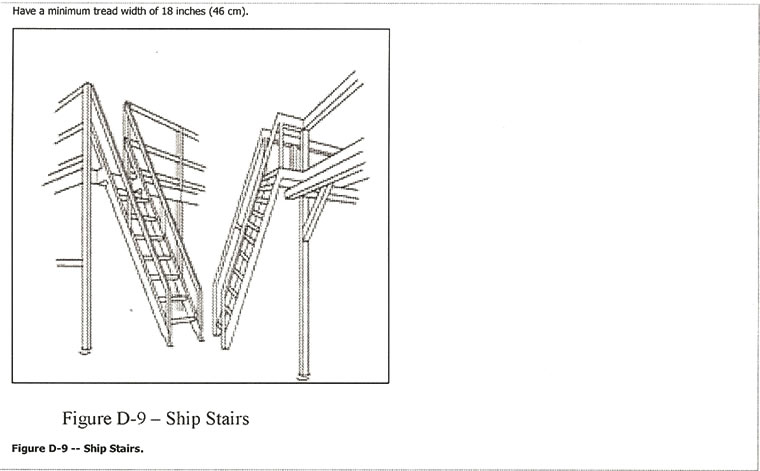

The final rule defines ship stairs as “a stairway that is equipped with treads, stair rails, and open risers, and has a slope
of 50 to 70 degrees.” Ship stairs must also comply with §1910.25(b) and (e), such as a minimum tread depth of 4
inches, a minimum tread width of 18 inches, and a vertical clearance above any stair tread to any overhead
obstruction of at least 6 feet 8 inches.

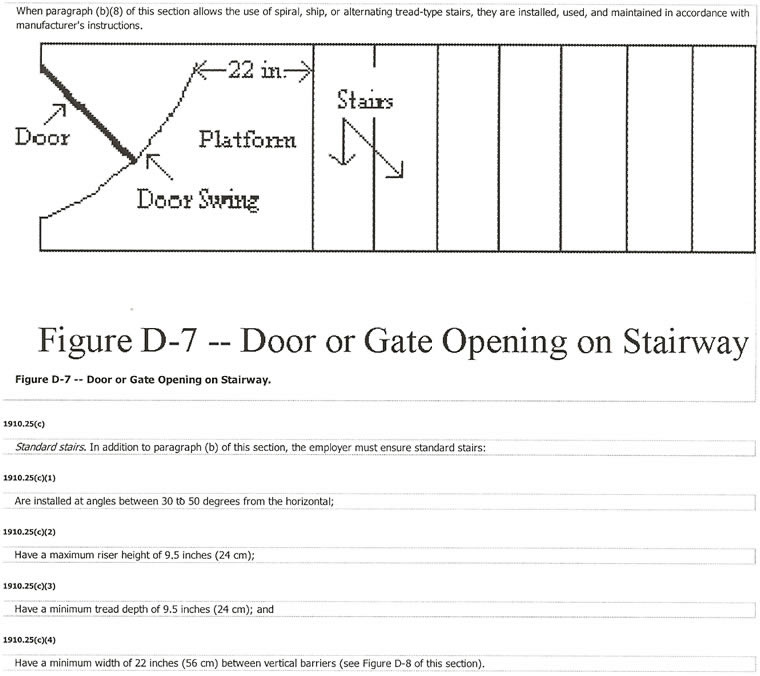

What if the doorway described in §1910.25(b)(5)(ii) and shown in figure D-7 is perpendicular to the direction of
travel and opens onto the landing? Does the same dimension apply to this condition?
Yes. As figure D-7 illustrates, Section 1910.25(b)(5) requires that a platform be provided when a door or a gate opens
directly onto a stairway. For platforms installed after January 17, 2017, the final rule also requires that employers
ensure the swing of the door or gate does not reduce the "effective usable depth" of the platform to less than 22 inches (§1910.25(b)(5)(ii)). The preamble to the final rule describes “effective usable depth” as the portion of the platform
beyond the swing of the door where a worker can stand when opening the door (82 FR 82557). The provision applies
equally to stairway doors that are perpendicular to the direction of travel.

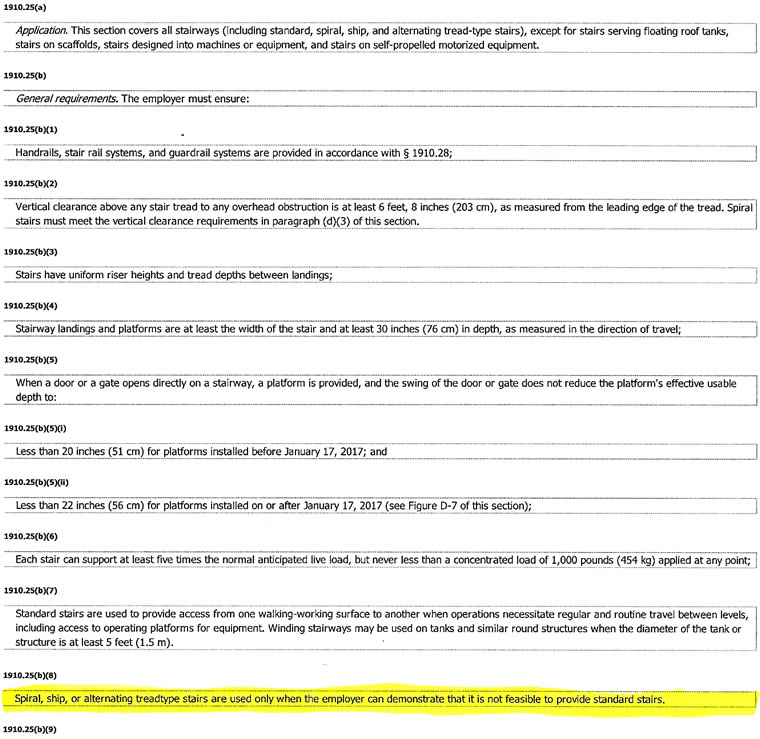

Are fixed stairs attached to the exterior of tanks required to comply with the requirements of §1910.25(b) or would
those stairs fall under the exemptions in §1910.25(a)?

The exception from the stair requirements in §1910.25(a) only applies to stairs serving floating roof tanks, stairs on
scaffolds, stairs on self-propelled motorized equipment, or stairs designed into machines or equipment. For stairs on
the exterior of other tanks, employers would have to ensure they comply with the requirements in §1910.25(b) and (c).
Would winding stairs attached to tanks be required to meet the requirements in §1910.25(d) for spiral stairs?
No. Section 1910.21(b) defines spiral stairs as a "series of treads attached to a vertical pole in a winding fashion,
usually within a cylindrical space" (emphasis added). Winding stairs attached to tanks do not have vertical poles;
therefore, they are not spiral stairs and must meet the requirements of §1910.25(b) and (c).

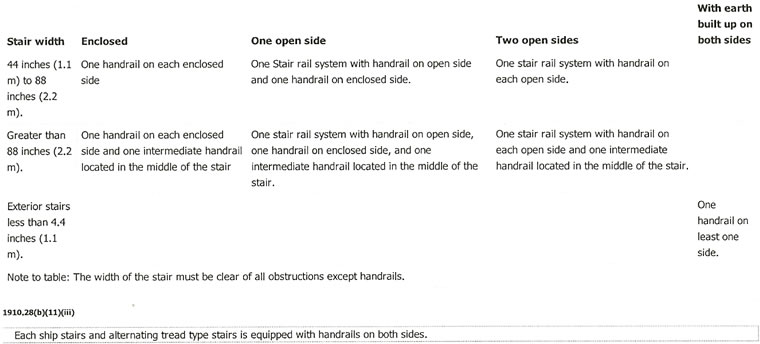

Based on the height requirements for stair rails and handrails and the requirements in Table D-2, are both stair rails
and handrails required on stairs that have two open sides and are less than 44-in. wide?

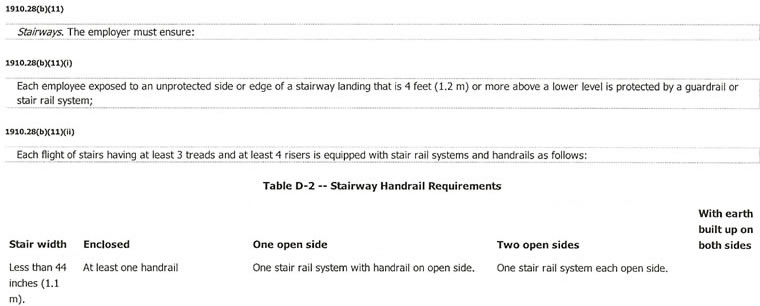

Yes. Section 1910.28(b)(11)(ii) Table D-2 contains a printing error, which OSHA will correct in a published notice.
For each flight of stairs with two open sides and a width of less than 44 inches, column 4 of Table D-2 should state
"One stair rail system with hand rail on each open side" is required. (See 81 FR 82611-12).
