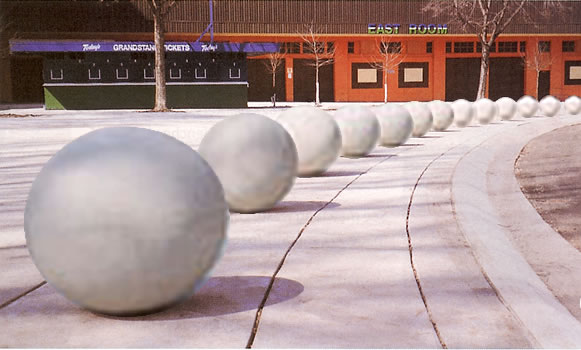

SPHERE BOLLARD
TF6101 / TF6102 / TF6103

Our bollards are constructed of steel rebar encased in concrete to provide superior strength and
protection. Choose from a near-endless array of colors, textures and finishes.
sphere bollard or ball bollard
TF6103
TF6101 QS*
TF6102 QS*
Reinforcing: 3/8" Dia. Steel rebar reinforcement
Maintenance: Rinse with water & mild detergent.
Annual resealing recommended.
Packaging: Banded to Pallet
Material: Reinforced Concrete.
Shape: Circle
*This Quick Ship (QS) item is only available in one color -
Standard Acid Wash Gray.

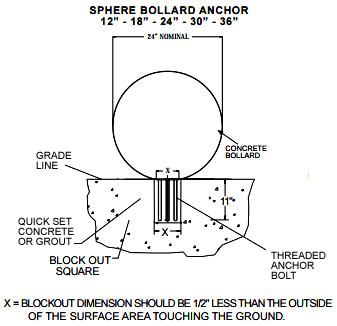

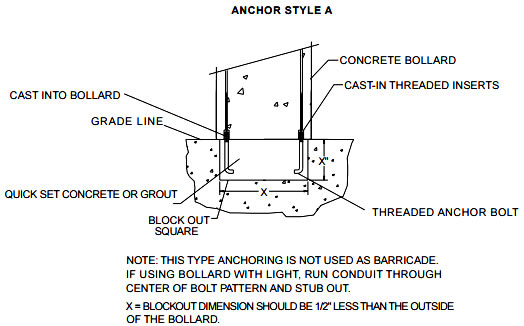

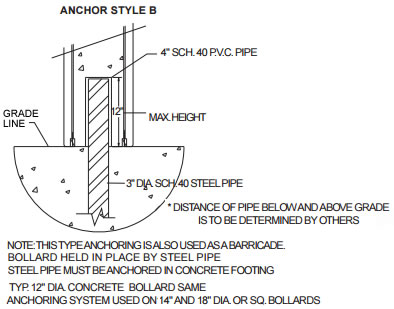

Mounting Options: A or B

Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click the Model No. of the item you wish to purchase.


PRICING FOR BOLLARDS
Model No.
Size
Weight
Price
TF6101 QS*
36" dia.
2200 lbs
$803.23
TF6102 QS*
30" dia.
1200 lbs
$537.85
48" dia.
3800 lbs
$1,049.15
*This Quick Ship (QS) item is only available in one color - Standard Acid Wash Gray.

Available Colors

OPTIONAL LIFTING SLING
MODEL EB6108 ................................................................................................. $176.92

Bollard Installation

SPECIFICATIONS
1.1 SUMMARY
   A. Section includes: Furnish Precast Concrete indicated on drawings or specified
        herein.
1.2 REFERENCES
   A. American Society for Testing & Material
        1. ASTM C33     2. ASTM C150      3. ASTM C31
1.5 SUBMITTALS
   A. Submit product data, shop drawings and samples.
        1. Product Data: Manufacturer's specifications and technical data edited specifically for
            proposed system, including the following specific information:
            a. Detailed specification of construction fabrication.
            b. Manufacturer's installation instructions
            c. Maintenance literature
            d. Product warranty
        2. Shop Drawings: Indicate pertinent dimensions, general construction, component
            connections anchoring methods, hardware and installation procedures.
        3. Samples as requested by Architect.
1.6 QUALITY ASSURANCE
   A. Qualifications of Manufacturer: Manufacturer to be prequalified by specifier prior to bidding.
        Failure to comply will result in disqualification of bid. Manufacturer to have at least five years
        experience in the manufacturer of precast concrete bollards field proven for at least
        five years.
1.10 WARRANTY
   Manufacturer shall submit a written warranty for precast products for the period of two years
    upon acceptance of products.
2.2 MATERIALS
   A. Portland Cement: ASTM C150 specifications for Portland Cement.
   B. Aggregates: All aggregates to meet ASTM C33 specifications, to be cleaned of foreign
        matter and properly graded to size.
   C. Coloring: Pigments used shall be inorganic, resistant to alkalinity and used as per
        manufacturers recommendations.
