STEEL MANUAL CAROUSELS

Manual Carousels

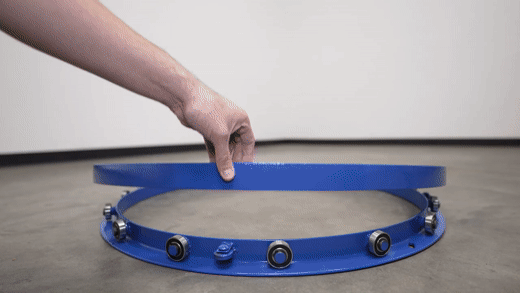

Carousel is shown with rings separated to
illustrate bearings
The Manual Carousels rotate materials with the assistance of an operator. Now loading and unloading operations
can be done more efficiently; minimizing fatigue and risk of back injury. The carousel may be added to an existing
work bench, scissor table, or simply placed on the floor. Constructed of two pieces of rolled structural angle
(3/16" thick). A series of sealed ball bearings transfer the load smoothly and evenly to the supporting surface. Four
guide rollers keep the rings aligned.

Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click a Price of the item you wish to purchase.


PRICES FOR MANUAL CAROUSELS
Model No.
Outer Diameter
Uniform Cap. (lbs.)
Overall Height
Ships Via
Wt. (lbs)
Prices
CA-18-2
18"
2,000
2"
UPS
21
CA-24-2
24"
2,000
2"
UPS
28
CA-24-4
24"
4,000
2"
UPS
30
CA-30-2
30"
2,000
2"
UPS
34
CA-30-4
30"
4,000
2"
UPS
36
CA-36-2
36"
2,000
2"
UPS
41
CA-36-4
36"
4,000
2"
UPS
45
CA-40-2
40"
2,000
2"
UPS
47
CA-40-4
40"
4,000
2"
UPS
49
CA-40-6
40"
6,000
2"
UPS
51
CA-48-2
48"
2,000
2"
TRUCK
71
CA-48-4
48"
4,000
2"
TRUCK
86
CA-48-6
48"
6,000
2"
TRUCK
97
CA-60-2
60"
2,000
2"
TRUCK
110
CA-60-4
60"
4,000
2"
TRUCK
116
CA-60-6
60"
6,000
2"
TRUCK
128
CA-72-2
72"
2,000
2"
TRUCK
163
CA-72-4
72"
4,000
2"
TRUCK
163
CA-72-6
72"
6,000
2"
TRUCK
169
Carousel Options (In Addition to the Carousel)
CA-HBK
Manual Brake (field installed)
3
CA-HOD
Hand Operated Locking Detent (factory installed)
2
CA-FTK
Foot Operated Locking Detent (factory installed)
3

Elevated Bases For Carousels - 12" High

Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click a Price of the item you wish to purchase.


PRICES FOR ELEVATED BASES FOR CAROUSELS
Model No.
Size (WxL)
Cap. Up to (lbs)
Wt. (lbs)
Prices
Elevated Bases For Carousels - 12" High
CA-BASE-18-12
18"Wx18"L
2,000
195
CA-BASE-24-12
24"Wx24"L
4,000
245
CA-BASE-30-12
30"Wx30"L
4,000
295
CA-BASE-36-12
36"Wx36"L
4,000
345
CA-BASE-40-12
40"Wx40"L
6,000
395
CA-BASE-48-12
48"Wx48"L
6,000
450
CA-BASE-60-12
60"Wx60"L
6,000
530
CA-BASE-72-12
72"Wx72"L
6,000
590
Elevated Bases For Carousels - 24" High
CA-BASE-18-24
18"Wx18"L
2,000
330
CA-BASE-24-24
24"Wx24"L
4,000
380
CA-BASE-30-24
30"Wx30"L
4,000
430
CA-BASE-36-24
36"Wx36"L
4,000
460
CA-BASE-40-24
40"Wx40"L
6,000
510
CA-BASE-48-24
48"Wx48"L
6,000
565
CA-BASE-60-24
60"Wx60"L
6,000
645
CA-BASE-72-24
72"Wx72"L
6,000
705
