STEEL SHIPS LADDER - 60° IBC DESIGN
ships ladder extented handrail hatch access models

STRUCTURAL STEEL STAIRWAYS
IBC SHIPS LADDER DESIGN
IBC Compliant safe access with minimum
space requirement based on IBC 1011.15
parameters (see below)
NOW! 5 COLOR CHOICES!
SAME PRICE!
   Quality engineered to your specific height
       requirement.
  Designed for safety and convenience.
  Heavy duty bar grating stair treads
       with nosing won't sag or dish (supplied
       as standard).
  Factory welded handrails of 1 1/2" x 11 ga.
      square tubing.
 10" structural channel stringers.
 Fire proof construction.
 Standard 24" wide treads, 27" overall stair
      width. Other widths available upon request.
 Tread depth is 8-9/16" with nosing.
 Our standard finish is a quick dry gray
      polyester powder coated. Other colors
      available.
Min. 5" tread run/9 1/2" max. riser height.

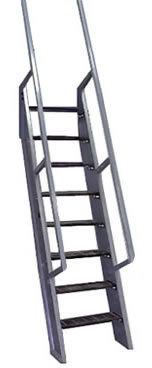

(C) Standard Extended
Handrail Models

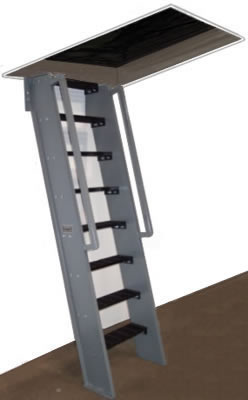

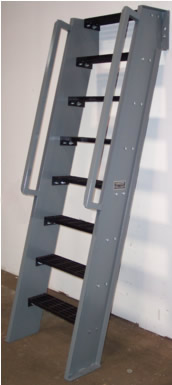

(D) Hatch Access Models
(Short Handrail)
ships ladder
ships ladder extented handrail
IBC CONFORMANCE
See Details Below Price Tables
CUSTOM SIZES - SAME DAY QUOTES
Custom sizes and configurations are readily available. We provide same day price quotes if you require a special stair
angle, specific tread rise/run, or a maximum horizontal stair run to satisfy available floor space constraints.
NEW! Optional Finishes!
Our standard finish is a quick dry polyester powder coat Gray (RAL 7005).
Also available in Black (RAL 9005), Blue (RAL 5010), White (RAL 9016) and
Safety Yellow (RAL 1023). In addition we are pleased to offer our products with a
hot-dipped galvanized finish or in a Two Part System which is our powder coat over a
hot-dipped galvanized undercoat.
Color Disclaimer: Please note that the appearance of the color blocks shown above may vary depending on the device used
to view this web page.
ships ladder ships ladder

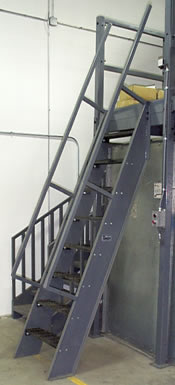

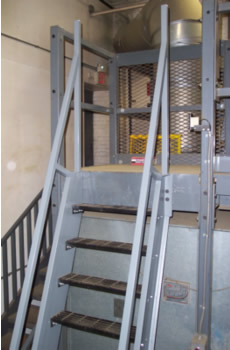

Vertical Handrail to 42" guard height
optional on ships ladders. (VHR)

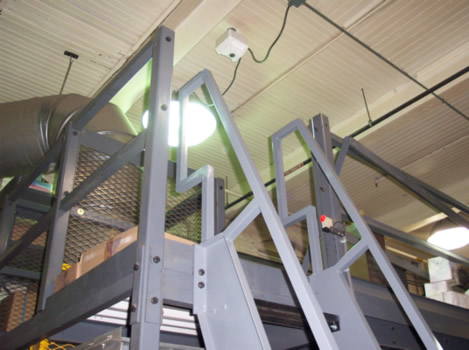

Walk-thru handrail optional on ships ladder (WTHR)
Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click a Price of the item you wish to purchase.
Add $122.00 to standard pricing and add -
VHR to Model No.		 Add $183.00 to standard pricing and -
WTHR to Model No.
ships ladder extented handrail ships ladder
Steel Stair Treads
Bar grating stair treads are safe, self-
cleaning, skid-resistant and economical.
steel stair treads
Important Note When Ordering: Specify actual floor to floor height when ordering, stairways are custom designed to meet your height
requirements. (A Dimension) *Other sizes available upon request.
Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click a Price of the item you wish to purchase.

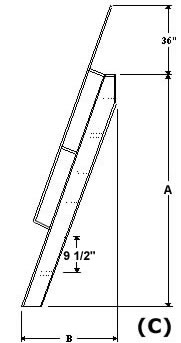

(C) PRICING FOR STANDARD EXTENDED HANDRAIL MODELS
Type
Model No.		 (A) Height Range (B)
Horizontal Run		 Tread
Width		 Nominal
Overall
Width		 (A) Price w/Pwdr.
Coated Frame
& Black Bar
Grating Treads		 (B)
Price with
all Galv.
Finish		 Price with
Galv. & Pwdr.
Coat
Low Ht.
(in.)		 Upper
Ht. (in.)
IBCSL2438
36"
41"
27 7/8 - 31 3/4
24"
27"
IBCSL2444
42"
47"
32 3/16 - 34 5/16
24"
27"
IBCSL2450
48"
53"
34 3/4 - 38 7/16
24"
27"
IBCSL2456
54"
59"
38 15/16 - 41 5/16
24"
27"
IBCSL2462
60"
65"
41 3/4 - 45 5/16
24"
27"
IBCSL2468
66"
71"
45 3/4 - 48 3/16
24"
27"
IBCSL2474
72"
77"
48 5/8 - 52 1/8
24"
27"
IBCSL2480
78"
83"
52 5/8 - 55 1/16
24"
27"
IBCSL2486
84"
89"
55 9/16 - 59
24"
27"
IBCSL2490
90"
95"
59 7/16 - 62
24"
27"
IBCSL2498
96"
101"
62 1/2 - 65 7/8
24"
27"
IBCSL24104
102"
107"
66 3/8 - 68 15/16
24"
27"
IBCSL24110
108"
113"
69 7/16 - 72 3/4
24"
27"
IBCSL24116
114"
119"
73 5/16 - 75 7/8
24"
27"
IBCSL24122
120"
125"
76 7/16 - 79 5/8
24"
27"
IBCSL24128
126"
131"
80 3/16 - 82 3/4
24"
27"
IBCSL24134
132"
137"
83 5/16 - 86 1/2
24"
27"
IBCSL24140
138"
143"
87 1/16 - 89 3/4
24"
27"
IBCSL24146
144"
149"
90 1/4 - 93 1/2
24"
27"
IBCSL24152
150"
155"
93 15/16 - 96 5/8
24"
27"
IBCSL24158
156"
161"
97 1/8 - 100 3/8
24"
27"
IBCSL24164
162"
167"
100 7/8 - 103 9/16
24"
27"
IBCSL24170
168"
173"
104 1/8 - 107 1/4
24"
27"
IBCSL24178
174"
179"
107 13/16 - 110 7/16
24"
27"
IBCSL24184
180"
185"
111 - 114 1/4
24"
27"
IBCSL24190
186"
191"
114 3/4 - 117 7/16
24"
27"
Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click a Price of the item you wish to purchase.

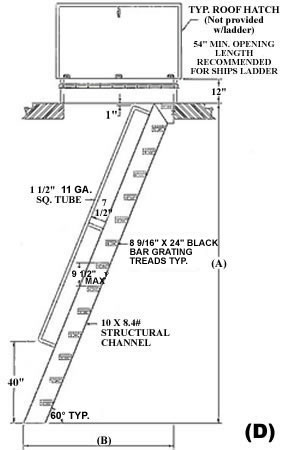

(D) PRICES FOR FLUSH TREAD HATCH ACCESS MODELS
Type
Model No.		 (A) Height Range (B)
Horizontal
Run		 Tread
Width		 Nominal
Overall
Width		 (A) Price w/Pwdr.
Coated Frame
& Black Bar
Grating Treads		 (B)
Price with
all Galv.
Finish		 Price with
Galv. & Pwdr.
Coat
Lower
Ht. (in)		 Upper
Ht. (in)
IBCFTHASL2438
36"
41"
34 3/4 - 36 3/16
24"
27"
IBCFTHASL2444
42"
47"
38 1/4 - 41 1/8
24"
27"
IBCFTHASL2450
48"
53"
41 3/4 - 44 5/8
24"
27"
IBCFTHASL2456
54"
59"
45 1/8 - 48 1/16
24"
27"
IBCFTHASL2462
60"
65"
48 5/8 - 51 9/16
24"
27"
IBCFTHASL2468
66"
71"
52 1/8 - 54 15/16
24"
27"
IBCFTHASL2474
72"
77"
55 9/16 - 58 7/16
24"
27"
IBCFTHASL2480
78"
83"
59 1/16 - 61 15/16
24"
27"
IBCFTHASL2486
84"
89"
62 1/2 - 65 7/16
24"
27"
IBCFTHASL2490
90"
95"
65 15/16 - 68 15/16
24"
27"
IBCFTHASL2498
96"
101"
69 7/16 - 72 5/16
24"
27"
IBCFTHASL24104
102"
107"
72 15/16 - 75 13/16
24"
27"
IBCFTHASL24110
108"
113"
76 7/16 - 79 1/4
24"
27"
IBCFTHASL24116
114"
119"
79 13/16 - 82 3/4
24"
27"
IBCFTHASL24122
120"
125"
83 5/16 - 86 3/16
24"
27"
IBCFTHASL24128
126"
131"
86 13/16 - 89 5/8
24"
27"
IBCFTHASL24134
132"
137"
90 1/4 - 93 1/8
24"
27"
IBCFTHASL24140
138"
143"
93 11/16 - 96 5/8
24"
27"
IBCFTHASL24146
144"
149"
97 1/8 - 100 1/8
24"
27"
IBCFTHASL24152
150"
155"
100 5/8 - 103 1/2
24"
27"
IBCFTHASL24158
156"
161"
104 1/8 - 107
24"
27"
IBCFTHASL24164
162"
167"
107 5/8 - 110 7/16
24"
27"
IBCFTHASL24170
168"
173"
111 - 113 15/16
24"
27"
IBCFTHASL24178
174"
179"
114 1/2 - 117 7/16
24"
27"
IBCFTHASL24184
180"
185"
118 - 120 13/16
24"
27"
IBCFTHASL24190
186"
191"
121 7/16 - 124 5/16
24"
27"
SAFETY WARNING: These ladders are to be ascended and descended with the user always facing the ladder.
Never descend the ladder facing away from the ladder.
IBC 1011.15 CONFORMANCE
1011.15 Ships ladders. Ships ladders are permitted to be used in Group I-3 as a component of a means of egress
to and from control rooms or elevated facility observation stations not more than 250 square feet (23 m²) with not
more than three occupants and for access to unoccupied roofs. The minimum clear width at and below the handrails
shall be 20 inches (508 mm)
1011.15.1 Handrails of ships ladders. Handrails shall be provided on both sides of ships ladders.
1011.15.2 Treads of ships ladders. Ships ladders shall have a minimum tread depth of 5 inches (127 mm).
The tread shall be projected such that the total of the tread depth plus the nosing projection is not less than
8 1/2 inches (216 mm). The maximum riser height shall be 9 1/2 inches (241 mm)
